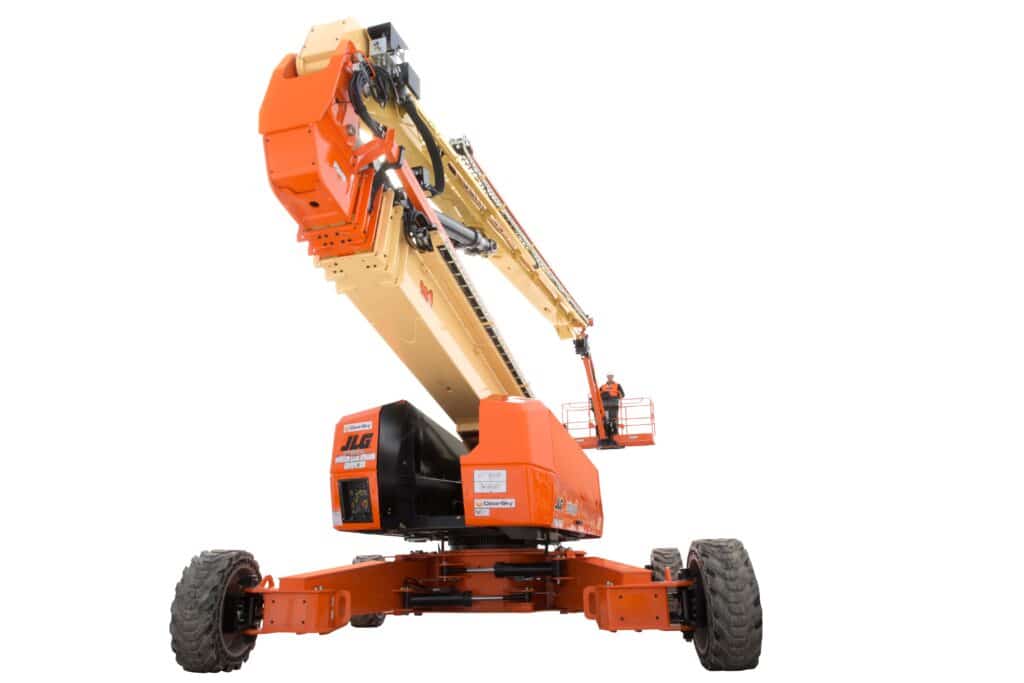

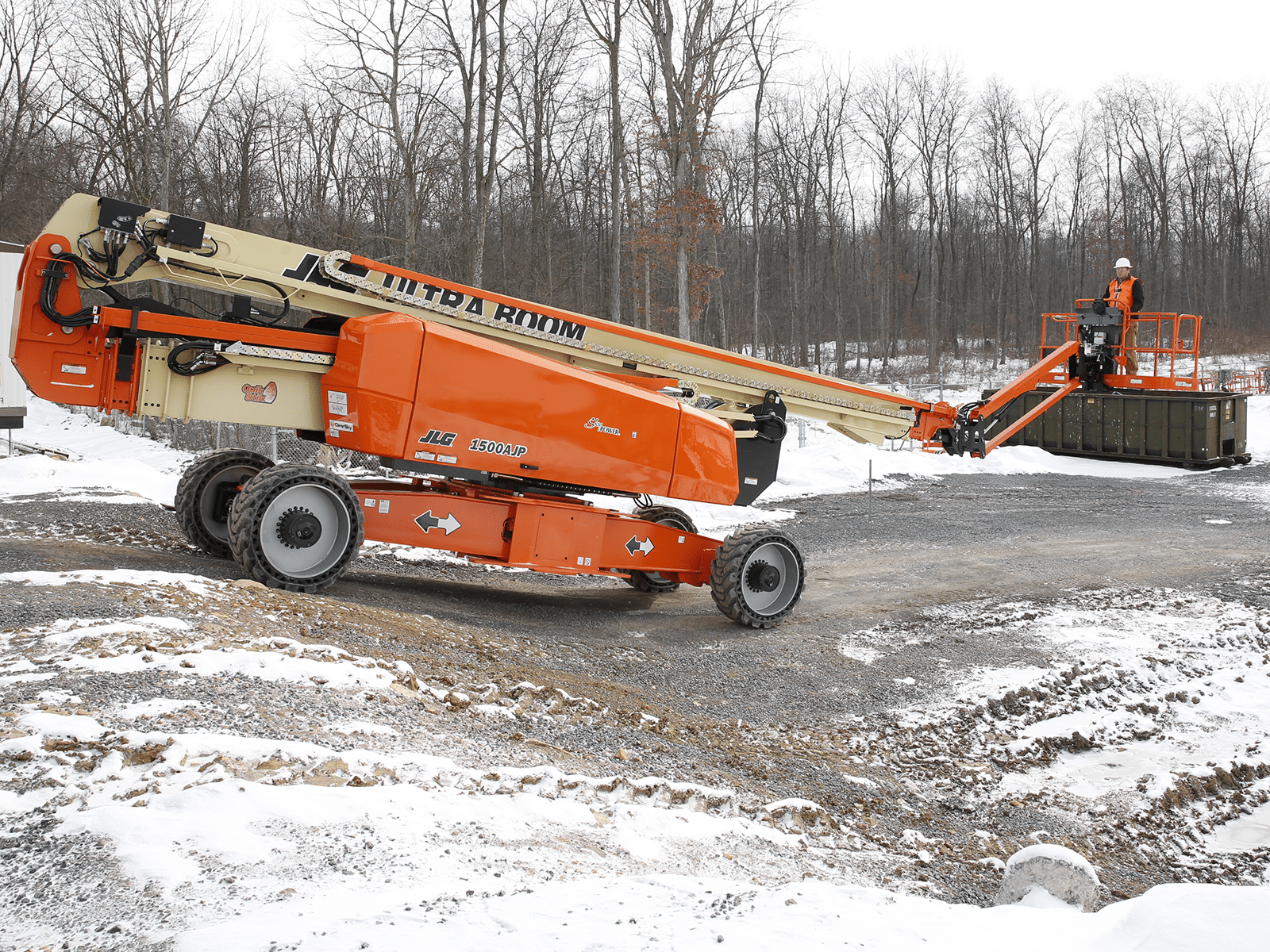

1500AJP - MH Equipment

Key Specs

  • Platform Height: 150 ft / 45.72 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 600 lb / 272.16 kg

Key Features

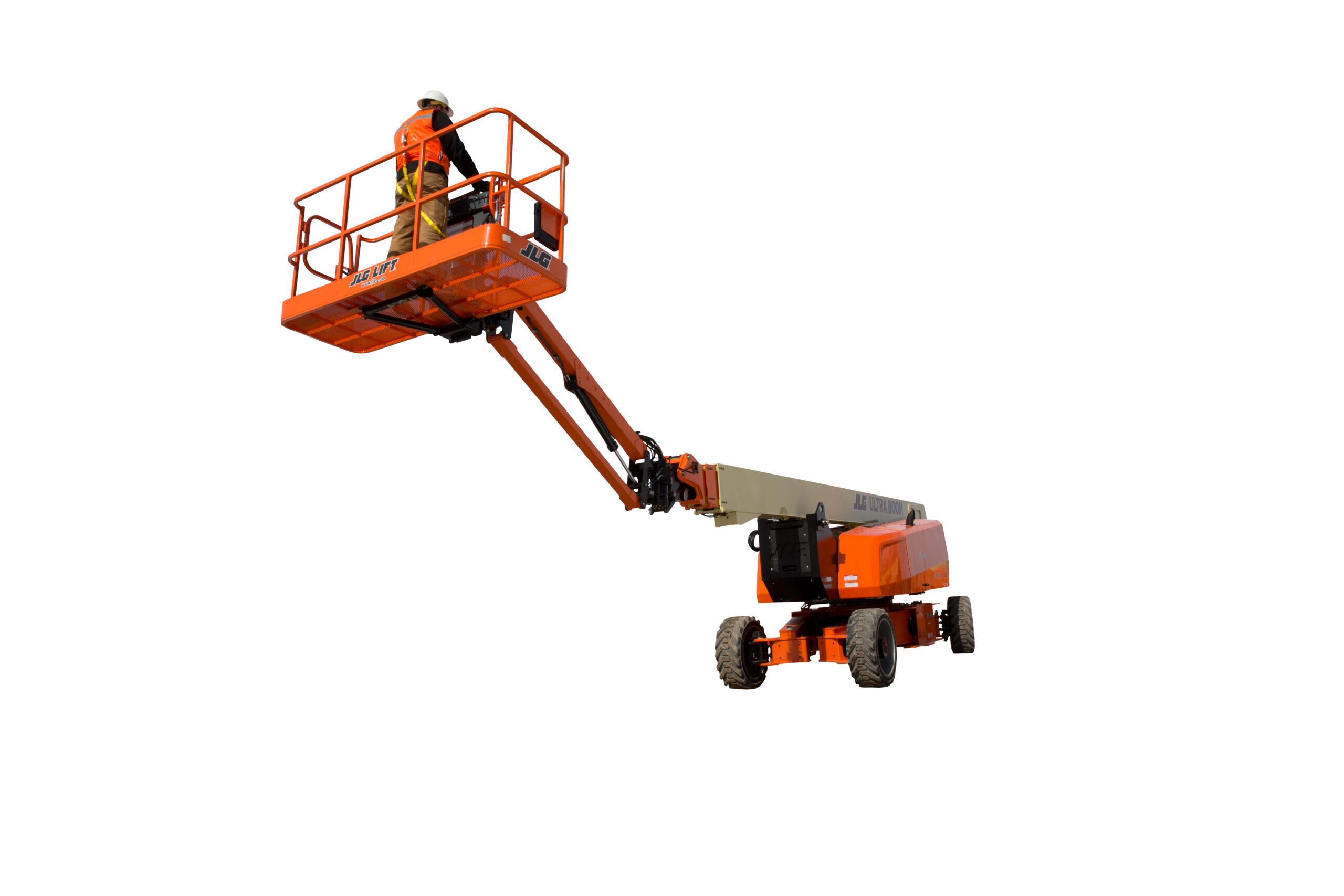

  • Jib pivots vertically and horizontally for better access to elevated work sites.
  • Lift more with class leading capacity
  • Fast lift speeds – spend more time working, less time positioning
  • No oversized load permit needed (over weight permit is required for highway transportation)
  • Now available with the ClearSky™ telematics platform, so you can easily manage and maintain your fleet. Contact your JLG® sales representative for details.

Specifications

  • Machine Width: 8 ft 2 in. / 2.48 m
  • Capacity - Fuel Tank: 45 gal. / 170.34 L
  • Tailswing: 2 ft 5 in. / 0.74 m

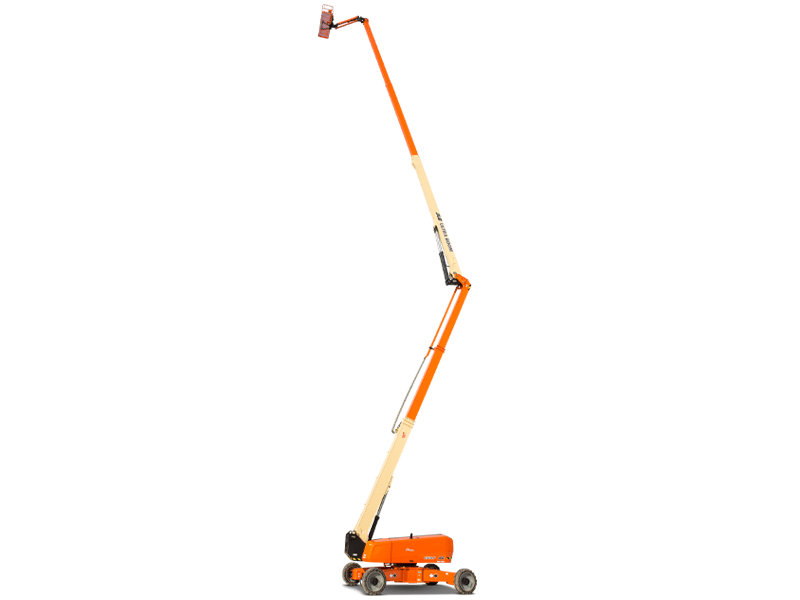

  • Working Height: 156 ft / 47.55 m
  • Platform Height: 150 ft / 45.72 m
  • Capacity - Hydraulic Reservoir: 93 gal. / 352.04 L
  • Platform Capacity - Unrestricted: 600 lb / 272.16 kg
  • Drive Speed - 4WD: 2.8 mph / 4.51 km/h
  • Machine Height: 10 ft 2 in. / 3.1 m
  • Tire Size: 445/50D710 24 Ply FF
  • Gradeability - 4WD: 40 %
  • Swing Type: Continuous
  • Jib - Range of articulation: 130 Degrees
  • Auxiliary Power: 12 Volts DC

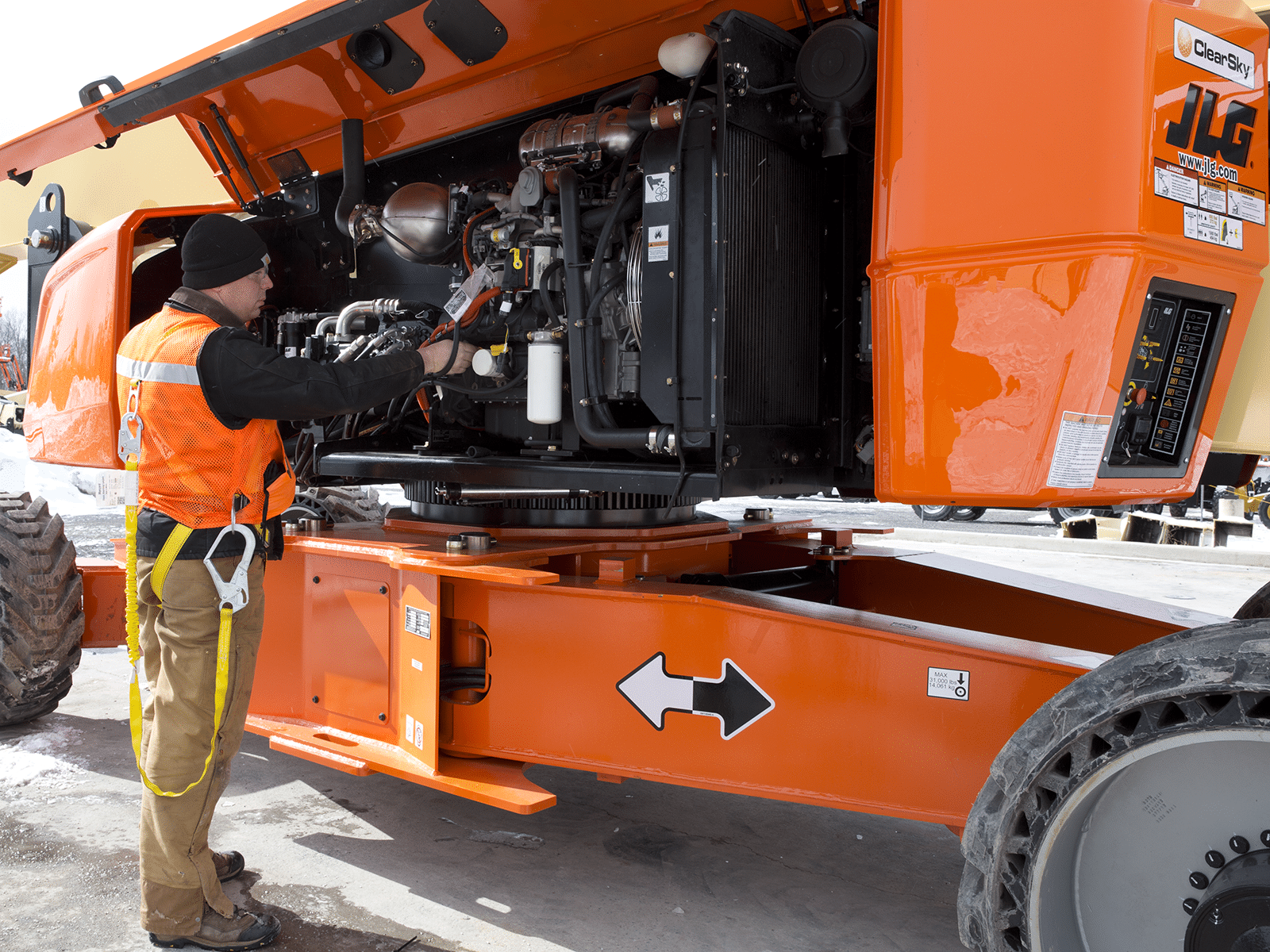

  • Engine Type - Diesel (LRC): Deutz TCD 3.6 T4F 99.8 Hp
  • Machine Weight (ANSI Export and CSA): 57400 lb / 26036.20 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Transport Length: 39 ft 8 in. / 12.09 m
  • Maximum Ground Bearing Pressure: 120 psi / 8.40 Kg/cm2
  • Swing: 360 Degrees
  • Turning Radius - Outside (axles extended): 21 ft 8 in. / 6.6 m
  • Ground Clearance: 1 ft / 0.3 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Up and Over Height: 60 ft / 18.29 m
  • Overall Width (Axles Extended): 16 ft 6 in. / 5.03 m
  • Turning Radius - Outside (axles retracted): 31 ft 3 in. / 9.53 m
  • Horizontal Jib Rotation: 125 Degrees
  • Platform Dimension B: 8 ft / 2.44 m

Features

  • Now available with the ClearSky™ telematics platform, so you can easily manage and maintain your fleet. Contact your JLG® sales representative for details.
  • Lift more with class leading capacity
  • No oversized load permit needed (over weight permit is required for highway transportation)
  • Fast lift speeds - spend more time working, less time positioning
  • Jib pivots vertically and horizontally for better access to elevated work sites.
