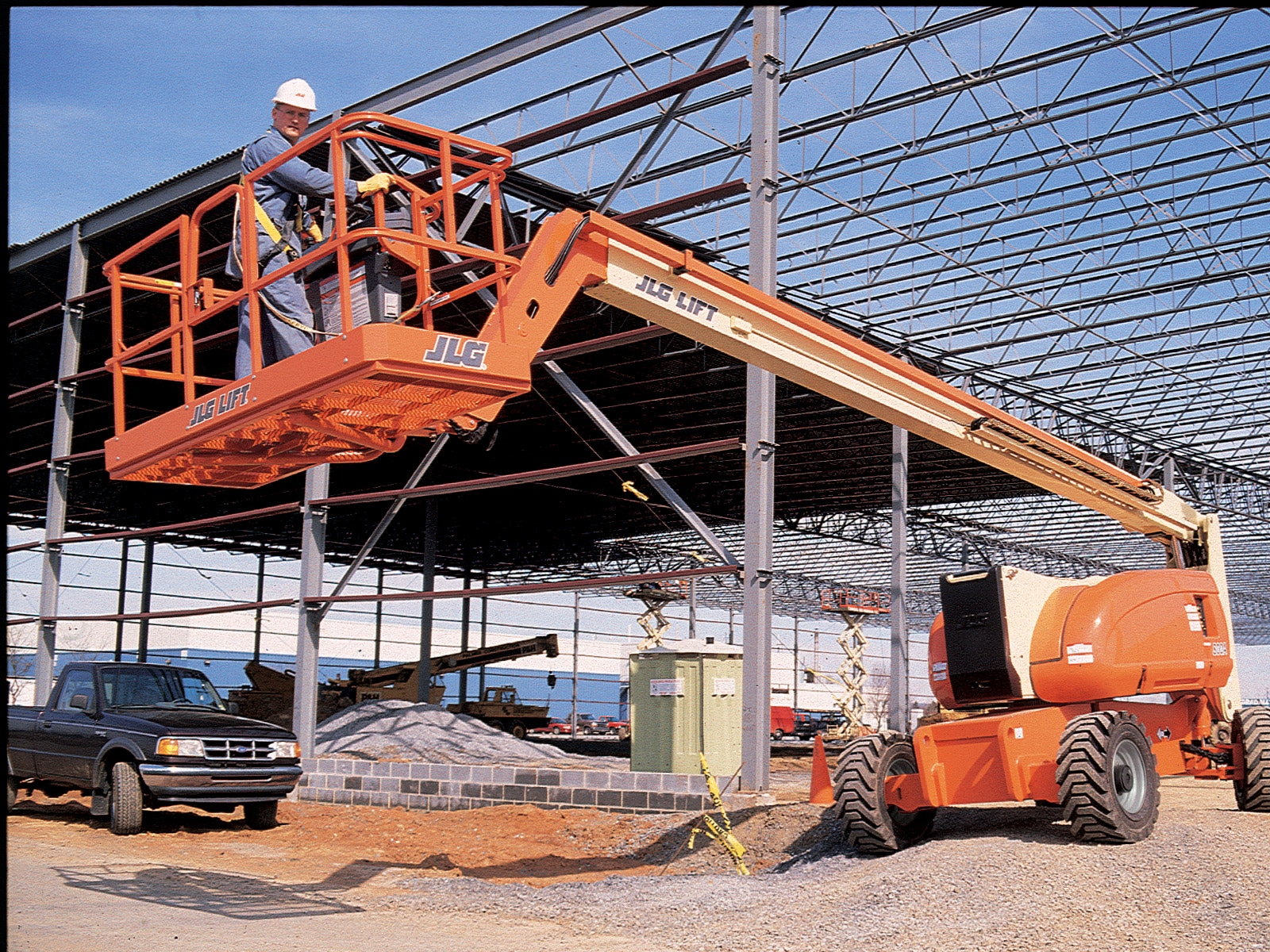

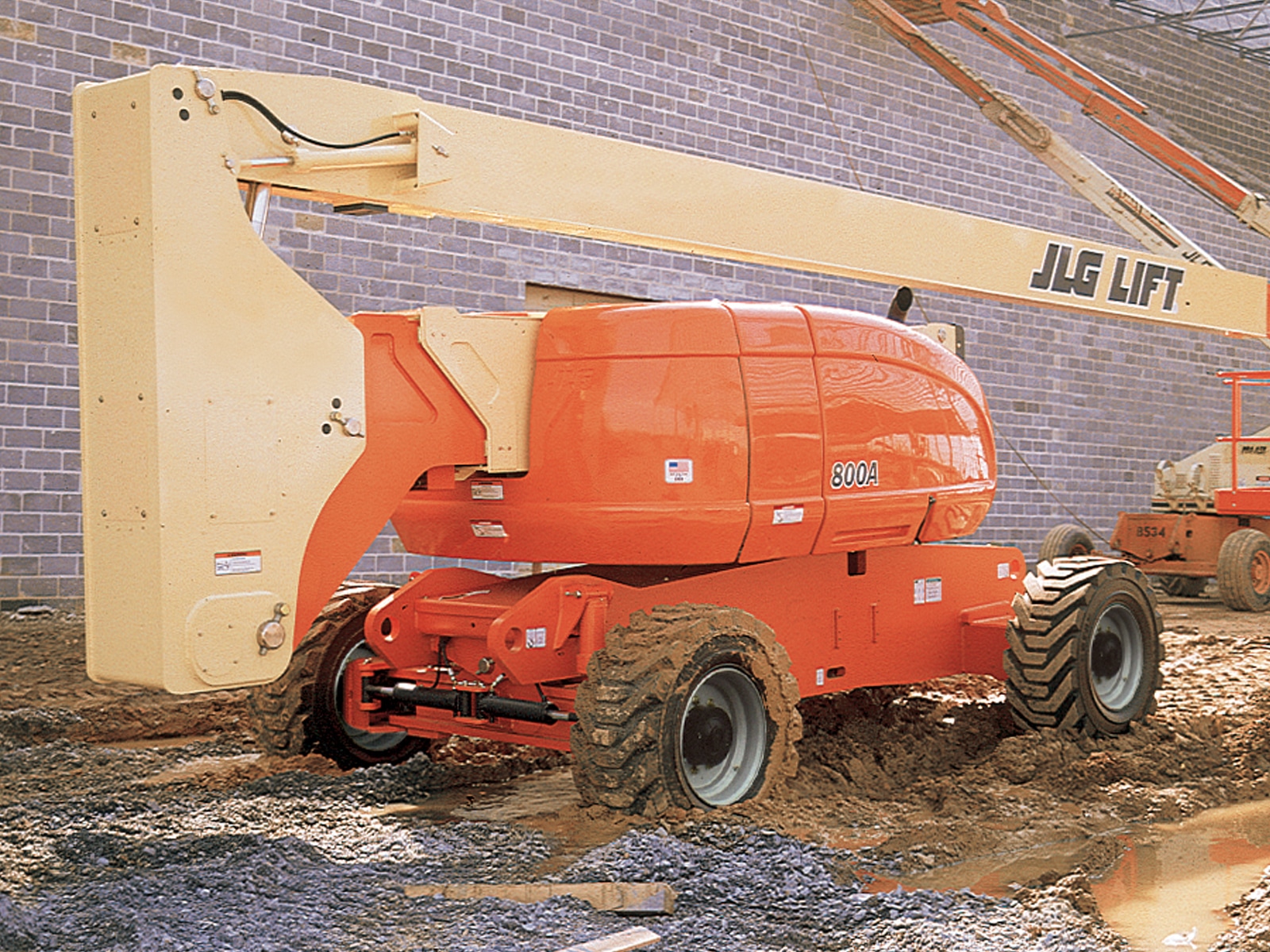

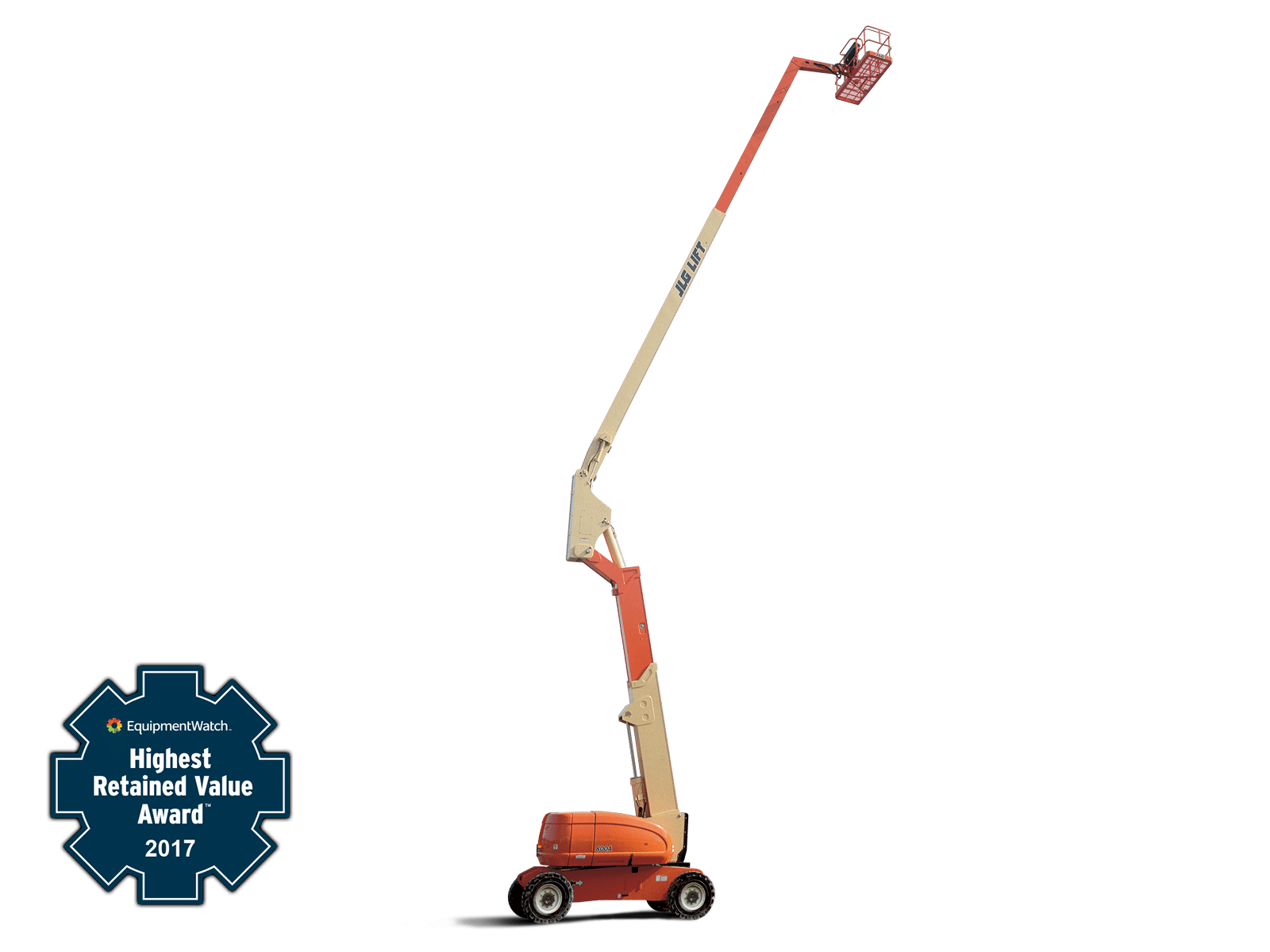

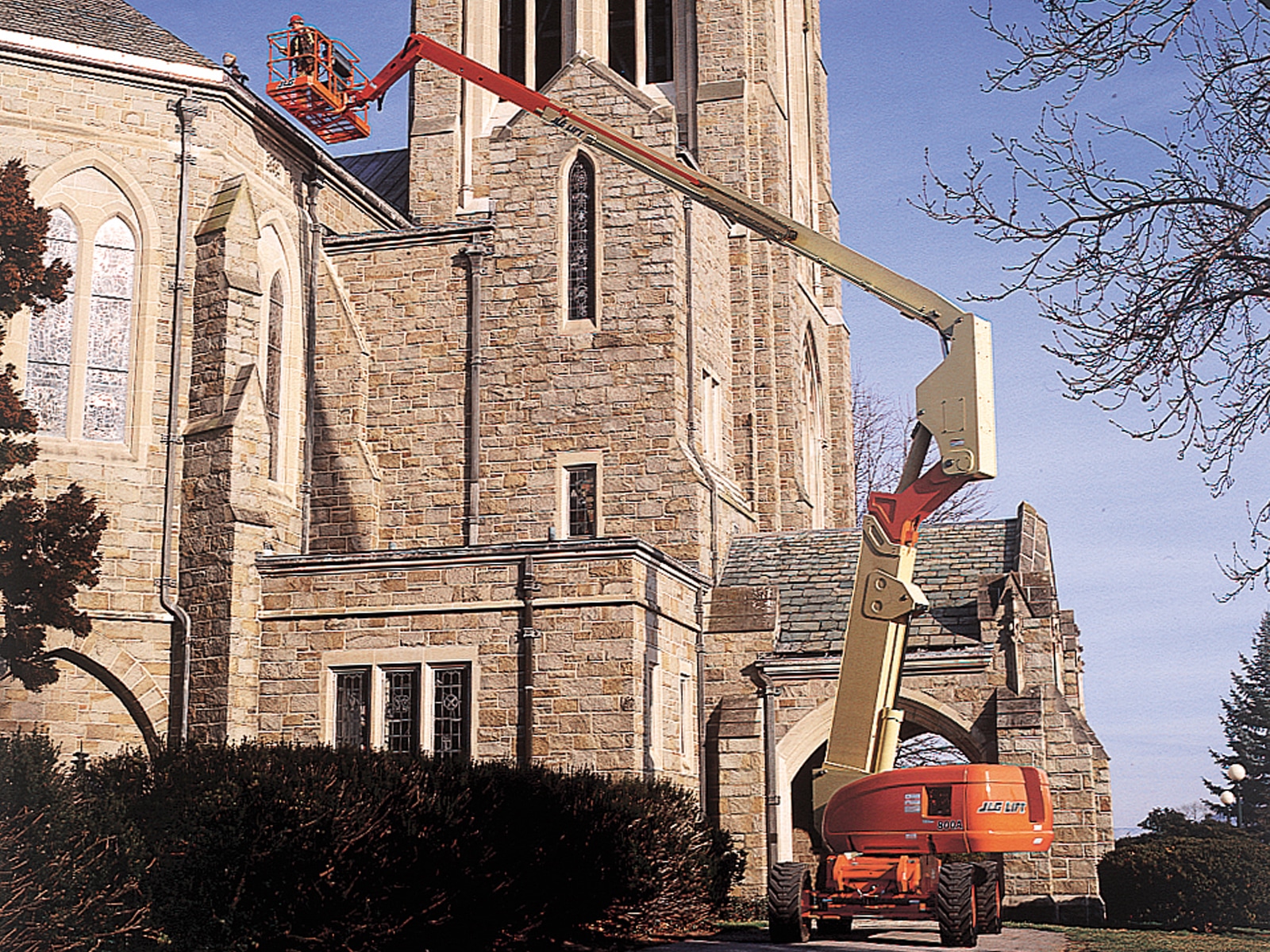

800A JLG

Equipment Features & Specs

  • JLG
  • 800A
  • Articulating Booms

Let us Help You Find What You Need

Phone Icon (855) 279-1311
Mail Icon Request A Quote Price Tag Icon Financing
  • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
  • With Workstation in the Sky\u00AE\u00A0 accessories, you will have all you need to get the job done
  • Get the extra reach and versatility you need with the best reach envelope in the industry
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 0 in. \/ 0 mm
  • Capacity - Fuel Tank: 39 gal. \/ 147.63 L
  • Capacity - Hydraulic Reservoir: 40 gal. \/ 151.42 L
  • Drive Speed - 2WD: 3 mph \/ 4.83 km\/h
  • Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type - Dual Fuel: GM Vortec 3000 MPR, 82 hp
  • Gradeability - 2WD: 30 %
  • Gradeability - 4WD: 45 %
  • Ground Clearance: 1 ft \/ 0.3 m
  • Horizontal Outreach: 53 ft \/ 16.15 m
  • Jib - Range of articulation: 0 Degrees
  • Machine Height: 9 ft 10 in. \/ 3 m
  • Machine Length: 36 ft 11 in. \/ 11.25 m
  • Machine Weight: 34300 lb \/ 15558.22 kg
  • Machine Width: 8 ft 2 in. \/ 2.49 m
  • Maximum Ground Bearing Pressure: 76 psi \/ 5.32 Kg\/cm2
  • Platform Capacity - Restricted: 1000 lb \/ 453.59 kg
  • Platform Capacity - Unrestricted: 500 lb \/ 226.80 kg
  • Platform Dimension A: 3 ft \/ 0.91 m
  • Platform Dimension B: 8 ft \/ 2.44 m
  • Platform Height: 80 ft \/ 24.38 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 2 ft 6 in. \/ 0.76 m
  • Tire Size: 18 x 19.5 Wide Lug Tread
  • Turning Radius - Outside (2WS): 22 ft 6 in. \/ 6.86 m
  • Turning Radius - Outside (4WS): 14 ft 6 in. \/ 4.42 m
  • Up and Over Height: 32 ft 1 in. \/ 9.78 m
  • Overview
  • Features
    • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
    • With Workstation in the Sky\u00AE\u00A0 accessories, you will have all you need to get the job done
    • Get the extra reach and versatility you need with the best reach envelope in the industry
  • Specs
    • Auxiliary Power: 12 Volts DC
    • Axle Oscillation: 0 in. \/ 0 mm
    • Capacity - Fuel Tank: 39 gal. \/ 147.63 L
    • Capacity - Hydraulic Reservoir: 40 gal. \/ 151.42 L
    • Drive Speed - 2WD: 3 mph \/ 4.83 km\/h
    • Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
    • Engine Type - Dual Fuel: GM Vortec 3000 MPR, 82 hp
    • Gradeability - 2WD: 30 %
    • Gradeability - 4WD: 45 %
    • Ground Clearance: 1 ft \/ 0.3 m
    • Horizontal Outreach: 53 ft \/ 16.15 m
    • Jib - Range of articulation: 0 Degrees
    • Machine Height: 9 ft 10 in. \/ 3 m
    • Machine Length: 36 ft 11 in. \/ 11.25 m
    • Machine Weight: 34300 lb \/ 15558.22 kg
    • Machine Width: 8 ft 2 in. \/ 2.49 m
    • Maximum Ground Bearing Pressure: 76 psi \/ 5.32 Kg\/cm2
    • Platform Capacity - Restricted: 1000 lb \/ 453.59 kg
    • Platform Capacity - Unrestricted: 500 lb \/ 226.80 kg
    • Platform Dimension A: 3 ft \/ 0.91 m
    • Platform Dimension B: 8 ft \/ 2.44 m
    • Platform Height: 80 ft \/ 24.38 m
    • Swing: 360 Degrees
    • Swing Type: Continuous
    • Tailswing: 2 ft 6 in. \/ 0.76 m
    • Tire Size: 18 x 19.5 Wide Lug Tread
    • Turning Radius - Outside (2WS): 22 ft 6 in. \/ 6.86 m
    • Turning Radius - Outside (4WS): 14 ft 6 in. \/ 4.42 m
    • Up and Over Height: 32 ft 1 in. \/ 9.78 m
  • Downloads & Documentation
