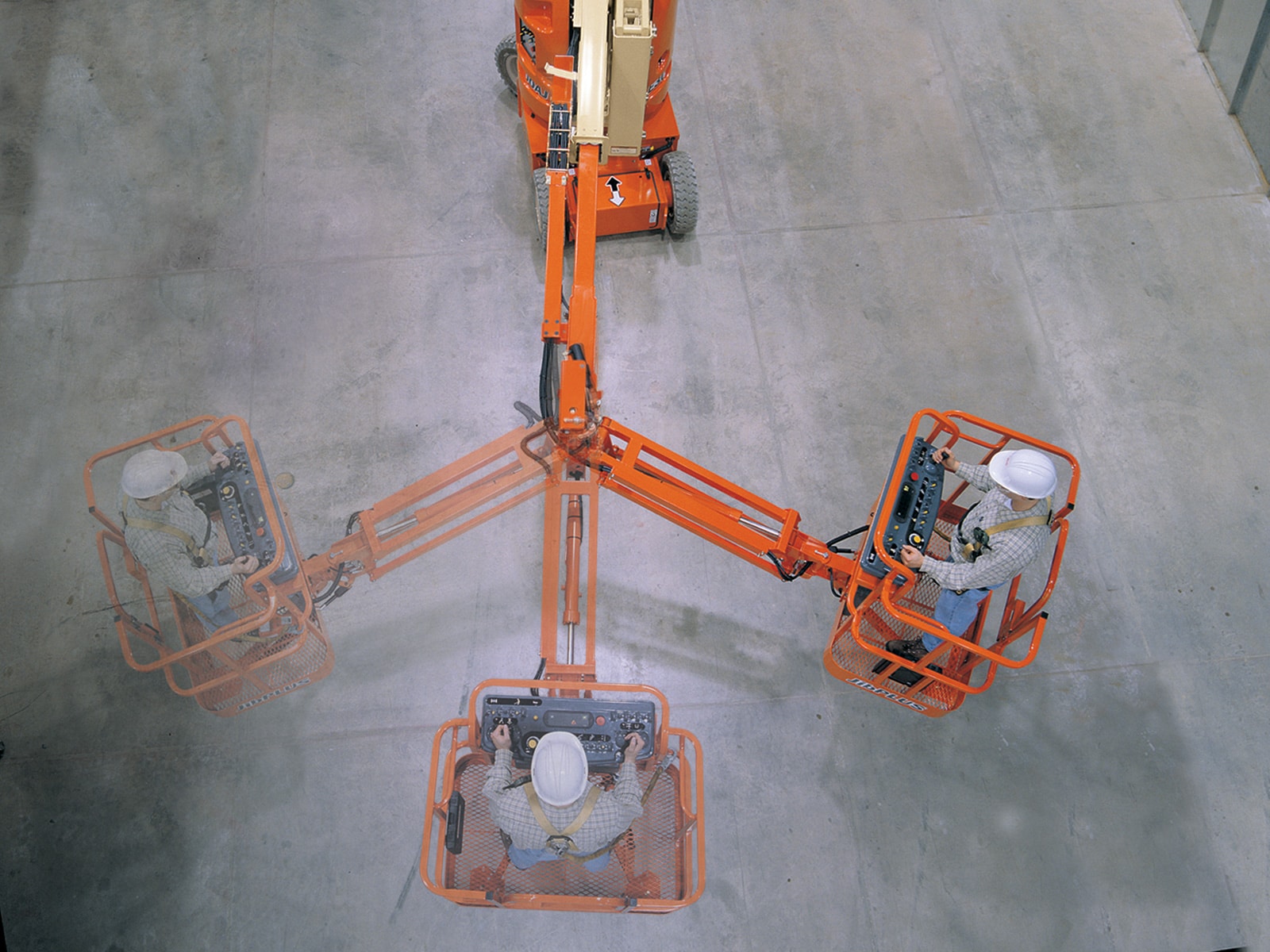

The E300 Series will keep you on the job longer than the competition with industry-leading duty cycles and an efficient, emission- and noise-free direct electric drive. The E300AJ and E300AJP are only 4 ft wide for access to narrow aisles and congested areas. The E300AJP electric boom lift also has the JibPLUS® articulating jib option with 180\u00B0 range of side-to-side movement for access behind elevated structures or equipment.

  • Accessibility \u2013 up and over access, optional jib\u00A0
  • Maneuverability \u2013 move over uneven surfaces with Automatic Traction Control
  • Productivity \u2013 longer with longer duty cycles
  • Environmentally friendly \u2013 zero emissions
  • Batteries: 8 x 6V, 305 amp-hr
  • Capacity - Hydraulic Reservoir: 2 gal. \/ 7.95 L
  • Drive Speed - Platform Lowered: 3 mph \/ 4.83 km\/h
  • Electrical System: 48 Volts DC
  • Gradeability - 2WD: 25 %
  • Ground Clearance: 4 in. \/ 0.1 m
  • Horizontal Jib Rotation: 180 Degrees
  • Horizontal Outreach: 20 ft 1 in. \/ 6.12 m
  • Jib - Range of articulation: 144 Degrees
  • Machine Height: 6 ft 7 in. \/ 2.01 m
  • Machine Length: 18 ft 10 in. \/ 5.74 m
  • Machine Weight: 15400 lb \/ 6985.32 kg
  • Machine Width: 4 ft \/ 1.22 m
  • Platform Capacity: 500 lb \/ 226.80 kg
  • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
  • Platform Height: 29 ft 5 in. \/ 8.97 m
  • Swing: 350 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: Zero
  • Tire Size: 25 x 7 x 12 Non-marking
  • Turning Radius - Outside: 10 ft 2 in. \/ 3.1 m
  • Up and Over Height: 13 ft 2 in. \/ 4.01 m
  • Wheelbase: 5 ft 5 in. \/ 1.65 m
  • Overview

    The E300 Series will keep you on the job longer than the competition with industry-leading duty cycles and an efficient, emission- and noise-free direct electric drive. The E300AJ and E300AJP are only 4 ft wide for access to narrow aisles and congested areas. The E300AJP electric boom lift also has the JibPLUS® articulating jib option with 180\u00B0 range of side-to-side movement for access behind elevated structures or equipment.

  • Features
    • Accessibility \u2013 up and over access, optional jib\u00A0
    • Maneuverability \u2013 move over uneven surfaces with Automatic Traction Control
    • Productivity \u2013 longer with longer duty cycles
    • Environmentally friendly \u2013 zero emissions
  • Specs
    • Batteries: 8 x 6V, 305 amp-hr
    • Capacity - Hydraulic Reservoir: 2 gal. \/ 7.95 L
    • Drive Speed - Platform Lowered: 3 mph \/ 4.83 km\/h
    • Electrical System: 48 Volts DC
    • Gradeability - 2WD: 25 %
    • Ground Clearance: 4 in. \/ 0.1 m
    • Horizontal Jib Rotation: 180 Degrees
    • Horizontal Outreach: 20 ft 1 in. \/ 6.12 m
    • Jib - Range of articulation: 144 Degrees
    • Machine Height: 6 ft 7 in. \/ 2.01 m
    • Machine Length: 18 ft 10 in. \/ 5.74 m
    • Machine Weight: 15400 lb \/ 6985.32 kg
    • Machine Width: 4 ft \/ 1.22 m
    • Platform Capacity: 500 lb \/ 226.80 kg
    • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
    • Platform Height: 29 ft 5 in. \/ 8.97 m
    • Swing: 350 Degrees
    • Swing Type: Non-Continuous
    • Tailswing: Zero
    • Tire Size: 25 x 7 x 12 Non-marking
    • Turning Radius - Outside: 10 ft 2 in. \/ 3.1 m
    • Up and Over Height: 13 ft 2 in. \/ 4.01 m
    • Wheelbase: 5 ft 5 in. \/ 1.65 m
