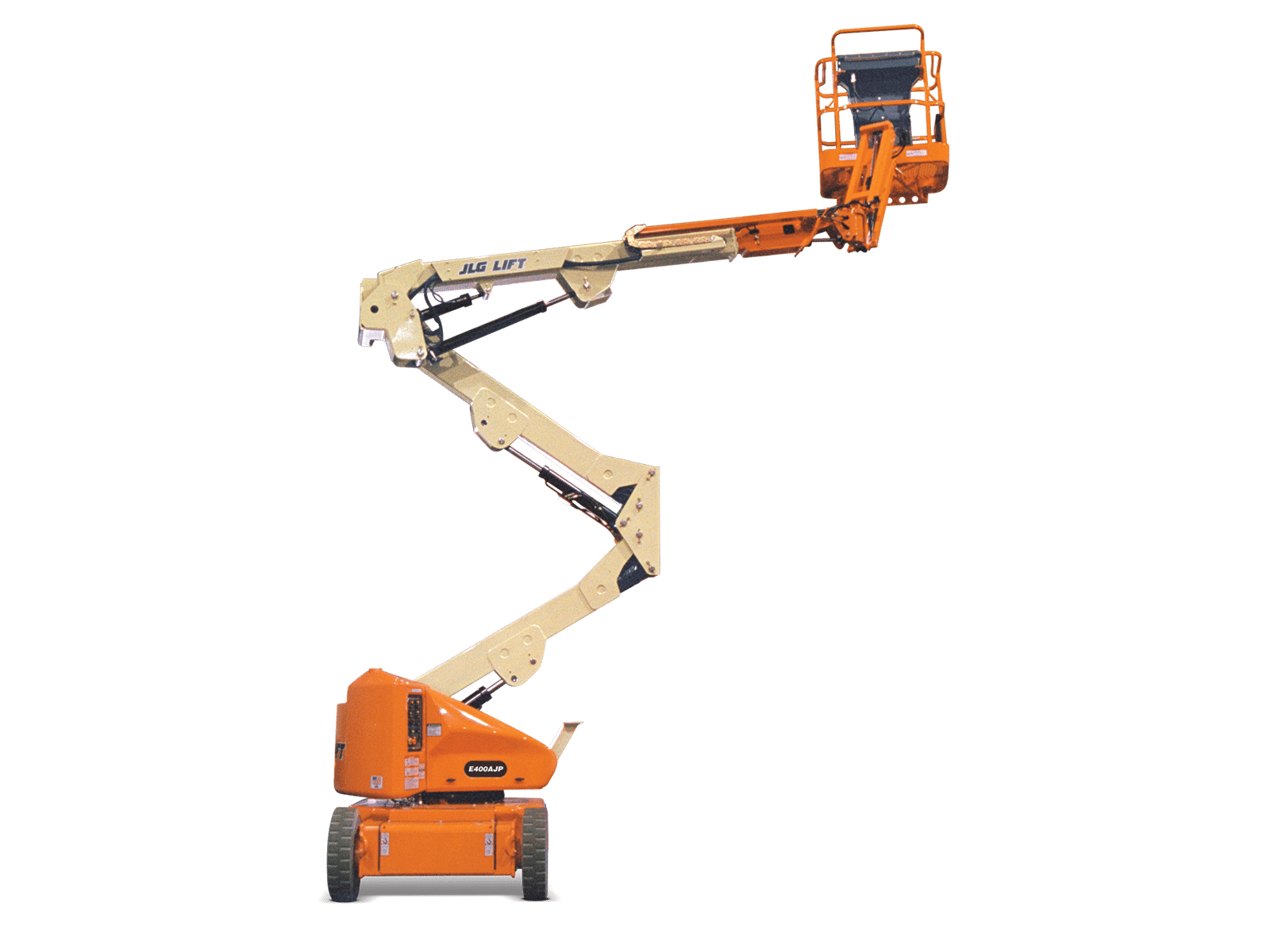

E400AJP JLG

Equipment Features & Specs

  • JLG
  • E400AJP
  • Articulating Booms

Let us Help You Find What You Need

Phone Icon (304) 776-6900
Mail Icon Request A Quote Price Tag Icon Financing

The E400 Series is environmentally friendly with industry-leading performance. You get the up and over access you need and multiple function operation for efficient maneuvering in tight spaces. The hybrid power option gives you round-the-clock operation and faster battery charging with the diesel-powered QuikCharge GenSet Automatic Charging System, which can be turned off for emission- and noise-free operation indoors.

  • Accessibility \u2013 up and over access, optional jib\u00A0
  • Productivity \u2013 work longer with longer duty cycles
  • Maneuverability \u2013 move over uneven surfaces with Automatic Traction Control
  • Environmentally friendly \u2013 zero emissions
  • Batteries: 8 x 6V, 370 amp-hr
  • Capacity - Hydraulic Reservoir: 4 gal. \/ 15.14 L
  • Drive Speed - Platform Lowered: 3.20 mph \/ 5.15 km\/h
  • Electrical System: 48 Volts DC
  • Gradeability - 2WD: 30 %
  • Ground Clearance: 9 in. \/ 0.22 m
  • Horizontal Jib Rotation: 180 Degrees
  • Horizontal Outreach: 22 ft 5 in. \/ 6.83 m
  • Jib - Range of articulation: 144 Degrees
  • Machine Height: 6 ft 7 in. \/ 2.01 m
  • Machine Length: 22 ft \/ 6.71 m
  • Machine Weight: 13700 lb \/ 6214.22 kg
  • Machine Width: 5 ft 9 in. \/ 1.75 m
  • Platform Capacity: 500 lb \/ 226.80 kg
  • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
  • Platform Dimension B: 5 ft \/ 1.52 m
  • Platform Height: 40 ft \/ 12.19 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: Zero
  • Tire Size: 240\/55-17.5 Pnuematic
  • Turning Radius - Outside: 10 ft 4 in. \/ 3.15 m
  • Up and Over Height: 21 ft 6 in. \/ 6.55 m
  • Overview

    The E400 Series is environmentally friendly with industry-leading performance. You get the up and over access you need and multiple function operation for efficient maneuvering in tight spaces. The hybrid power option gives you round-the-clock operation and faster battery charging with the diesel-powered QuikCharge GenSet Automatic Charging System, which can be turned off for emission- and noise-free operation indoors.

  • Features
    • Accessibility \u2013 up and over access, optional jib\u00A0
    • Productivity \u2013 work longer with longer duty cycles
    • Maneuverability \u2013 move over uneven surfaces with Automatic Traction Control
    • Environmentally friendly \u2013 zero emissions
  • Specs
    • Batteries: 8 x 6V, 370 amp-hr
    • Capacity - Hydraulic Reservoir: 4 gal. \/ 15.14 L
    • Drive Speed - Platform Lowered: 3.20 mph \/ 5.15 km\/h
    • Electrical System: 48 Volts DC
    • Gradeability - 2WD: 30 %
    • Ground Clearance: 9 in. \/ 0.22 m
    • Horizontal Jib Rotation: 180 Degrees
    • Horizontal Outreach: 22 ft 5 in. \/ 6.83 m
    • Jib - Range of articulation: 144 Degrees
    • Machine Height: 6 ft 7 in. \/ 2.01 m
    • Machine Length: 22 ft \/ 6.71 m
    • Machine Weight: 13700 lb \/ 6214.22 kg
    • Machine Width: 5 ft 9 in. \/ 1.75 m
    • Platform Capacity: 500 lb \/ 226.80 kg
    • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
    • Platform Dimension B: 5 ft \/ 1.52 m
    • Platform Height: 40 ft \/ 12.19 m
    • Swing: 360 Degrees
    • Swing Type: Non-Continuous
    • Tailswing: Zero
    • Tire Size: 240\/55-17.5 Pnuematic
    • Turning Radius - Outside: 10 ft 4 in. \/ 3.15 m
    • Up and Over Height: 21 ft 6 in. \/ 6.55 m
  • Downloads & Documentation
