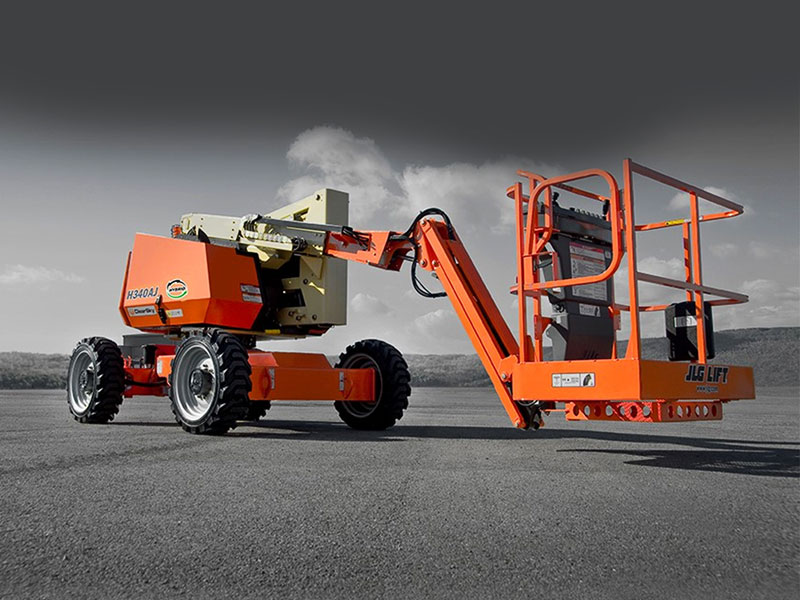

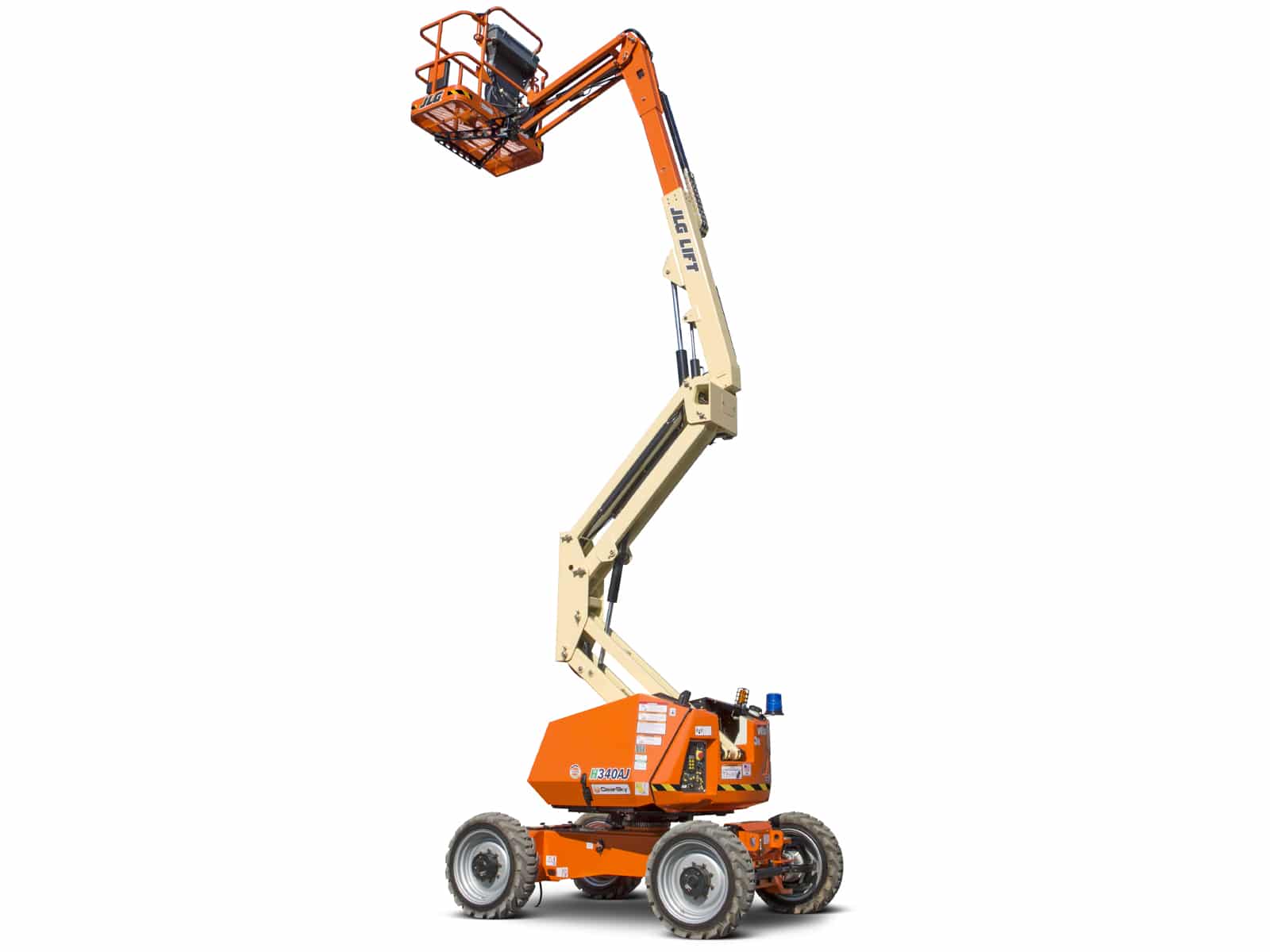

H340AJ Hybrid JLG

Equipment Features & Specs

  • JLG
  • H340AJ Hybrid
  • Articulating Booms

Let us Help You Find What You Need

Phone Icon (855) 279-1311
Mail Icon Request A Quote Price Tag Icon Financing

Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring "green" building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.

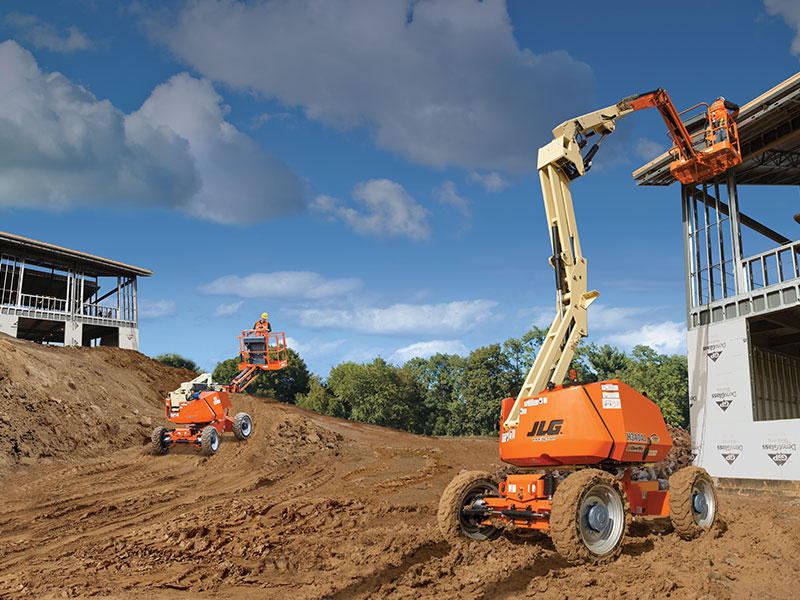

  • Diesel-like performance \u2013 Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
  • Hybrid technology \u2013 Runs completely on 8 x 12v 100 amp-hour AGM\u00A0batteries, which are charged by the diesel generator
  • Low emissions \u2013 Experience reduced fuel use*, emissions, noise and maintenance\u00A0

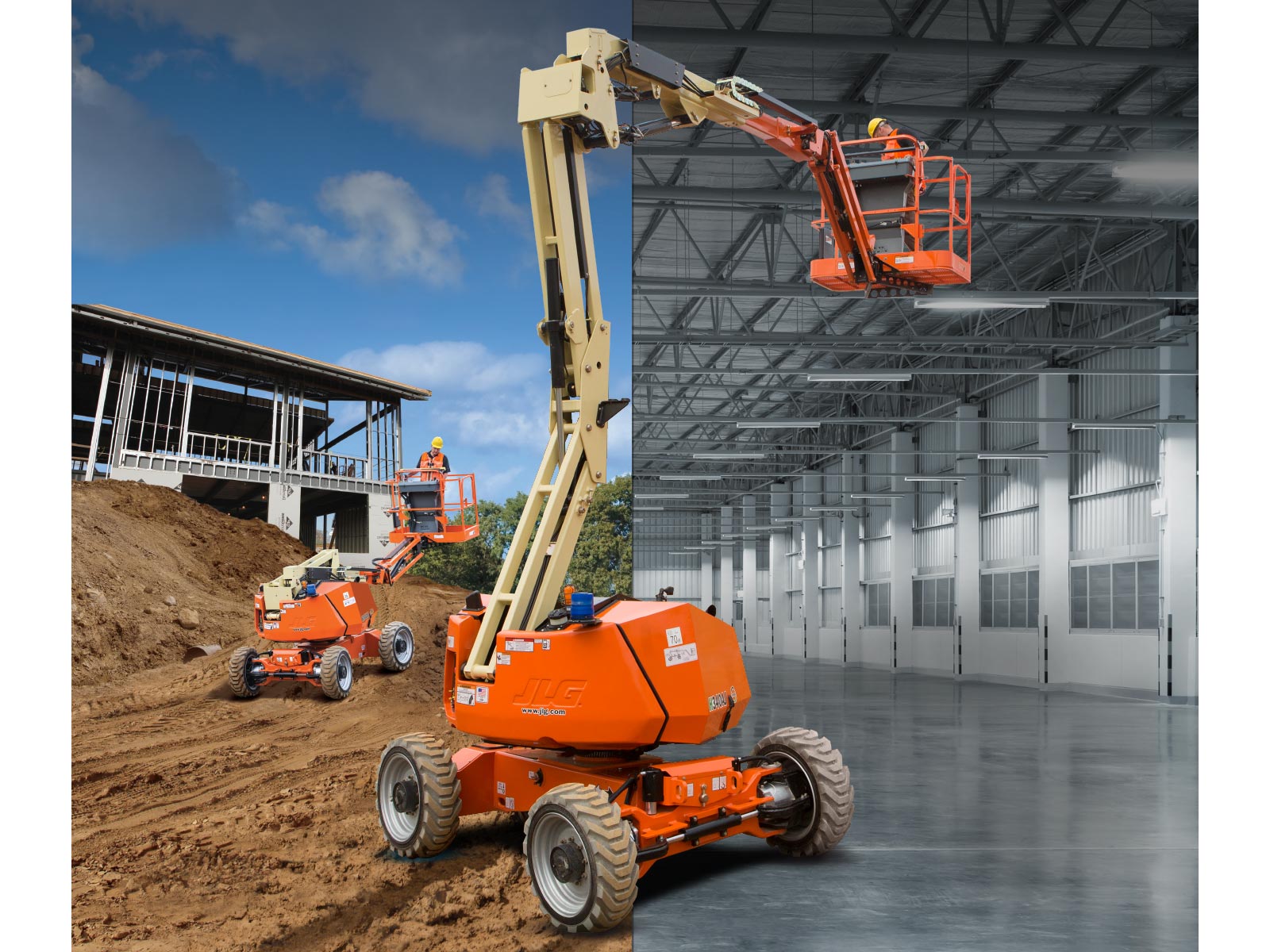

  • Versatility \u2013 The power of a diesel machine combined with hybrid efficiency allows\u00A0you to work both inside and outside
  • Batteries: 8 x 12V, 100 Amp-Hour
  • Capacity - Hydraulic Reservoir: 21 gal. \/ 77.98 L
  • Drive Speed - Platform Lowered: 3.70 mph \/ 5.95 km\/h
  • Electrical System: 48 Volts DC
  • Generator \/ Engine - Brand: Kubota
  • Generator \/ Engine - Fuel Tank Capacity: 13 gal. \/ 49.21 L
  • Generator \/ Engine - Fuel Type: Diesel
  • Generator \/ Engine - Horsepower \/ Kilowatts: 11 hp \/ 8.28 kW
  • Gradeability - 4WD: 45 %
  • Ground Clearance: 10 in. \/ 0.26 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 19 ft 11 in. \/ 6.07 m
  • Jib - Range of articulation: 139 Degrees
  • Machine Height: 6 ft 7 in. \/ 2.01 m
  • Machine Length: 18 ft 2 in. \/ 5.54 m
  • Machine Weight: 9860 lb \/ 4472.42 kg
  • Machine Width: 6 ft 4 in. \/ 1.93 m
  • Platform Capacity: 500 lb \/ 226.80 kg
  • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
  • Platform Dimension B: 5 ft \/ 1.52 m
  • Platform Height: 33 ft 9 in. \/ 10.29 m
  • Swing: 355 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 2 in. \/ 0.05 m
  • Tire Size: 265\/50 D20
  • Turning Radius - Outside: 13 ft \/ 3.96 m
  • Up and Over Height: 17 ft \/ 5.18 m
  • Wheelbase: 6 ft 2 in. \/ 1.88 m
  • Overview

    Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring "green" building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.

  • Features
    • Diesel-like performance \u2013 Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
    • Hybrid technology \u2013 Runs completely on 8 x 12v 100 amp-hour AGM\u00A0batteries, which are charged by the diesel generator
    • Low emissions \u2013 Experience reduced fuel use*, emissions, noise and maintenance\u00A0
    • Versatility \u2013 The power of a diesel machine combined with hybrid efficiency allows\u00A0you to work both inside and outside
  • Specs
    • Batteries: 8 x 12V, 100 Amp-Hour
    • Capacity - Hydraulic Reservoir: 21 gal. \/ 77.98 L
    • Drive Speed - Platform Lowered: 3.70 mph \/ 5.95 km\/h
    • Electrical System: 48 Volts DC
    • Generator \/ Engine - Brand: Kubota
    • Generator \/ Engine - Fuel Tank Capacity: 13 gal. \/ 49.21 L
    • Generator \/ Engine - Fuel Type: Diesel
    • Generator \/ Engine - Horsepower \/ Kilowatts: 11 hp \/ 8.28 kW
    • Gradeability - 4WD: 45 %
    • Ground Clearance: 10 in. \/ 0.26 m
    • Horizontal Jib Rotation: 0 Degrees
    • Horizontal Outreach: 19 ft 11 in. \/ 6.07 m
    • Jib - Range of articulation: 139 Degrees
    • Machine Height: 6 ft 7 in. \/ 2.01 m
    • Machine Length: 18 ft 2 in. \/ 5.54 m
    • Machine Weight: 9860 lb \/ 4472.42 kg
    • Machine Width: 6 ft 4 in. \/ 1.93 m
    • Platform Capacity: 500 lb \/ 226.80 kg
    • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
    • Platform Dimension B: 5 ft \/ 1.52 m
    • Platform Height: 33 ft 9 in. \/ 10.29 m
    • Swing: 355 Degrees
    • Swing Type: Non-Continuous
    • Tailswing: 2 in. \/ 0.05 m
    • Tire Size: 265\/50 D20
    • Turning Radius - Outside: 13 ft \/ 3.96 m
    • Up and Over Height: 17 ft \/ 5.18 m
    • Wheelbase: 6 ft 2 in. \/ 1.88 m
