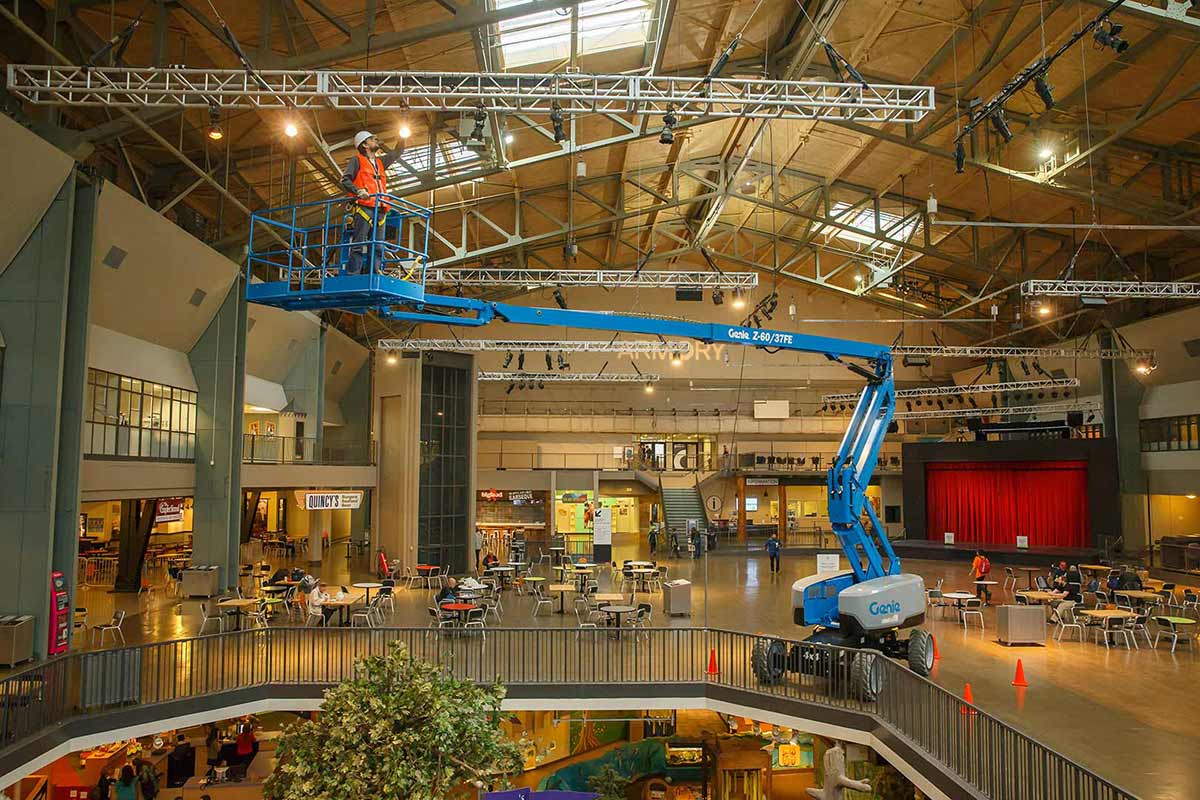

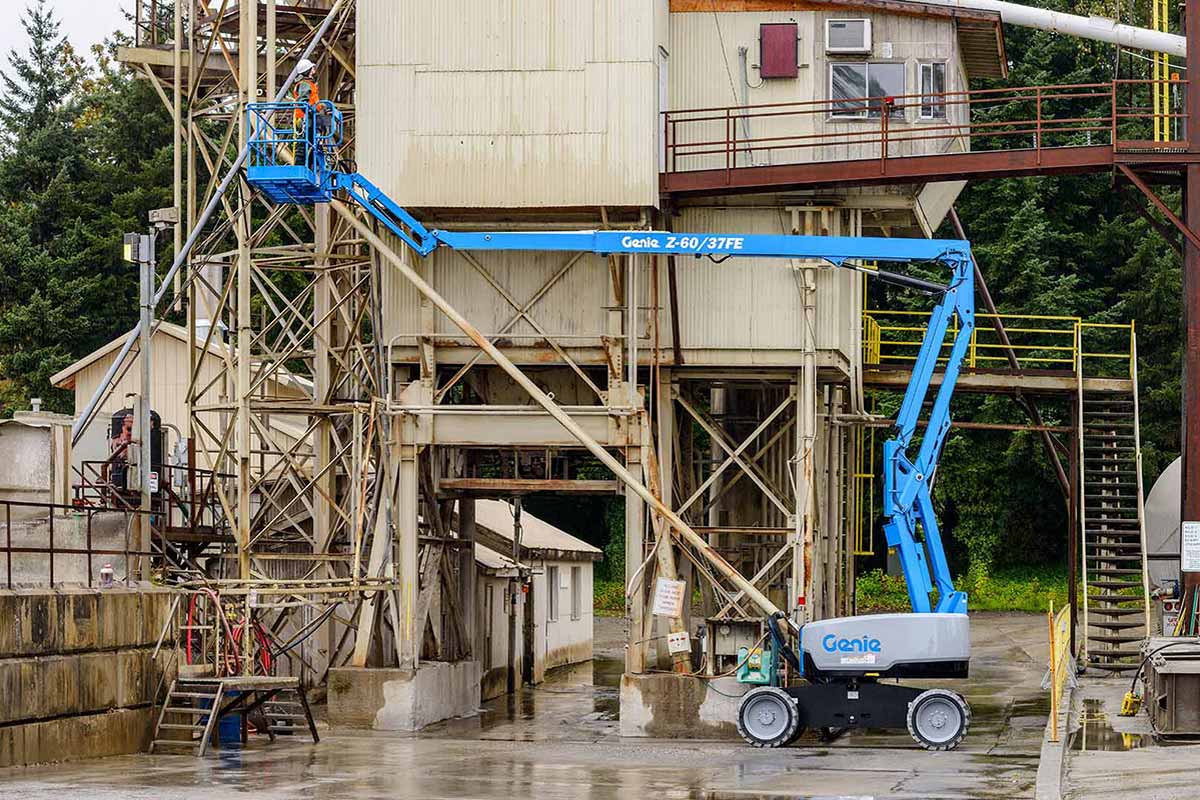

Two machines in one, the Genie® Z®-60 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
Overview
- Full-time active oscillating axle helps maintain traction on rough terrain
- 4WD and 45% gradeability for superior terrainability
- High-efficiency AC drive system for enhanced driving performance and simplified maintenance
- Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
- Genie Fast Mastâ„¢ boom system allows operators to descend and retrieve materials and quickly return to working height
Specifications
- Max Horizontal Reach: 36 ft 7 in | 11.15 m
- Platform Capacity: 500 lb | 227 kg
- Below Ground Reach: 8 ft 1 in | 2.46 m
- Max Up and Over Clearance (riser extended): 24 ft 3 in | 7.39 m
- Max Working Height: 65 ft 7 in | 20.16 m
Additional Information
Options
Chassis Options
- Tow package
Tires Options
- Rough terrain foam-filled tires (water based)
- Foam-tire fill (petroleum based)
Engine Options
- Cold weather kit: 5W-40 synthetic engine oil, battery heater, engine block heater: FE Hybrid only
Lift/Turntable Options
- FLA (flooded lead acid) batteries: standard on DC
- AGM maintenance-free batteries: standard on FE Hybrid
- Specialty hydraulic oil (28gal – cold weather, fire resistant, or biodegradable)
- Power inverter, 2000W, 120V AC, 60 Hz
- Hostile environment kit: cylinder bellows, boom wiper seals and control box covers
Platforms
- 4 ft. 8 in. front-entry steel platform
- 8 ft. tri entry platform with side swing gate
- Platform with ½ height mesh inserts
Platform Options
- Air line to platform:Â ? in. inner diameter
- Aircraft protection kit:Â platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
