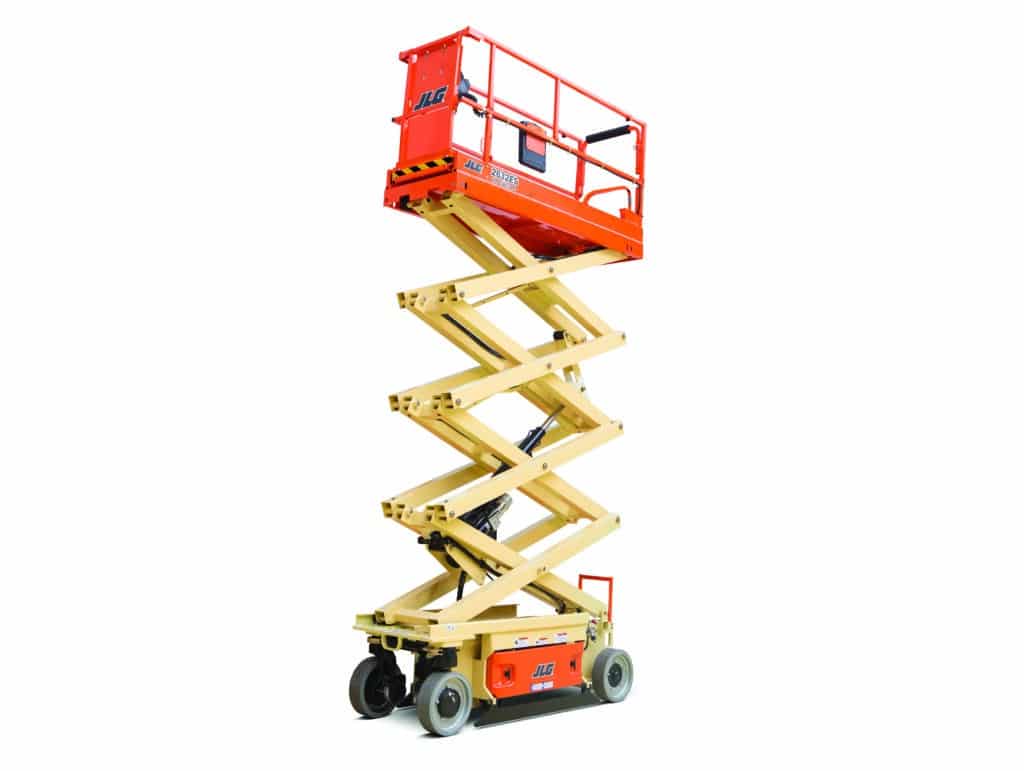

2632ES JLG

Equipment Features & Specs

  • JLG
  • 2632ES
  • Scissor Lifts

Let us Help You Find What You Need

Phone Icon (855) 279-1311
Mail Icon Request A Quote Price Tag Icon Financing
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Delivers 200% more battery life*\u00A0 *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Quieter, cleaner operation for a variety of environments
  • Narrow width fits through most standard doorways and tight aisles
  • Batteries: 4 x 6V, 220 amp-hour
  • Brakes: Electric, Friction
  • Capacity - Hydraulic Reservoir: 1 gal. \/ 4.73 L
  • Charger: 20 amp automatic
  • Drive Speed - Platform Elevated: 0.50 mph \/ 0.80 km\/h
  • Drive Speed - Platform Lowered: 2.75 mph \/ 4.43 km\/h
  • Drive System: 24V Electric
  • Gradeability: 25 %
  • Ground Clearance: 4 in. \/ 0.09 m
  • Hydraulic Pump: Fixed Displacement Gear
  • Lift Time: 33 sec.
  • Lower Time: 37 sec.
  • Machine Height: 7 ft 8 in. \/ 2.33 m
  • Machine Height - Rails Folded: 6 ft 5 in. \/ 1.94 m
  • Machine Length: 7 ft 7 in. \/ 2.3 m
  • Machine Weight: 4635 lb \/ 2102.40 kg
  • Machine Width: 2 ft 8 in. \/ 0.81 m
  • Maximum Drive Height: 25 ft 6 in. \/ 7.77 m
  • Maximum Ground Bearing Pressure: 90 psi \/ 6.30 Kg\/cm2
  • Platform Capacity - Extension: 250 lb \/ 113.40 kg
  • Platform Capacity - Restricted: 800 lb \/ 362.87 kg
  • Platform Capacity - Unrestricted: 500 lb \/ 226.80 kg
  • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
  • Platform Extension Length: 3 ft \/ 0.9 m
  • Platform Height - Lowered: 4 ft 1 in. \/ 1.23 m
  • Platform Railing Height: 3 ft 7 in. \/ 1.1 m
  • Tire Size: 16 X 5 in
  • Turning Radius - Inside: 0 in. \/ 0 mm
  • Turning Radius - Outside: 6 ft 9 in. \/ 2.06 m
  • Wheelbase: 6 ft 2 in. \/ 1.88 m
  • Working Height: 31 ft 6 in. \/ 9.6 m
