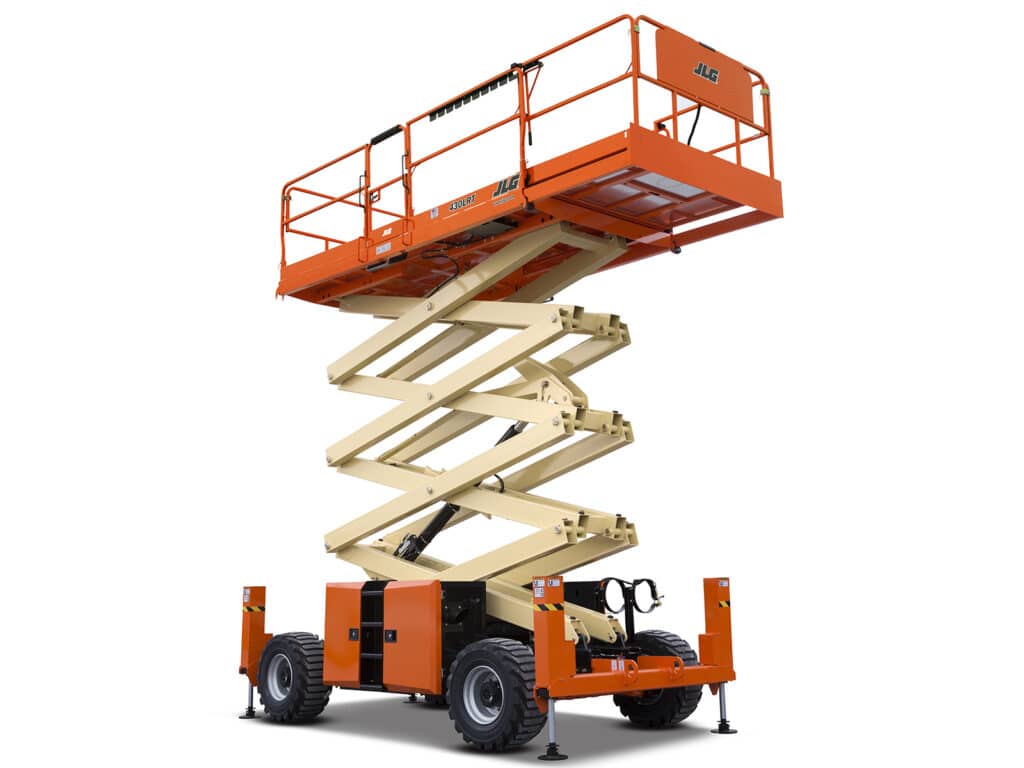

430LRT JLG

Equipment Features & Specs

  • JLG
  • 430LRT
  • Scissor Lifts

Let us Help You Find What You Need

Phone Icon (304) 776-6900
Mail Icon Request A Quote Price Tag Icon Financing

Key Specs

  • Platform Height: 43 ft / 13.11 m
  • Platform Capacity: 1500 lb / 680.39 kg
  • Machine Width: 7 ft 9 in. / 2.36 m

Key Features

  • Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
  • Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
  • Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
  • Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
  • Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
  • Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
  • Capacity - Fuel Tank: 30 gal. / 113.56 L
  • Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
  • Engine Type - Dual Fuel: Kubota, 1.26L, 24.8HP
  • Gradeability: 45 %
  • Ground Clearance: 1 ft 2 in. / 0.35 m
  • Lift Time: 45 sec.
  • Lower Time: 47 sec.
  • Machine Height: 9 ft 10 in. / 3 m
  • Machine Height - Rails Folded: 6 ft 10 in. / 2.08 m
  • Machine Length: 12 ft 10 in. / 3.91 m
  • Machine Weight: 15210 lb / 6899.14 kg
  • Machine Width: 7 ft 9 in. / 2.36 m
  • Platform Capacity: 1500 lb / 680.39 kg
  • Platform Capacity - Extension: 1250 lb / 566.99 kg
  • Platform Dimension A: 6 ft 7 in. / 2.01 m
  • Platform Dimension B: 12 ft 10 in. / 3.92 m
  • Platform Extension Length: 4 in. / 0.1 m
  • Platform Height: 43 ft / 13.11 m
  • Platform Height - Lowered: 6 ft 1 in. / 1.84 m
  • Platform Railing Height: 3 ft 8 in. / 1.1 m
  • Tire Size: 33 X 15.5 Superwide
  • Turning Radius - Inside: 8 ft 11 in. / 2.71 m
  • Turning Radius - Outside: 19 ft 6 in. / 5.93 m
  • Wheelbase: 9 ft 9 in. / 2.97 m
  • Working Height: 49 ft / 14.94 m
  • Overview

    Key Specs

    • Platform Height: 43 ft / 13.11 m
    • Platform Capacity: 1500 lb / 680.39 kg
    • Machine Width: 7 ft 9 in. / 2.36 m

    Key Features

    • Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
    • Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
    • Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
  • Features
    • Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
    • Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
    • Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
  • Specs
    • Capacity - Fuel Tank: 30 gal. / 113.56 L
    • Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
    • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
    • Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
    • Engine Type - Dual Fuel: Kubota, 1.26L, 24.8HP
    • Gradeability: 45 %
    • Ground Clearance: 1 ft 2 in. / 0.35 m
    • Lift Time: 45 sec.
    • Lower Time: 47 sec.
    • Machine Height: 9 ft 10 in. / 3 m
    • Machine Height - Rails Folded: 6 ft 10 in. / 2.08 m
    • Machine Length: 12 ft 10 in. / 3.91 m
    • Machine Weight: 15210 lb / 6899.14 kg
    • Machine Width: 7 ft 9 in. / 2.36 m
    • Platform Capacity: 1500 lb / 680.39 kg
    • Platform Capacity - Extension: 1250 lb / 566.99 kg
    • Platform Dimension A: 6 ft 7 in. / 2.01 m
    • Platform Dimension B: 12 ft 10 in. / 3.92 m
    • Platform Extension Length: 4 in. / 0.1 m
    • Platform Height: 43 ft / 13.11 m
    • Platform Height - Lowered: 6 ft 1 in. / 1.84 m
    • Platform Railing Height: 3 ft 8 in. / 1.1 m
    • Tire Size: 33 X 15.5 Superwide
    • Turning Radius - Inside: 8 ft 11 in. / 2.71 m
    • Turning Radius - Outside: 19 ft 6 in. / 5.93 m
    • Wheelbase: 9 ft 9 in. / 2.97 m
    • Working Height: 49 ft / 14.94 m
