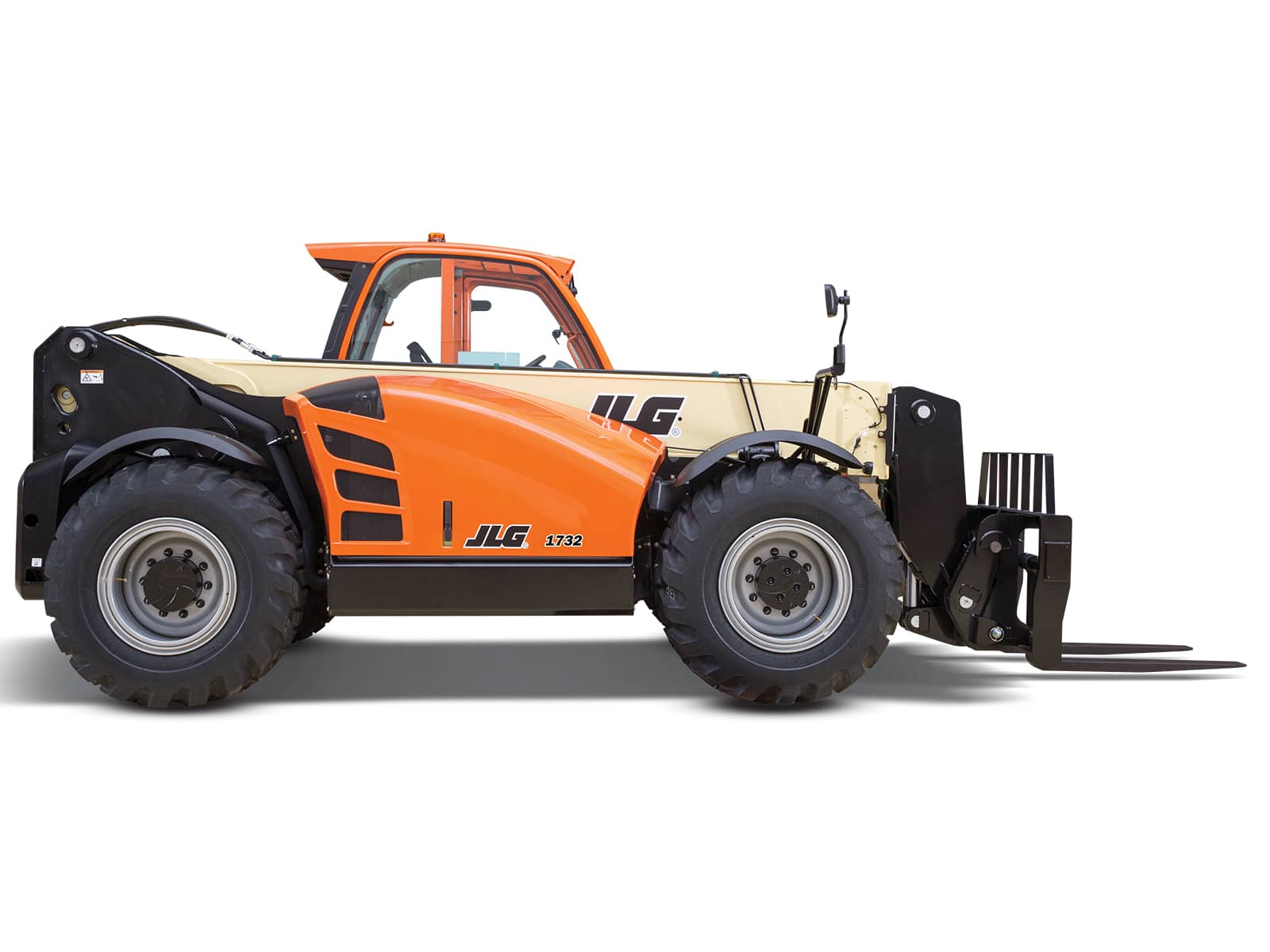

1732 High Capacity Model JLG

Equipment Features & Specs

  • JLG
  • 1732 High Capacity Model
  • Telehandlers

Let us Help You Find What You Need

Phone Icon (304) 776-6900
Mail Icon Request A Quote Price Tag Icon Financing

Comfort. Confidence. Versatility. We wouldn't expect you to settle for anything less with JLG telehandlers. The best-in-class cabs feature enhanced visibility, while industry-specific attachments allow for use in various industries. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible—so you can spend more time on the job and less time on routine maintenance.  Take a virtual tour of the JLG telehandlers.

  • Versatility - Integrated tow hitch and a wide range of attachments for more options on the job site
  • Operator Comfort - Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
  • Operator Confidence - Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
  • SmartLoad Technology - Automatic attachment recognition and real-time load monitoring for enhanced productivity
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Oscillating
  • Capacity - Fuel Tank: 39 gal. \/ 147.63 L
  • Drawbar Pull: 23000 lb \/ 10432.62 kg
  • Engine Horsepower: 134 hp \/ 99.96 kW
  • Engine Manufacturer: Deutz
  • Engine Model: TCD3.6L Tier 4 Final
  • Frame Leveling: 8 Degrees
  • Function Pump Type: Load Sensing Piston
  • Ground Clearance: 1 ft 7 in. \/ 0.48 m
  • Lift Capacity at Full Height: 9900 lb \/ 4490.56 kg
  • Lift Capacity at Max Reach: 5500 lb \/ 2494.76 kg
  • Load Center: 50 ft \/ 15.24 m
  • Machine Height: 8 ft 9 in. \/ 2.67 m
  • Machine Length: 19 ft 5 in. \/ 5.92 m
  • Machine Width: 8 ft 1 in. \/ 2.46 m
  • Maximum Engine RPM: 2200 rpm
  • Maximum Lift Capacity: 16755 lb \/ 7599.94 kg
  • Maximum Lift Height: 31 ft 8 in. \/ 9.65 m
  • Maximum Reach: 18 ft 7 in. \/ 5.66 m
  • Operating Vehicle Weight: 31145 lb \/ 14127.13 kg
  • Outriggers or Stabilizers: No
  • Outside Turning Radius: 13 ft 2 in. \/ 4.01 m
  • Service Brake Type: Wet Multi-Disc
  • Speed - Maximum Lift: 14 sec.
  • Speed - Maximum Lower: 11 sec.
  • Speed - Maximum Telescope Out: 13 sec.
  • Speed - Maximum Travel: 20 mph \/ 32.19 km\/h
  • Tire Size: 17.5-25 SGG
  • Transmission Type: Hydrostatic
  • Wheelbase: 10 ft 7 in. \/ 3.23 m
  • Overview

    Comfort. Confidence. Versatility. We wouldn't expect you to settle for anything less with JLG telehandlers. The best-in-class cabs feature enhanced visibility, while industry-specific attachments allow for use in various industries. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible—so you can spend more time on the job and less time on routine maintenance.  Take a virtual tour of the JLG telehandlers.

  • Features
    • Versatility - Integrated tow hitch and a wide range of attachments for more options on the job site
    • Operator Comfort - Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
    • Operator Confidence - Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
    • SmartLoad Technology - Automatic attachment recognition and real-time load monitoring for enhanced productivity
  • Specs
    • Axle-Front: High Bias, Limited Slip
    • Axle-Rear: Oscillating
    • Capacity - Fuel Tank: 39 gal. \/ 147.63 L
    • Drawbar Pull: 23000 lb \/ 10432.62 kg
    • Engine Horsepower: 134 hp \/ 99.96 kW
    • Engine Manufacturer: Deutz
    • Engine Model: TCD3.6L Tier 4 Final
    • Frame Leveling: 8 Degrees
    • Function Pump Type: Load Sensing Piston
    • Ground Clearance: 1 ft 7 in. \/ 0.48 m
    • Lift Capacity at Full Height: 9900 lb \/ 4490.56 kg
    • Lift Capacity at Max Reach: 5500 lb \/ 2494.76 kg
    • Load Center: 50 ft \/ 15.24 m
    • Machine Height: 8 ft 9 in. \/ 2.67 m
    • Machine Length: 19 ft 5 in. \/ 5.92 m
    • Machine Width: 8 ft 1 in. \/ 2.46 m
    • Maximum Engine RPM: 2200 rpm
    • Maximum Lift Capacity: 16755 lb \/ 7599.94 kg
    • Maximum Lift Height: 31 ft 8 in. \/ 9.65 m
    • Maximum Reach: 18 ft 7 in. \/ 5.66 m
    • Operating Vehicle Weight: 31145 lb \/ 14127.13 kg
    • Outriggers or Stabilizers: No
    • Outside Turning Radius: 13 ft 2 in. \/ 4.01 m
    • Service Brake Type: Wet Multi-Disc
    • Speed - Maximum Lift: 14 sec.
    • Speed - Maximum Lower: 11 sec.
    • Speed - Maximum Telescope Out: 13 sec.
    • Speed - Maximum Travel: 20 mph \/ 32.19 km\/h
    • Tire Size: 17.5-25 SGG
    • Transmission Type: Hydrostatic
    • Wheelbase: 10 ft 7 in. \/ 3.23 m
  • Downloads & Documentation
