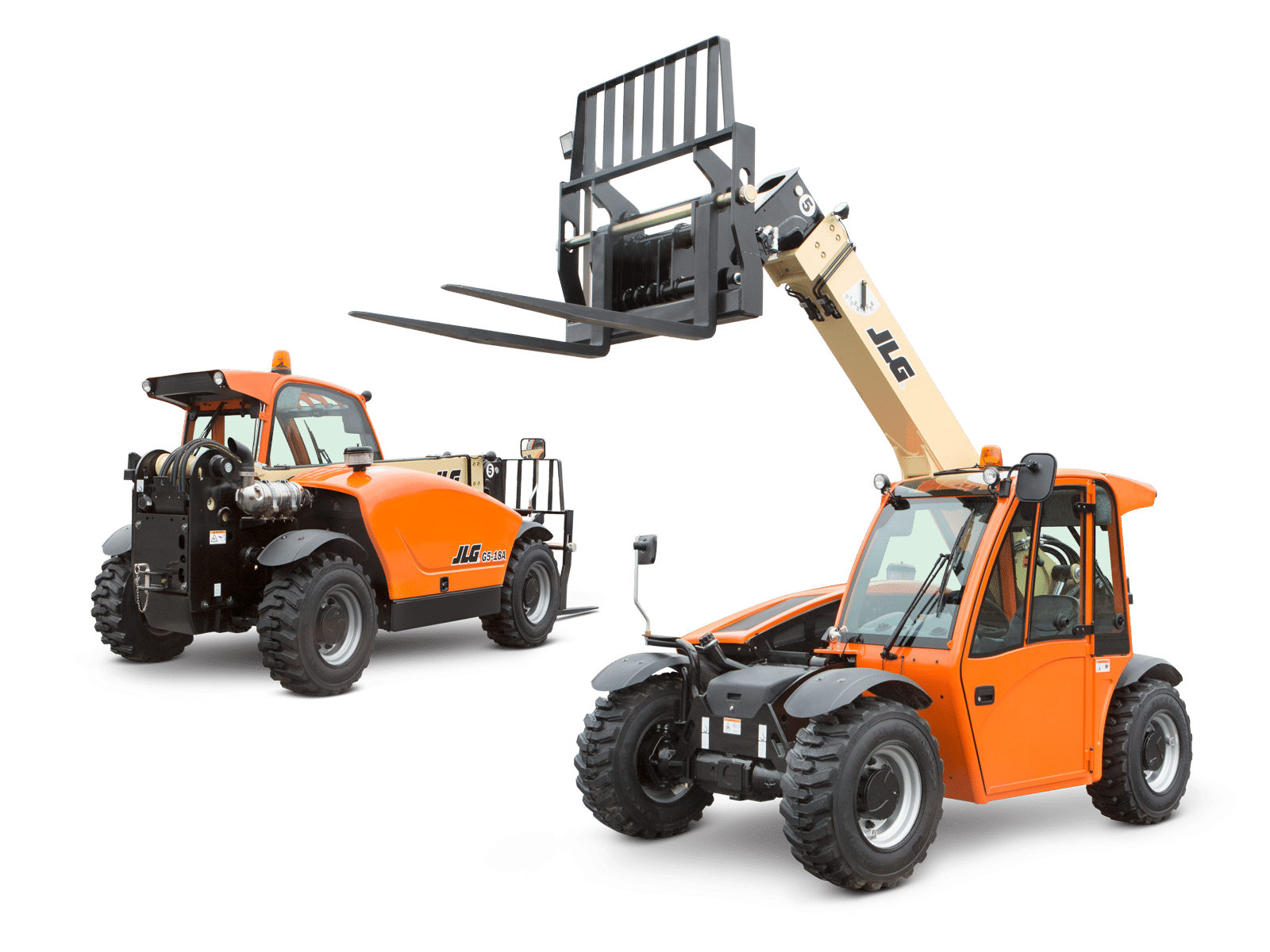

G5-18A JLG

Equipment Features & Specs

  • JLG
  • G5-18A
  • Telehandlers

Let us Help You Find What You Need

Phone Icon (304) 776-6900
Mail Icon Request A Quote Price Tag Icon Financing

Key Specs

  • Maximum Lift Capacity: 5511.6 lb / 2500 kg
  • Maximum Lift Height: 18.4 ft / 5.60 m
  • Maximum Reach: 10.8 ft / 3.30 m

Key Features

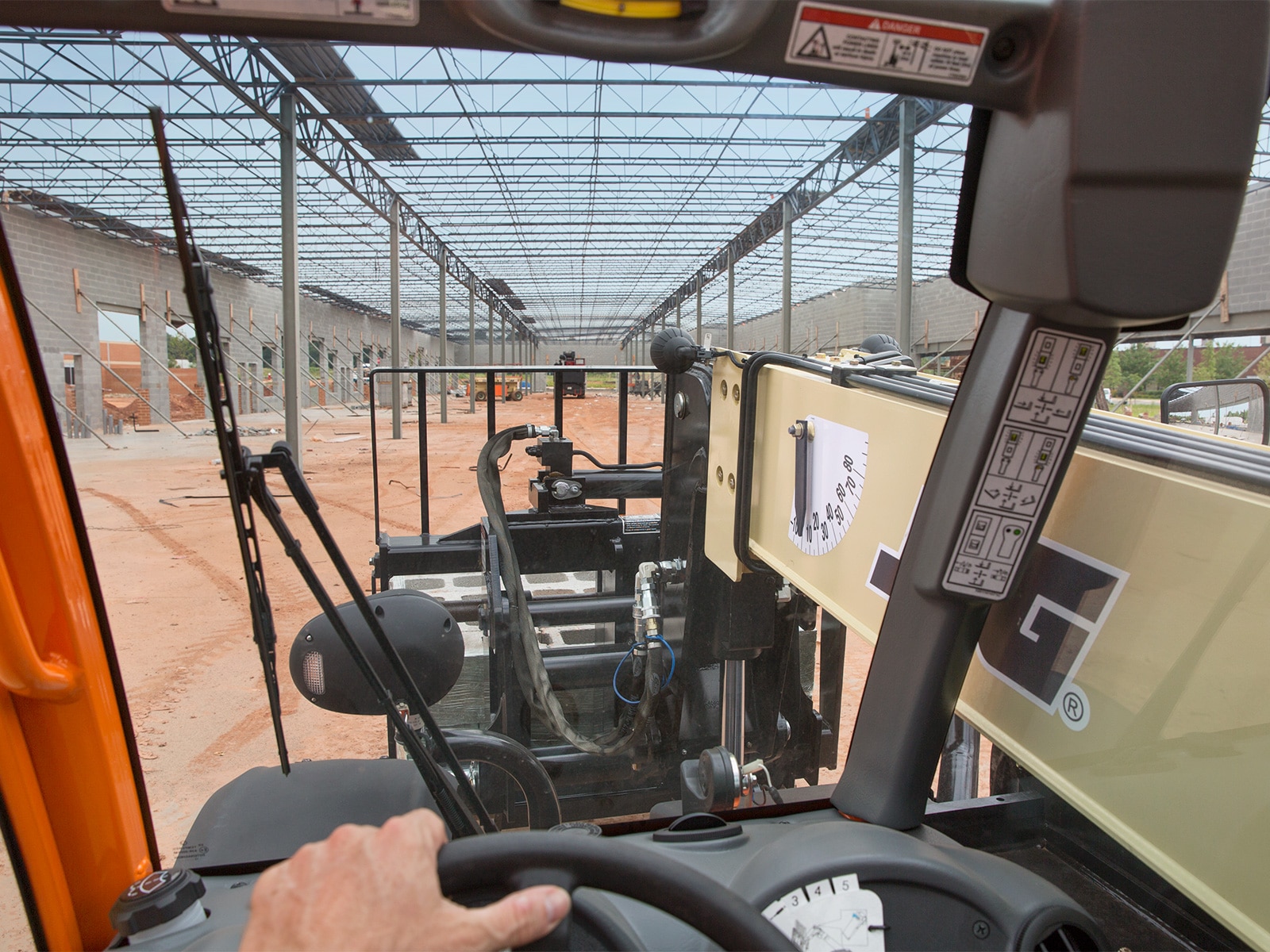

  • Comfortable cab to reduce operator fatigue
  • Tight turning radius to maneuver through crowded jobsites
  • Fuel-efficient Tier 4 final Deutz engine
  • Variety of attachments for versatility in handling jobsite challenges
  • Universal skid steer adapter compatible with existing skid steer attachments
  • Universal skid steer adapter compatible with existing skid steer attachments
  • Variety of attachments for versatility in handling jobsite challenges
  • Comfortable cab to reduce operator fatigue
  • Fuel-efficient Tier 4 final Deutz engine
  • Tight turning radius to maneuver through crowded jobsites
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Oscillating
  • Breakout Force: 8093.1 lbf / 36 kN
  • Cab Width: 2 ft 10 in. / 0.87 m
  • Capacity - Coolant: 3.5 gal. / 13.20 L
  • Capacity - Engine Oil: 2.4 gal. / 9.10 L
  • Capacity - Fuel Tank: 24 gal. / 91 L
  • Capacity - Hydraulic Reservoir: 16.1 gal. / 61 L
  • Drawbar Pull: 8902.4 lbf / 39.60 kN
  • Engine Horsepower: 74.3 hp / 55.40 kW
  • Engine Manufacturer: Deutz
  • Engine Model: TD 2.9 L4
  • Frame Leveling: 0 Degrees
  • Function Pump Type: Gear
  • Ground Clearance: 1 ft / 0.31 m
  • Hydraulic System Flow: 19.1 gal/min. / 72.30 L/Min
  • Hydraulic System Pressure: 3495.4 psi / 241 bar
  • Lift Capacity at Full Height: 4409.2 lb / 2000 kg
  • Lift Capacity at Max Reach: 1763.7 lb / 800 kg
  • Load Center: 1 ft 8 in. / 0.5 m
  • Machine Height: 6 ft 4 in. / 1.92 m
  • Machine Length: 12 ft / 3.66 m
  • Machine Length (Forks): 12 ft 6 in. / 3.82 m
  • Machine Width: 6 ft / 1.83 m
  • Maximum Engine RPM: 2300 rpm
  • Maximum Lift Capacity: 5511.6 lb / 2500 kg
  • Maximum Lift Height: 18.4 ft / 5.60 m
  • Maximum Reach: 10.8 ft / 3.30 m
  • Operating Vehicle Weight: 11001.1 lb / 4990 kg
  • Outriggers or Stabilizers: No
  • Outside Turning Radius: 10 ft 6 in. / 3.2 m
  • Service Brake Type: Wet Multi-Disc
  • Speed - Maximum Crowd: 2.5 sec.
  • Speed - Maximum Dump: 2 sec.
  • Speed - Maximum Lift: 6.8 sec.
  • Speed - Maximum Lower: 4.6 sec.
  • Speed - Maximum Telescope In: 3.8 sec.
  • Speed - Maximum Telescope Out: 6.7 sec.
  • Speed - Maximum Travel: 14.9 mph / 24 km/h
  • Tire Size: 12 X 16.5 12PR
  • Towing Capacity: 6613.9 lb / 3000 kg
  • Track Width: 4 ft 11 in. / 1.51 m
  • Transmission Type: Hydrostatic
  • Wheelbase: 7 ft 6 in. / 2.29 m
  • Overview

    Key Specs

    • Maximum Lift Capacity: 5511.6 lb / 2500 kg
    • Maximum Lift Height: 18.4 ft / 5.60 m
    • Maximum Reach: 10.8 ft / 3.30 m

    Key Features

    • Comfortable cab to reduce operator fatigue
    • Tight turning radius to maneuver through crowded jobsites
    • Fuel-efficient Tier 4 final Deutz engine
    • Variety of attachments for versatility in handling jobsite challenges
    • Universal skid steer adapter compatible with existing skid steer attachments
  • Features
    • Universal skid steer adapter compatible with existing skid steer attachments
    • Variety of attachments for versatility in handling jobsite challenges
    • Comfortable cab to reduce operator fatigue
    • Fuel-efficient Tier 4 final Deutz engine
    • Tight turning radius to maneuver through crowded jobsites
  • Specs
    • Axle-Front: High Bias, Limited Slip
    • Axle-Rear: Oscillating
    • Breakout Force: 8093.1 lbf / 36 kN
    • Cab Width: 2 ft 10 in. / 0.87 m
    • Capacity - Coolant: 3.5 gal. / 13.20 L
    • Capacity - Engine Oil: 2.4 gal. / 9.10 L
    • Capacity - Fuel Tank: 24 gal. / 91 L
    • Capacity - Hydraulic Reservoir: 16.1 gal. / 61 L
    • Drawbar Pull: 8902.4 lbf / 39.60 kN
    • Engine Horsepower: 74.3 hp / 55.40 kW
    • Engine Manufacturer: Deutz
    • Engine Model: TD 2.9 L4
    • Frame Leveling: 0 Degrees
    • Function Pump Type: Gear
    • Ground Clearance: 1 ft / 0.31 m
    • Hydraulic System Flow: 19.1 gal/min. / 72.30 L/Min
    • Hydraulic System Pressure: 3495.4 psi / 241 bar
    • Lift Capacity at Full Height: 4409.2 lb / 2000 kg
    • Lift Capacity at Max Reach: 1763.7 lb / 800 kg
    • Load Center: 1 ft 8 in. / 0.5 m
    • Machine Height: 6 ft 4 in. / 1.92 m
    • Machine Length: 12 ft / 3.66 m
    • Machine Length (Forks): 12 ft 6 in. / 3.82 m
    • Machine Width: 6 ft / 1.83 m
    • Maximum Engine RPM: 2300 rpm
    • Maximum Lift Capacity: 5511.6 lb / 2500 kg
    • Maximum Lift Height: 18.4 ft / 5.60 m
    • Maximum Reach: 10.8 ft / 3.30 m
    • Operating Vehicle Weight: 11001.1 lb / 4990 kg
    • Outriggers or Stabilizers: No
    • Outside Turning Radius: 10 ft 6 in. / 3.2 m
    • Service Brake Type: Wet Multi-Disc
    • Speed - Maximum Crowd: 2.5 sec.
    • Speed - Maximum Dump: 2 sec.
    • Speed - Maximum Lift: 6.8 sec.
    • Speed - Maximum Lower: 4.6 sec.
    • Speed - Maximum Telescope In: 3.8 sec.
    • Speed - Maximum Telescope Out: 6.7 sec.
    • Speed - Maximum Travel: 14.9 mph / 24 km/h
    • Tire Size: 12 X 16.5 12PR
    • Towing Capacity: 6613.9 lb / 3000 kg
    • Track Width: 4 ft 11 in. / 1.51 m
    • Transmission Type: Hydrostatic
    • Wheelbase: 7 ft 6 in. / 2.29 m
