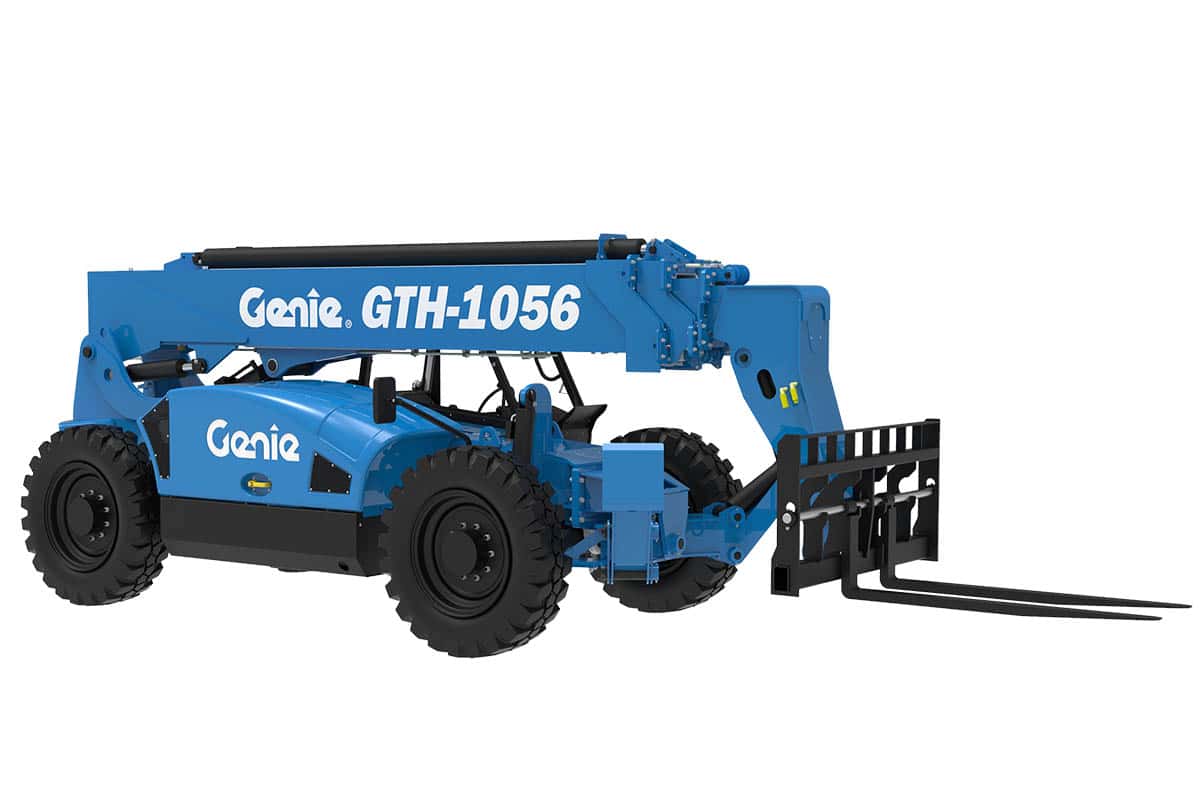

GTH™-1056 Genie

Equipment Features & Specs

  • Genie
  • GTH™-1056
  • Telehandlers

Let us Help You Find What You Need

Phone Icon (304) 776-6900
Mail Icon Request A Quote Price Tag Icon Financing

Genie® high reach telehandlers

Genie high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. Available in two models, these telehandlers offer excellent productivity on jobsites ranging from new construction of multi-story buildings to masonry. Powerful features such as four-wheel drive and a turbocharged diesel engine provide reliable performance in the most rugged conditions.



  • Heavy-duty workhorse for lifting applications in construction, landscaping and agriculture
  • Ideal for loading/unloading and moving/placing materials, as well as jobsite cleanup
  • Low-end torque, four-wheel drive and four-wheel steering for hills and rough terrain
  • Simple no-tool access to daily inspection points
  • High-efficiency/variable displacement hydraulic pump
  • Expanded turbocharged diesel engine options
  • Compact outside turning radius and excellent ground clearance
  • Twin axle-mounted stabilizers can be deployed from the cab
  • Powershift transmission with three speeds forward and reverse
  • Frame-leveling chassis — pick up or place loads on up to 10? side slopes
  • Power-assisted steering
  • Maximum forward reach of 42 ft (12.8 m) to move heavy loads over obstacles
  • Three selectable steering modes: front-wheel, coordinated and crab steer
  • ROPS/FOPS canopy (ISO compliant)
  • Comfortable, spacious cab provides excellent visibility
  • Multi-function proportional joystick control for fast, precise positioning
  • Drive Speed: 17 mph (27 km/h)
  • Forward Reach: 42 ft (12.80 m)
  • Lift Capacity: 10,000 lbs (4,536 kg)
  • Lifting Height: 56 ft 10 in (17.32 m)
  • Maximum Forward Reach: 42 ft (12.80 m)
  • Maximum Lift Capacity: 10,000 lbs (4,536 kg)
  • Maximum Lift Height: 56 ft 10 in (17.32 m)
  • Power Source: Perkins 1204E T4i 124 HP (92.47 kW) Deutz TCD 3.6 L T4i 121 HP (90.23 kW)
  • Weight*: 30,000 lbs (13,608 kg)
  • Overview

    Genie® high reach telehandlers

    Genie high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. Available in two models, these telehandlers offer excellent productivity on jobsites ranging from new construction of multi-story buildings to masonry. Powerful features such as four-wheel drive and a turbocharged diesel engine provide reliable performance in the most rugged conditions.



    • Heavy-duty workhorse for lifting applications in construction, landscaping and agriculture
    • Ideal for loading/unloading and moving/placing materials, as well as jobsite cleanup
    • Low-end torque, four-wheel drive and four-wheel steering for hills and rough terrain
    • Simple no-tool access to daily inspection points
  • Features
    • High-efficiency/variable displacement hydraulic pump
    • Expanded turbocharged diesel engine options
    • Compact outside turning radius and excellent ground clearance
    • Twin axle-mounted stabilizers can be deployed from the cab
    • Powershift transmission with three speeds forward and reverse
    • Frame-leveling chassis — pick up or place loads on up to 10? side slopes
    • Power-assisted steering
    • Maximum forward reach of 42 ft (12.8 m) to move heavy loads over obstacles
    • Three selectable steering modes: front-wheel, coordinated and crab steer
    • ROPS/FOPS canopy (ISO compliant)
    • Comfortable, spacious cab provides excellent visibility
    • Multi-function proportional joystick control for fast, precise positioning
  • Specs
    • Drive Speed: 17 mph (27 km/h)
    • Forward Reach: 42 ft (12.80 m)
    • Lift Capacity: 10,000 lbs (4,536 kg)
    • Lifting Height: 56 ft 10 in (17.32 m)
    • Maximum Forward Reach: 42 ft (12.80 m)
    • Maximum Lift Capacity: 10,000 lbs (4,536 kg)
    • Maximum Lift Height: 56 ft 10 in (17.32 m)
    • Power Source: Perkins 1204E T4i 124 HP (92.47 kW) Deutz TCD 3.6 L T4i 121 HP (90.23 kW)
    • Weight*: 30,000 lbs (13,608 kg)
