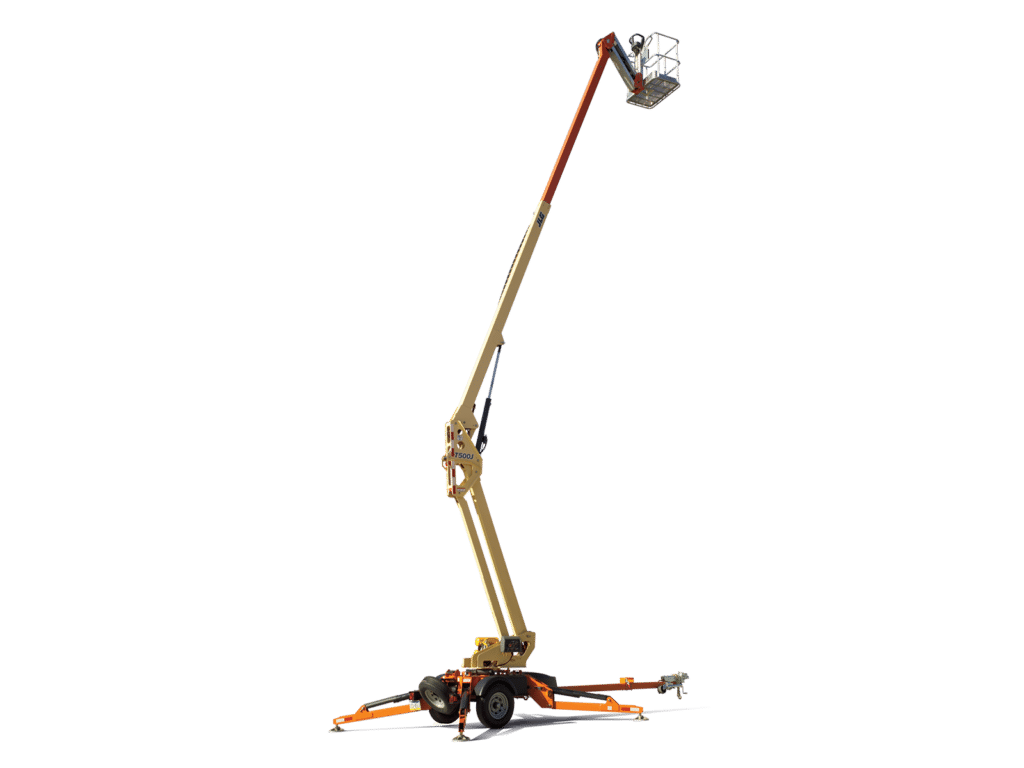

T500J JLG

Equipment Features & Specs

  • JLG
  • T500J
  • Trailer Mounted Booms

Let us Help You Find What You Need

Phone Icon (855) 279-1311
Mail Icon Request A Quote Price Tag Icon Financing

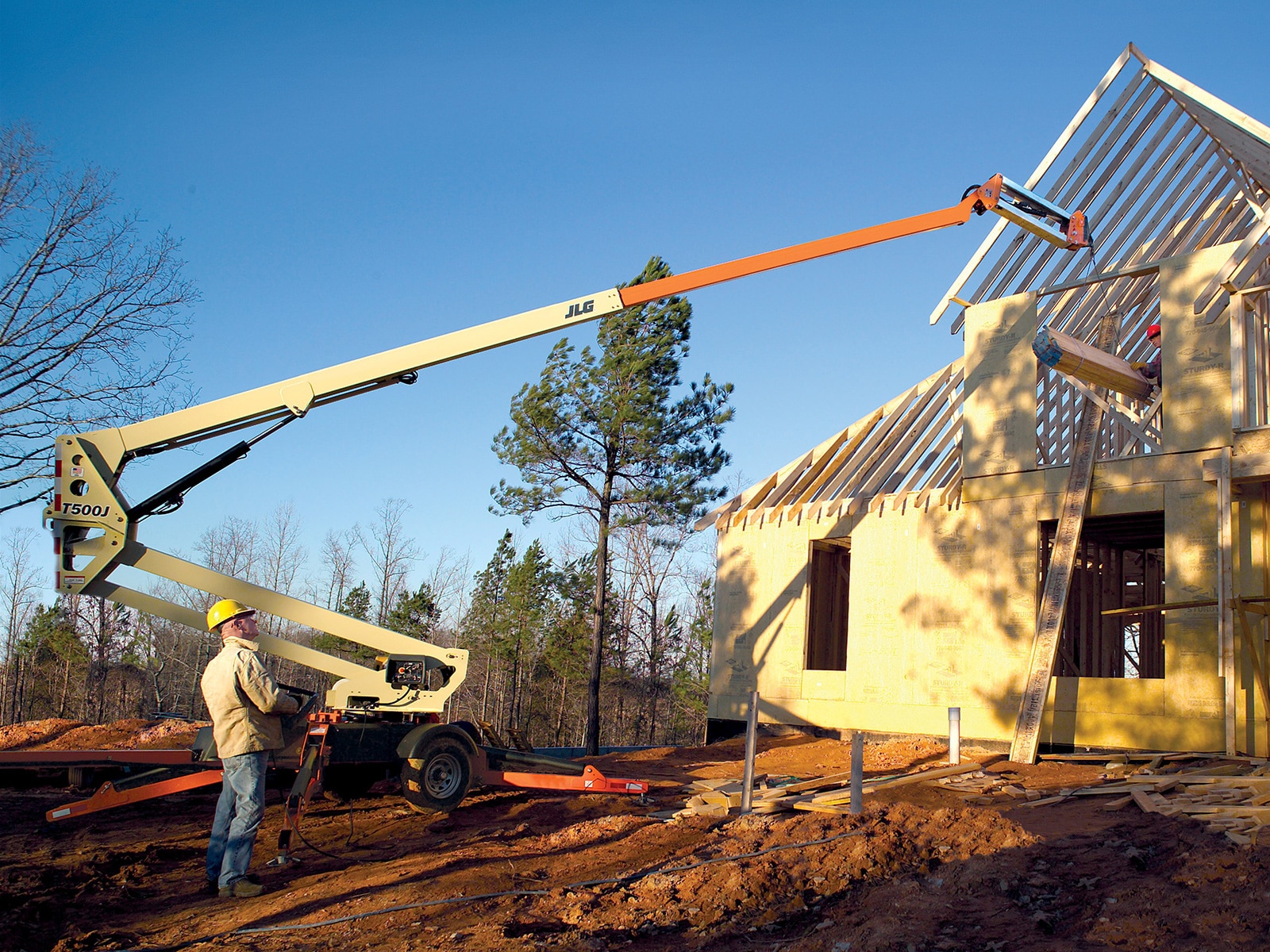

The Tow-Pro® Series - our exclusive line of towable boom lifts - lets you tackle the same jobs as other JLG® electric or gas-powered boom lifts, but with an easier option for transportation. You have the choice of a 24V DC electric or 9 HP gas-powered engine. And with the standard combination hitch, industry-leading 65 mph towing speed and hydraulic auto-leveling outriggers, you can have this extremely portable lift brought to the job site and working in no time. Whether you need it for tree trimming, decorating, construction, exterior painting or maintenance tasks, a Tow-Pro is great for your everyday needs.

  • Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
  • Standard air and water lines to platform
  • Gasoline engine or 24V DC electric power
  • Batteries: 4 x 6V 220 amp-hr
  • Capacity - Hydraulic Reservoir: 6 gal. \/ 22.71 L
  • Frame Leveling: 11 Degrees
  • Ground Clearance: 1 ft 3 in. \/ 0.38 m
  • Horizontal Outreach: 30 ft \/ 9.14 m
  • Jib - Range of articulation: 130 Degrees
  • Machine Height: 7 ft 5 in. \/ 2.26 m
  • Machine Length: 27 ft 4 in. \/ 8.33 m
  • Machine Weight: 4800 lb \/ 2177.24 kg
  • Machine Width: 5 ft 7 in. \/ 1.7 m
  • Maximum Ground Bearing Pressure: 31 psi \/ 2.17 Kg\/cm2
  • Outrigger Footprint Length: 12 ft 4 in. \/ 3.76 m
  • Outrigger Footprint Width: 12 ft 8 in. \/ 3.86 m
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 500 lb \/ 226.80 kg
  • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
  • Platform Dimension B: 4 ft \/ 1.22 m
  • Platform Height: 50 ft \/ 15.24 m
  • Swing: 410 Degrees
  • Swing Type: Non-Continuous
  • Tire Size: 225\/75 R14 Pnuematic
  • Towing Speed Rating: 65 mph \/ 104.61 km\/h
  • Up and Over Height: 18 ft \/ 5.49 m
  • Overview

    The Tow-Pro® Series - our exclusive line of towable boom lifts - lets you tackle the same jobs as other JLG® electric or gas-powered boom lifts, but with an easier option for transportation. You have the choice of a 24V DC electric or 9 HP gas-powered engine. And with the standard combination hitch, industry-leading 65 mph towing speed and hydraulic auto-leveling outriggers, you can have this extremely portable lift brought to the job site and working in no time. Whether you need it for tree trimming, decorating, construction, exterior painting or maintenance tasks, a Tow-Pro is great for your everyday needs.

  • Features
    • Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
    • Standard air and water lines to platform
    • Gasoline engine or 24V DC electric power
  • Specs
    • Batteries: 4 x 6V 220 amp-hr
    • Capacity - Hydraulic Reservoir: 6 gal. \/ 22.71 L
    • Frame Leveling: 11 Degrees
    • Ground Clearance: 1 ft 3 in. \/ 0.38 m
    • Horizontal Outreach: 30 ft \/ 9.14 m
    • Jib - Range of articulation: 130 Degrees
    • Machine Height: 7 ft 5 in. \/ 2.26 m
    • Machine Length: 27 ft 4 in. \/ 8.33 m
    • Machine Weight: 4800 lb \/ 2177.24 kg
    • Machine Width: 5 ft 7 in. \/ 1.7 m
    • Maximum Ground Bearing Pressure: 31 psi \/ 2.17 Kg\/cm2
    • Outrigger Footprint Length: 12 ft 4 in. \/ 3.76 m
    • Outrigger Footprint Width: 12 ft 8 in. \/ 3.86 m
    • Outriggers or Stabilizers: Yes
    • Platform Capacity: 500 lb \/ 226.80 kg
    • Platform Dimension A: 2 ft 6 in. \/ 0.76 m
    • Platform Dimension B: 4 ft \/ 1.22 m
    • Platform Height: 50 ft \/ 15.24 m
    • Swing: 410 Degrees
    • Swing Type: Non-Continuous
    • Tire Size: 225\/75 R14 Pnuematic
    • Towing Speed Rating: 65 mph \/ 104.61 km\/h
    • Up and Over Height: 18 ft \/ 5.49 m
