15MVL JLG

Equipment Features & Specs

  • JLG
  • 15MVL
  • Vertical Mast Lifts

Let us Help You Find What You Need

Phone Icon (304) 776-6900
Mail Icon Request A Quote Price Tag Icon Financing

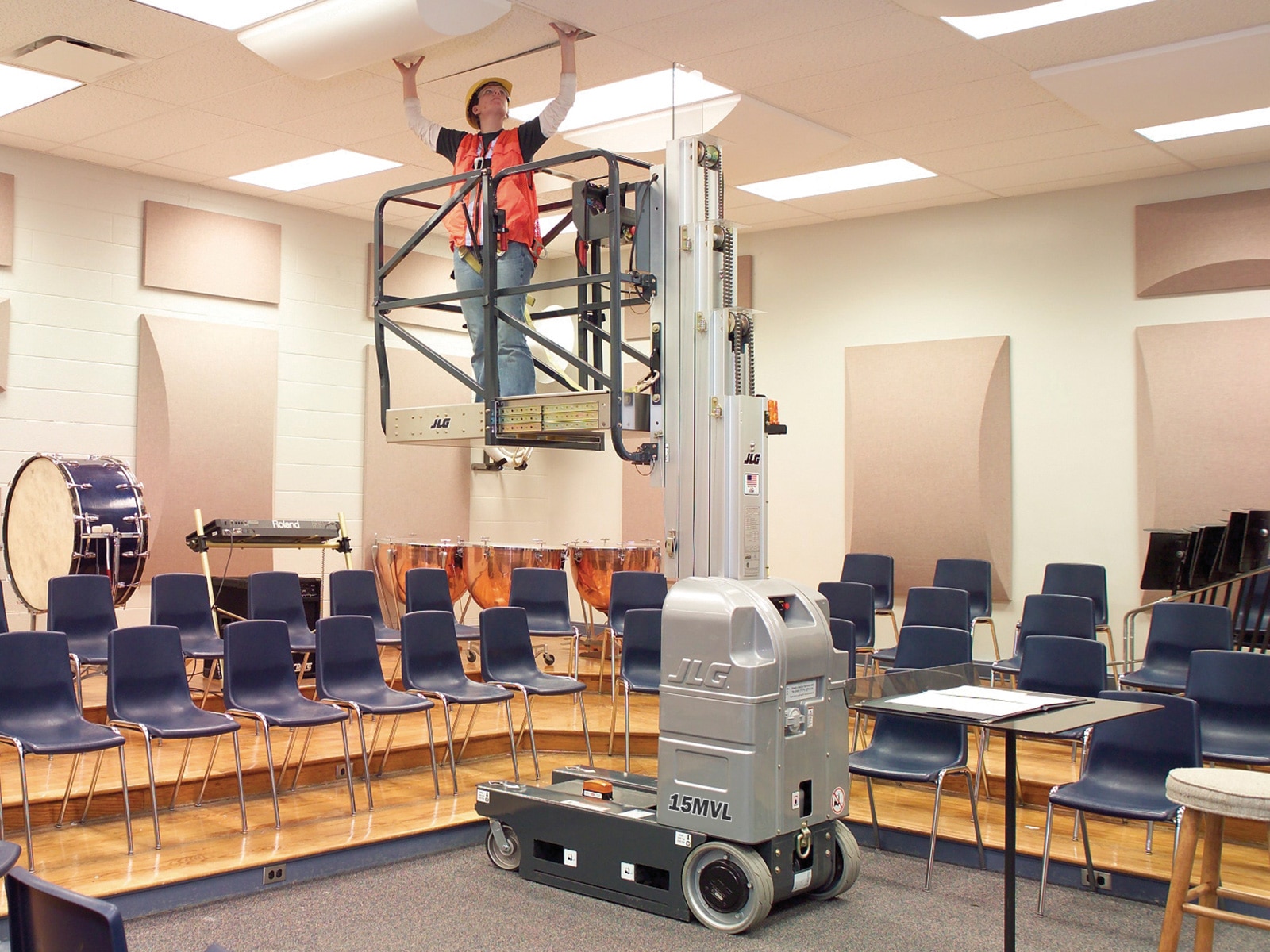

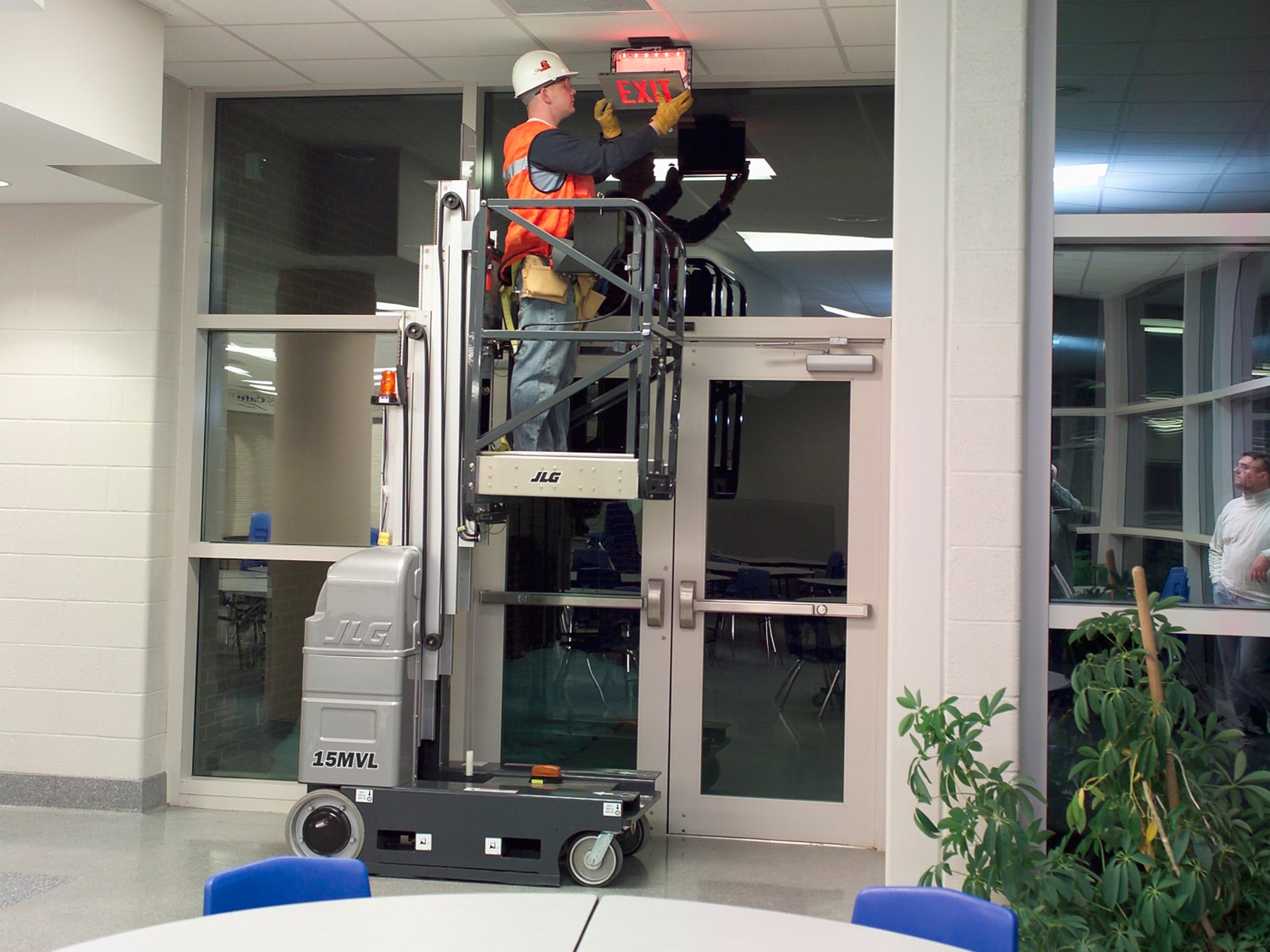

Whether you’ve got work to do in factories, retail centers, airports or public buildings, JLG® Mobile Vertical Lifts keep you on the job longer. A pair of reliable direct electric drive motors deliver power while maintenance-free long cycle batteries hold their charge. The built-in, automatic charger has a five-hour recharge capability. Three platform options with exclusive one-minute quick-change mountings let you get maintenance jobs done efficiently.

  • Rigid mast for operator comfort and stability
  • Five platform options with exclusive \u201CQuick Change\u201D mountings for one-minute change-outs
  • Exclusive Point & Go\u00AE single joystick control operates drive and steer, and lift and lower
  • Batteries: Two Sealed 100 AH 12 Volt
  • Drive Speed - Platform Elevated: 0.60 mph \/ 0.97 km\/h
  • Drive Speed - Platform Lowered: 3.50 mph \/ 5.63 km\/h
  • Drive System: 4 Brush Direct Electric
  • Gradeability: 20 %
  • Ground Clearance: 2 in. \/ 0.05 m
  • Ground Entry Height: 1 ft 7 in. \/ 0.48 m
  • Machine Height: 6 ft 6 in. \/ 1.98 m
  • Machine Length: 4 ft 6 in. \/ 1.36 m
  • Machine Weight: 2325 lb \/ 1054.60 kg
  • Machine Width: 2 ft 6 in. \/ 0.75 m
  • Maximum Lift Height: 15 ft \/ 4.66 m
  • Platform Capacity: 500 lb \/ 226.80 kg
  • Platform Dimension A: 2 ft 2 in. \/ 0.66 m
  • Platform Dimension B: 2 ft 4 in. \/ 0.71 m
  • Platform Height: 15 ft 4 in. \/ 4.67 m
  • Wheel Size - Front Caster: 8 x 2.5"
  • Wheel Size - Rear: 12.62 x 4"
  • Working Height: 21 ft 4 in. \/ 6.5 m
  • Overview

    Whether you’ve got work to do in factories, retail centers, airports or public buildings, JLG® Mobile Vertical Lifts keep you on the job longer. A pair of reliable direct electric drive motors deliver power while maintenance-free long cycle batteries hold their charge. The built-in, automatic charger has a five-hour recharge capability. Three platform options with exclusive one-minute quick-change mountings let you get maintenance jobs done efficiently.

  • Features
    • Rigid mast for operator comfort and stability
    • Five platform options with exclusive \u201CQuick Change\u201D mountings for one-minute change-outs
    • Exclusive Point & Go\u00AE single joystick control operates drive and steer, and lift and lower
  • Specs
    • Batteries: Two Sealed 100 AH 12 Volt
    • Drive Speed - Platform Elevated: 0.60 mph \/ 0.97 km\/h
    • Drive Speed - Platform Lowered: 3.50 mph \/ 5.63 km\/h
    • Drive System: 4 Brush Direct Electric
    • Gradeability: 20 %
    • Ground Clearance: 2 in. \/ 0.05 m
    • Ground Entry Height: 1 ft 7 in. \/ 0.48 m
    • Machine Height: 6 ft 6 in. \/ 1.98 m
    • Machine Length: 4 ft 6 in. \/ 1.36 m
    • Machine Weight: 2325 lb \/ 1054.60 kg
    • Machine Width: 2 ft 6 in. \/ 0.75 m
    • Maximum Lift Height: 15 ft \/ 4.66 m
    • Platform Capacity: 500 lb \/ 226.80 kg
    • Platform Dimension A: 2 ft 2 in. \/ 0.66 m
    • Platform Dimension B: 2 ft 4 in. \/ 0.71 m
    • Platform Height: 15 ft 4 in. \/ 4.67 m
    • Wheel Size - Front Caster: 8 x 2.5"
    • Wheel Size - Rear: 12.62 x 4"
    • Working Height: 21 ft 4 in. \/ 6.5 m
  • Downloads & Documentation
