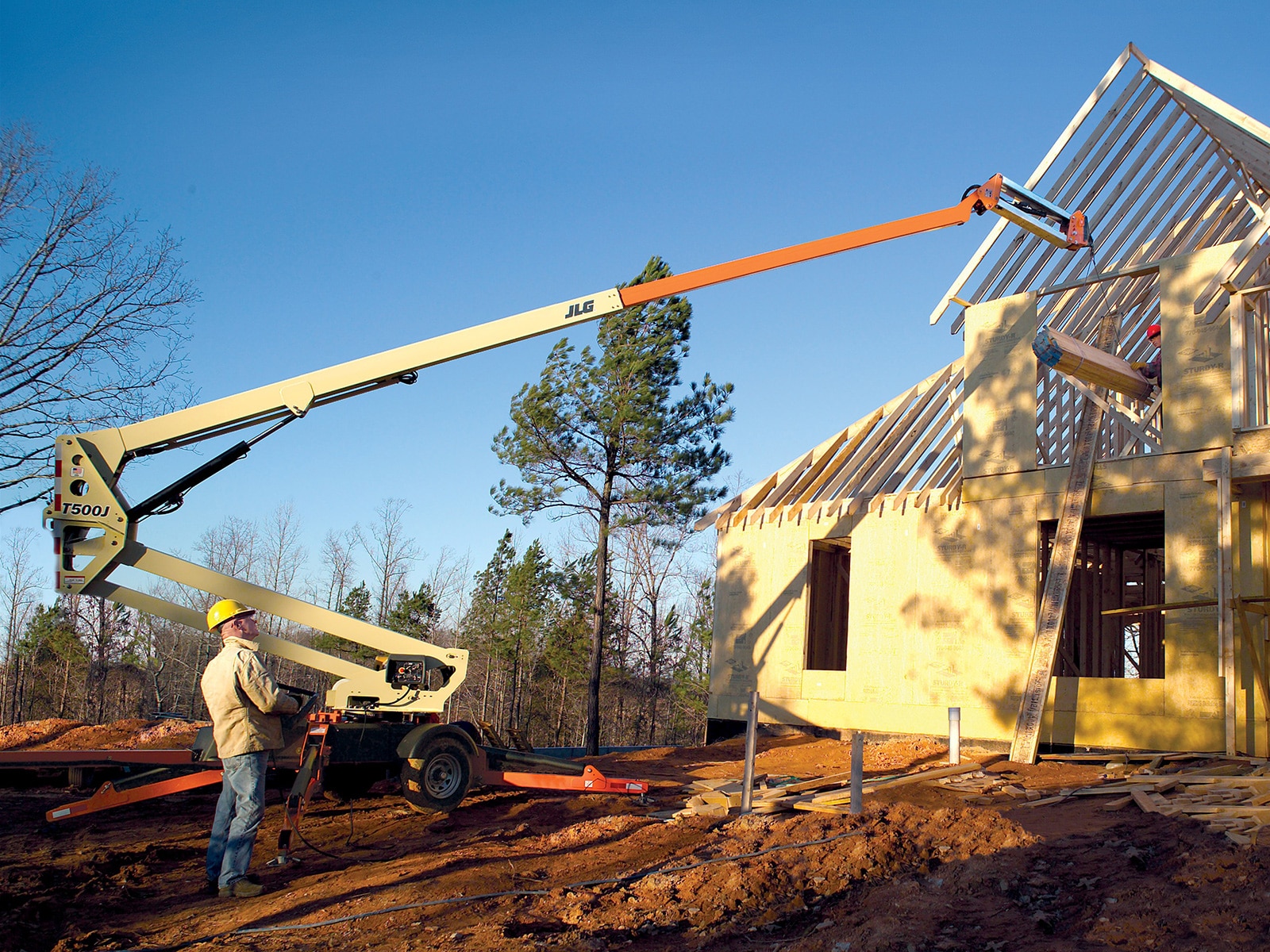

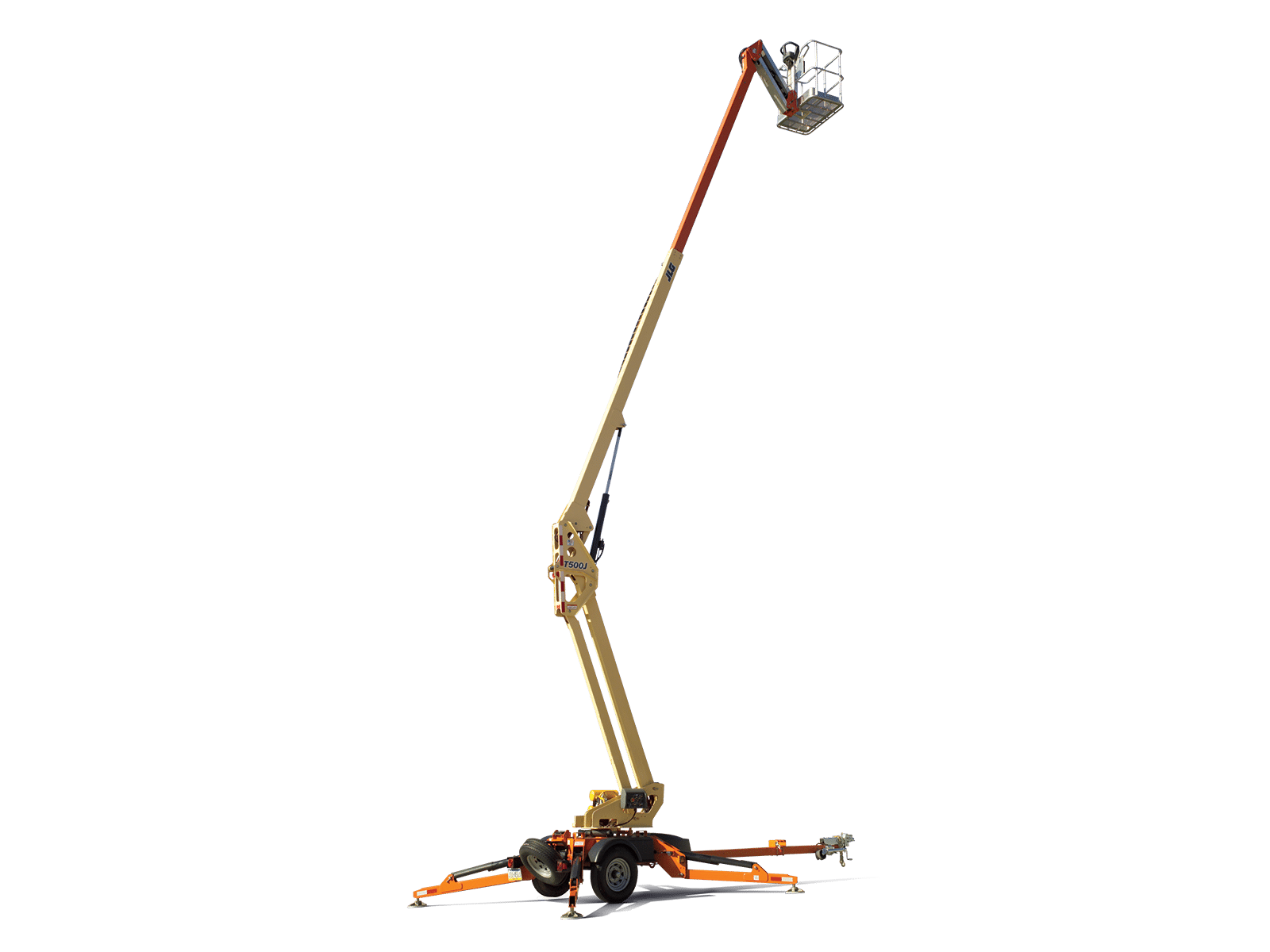

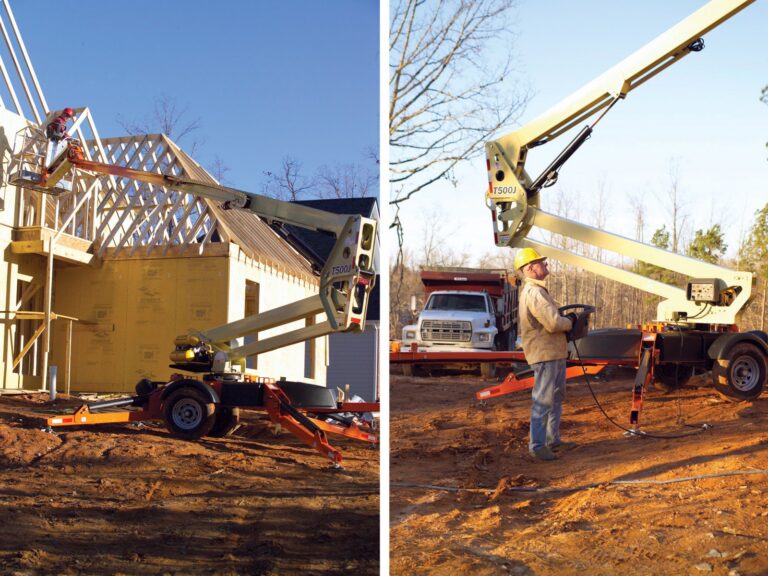

T500J

JLG

Location:

Unit:

Price: Contact for price

Gasoline engine or 24V DC electric power.
Standard air and water lines to platform.
Accessory Mounting Tray accommodates your generator, air compressor or pressure washer.

Capacity

500lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Outriggers or Stabilizers	Yes
Machine Width	5 ft 7 in. / 1.7 m
Platform Height	50 ft / 15.24 m
Towing Speed Rating	65 mph / 104.61 km/h
Outrigger Footprint Length	12 ft 4 in. / 3.76 m
Platform Dimension A	2 ft 6 in. / 0.76 m
Maximum Ground Bearing Pressure	31 psi / 2.17 Kg/cm2
Machine Length	27 ft 4 in. / 8.33 m
Jib – Range of articulation	130 Degrees
Swing Type	Non-Continuous
Up and Over Height	18 ft / 5.49 m
Platform Dimension B	4 ft / 1.22 m
Outrigger Footprint Width	12 ft 8 in. / 3.86 m
Ground Clearance	1 ft 3 in. / 0.38 m
Machine Height	7 ft 5 in. / 2.26 m
Tire Size	225/75 R14 Pnuematic
Machine Weight	4800 lb / 2177.24 kg
Frame Leveling	11 Degrees
Swing	410 Degrees
Horizontal Outreach	30 ft / 9.14 m
Batteries	4 x 6V 220 amp-hr
Capacity – Hydraulic Reservoir	6 gal. / 22.71 L
