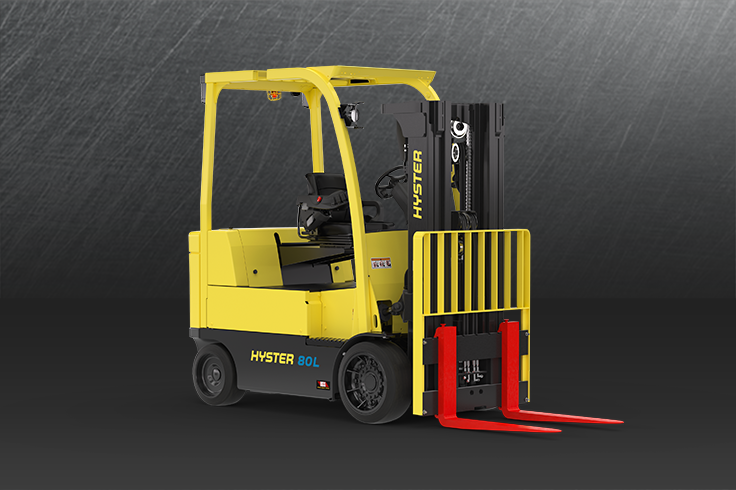

The E80XNL has been specifically designed to take advantage of the form factor of the lithium-ion battery pack, creating greater space in the operator compartment and lowering the center of gravity. Lithium-ion power is an ideal solution for heavy-duty applications due to zero battery maintenance, fast charging, and a long battery life.

• Air-ride vinyl and cloth seat options allow for a smoother ride, improving operator comfort.
• Spacious operator compartment allows for more freedom to position feet during operation.

• Multiple battery sizes allowing to tailor fit application needs
  • 52.4 kWh (83.2V @ 630 Ah)
  • 43.7 kWh (83.2V @ 525 Ah)
  • 34.9 kWh (83.2V @ 420AH)
• Fast charging speeds available
  • 34.9kW battery can be fully charged in as little as approximately 1 hour and 15 minutes with 30kW charger
  • 52.4kW battery can be fully charged in as little as approximately 1 hour and 45 minutes with 30kW charger
• For applications with high ambient temperatures and/or high charging demands, cooling options are available. Vented paneling and fans pull air across the battery. Fans will run when:
  • Battery enters thermal cutback
  • Anytime battery is on charge

• Although longer than the standard battery box E80XN, for ICE replacement, E80XNL is:
  • ~3.2” shorter than an S80FT truck
  • Improves Outside Turning Radius (OTR) by ~2.3” when comparted to an S80FT truck
  • Improves Right Angle Stack by ~2.1” when compared to an S80FT truck

The sealed, integrated lithium-ion battery requires zero maintenance and gives off zero emissions with no gassing.

• No more watering
• No more acid
• No more spills
• No more fumes
• No more cleaning
• No more equalizing

Available onboard charging option provides the flexibility to charge via a cable and adaptors that connect to commonly available electrical outlets, in addition to traditional off-board fast charging.
