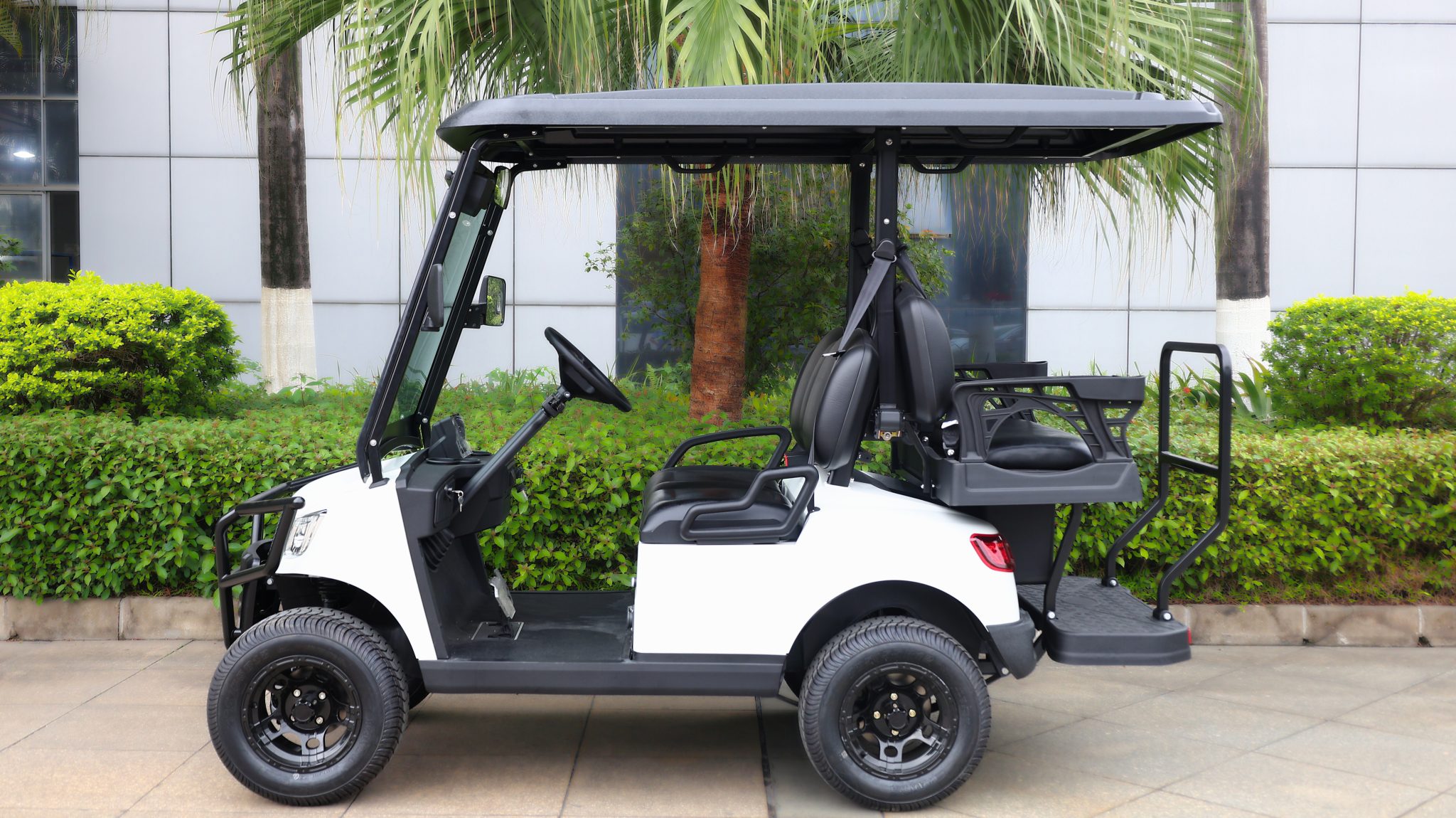

Nimble four passenger electric cart The Fusion 2+2 electric cart shuttles up to four people in a compact footprint, with a rear flip seat that converts to a cargo deck. This versatile people-moving solution is packed with safety and reliability features like three-point seat belts, backup cameras, noise emitters, front brush guards, and a full five-year warranty on our lithium-ion battery. The 2+2 can be used anywhere you need to efficiently move people in localized areas often with tight spaces to operate in, like airports, industrial plants, college and university campuses, resorts, job sites, zoos and more. The Fusion 2+2 is a nimble and versatile people-moving solution for fleets.
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Attachments |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Motor | 5KW / 6.8 HP |
|---|---|
| Controller | 450 Amp Programmable |
| Drivetrain | 16:1 High Speed Rear Axle |
| Speed | 19 mph (30.4 Km/H)/ 25 mph (40.2 Km/H) |
| Battery | 51.2V 105Ah Marxon® Lithium-Ion Pack With Heating Module |
| Charger | Onboard – 20 Amp 120V |
| Range | 35 mi (56.3km) |
| Battery Level Indicator | Digital Touch Screen |
| Chassis | E-Coat And Powder Coated Steel Frame |
| Suspension | Heavy Duty Coil Over Shocks |
| Ground Clearance | 6.5” (16.5 cm) |
| Brakes | 4 Wheel Premium Hydraulic Disc Brakes |
| Park Brakes | Electro Magnetic, Automatically Actuated Once Vehicle Is Stopped, Released When Accelerator Peddle Is Engaged |
| Wheels And Tires | Black Aluminum, 225/55-12 |
| Turning Radius | 120” (304.8 cm) |
| Vehicle Capacity | 4 People |
| Overall Dimensions | 117″ x 48″ x 78″ (297.2cm x 121.9cm x 198.1cm) |
| Utility Bed Dimensions | – |
| Utility Bed | – |
| Utility Bed Capacity | – |
| Curb Weight | 1,036 lbs (470.0 kg) |
| Payload | 793 lbs (359.6 kg) |
| Tow Capacity | 2,000 Lbs (907.2 kg) |
| Electronics | Digital Touch Screen Speedometer, Hazard Switch, USB Power Switch |
| Body Color | White |
| Seats | Black Bolstered Seats |
| Warranty | 2-Year Full Car / 5-Year Full Battery |
