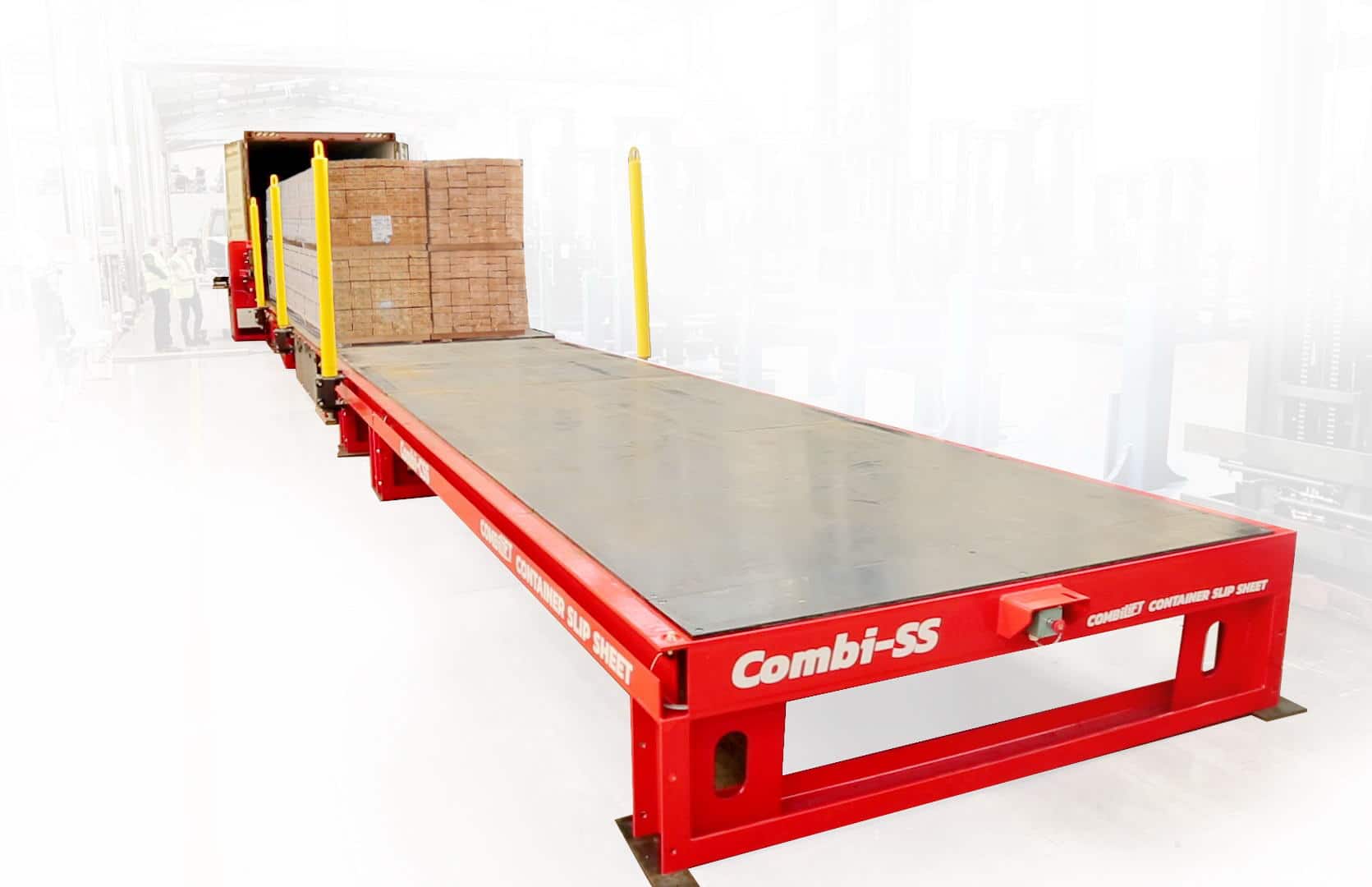

Combi-CSS
Combi-CSS
Location:
Unit:
Price: Contact for price

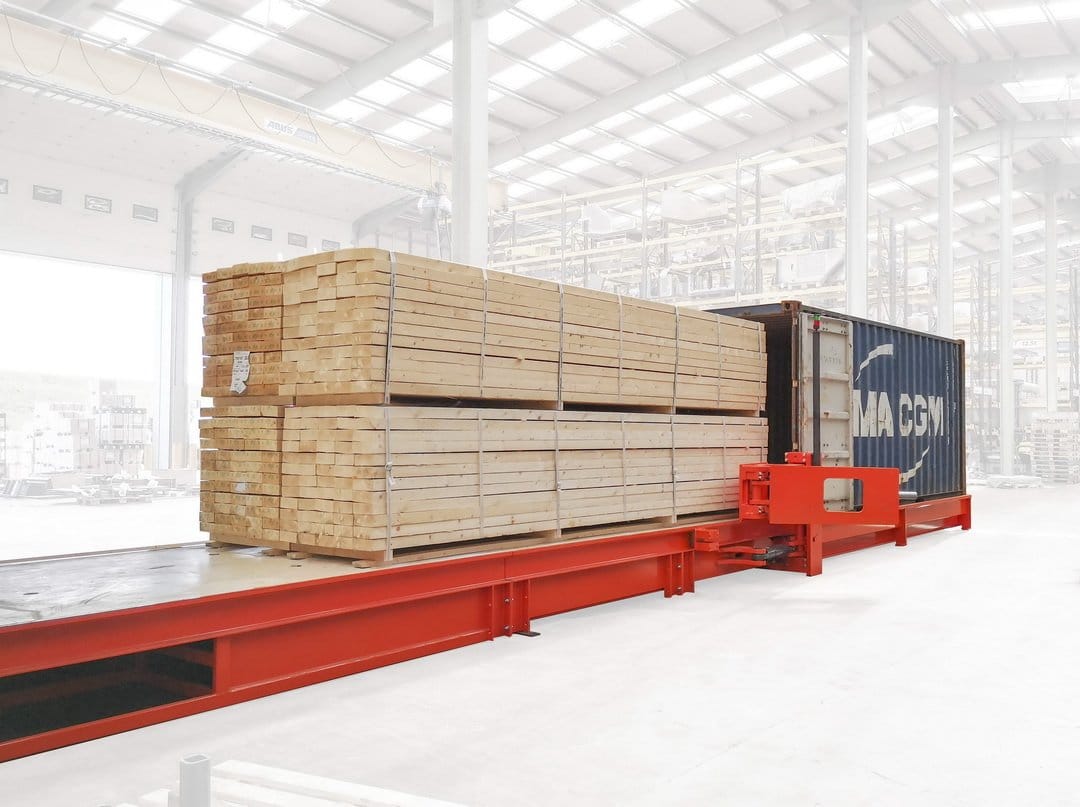

The Combi-CSS Container Slip-sheet, specifically designed for fast loading of freight containers with a maximum capacity of 65,000 lbs.
- Container length Detection
- Operators Monitor

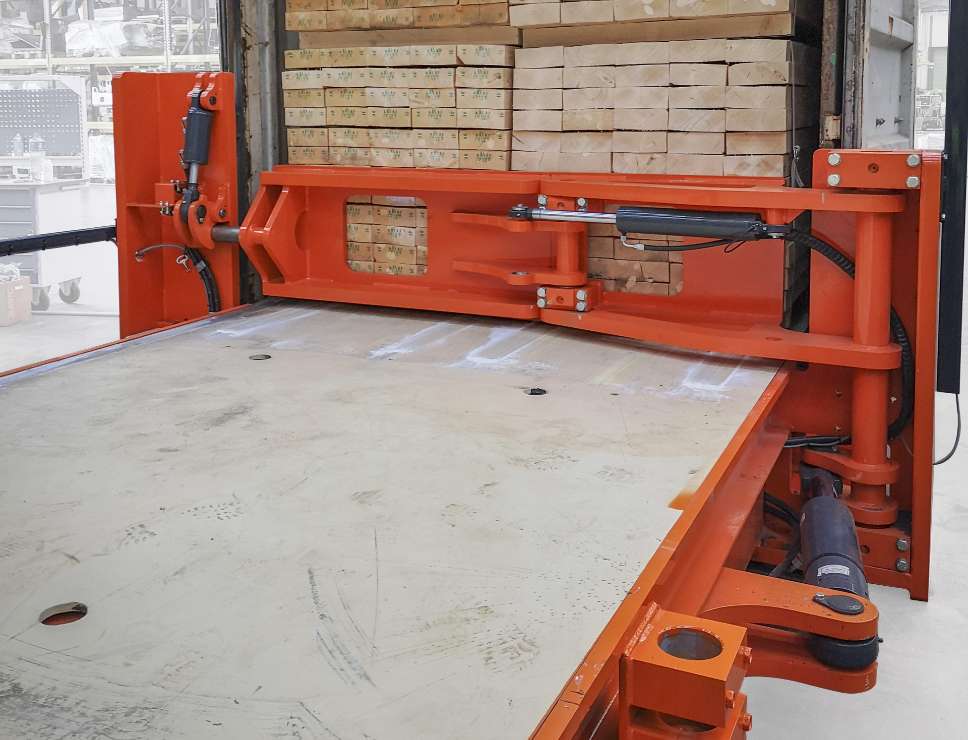

- Hydraulic Rear Barrier
| Capacity | 65000lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Overall length | 652″ |
|---|---|
| Motor | 50 HP 3 Phase |
| Width | 128″ |
| Cycle Time | 40′ in 6 mins |
| Height | 25″ |
| Container frame length | 385″ |
| Container Sizes | 20’/30’/40’ |
| Hydraulic stroke mechanism | 535″ |
| Slip sheet Material | Hardox 500 |
