Four Directional Die Handlers
Four Directional Die Handlers
Location:
Unit:
Price: Contact for price

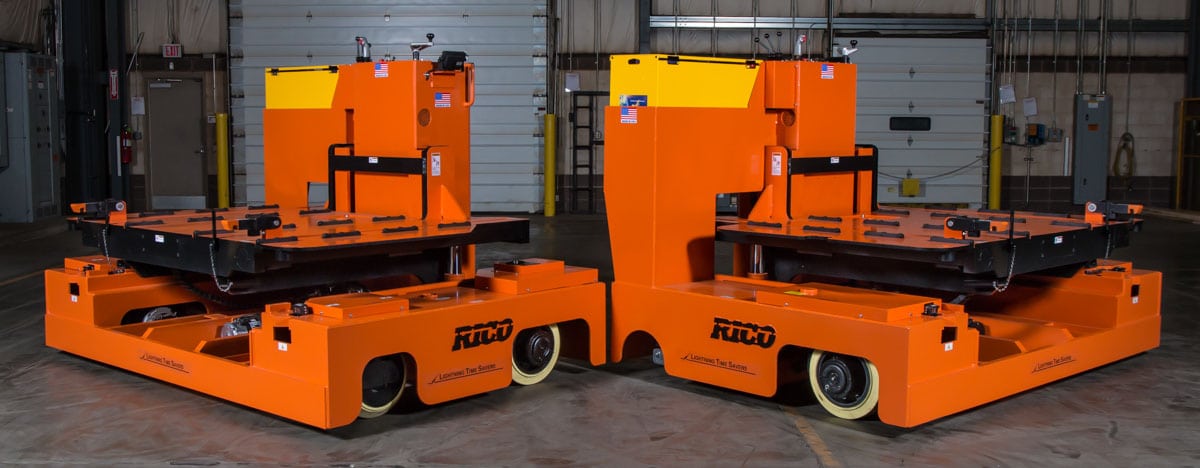

RICO’s Four Directional Die Handler Series is designed for superior maneuverability in confined die processing operations. This design offers forward and reverse travel, as well as side-to-side travel operation. All vehicles are custom engineered to meet your specific application and towing requirements.
Built to ANSI B56 Safety Standard for Industrial Truck.
| Model | QDC |
|---|---|
| Series | Four Directional Die Handlers |
| Capacity | Up to 400,000 lbs |
| Operator Type | Standing |
| Steering | Power positioning drive wheel with lockable direction steering |
| Truck Type Designation | E or EE |
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Drive System Offers
- DC or AC stationary mounted high torque drive motors.
- Dual or single vertically mounted helical beveled gear transmissions.
- Fully fluid linked power steering system.
- Mechanical, hydraulic or electric foot operated braking.
- Programmable control with onsite customization.
- All instrument are positioned within clear visibility of the operator.
- Electric push button or mechanical infinite variable lift controls.
- Industry standard components.
Design System Offers

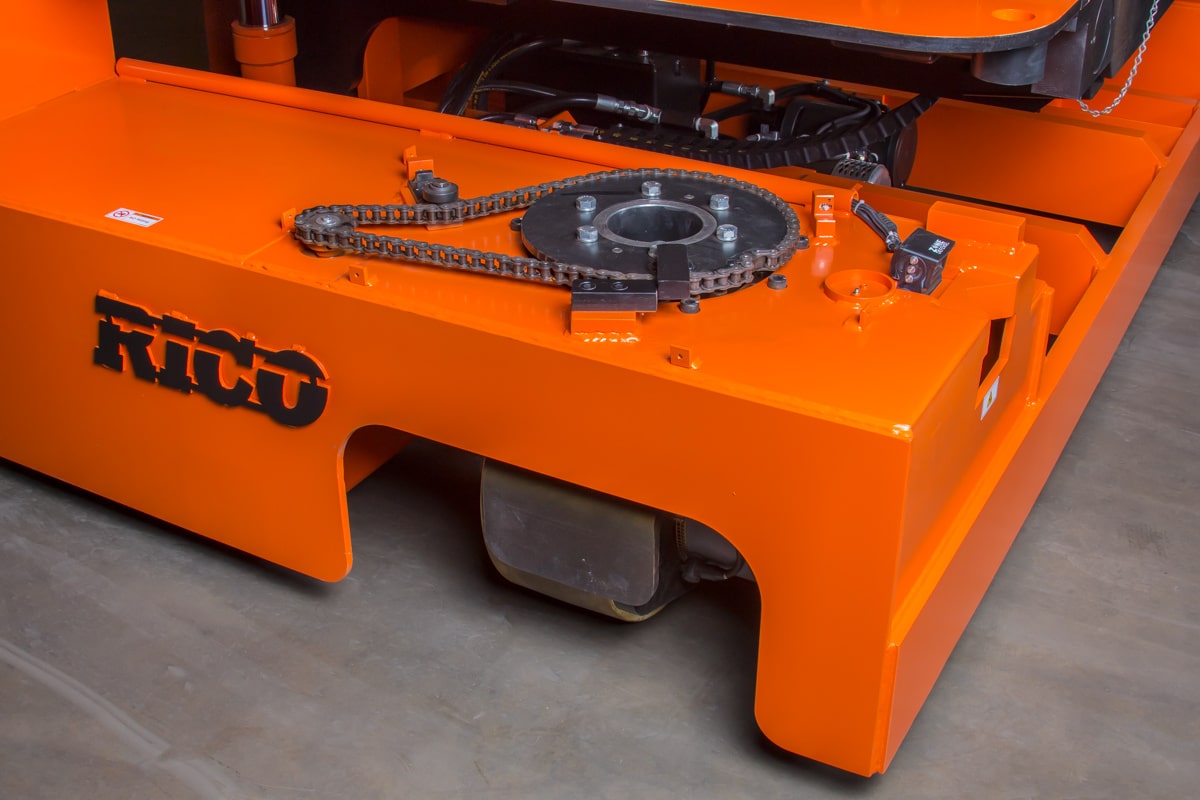

- Power positioning drive wheel with lockable direction steering.
- Drive wheel location indicators.

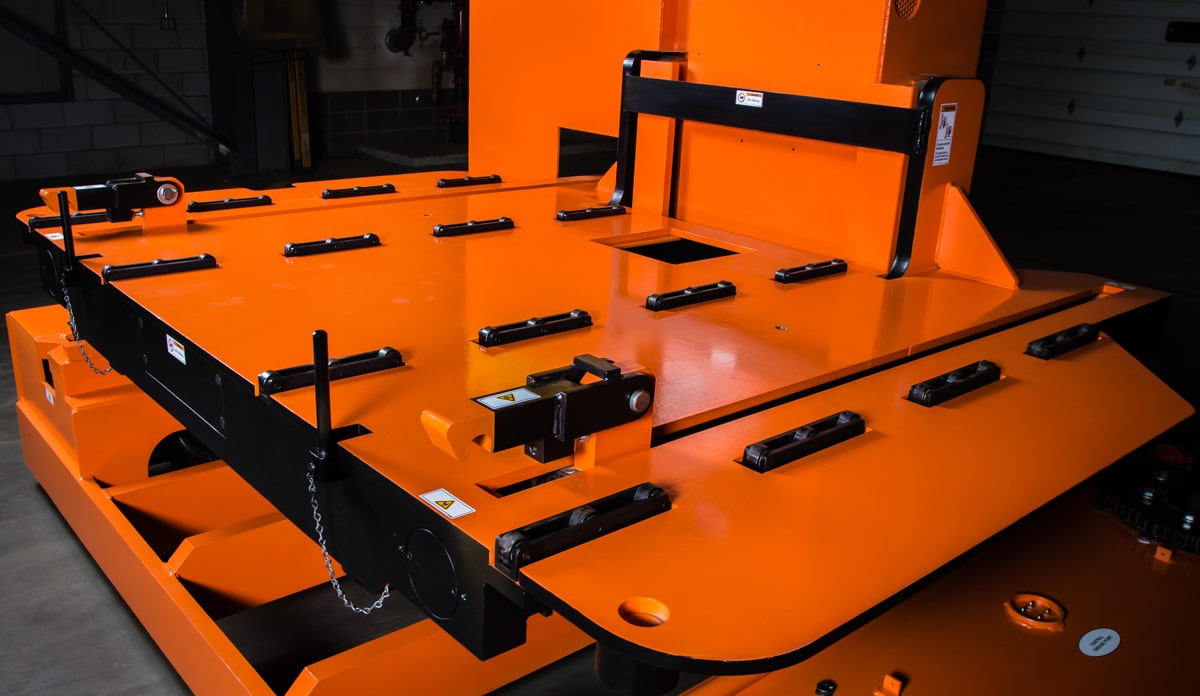

- Various die table designs specific for your application.
- Hydraulic powered die pushers with Self- latching arms.
- “V” docking system for safe secure truck and press alignment.
- Fiber optic camera for error proof docking.
- Die tables offered in bare steel, low profile rollers, brass or nylon wear strips.
- Pendent controls for precise die transfers.
- Rugged ergonomic throttle and steering controls.
- All steel constructed chassis for superior strength.
Safety & Service Features
- Large operator platform with padded floor and hip pads.
- Integrated operator detection switch limiting operation of controls.
- Emergency disconnect switch.
- Horn, key switch, hour meter and battery discharge indicator.
- Open drive compartment and easy access panels.
- Speed cut back switch.
- On board service diagnostic system.
Models and Specifications
Overview
Drive System Offers
- DC or AC stationary mounted high torque drive motors.
- Dual or single vertically mounted helical beveled gear transmissions.
- Fully fluid linked power steering system.
- Mechanical, hydraulic or electric foot operated braking.
- Programmable control with onsite customization.
- All instrument are positioned within clear visibility of the operator.
- Electric push button or mechanical infinite variable lift controls.
- Industry standard components.
Design System Offers
- Power positioning drive wheel with lockable direction steering.
- Drive wheel location indicators.
- Various die table designs specific for your application.
- Hydraulic powered die pushers with Self- latching arms.
- “V” docking system for safe secure truck and press alignment.
- Fiber optic camera for error proof docking.
- Die tables offered in bare steel, low profile rollers, brass or nylon wear strips.
- Pendent controls for precise die transfers.
- Rugged ergonomic throttle and steering controls.
- All steel constructed chassis for superior strength.
Safety & Service Features
- Large operator platform with padded floor and hip pads.
- Integrated operator detection switch limiting operation of controls.
- Emergency disconnect switch.
- Horn, key switch, hour meter and battery discharge indicator.
- Open drive compartment and easy access panels.
- Speed cut back switch.
- On board service diagnostic system.
Want to take the next step?
Drop us a line today for your free, no-obligation quote!
