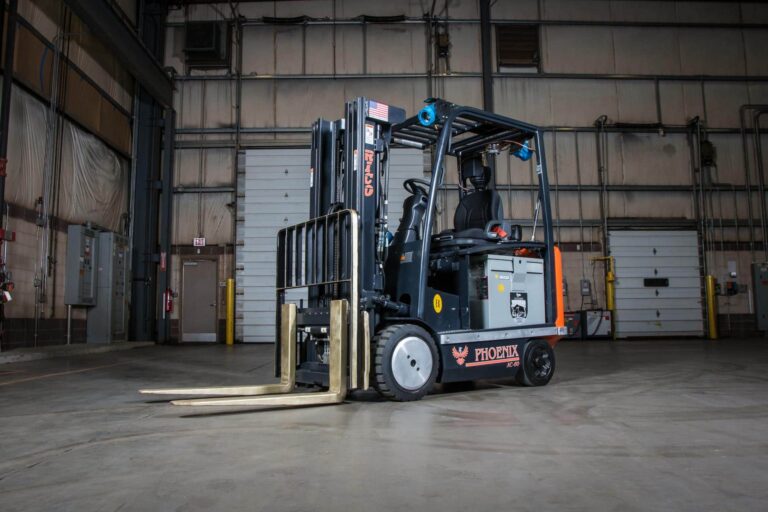

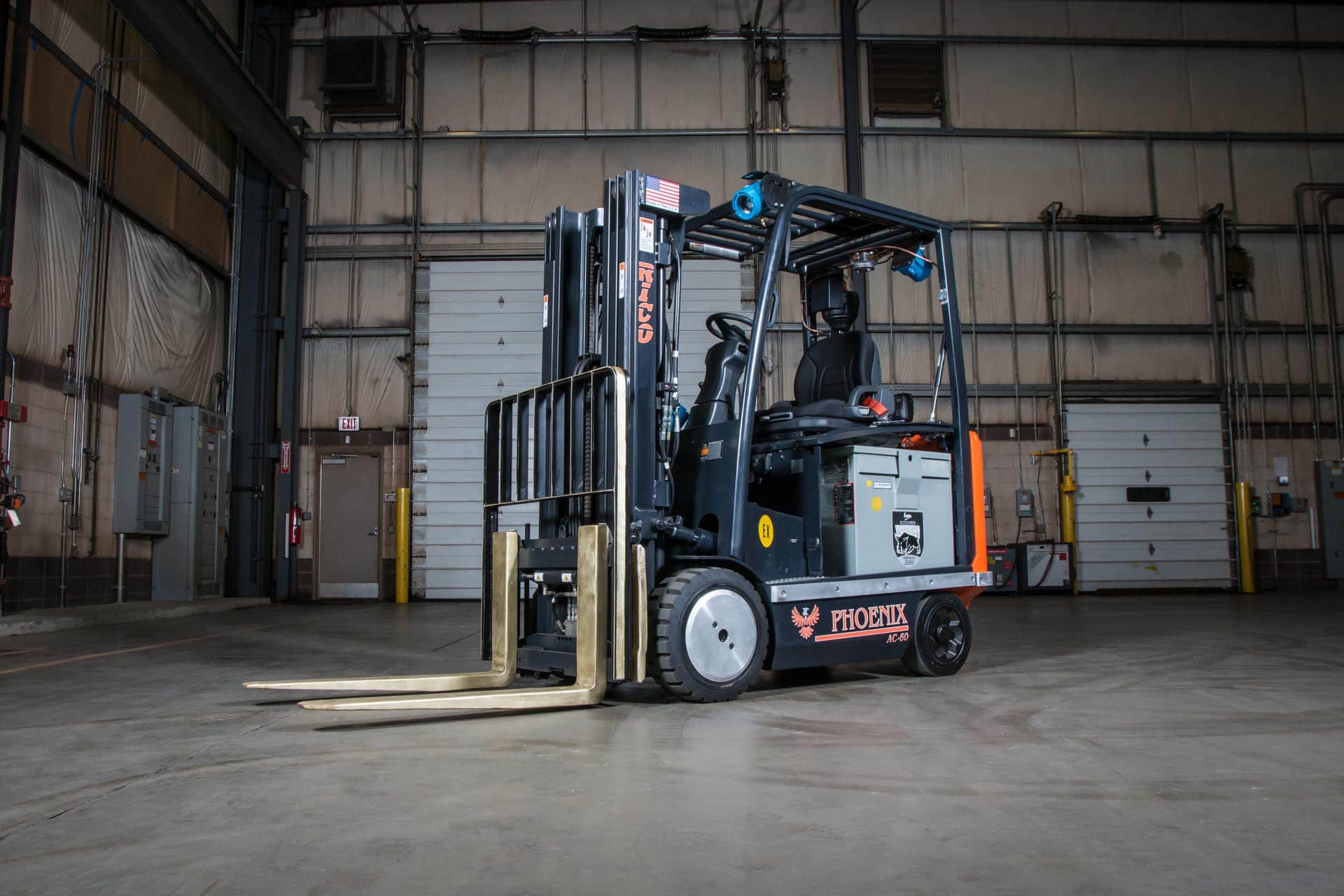

EX AC Sit-Down Counterbalance
New Equipment / Specialty Lift Trucks & Equipment / EX Explosion Proof / EX AC Sit-Down Counterbalance
EX AC Sit-Down Counterbalance
Location:
Unit:
Price: Contact for price
RICO’s EX Sit-Down Counterbalance Series is at the top of its class when it comes to explosion-proof forklifts. All vehicles are custom engineered to meet your specific application and hazardous load requirements.
Built to ANSI B56 Safety Standard for Industrial Truck.
| Model | EX |
|---|---|
| Series | EX Counterbalance |
| Capacity | Up to 8,000 lbs |
| Operator Type | Sit-Down Rider |
| Steering | Fully fluid linked power steering system |
| Truck Type Designation | EX |
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Special Note for This Product
All EX vehicles are built to the UL583 specifications and are approved by a National Recognized Testing Laboratory (NRTL) for operation in:
- Class 1, Division 1 & 2, Group D
- Class 2, Division 1 & 2, Group G
- Hazardous Environment
Design System Offers
- Clear view mast design for easy load spotting.
- Spark resistant brass covered forged forks and package guards.
- Conduit sealed battery connector.
- Single, two stage or triple stage mast style lift.
- Rugged ergonomic throttle and steering controls.
- All steel constructed chassis for superior strength.
- AC-EX-60 Capacities up to 6,000lbs.
- SD-EX-80 Capacities up to 8,000 lbs.
Safety & Service Features
- Back up travel alarm and strobe light
- Integrated operator detection switch limiting operation of controls
- Emergency disconnect switch
- Horn, key switch, hour meter and battery discharge indicator
- Speed cut back switch
- On board service diagnostic system
- Safety reversing switch on walk behind models
- Front LED Spotlights
- ‘Blue’ Pedestrian Warning Lights
Drive System Offers
- Motors and components are enclosed in hydrostatically tested aluminum enclosures.
- Signal drive vertically mounted transmissions.
- Mineral insulated (MI) wiring cables.
- Mechanical operated foot or handle braking.
- Intrinsically safe handle wiring.
- Static conductive drive belts.
- Power or manual steering.
- All instrument are positioned within clear visibility of the operator.
- Mechanical infinite variable lift controls.
Models and Specifications
Overview
Special Note for This Product
All EX vehicles are built to the UL583 specifications and are approved by a National Recognized Testing Laboratory (NRTL) for operation in:
- Class 1, Division 1 & 2, Group D
- Class 2, Division 1 & 2, Group G
- Hazardous Environment
Design System Offers
- Clear view mast design for easy load spotting.
- Spark resistant brass covered forged forks and package guards.
- Conduit sealed battery connector.
- Single, two stage or triple stage mast style lift.
- Rugged ergonomic throttle and steering controls.
- All steel constructed chassis for superior strength.
- AC-EX-60 Capacities up to 6,000lbs.
- SD-EX-80 Capacities up to 8,000 lbs.
Safety & Service Features
- Back up travel alarm and strobe light
- Integrated operator detection switch limiting operation of controls
- Emergency disconnect switch
- Horn, key switch, hour meter and battery discharge indicator
- Speed cut back switch
- On board service diagnostic system
- Safety reversing switch on walk behind models
- Front LED Spotlights
- ‘Blue’ Pedestrian Warning Lights
Drive System Offers
- Motors and components are enclosed in hydrostatically tested aluminum enclosures.
- Signal drive vertically mounted transmissions.
- Mineral insulated (MI) wiring cables.
- Mechanical operated foot or handle braking.
- Intrinsically safe handle wiring.
- Static conductive drive belts.
- Power or manual steering.
- All instrument are positioned within clear visibility of the operator.
- Mechanical infinite variable lift controls.
