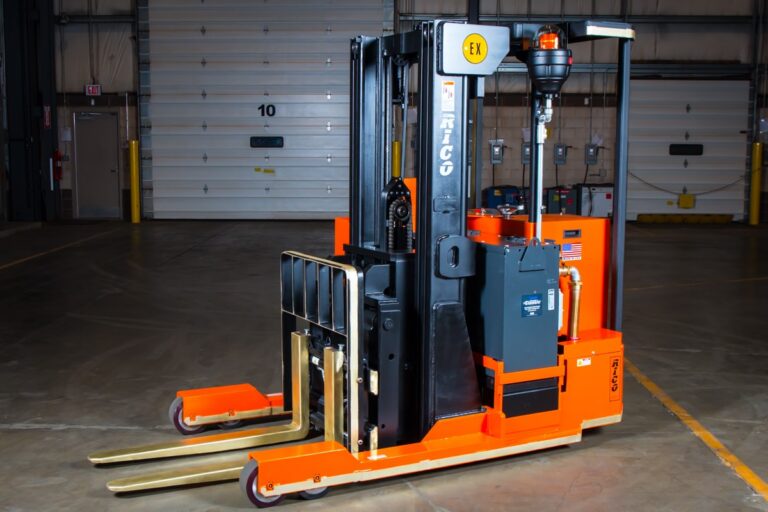

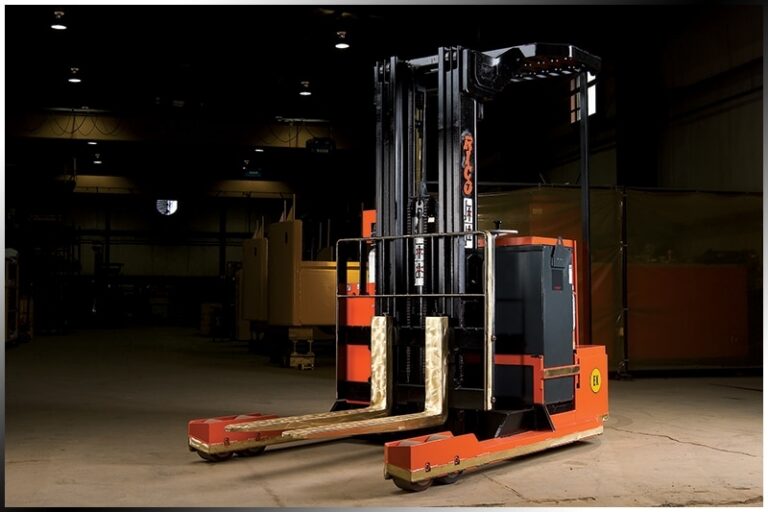

EX Reach & Straddle Forklift Series
New Equipment / Specialty Lift Trucks & Equipment / EX Explosion Proof / EX Reach & Straddle Forklift Series
EX Reach & Straddle Forklift Series
Location:
Unit:
Price: Contact for price
RICO’s EX Reach and Straddle Series is designed for safe operation in the most hazardous explosive environments. This design is offered in stand-up rider or walk behind versions where maximum lift and load extension are required. All vehicles are custom engineered to meet your specific application and load requirements.
Built to ANSI B56 Safety Standard for Industrial Truck.
| Model | EX |
|---|---|
| Series | EX Reach & Straddle |
| Capacity | Up to 8,000 lbs |
| Operator Type | Standing |
| Steering | Manual or power steering |
| Truck Type Designation | EX |
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Special Note for This Product
All EX vehicles are built to the UL583 specifications and are approved by a National Recognized Testing Laboratory (NRTL) for operation in:
- Class 1, Division 1 & 2, Group D
- Class 2, Division 1 & 2, Group G
- Hazardous Environment
Design System Offers
- Spark resistant brass covered forged forks.
- Conduit sealed battery connector.
- Reach mechanisms allows for 24” of load extensions.
- Outriggers engineered to your specific load requirements.
- Spark Resistant brass or aluminum chassis perimeter.
- Single, two stage or triple stage mast style lift.
- Rugged ergonomic throttle and steering controls.
- All steel constructed chassis for superior strength.
- Clear view mast design for each load spotting.
- Spark resistant brass covered forged forks.
Drive System Offers
- Motors and components are enclosed in hydrostatically tested aluminum enclosures.
- Signal drive vertically mounted transmissions.
- Mineral insulated (MI) wiring cables.
- Mechanically operated foot or handle braking.
- Intrinsically safe handle wiring.
- Static conductive drive belts.
- Power or manual steering.
- All instrument are positioned within clear visibility of the operator.
- Electric push button or mechanical infinite variable lift controls.
Safety & Service Features
- Large operator platform with padded floor and hip pads.
- Integrated operator detection switch limiting operation of controls.
- Emergency disconnect switch.
- Horn, key switch, hour meter and battery discharge indicator.
- Speed cut back switch.
- On board service diagnostic system.
- Safety reversing switch on walk behind models.
Models and Specifications
Overview
Special Note for This Product
All EX vehicles are built to the UL583 specifications and are approved by a National Recognized Testing Laboratory (NRTL) for operation in:
- Class 1, Division 1 & 2, Group D
- Class 2, Division 1 & 2, Group G
- Hazardous Environment
Design System Offers
- Spark resistant brass covered forged forks.
- Conduit sealed battery connector.
- Reach mechanisms allows for 24” of load extensions.
- Outriggers engineered to your specific load requirements.
- Spark Resistant brass or aluminum chassis perimeter.
- Single, two stage or triple stage mast style lift.
- Rugged ergonomic throttle and steering controls.
- All steel constructed chassis for superior strength.
- Clear view mast design for each load spotting.
- Spark resistant brass covered forged forks.
Drive System Offers
- Motors and components are enclosed in hydrostatically tested aluminum enclosures.
- Signal drive vertically mounted transmissions.
- Mineral insulated (MI) wiring cables.
- Mechanically operated foot or handle braking.
- Intrinsically safe handle wiring.
- Static conductive drive belts.
- Power or manual steering.
- All instrument are positioned within clear visibility of the operator.
- Electric push button or mechanical infinite variable lift controls.
Safety & Service Features
- Large operator platform with padded floor and hip pads.
- Integrated operator detection switch limiting operation of controls.
- Emergency disconnect switch.
- Horn, key switch, hour meter and battery discharge indicator.
- Speed cut back switch.
- On board service diagnostic system.
- Safety reversing switch on walk behind models.
