EX Lift Tow Series
EX Lift Tow Series
Location:
Unit:
Price: Contact for price

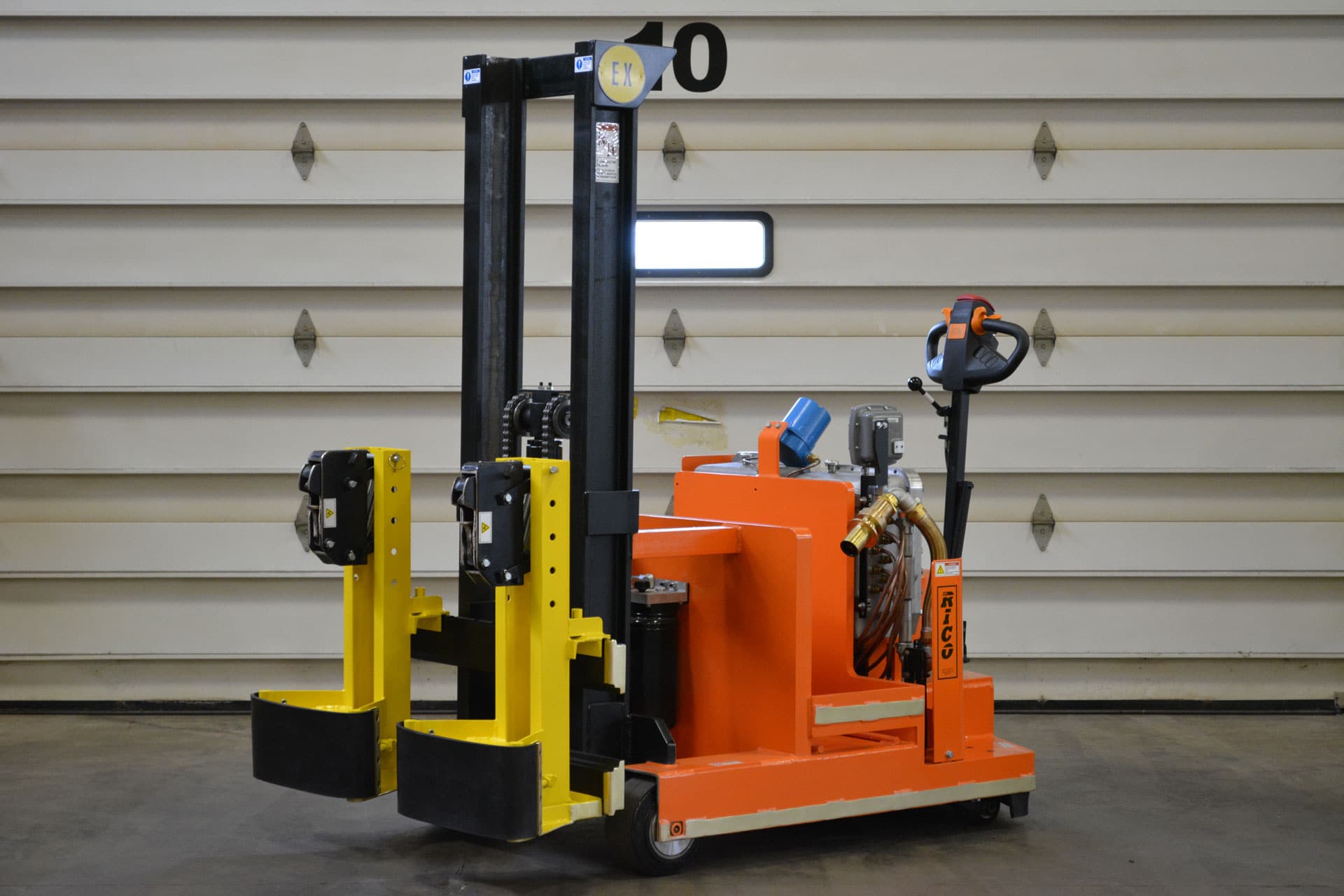

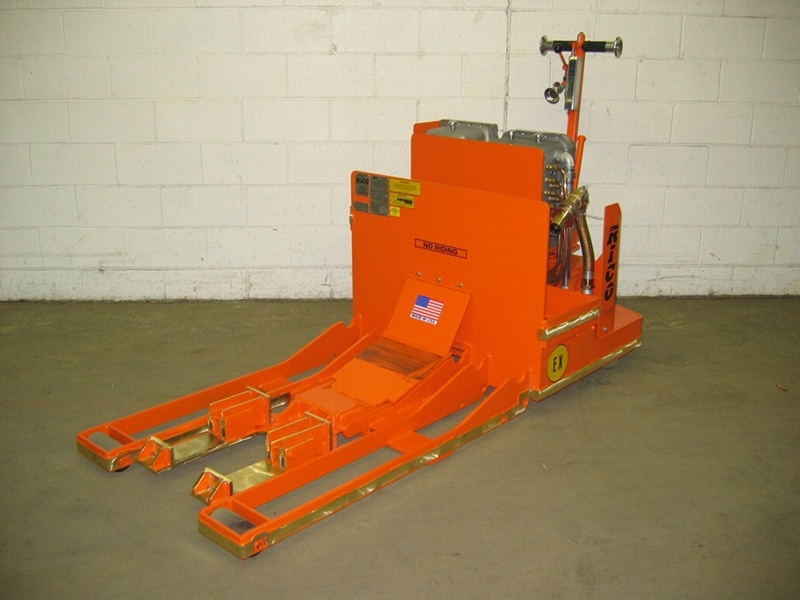

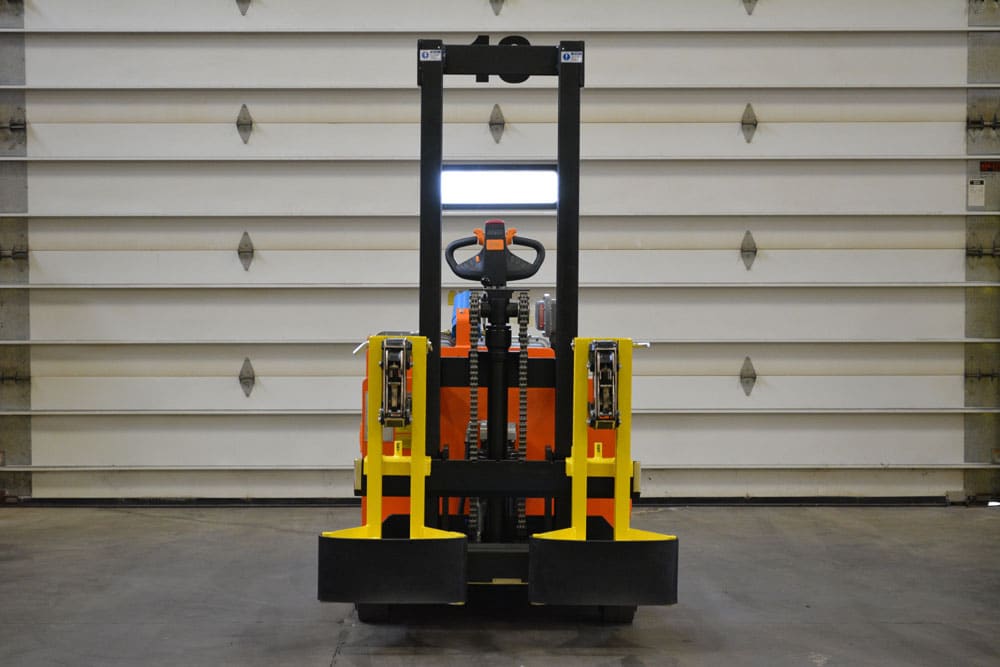

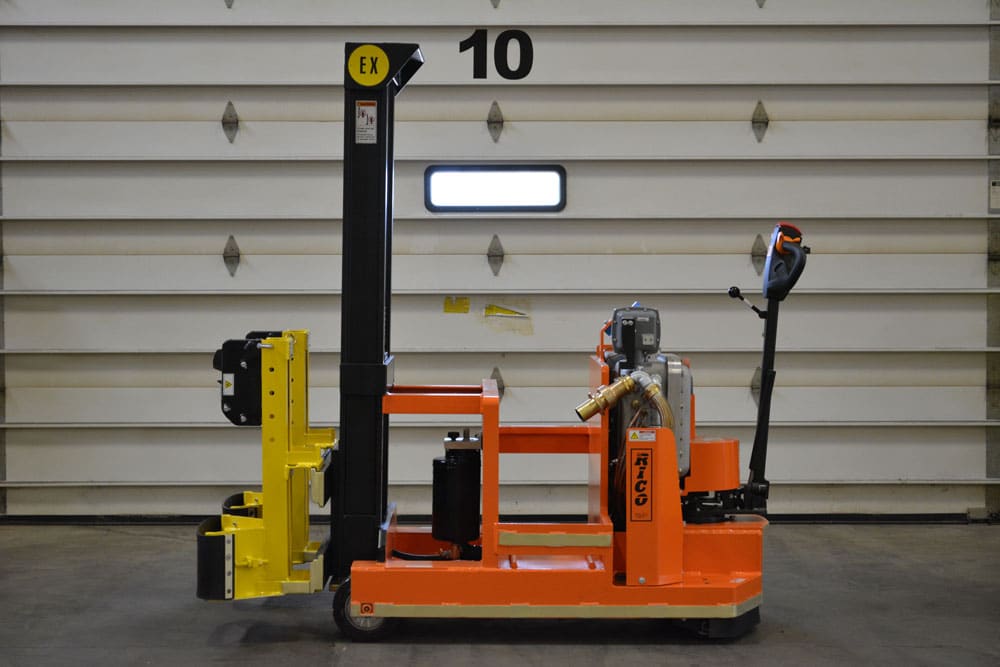

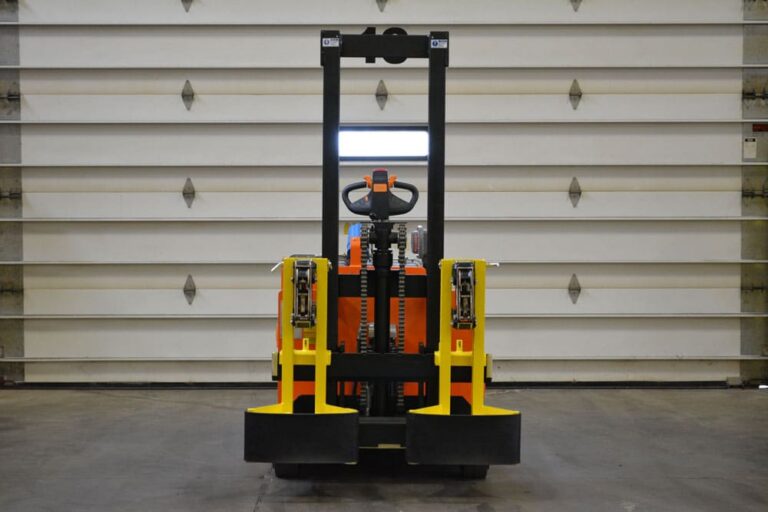

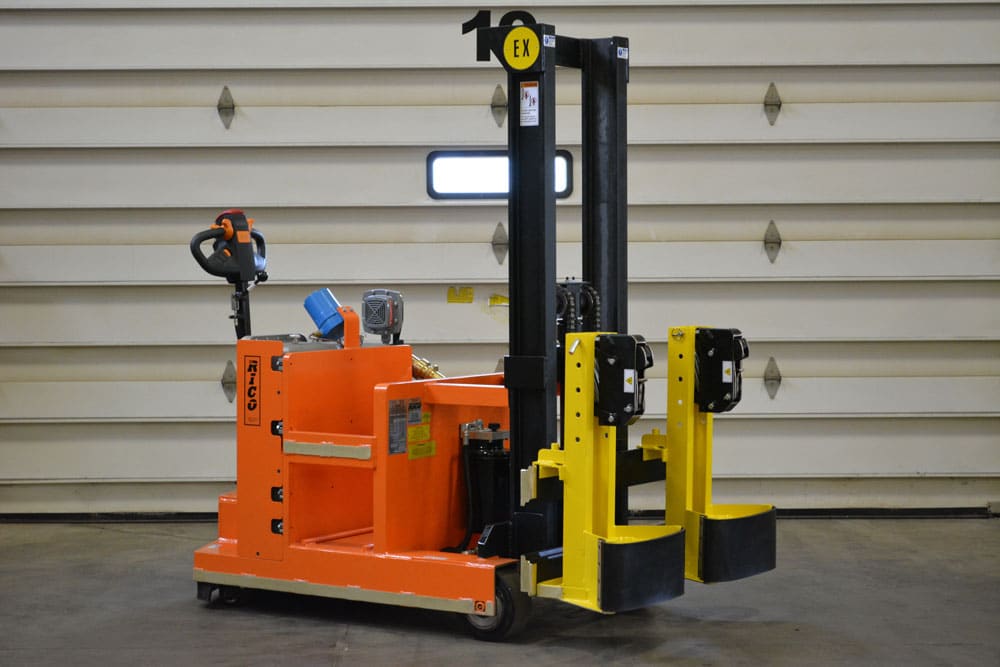

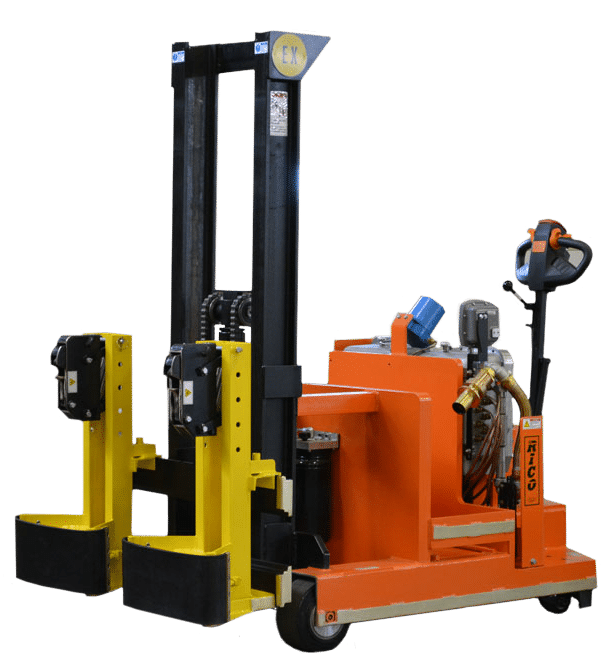

RICO’s EX Lift Tow Series is designed for safety and maximum towing capacity in your most hazardous environments. This design is offered in a walk behind or walkie rider version, offering both lifting and towing capabilities. All vehicles are custom engineered to meet your specific application and load requirements.
Built to ANSI B56 Safety Standard for Industrial Truck.
| Model | EX |
|---|---|
| Series | EX Tractors & Lift Tow |
| Capacity | Up to 10,000 lbs |
| Operator Type | Walk Behind |
| Steering | Manual tiller steering |
| Truck Type Designation | EX |
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
DRIVE SYSTEM OFFERS
- Motors and components are enclosed in hydrostatically tested aluminum boxes.
- Signal drive vertically mounted transmissions.
- Mineral insulated (MI) wiring cables.
- Mechanical operated handle braking.
- Programmable control with onsite customization.
- Intrinsically safe handle wiring.
- Static conductive drive belts.
- Electric push button or mechanical infinite variable lift controls.
SPECIAL NOTE FOR THIS PRODUCT
All EX vehicles are built to the UL583 specifications and are approved by a National Recognized Testing Laboratory (NRTL) for operation in:
- Class 1, Division 1 & 2, Group D
- Class 2, Division 1 & 2, Group G
- Hazardous Environment
Design System Offers
- Limitless attachment designs.
- Exclusive static conductive caster.
- Spark Resistant brass or aluminum chassis perimeter.
- Conduit sealed battery connector.
- Ergonomic handle controls with multi-function options.
- All steel constructed chassis for superior strength.
SAFETY & SERVICE FEATURES
- Low profile drive end for increased visibility
- Integrated emergency reversing switch
- Horn, key switch, hour meter and battery discharge indicator
- Removable enclosure bolts for serviceability
- Toe protection guarding
- On board service diagnostic system
- Safety reversing switch on walk behind models
Models and Specifications
Overview
DRIVE SYSTEM OFFERS
- Motors and components are enclosed in hydrostatically tested aluminum boxes.
- Signal drive vertically mounted transmissions.
- Mineral insulated (MI) wiring cables.
- Mechanical operated handle braking.
- Programmable control with onsite customization.
- Intrinsically safe handle wiring.
- Static conductive drive belts.
- Electric push button or mechanical infinite variable lift controls.
SPECIAL NOTE FOR THIS PRODUCT
All EX vehicles are built to the UL583 specifications and are approved by a National Recognized Testing Laboratory (NRTL) for operation in:
- Class 1, Division 1 & 2, Group D
- Class 2, Division 1 & 2, Group G
- Hazardous Environment
Design System Offers
- Limitless attachment designs.
- Exclusive static conductive caster.
- Spark Resistant brass or aluminum chassis perimeter.
- Conduit sealed battery connector.
- Ergonomic handle controls with multi-function options.
- All steel constructed chassis for superior strength.
SAFETY & SERVICE FEATURES
- Low profile drive end for increased visibility
- Integrated emergency reversing switch
- Horn, key switch, hour meter and battery discharge indicator
- Removable enclosure bolts for serviceability
- Toe protection guarding
- On board service diagnostic system
- Safety reversing switch on walk behind models
