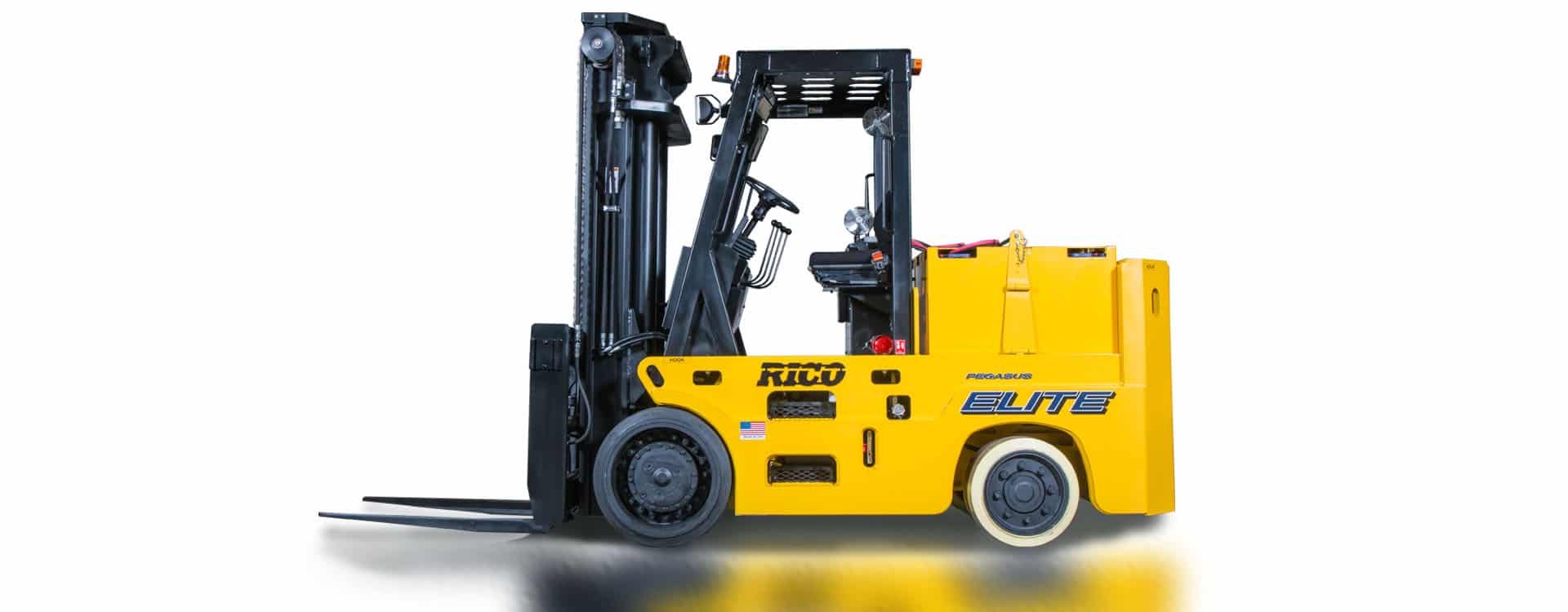

Electric Pegasus Counterbalance Series
New Equipment / Specialty Lift Trucks & Equipment / High Capacity / Electric Pegasus Counterbalance Series
Electric Pegasus Counterbalance Series
Location:
Unit:
Price: Contact for price
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
AC Technology
- Maintenance-free
- High-efficiency drive motors and controllers
- Brushless
- Smoother and more controlled braking on any gradient
- Enhanced acceleration and speed with or without load
- No wearable parts
- Significantly improved energy consumption
- Productivity output drastically increased

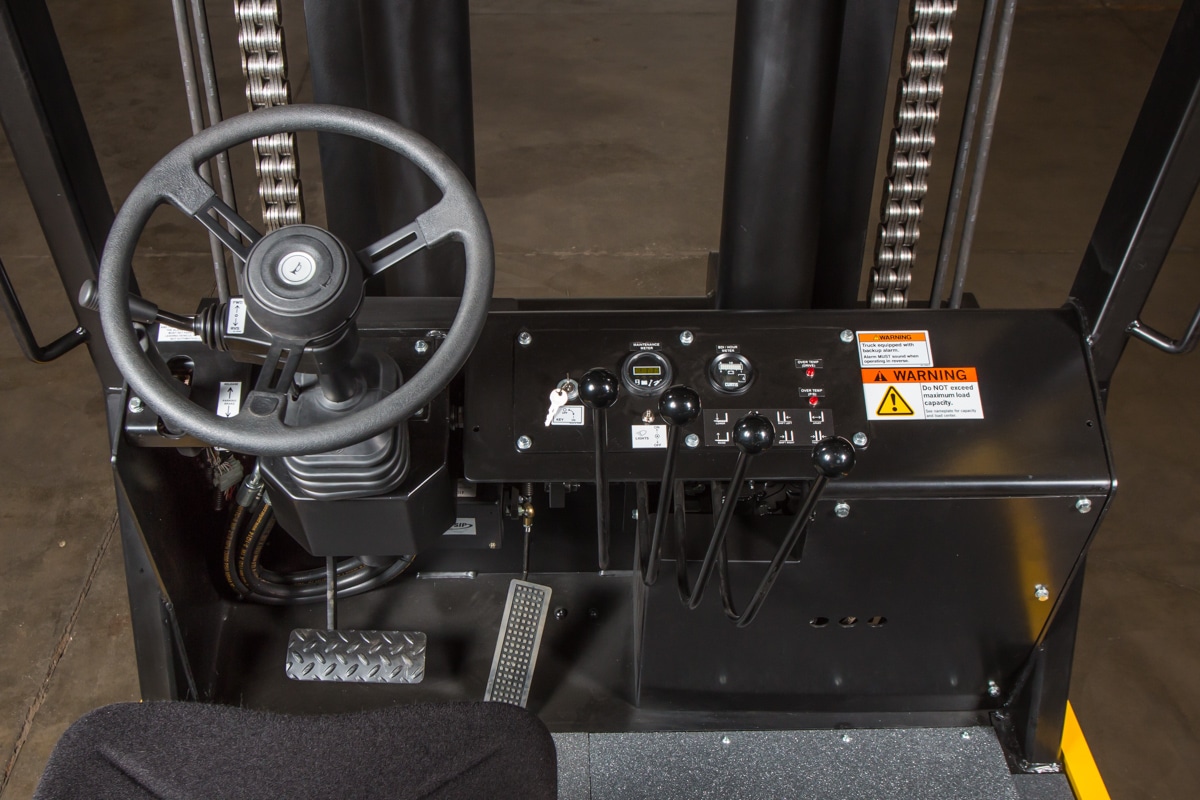

Operator Cab
- Options
- Features
- Finger-tip hydraulic controls
- Pedestrian “Blue” safety light
- Fully enclosed cab
- Camera / monitoring packages
- Heated and air conditioning cab package
- Meets ANSI B56.1 operator protection standards
- Tilt-steering column with directional/ gear shift lever
- Cup Holder with tray
- LED Work Light Package including
- Head Lights
- Tail Lights
- Brake Lights
- Reverse Lights
- Strobe Lights
- Low profile air suspension seat for a comfortable ride for the operator which includes
- Lumbar support
- Swivel
- Seat belt
- Operator present sensor
- Fold down arm rest
- Open cab design for increased visibility
- Two mirrors for visibility toward the rear
- Access panels
- All instruments are positioned within clear visibility of the operator
- Infinite variable hydraulic lift controls
- Brake pedal and inching control
- Emergency stop button
- Parking brake
Strength & Power
- Drive Axle
- Chassis
- Power
- Planetary drive axle rated for durability and high capacity
- Standard with oil cooled wet disc brakes
- Optional external forced brake cooling to reduce wear and increase life
- Poly tires that combine high load capabilities with superior traction and reduced vibration for a smoother ride
- All steel constructed chassis for strength
- Counter weight is a combination of stacked steel plate and solid poured lead depending on the requirements to optimize both cost and overall envelope of truck
- Cut-out for easily visible hydraulic fluid sight glass
- Integrated lifting points for safe handling and transport
- Low rear chassis profile for increased operator visibility
- Cab access from either side with large steps and easy to reach hand rails
- Battery compartment accommodates two 36 volt batteries
- Heavy duty steer axle
- Steer cylinder located inside a steel frame
- Large capacity hydraulic tank for additional cooling, and future expansion
- Heavy duty mast design
- Wearable carriage side pads (adjustable)
- Heavy duty side shift carriage (ball and roller design)
- Primer and coated paint
- Mast pivot – grease able and replaceable bearings
- 21 HP 72 volt high torque drive motor
- Programmable control with onsite customization
- Easy access roll out hydraulic motor
- Hydraulic oil coolers

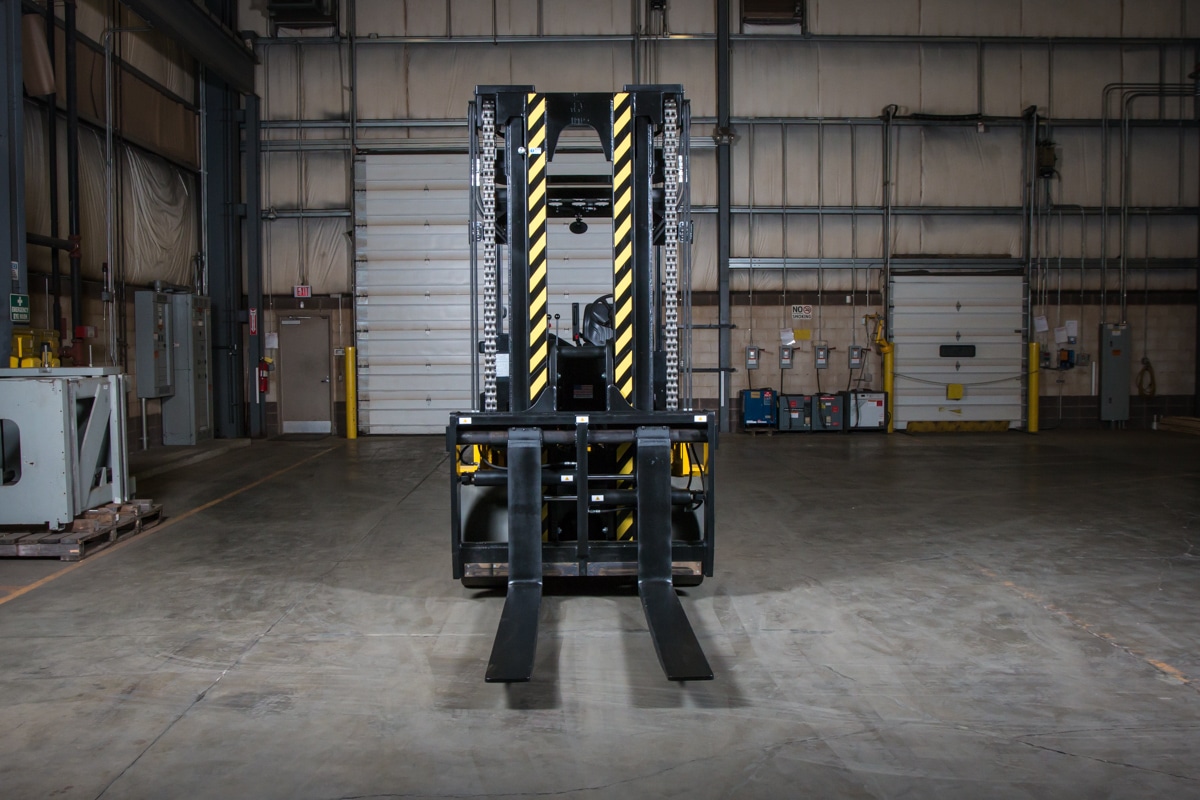

Mast & Forks
- Features
- Options
- Clear view upright mast design for maximum visibility
- Telescopic I-beam designed 2-stage mast that is easily removable
- Pin-mounted tube style forks that are customizable for any application
- Integral side shifting fork positioner utilized to reduce overall length of vehicle while providing both functions as standard
- Solid forged forks
- Standard tilt forward and back
- Limitless carriage attachments designed to meet specific applications
- High Visibility Carriage
- Tube Style Forks
- Independent Side-shifting from Fork positioner for “True” side shift
- Coil rams
- Free-Lift mast
- Tapers for coil handling forks
- Offset “Kissing” coil forks
- Load stabilizer

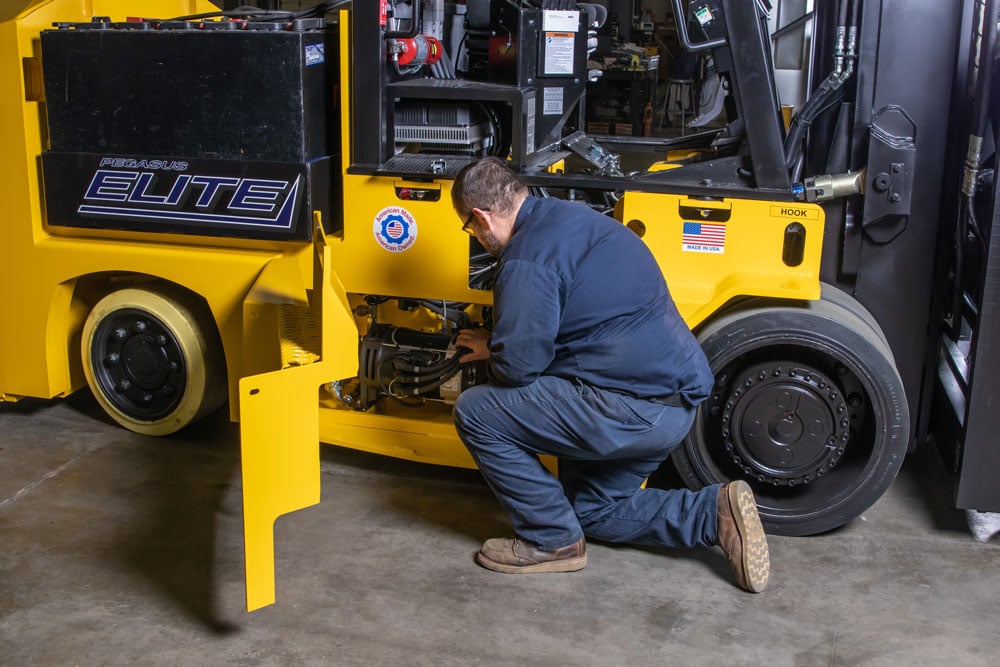

Serviceability
- Hydraulic oil filter (10 micron) Spin on filter
- Hydraulic oil check
- Open compartments
- Lift chain access
- Battery – Full size
- Controller Display / BDI
- Removable floor plate
- Swing-out maintenance panels on both sides
- Cab removable
- Carriage side wear pads (Adjustable)
Models and Specifications
Overview
AC Technology
- Maintenance-free
- High-efficiency drive motors and controllers
- Brushless
- Smoother and more controlled braking on any gradient
- Enhanced acceleration and speed with or without load
- No wearable parts
- Significantly improved energy consumption
- Productivity output drastically increased
Operator Cab
- Options
- Features
- Finger-tip hydraulic controls
- Pedestrian “Blue” safety light
- Fully enclosed cab
- Camera / monitoring packages
- Heated and air conditioning cab package
- Meets ANSI B56.1 operator protection standards
- Tilt-steering column with directional/ gear shift lever
- Cup Holder with tray
- LED Work Light Package including
- Head Lights
- Tail Lights
- Brake Lights
- Reverse Lights
- Strobe Lights
- Low profile air suspension seat for a comfortable ride for the operator which includes
- Lumbar support
- Swivel
- Seat belt
- Operator present sensor
- Fold down arm rest
- Open cab design for increased visibility
- Two mirrors for visibility toward the rear
- Access panels
- All instruments are positioned within clear visibility of the operator
- Infinite variable hydraulic lift controls
- Brake pedal and inching control
- Emergency stop button
- Parking brake
Strength & Power
- Drive Axle
- Chassis
- Power
- Planetary drive axle rated for durability and high capacity
- Standard with oil cooled wet disc brakes
- Optional external forced brake cooling to reduce wear and increase life
- Poly tires that combine high load capabilities with superior traction and reduced vibration for a smoother ride
- All steel constructed chassis for strength
- Counter weight is a combination of stacked steel plate and solid poured lead depending on the requirements to optimize both cost and overall envelope of truck
- Cut-out for easily visible hydraulic fluid sight glass
- Integrated lifting points for safe handling and transport
- Low rear chassis profile for increased operator visibility
- Cab access from either side with large steps and easy to reach hand rails
- Battery compartment accommodates two 36 volt batteries
- Heavy duty steer axle
- Steer cylinder located inside a steel frame
- Large capacity hydraulic tank for additional cooling, and future expansion
- Heavy duty mast design
- Wearable carriage side pads (adjustable)
- Heavy duty side shift carriage (ball and roller design)
- Primer and coated paint
- Mast pivot – grease able and replaceable bearings
- 21 HP 72 volt high torque drive motor
- Programmable control with onsite customization
- Easy access roll out hydraulic motor
- Hydraulic oil coolers
Mast & Forks
- Features
- Options
- Clear view upright mast design for maximum visibility
- Telescopic I-beam designed 2-stage mast that is easily removable
- Pin-mounted tube style forks that are customizable for any application
- Integral side shifting fork positioner utilized to reduce overall length of vehicle while providing both functions as standard
- Solid forged forks
- Standard tilt forward and back
- Limitless carriage attachments designed to meet specific applications
- High Visibility Carriage
- Tube Style Forks
- Independent Side-shifting from Fork positioner for “True” side shift
- Coil rams
- Free-Lift mast
- Tapers for coil handling forks
- Offset “Kissing” coil forks
- Load stabilizer
Serviceability
- Hydraulic oil filter (10 micron) Spin on filter
- Hydraulic oil check
- Open compartments
- Lift chain access
- Battery – Full size
- Controller Display / BDI
- Removable floor plate
- Swing-out maintenance panels on both sides
- Cab removable
- Carriage side wear pads (Adjustable)
