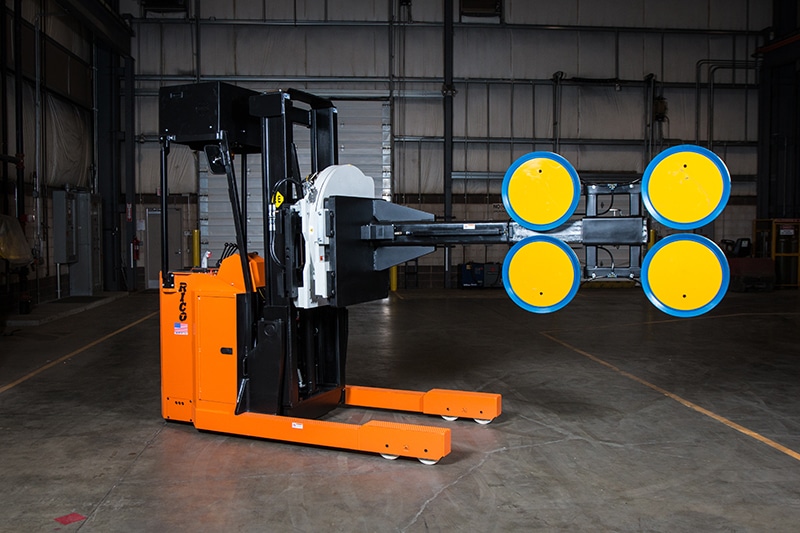

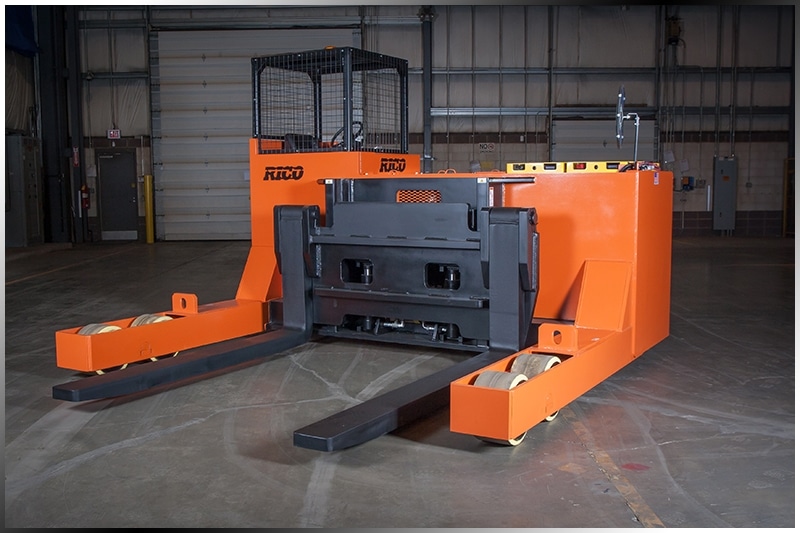

RICO’s Rider Straddle Series far exceeds traditional industry truck capacities and performance. This series is designed as stand-up rider or sit-down rider versions, offering the operator comfort, control, and increased visibility. All vehicles are custom engineered to meet your specific application, load requirements, and attachment needs.
Built to ANSI B56 Safety Standard for Industrial Truck.
| Model | Engineered/specialty |
|---|---|
| Series | Reach & Straddle Series |
| Capacity | Up to 120,000 lbs |
| Operator Type | Standing |
| Steering | Fully fluid linked power steering system |
| Truck Type Designation | E or EE |
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Design System Offers
- Various outrigger widths, heights and lengths.
- Mast are constructed of rolled or machined forging for superior strength.
- High-strength forged forks customizable to your specific application.
- Battery roller design for easy removal.
- Integrated side-shift or fork positioning.
- Optional attachments are virtually endless.
- Rugged Ergonomic cast aluminum throttle and steering controls.
- All steel constructed chassis for superior strength.
Drive System Offers
- DC or AC stationary mounted high torque drive motors.
- Dual or single vertically mounted helical beveled gear transmissions.
- Fully fluid linked power steering system.
- Mechanical, hydraulic or electric foot operated braking.
- Programmable control with onsite customization.
- All instrument are positioned within clear visibility of the operator.
- Electric push button or mechanical infinite variable lift controls.
- Industry standard components.
Safety & Service Features
- Large operator platform with padded floor and hip pads.
- Integrated operator detection switch limiting operation of controls.
- Emergency disconnect switch.
- Horn, key switch, hour meter and battery discharge indicator.
- Open drive compartment and easy access panels.
- Speed cut back switch.
- On board service diagnostic system.
Models and Specifications
Overview
Design System Offers
- Various outrigger widths, heights and lengths.
- Mast are constructed of rolled or machined forging for superior strength.
- High-strength forged forks customizable to your specific application.
- Battery roller design for easy removal.
- Integrated side-shift or fork positioning.
- Optional attachments are virtually endless.
- Rugged Ergonomic cast aluminum throttle and steering controls.
- All steel constructed chassis for superior strength.
Drive System Offers
- DC or AC stationary mounted high torque drive motors.
- Dual or single vertically mounted helical beveled gear transmissions.
- Fully fluid linked power steering system.
- Mechanical, hydraulic or electric foot operated braking.
- Programmable control with onsite customization.
- All instrument are positioned within clear visibility of the operator.
- Electric push button or mechanical infinite variable lift controls.
- Industry standard components.
Safety & Service Features
- Large operator platform with padded floor and hip pads.
- Integrated operator detection switch limiting operation of controls.
- Emergency disconnect switch.
- Horn, key switch, hour meter and battery discharge indicator.
- Open drive compartment and easy access panels.
- Speed cut back switch.
- On board service diagnostic system.
