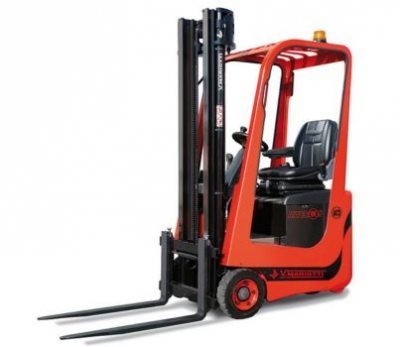

Mycros AC Series
Mycros AC Series
Location:
Unit:
Price: Contact for price
| Capacity | 1500-2300lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Aisle Width Right Angle Stack (3 Clearance)” | 107″ – 114″ |
|---|---|
| Operating Voltage | 36V |
| Lowered Mast Height | 78.8″ – 83″ |
| Drive | RWD, FWD or AWD |
| Length without Forks | 52.9″ or 58.8″ |
| Width | 32.9″ – 37″ |
| Truck Weight with Battery | 4,080 lbs – 5,842 lbs |
| Duplex Mast | 114″ |
Models and Specifications
| Model | Load Capacity (lbs.) | Drive | Aisle Width Right Angle Stack (3″ Clearance) | Lowered Mast Height |
|---|---|---|---|---|
| MYCROS RWD 8C | 1500 | RWD or AWD | 108″ | 82.4″ |
| MYCROS RWD 10 | 1950 | FWD or AWD | 114″ | 82.8″ |
| MYCROS RWD 10C | 1950 | RWD or AWD | 108″ | 82.4″ |
| MYCROS RWD 13 | 2300 | RWD or AWD | 114″ | 78.7″ |
| MYCROS FWD 8C | 1500 | RWD or AWD | 108″ | 76.8″ |
| MYCROS FWD 10 | 1950 | FWD or AWD | 114″ | 78.7″ |
| MYCROS FWD 10C | 1950 | FWD or AWD | 107″ | 76.8″ |
| MYCROS FWD 13 | 2300 | FWD or AWD | 114″ | 83″ |
