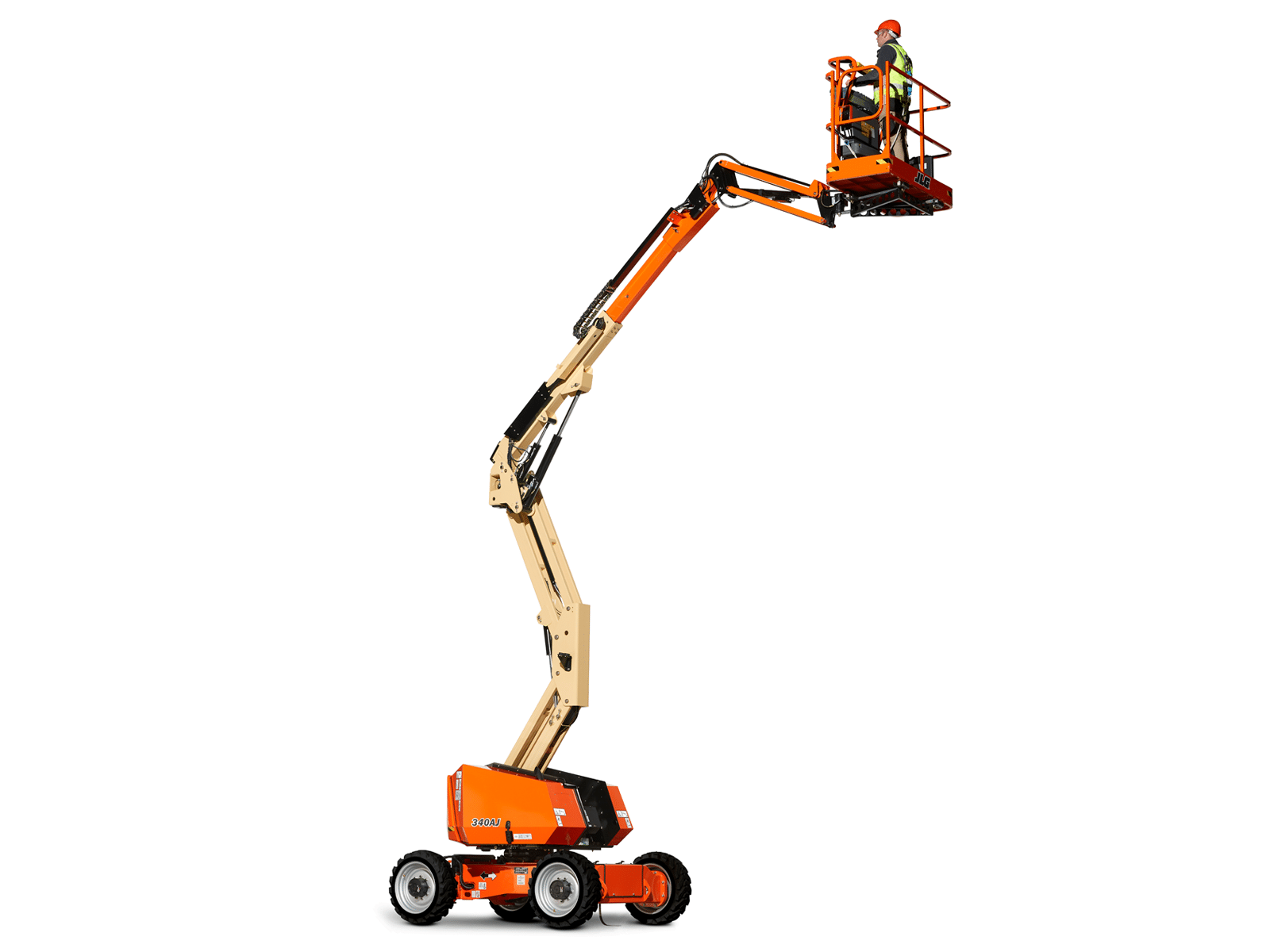

340AJ
New Equipment / Aerial Lifts / 340AJ
340AJ
Location:
Unit:
Price: Contact for price
Key Specs
- Platform Height: 33 ft 10 in. / 10.31 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 19 ft 11 in. / 6.07 m
Key Features
- Lower cost of ownership.
- Steel hoods provide added durability.
- Environmentally-friendly Tier 4 diesel engine.
- Industry-leading terrainability.
- Ideal for general contractors, steel erectors, painters, stadium construction and more.
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Axle Oscillation | 6 in. / 0.15 m |
|---|---|
| Tire Size | 265/50020 Lug Tread |
| Machine Width | 6 ft 4 in. / 1.93 m |
| Engine Type – Dual Fuel | PSI/GM 28.7 hp |
| Platform Dimension A | 2 ft 6 in. / 0.76 m |
| Swing | 355 Degrees |
| Ground Clearance | 10 in. / 0.25 m |
| Maximum Ground Bearing Pressure | 151 psi / 10.57 Kg/cm2 |
| Tailswing | 2 in. / 0.05 m |
| Machine Weight | 9700 lb / 4399.85 kg |
| Machine Height | 6 ft 7 in. / 2.01 m |
| Up and Over Height | 17 ft / 5.18 m |
| Auxiliary Power | 12 Volts DC |
| Jib – Range of articulation | 144 Degrees |
| Capacity – Hydraulic Reservoir | 20.6 gal. / 77.98 L |
| Gradeability – 4WD | 45 % |
| Swing Type | Non-Continuous |
| Horizontal Jib Rotation | 0 Degrees |
| Platform Dimension B | 5 ft / 1.52 m |
| Horizontal Outreach | 19 ft 11 in. / 6.07 m |
| Drive Speed – 4WD | 3.1 mph / 4.99 km/h |
| Engine Type – Diesel | Kubota D1105 24.8 hp |
| Machine Length | 18 ft 2 in. / 5.54 m |
| Capacity – Fuel Tank | 13 gal. / 49.21 L |
| Platform Height | 33 ft 10 in. / 10.31 m |
