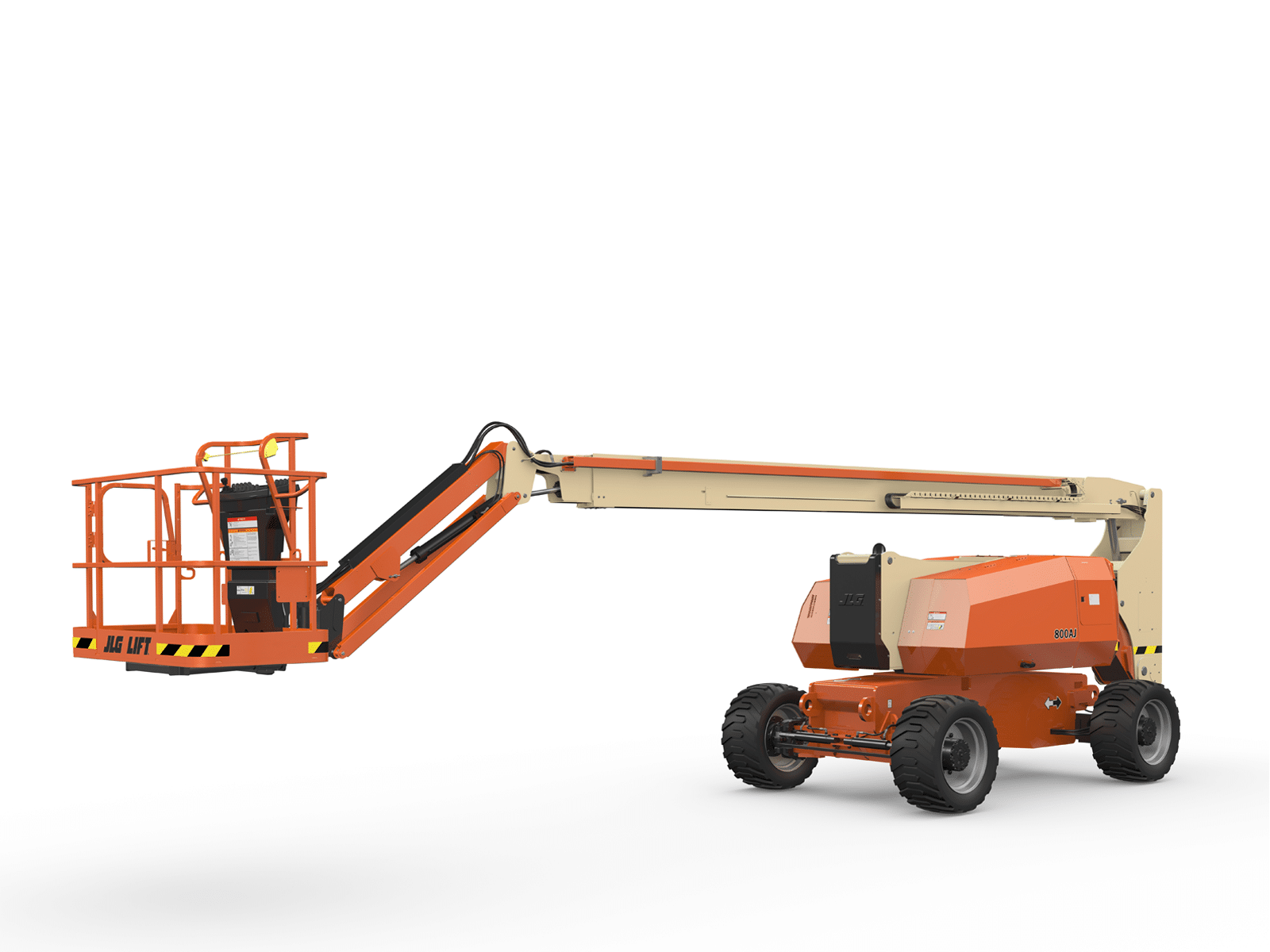

800AJ

JLG

Location:

Unit:

Price: Contact for price

Get the extra reach and versatility you need with the best reach envelope in the industry
With Workstation in the Skyä accessories, you will have all you need to get the job done
Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions

Capacity

500lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Machine Weight	34130 lb / 15481.11 kg
Capacity – Fuel Tank	39 gal. / 147.63 L
Capacity – Hydraulic Reservoir	40 gal. / 151.42 L
Gradeability – 2WD	30 %
Horizontal Outreach	51 ft 10 in. / 15.8 m
Gradeability – 4WD	45 %
Engine Type – Diesel	DEUTZ TD 2.9L Tier 4 Final 67 hp
Swing	360 Degrees
Machine Width	8 ft 2 in. / 2.49 m
Drive Speed – 2WD	3 mph / 4.83 km/h
Engine Type – Dual Fuel	Ford MSG425 84hp
Ground Clearance	1 ft / 0.3 m
Platform Dimension A	3 ft / 0.91 m
Up and Over Height	32 ft 1 in. / 9.78 m
Maximum Ground Bearing Pressure	76 psi / 5.32 Kg/cm2
Machine Length	36 ft 6 in. / 11.13 m
Turning Radius – Outside (2WS)	19 ft 8 in. / 5.99 m
Auxiliary Power	12 Volts DC
Swing Type	Continuous
Axle Oscillation	0 in. / 0 m
Horizontal Jib Rotation	0 Degrees
Machine Height	9 ft 10 in. / 3 m
Tire Size	15-625 Pneumatic
Jib – Range of articulation	130 Degrees
Tailswing	2 ft 6 in. / 0.76 m
Platform Height	80 ft / 24.38 m
Platform Dimension B	8 ft / 2.44 m
Turning Radius – Outside (4WS)	11 ft 7 in. / 3.53 m
