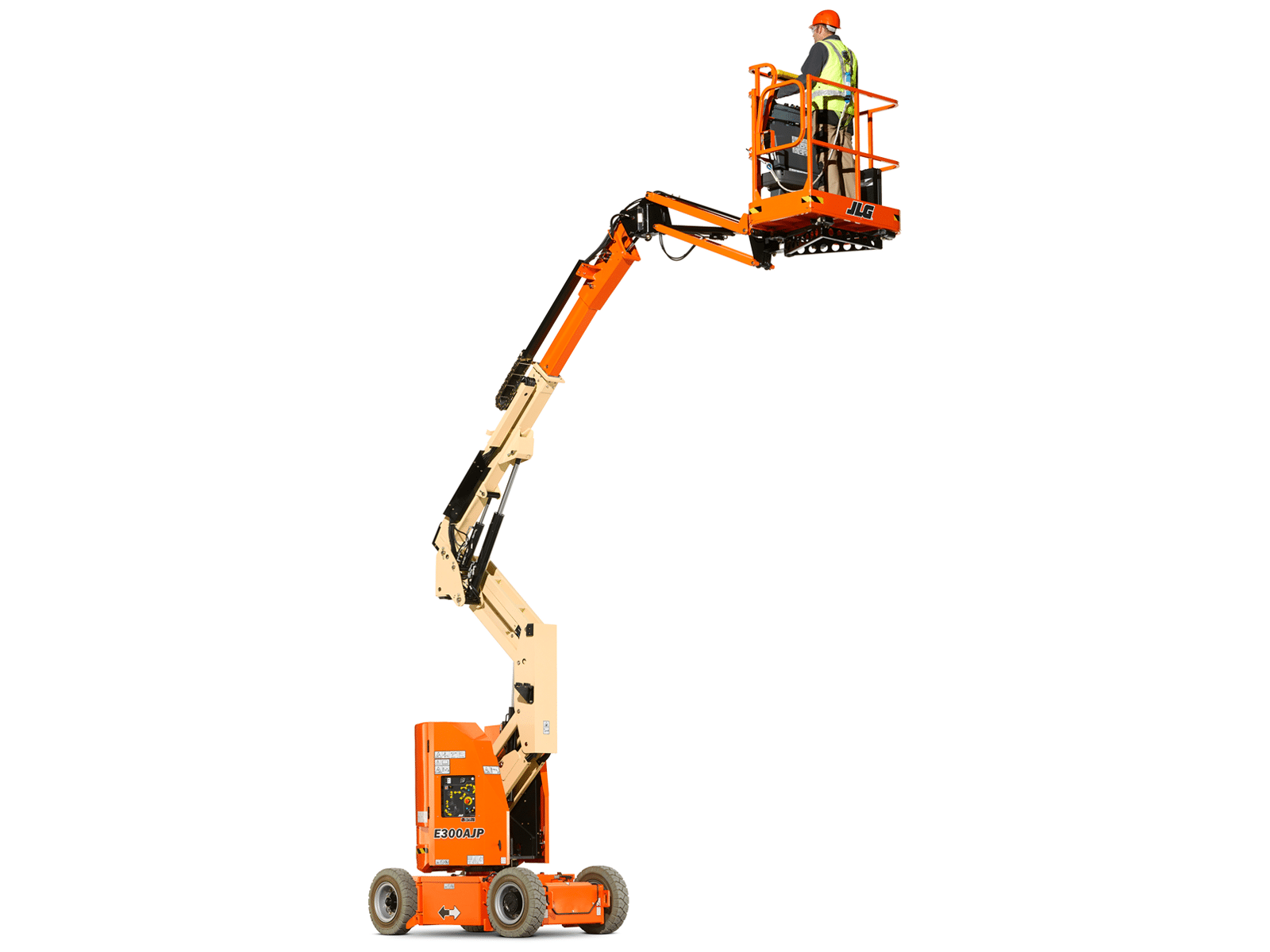

E300AJP
New Equipment / Aerial Lifts / E300AJP
E300AJP
Location:
Unit:
Price: Contact for price
Key Specs
- Platform Height: 29 ft 5 in. / 8.97 m
- Machine Width: 4 ft / 1.22 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib.
- Maneuverability – move over uneven surfaces with Automatic Traction Control.
- Productivity – longer with longer duty cycles.
- Environmentally friendly – zero emissions.
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Tailswing | 0 in. / 0 m |
|---|---|
| Drive Speed – Platform Lowered | 3 mph / 4.83 km/h |
| Horizontal Outreach | 20 ft 1 in. / 6.12 m |
| Up and Over Height | 13 ft 2 in. / 4.01 m |
| Jib – Range of articulation | 144 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius – Outside | 10 ft 2 in. / 3.1 m |
| Tire Size | 25 x 7 x 12 Non-marking |
| Machine Height | 6 ft 7 in. / 2.01 m |
| Ground Clearance | 4 in. / 0.1 m |
| Wheelbase | 5 ft 5 in. / 1.65 m |
| Swing | 350 Degrees |
| Platform Dimension A | 2 ft 6 in. / 0.76 m |
| Gradeability – 2WD | 25 % |
| Horizontal Jib Rotation | 180 Degrees |
| Platform Height | 29 ft 5 in. / 8.97 m |
| Machine Length | 18 ft 10 in. / 5.74 m |
| Electrical System | 48 Volts DC |
| Machine Width | 4 ft / 1.22 m |
| Capacity – Hydraulic Reservoir | 2.1 gal. / 7.95 L |
| Batteries | 8 x 6V, 305 amp-hr |
| Machine Weight | 15400 lb / 6985.32 kg |
