SJ45 AJ+
New Equipment / Aerial Lifts / SJ45 AJ+
SJ45 AJ+
Location:
Unit:
Price: Contact for price
Re-Visualized. Re-Powered. Return.
Our new 40ft and 60ft booms have been redesigned to improve customer return by using SMARTORQUETM technology and data-driven design.
SMARTORQUETM utilizes optimized gearing, and a simplified, high-efficiency hydraulics package, so these models can employ 25hp engines to deliver similar on-site job performance as higher powered units.
With these changes, rental companies can quickly improve their return on investment.
- Elevate
- Glazier kit
- Cold weather package
- Non destructive testing
- Welder package
- Flashing light
- Positive air shut-off valve
- Auxiliary top rail
- Control box cover
- Arctic weather package
- Boom pipe rack
- Side spring hinged entry gate
- Diesel scrubber
- Tire options
- Tool caddy
- Welder ready
- Bio oil
- 30” x 60” platform
| Capacity |
| Load Weight | 11,190 lbs (5,075 kg) |
| Max Lift Height | 45’ (13.72 m) |
| Power | Kubota D1305 - 24.8 HP (18.5 KW) |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

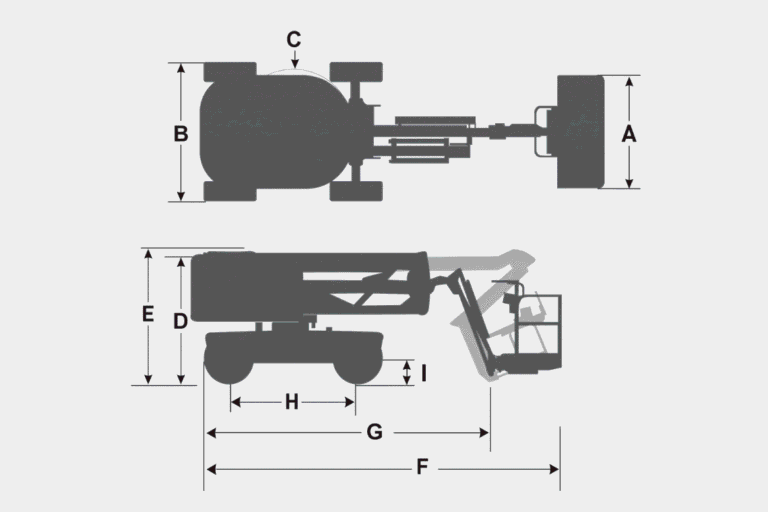

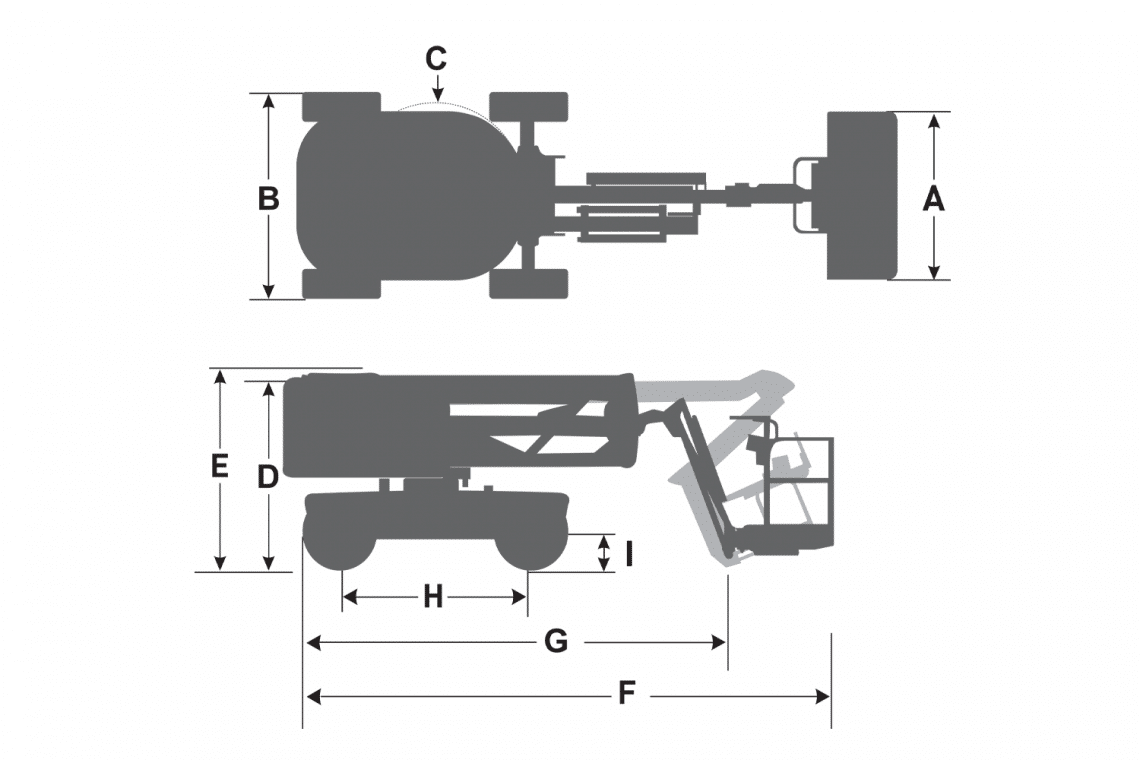

Models and Specifications
| SJ45 AJ+ | ||
|---|---|---|
| Work Height | 51’ (15.54 m) | |
| Platform Height | 45’ (13.72 m) | |
| Up and Over Height | 24’ 5.25” (7.45 m) | |
| Platform Size | 30” x 72” (0.76 x 1.83 m) | |
| Stowed Width | 7’ 6” (2.29 m) | |
| Tailswing | 2’ (0.61 m) | |
| Stowed Height | 6’ 9” (2.06 m) | |
| Transportation Height | 7’ 1” (2.16 m) | |
| Stowed Length | 19’ 8” (6.00 m) | |
| Transportation Length | 15’ 7” (4.75 m) | |
| Ground Clearance | 15.25” (0.39 m) | |
| Wheelbase | 6’ 8” (2.03 m) | |
| Rotation | 355° NC | |
| Platform Rotation | 170° | |
| Jib Length | 4’ 8” (1.40 m) | |
| Jib Range +/- | +70° / -75° | |
| Weight | 11,190 lbs (5,075 kg) | |
| Gradeability | 40% | |
| Turning Radius (Inside) | 4’ 11.25” (1.50 m) | |
| Turning Radius (Outside) | 14’ 3” (4.34 m) | |
| Axle Oscillation | 5” (12.70 cm) | |
| Drive Speed (High speed) | 2.5 mph (4.0 km/h) | |
| Capacity | 660 lbs (300 kg) | |

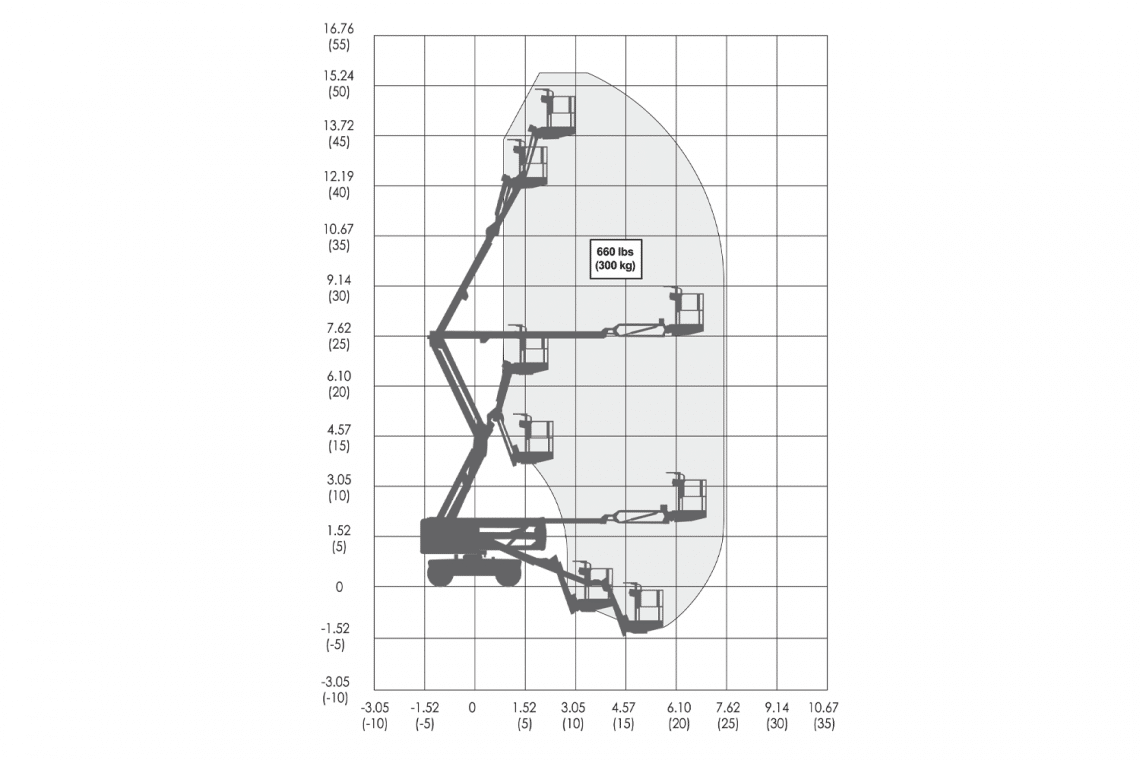

| Horizontal Reach | 22’ 9” (6.93 m) | |
| Maximum # of Persons | 2 (at max wind rating) | |
| Wind Rating | 28 mph (12.5 m/s) | |
| Tire Type | Solid | |
| Tire Size | 10 x 31 | |
| Diesel Engine | Kubota D1305 – 24.8 HP (18.5 KW) | |
| Fuel Tank | 17 gal. (64 L) | |
| Hydraulic Reservoir | 24 gal. (91 L) |
