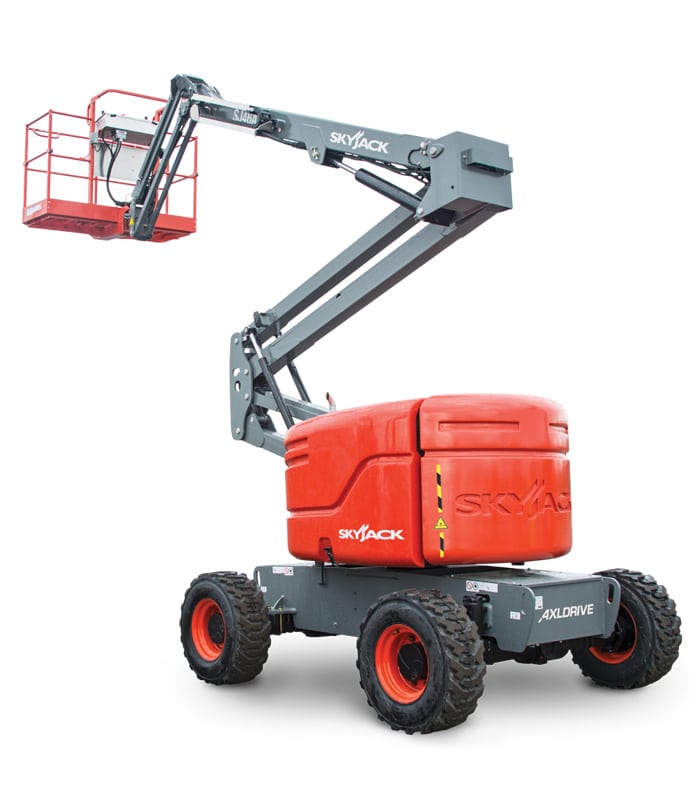

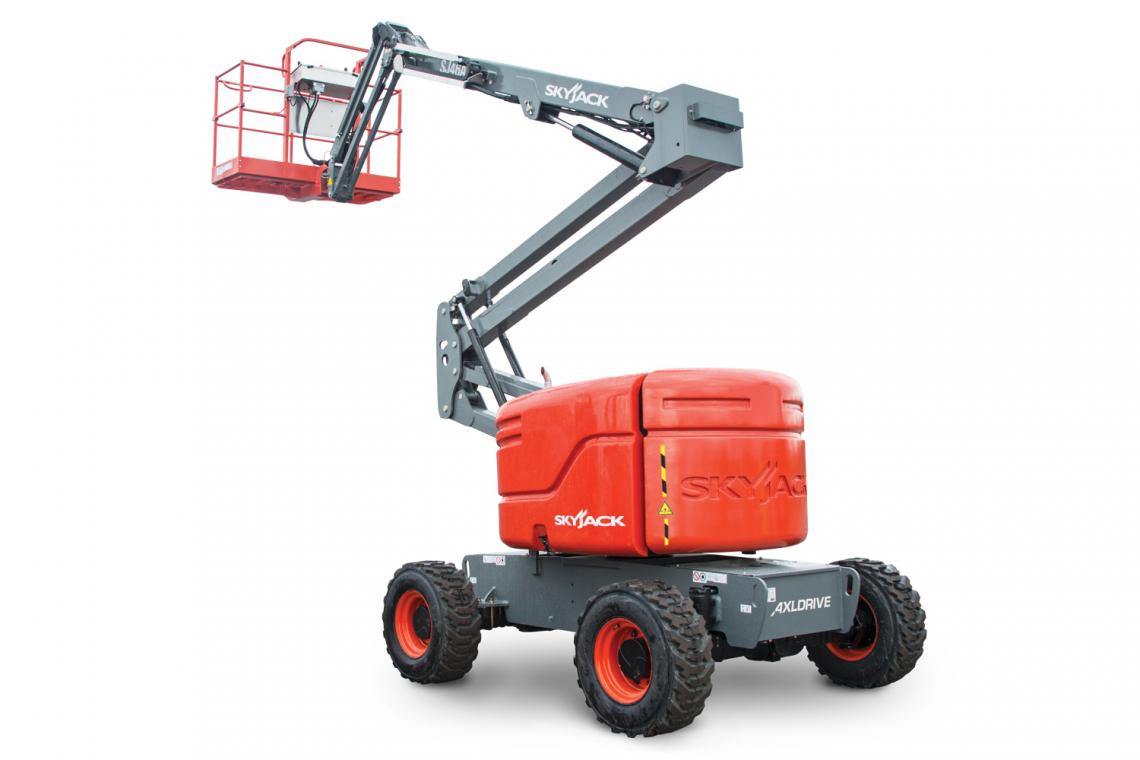

SJ46 AJ+
New Equipment / Aerial Lifts / SJ46 AJ+
SJ46 AJ+
Location:
Unit:
Price: Contact for price
Unparalleled Up-And-Over
Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
- Auxiliary top rail
- 30” x 60” platform
- Hydraulic oil cooler
- Elevate
- 3.5 kw generator
- Bio oil
- Welder package
- Welder ready
- Non destructive testing
- Boom pipe rack
- Flashing light
- Arctic weather package
- Cold weather package
- Positive air shut-off valve
- Control box cover
- Tire options
- Side spring hinged entry gate
- Glazier kit
| Capacity |
| Load Weight | 13,200 lbs (5,990 kg) |
| Max Lift Height | 46’ 3.25” (14.10 m) |
| Power | Deutz D2.9L - 48 HP (36 KW) |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

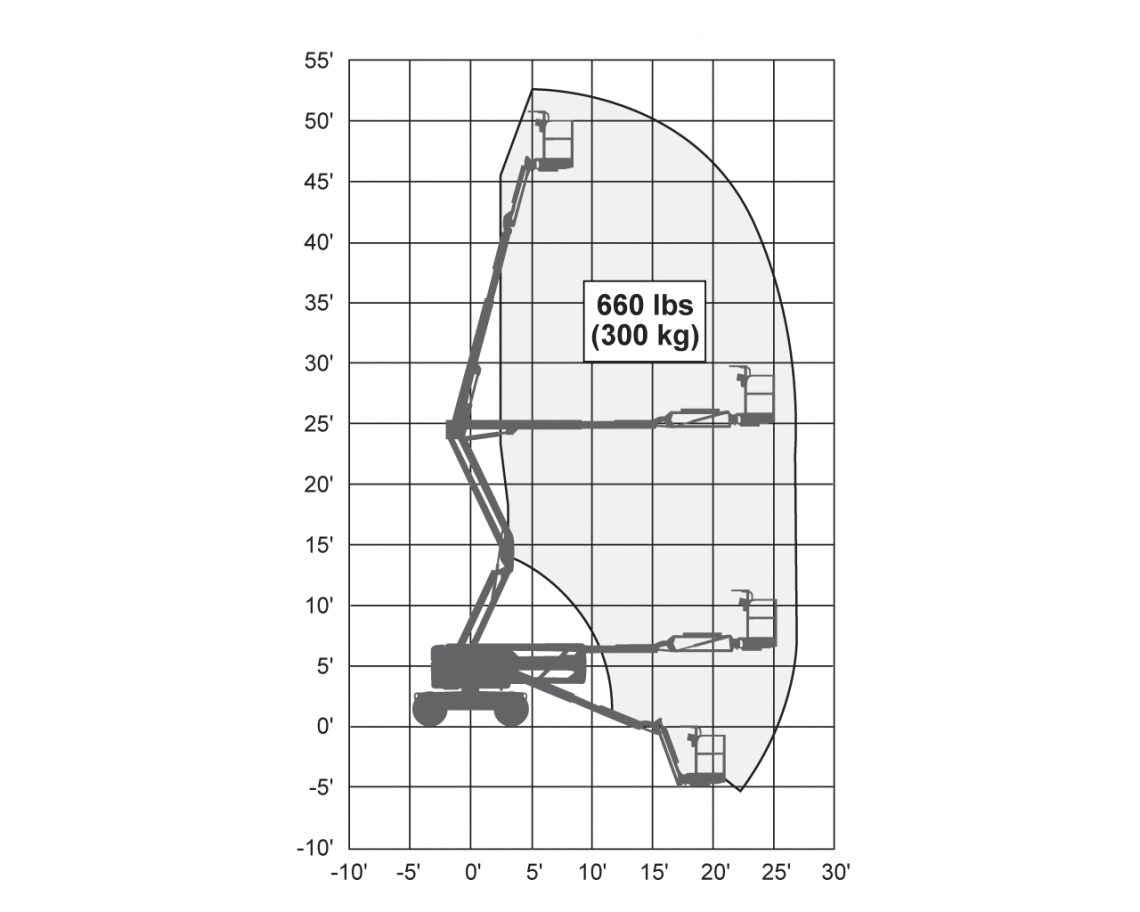

Models and Specifications
| SJ46 AJ+ | ||
|---|---|---|
| Work Height | 52’ 3.25” (15.93 m) | |
| Platform Height | 46’ 3.25” (14.10 m) | |
| Up and Over Height | 24’ 5.25” (7.45 m) | |
| Platform Size | 30” x 72” (0.76 x 1.83 m) | |
| Stowed Width | 7′ 6″ (2.29 m) | |
| Tailswing | 0 | |
| Stowed Height | 6′ 9″ (2.06 m) | |
| Transportation Height | 7′ 1″ (2.16 m) | |
| Stowed Length | 20’ 10” (6.35 m) | |
| Transportation Length | 19′ 7″ (5.97 m) | |
| Ground Clearance | 15.25” (0.39 m) | |
| Wheelbase | 6′ 8″ (2.03 m) | |
| Rotation | 355° NC | |
| Platform Rotation | 170° | |
| Jib Length | 4’ 8″ (1.40 m) | |
| Jib Range +/- | +70° / -75° | |
| Weight | 13,200 lbs (5,990 kg) | |
| Gradeability | 45% | |
| Turning Radius (Inside) | 4′ 11.25″ (1.50 m) | |
| Turning Radius (Outside) | 14′ 3″ (4.34 m) | |
| Axle Oscillation | 5” (12.70 cm) | |
| Drive Speed (High speed) | 4.8 mph (7.7 km/h) | |
| Capacity | 660 lbs (300 kg) | |
| Horizontal Reach | 24’ 8.75” (7.54 m) | |
| Maximum # of Persons | 2 | |
| Wind Rating | 28 mph (12.5 m/s) | |
| Tire Type | Solid | |
| Tire Size | 10 x 31 | |
| Diesel Engine | Deutz D2.9L – 48 HP (36 KW) | |
| Dual Fuel Engine | Kubota WG2503 – 61 HP (45 KW) | |
| Fuel Tank | 17 gal. (64 L) | |
| Hydraulic Reservoir | 24 gal. (91 L) |
