SJ85 AJ
New Equipment / Aerial Lifts / SJ85 AJ
SJ85 AJ
Location:
Unit:
Price: Contact for price
Unparalleled Up-And-Over
Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
- Platform work lights
- Flashing light
- Side gate
- Extended warranties
- 36” x 72” platform
- Positive air shut-off valve
- Welder package
- Tool caddy
- Elevate
- Bio oil
- Hostile environment package
- ½” airline to platform
- Non destructive testing
- Welder ready
- Boom pipe rack
- Auxiliary top rail
- 3.5 kw generator
- Tire options
- Hydraulic oil cooler
- Arctic weather package
- Control box cover
- Cold weather package
| Capacity |
| Load Weight | 37,400 lbs (16,965 kg) |
| Max Lift Height | 85' (25.91 m) |
| Power | 74 HP |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

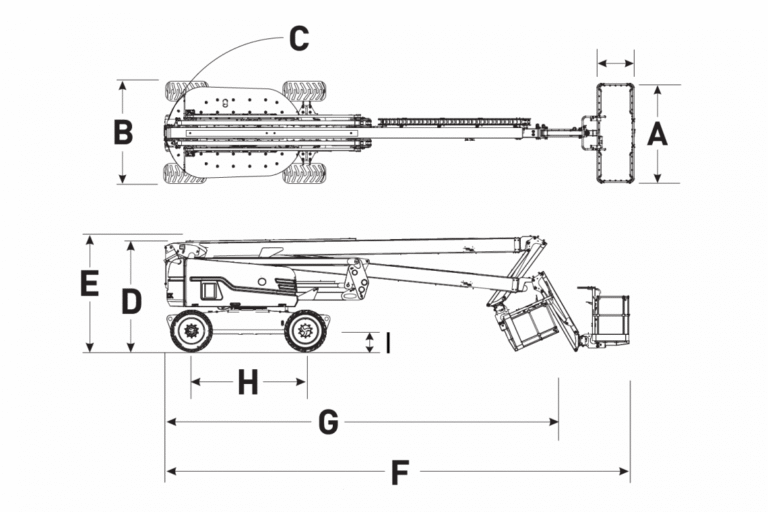

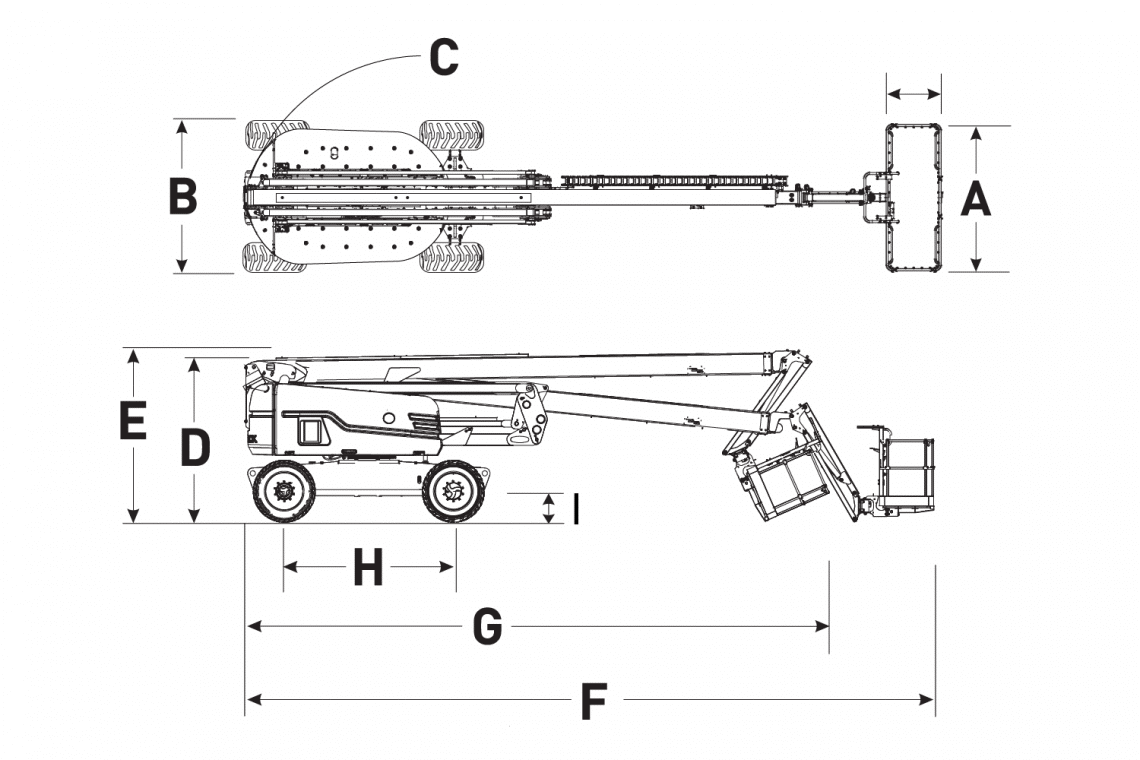

Models and Specifications
| SJ85 AJ | ||
|---|---|---|

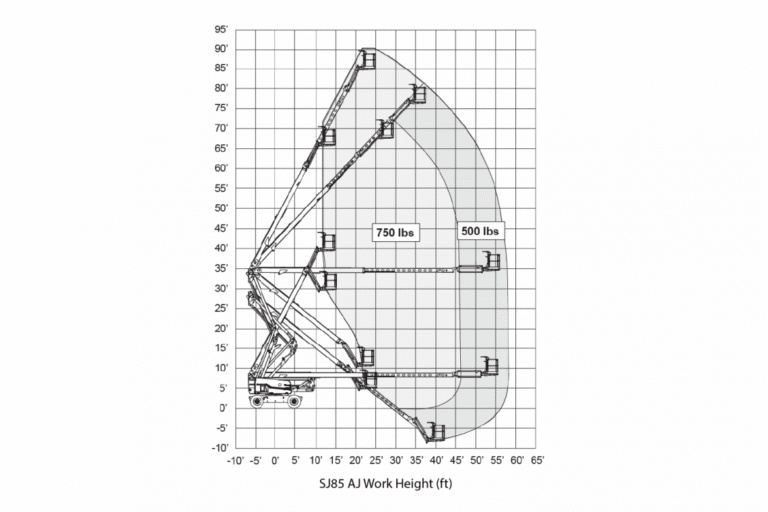

| Work Height | 91′ (27.74 m) | |
| Platform Height | 85′ (25.91 m) | |
| Up and Over Height | 34′ (10.36 m) | |
| Platform Size | 36” x 96” (0.91 x 2.4 m) | |
| Stowed Width | 8’ 2″ (2.49 m) | |
| Tailswing | 2′ 10″ (0.86 m) | |
| Stowed Height | 8′ 9″ (2.67 m) | |
| Transportation Height | 8′ 9″ (2.67 m) | |
| Stowed Length | 38’ 2” (11.63 m) | |
| Transportation Length | 10.03 m | |
| Ground Clearance | 13” (0.34 m) | |
| Wheelbase | 9’ 4″ (2.84 m) | |
| Rotation | 360° | |
| Platform Rotation | 170° | |
| Jib Length | 5’ 6” (1.68 m) | |
| Jib Range +/- | +65° / -60° | |
| Weight | 37,400 lbs (16,965 kg) | |
| Gradeability | 45% | |
| Turning Radius (Inside) | 10’ (3.05 m) | |
| Turning Radius (Outside) | 20’ 5” (6.22 m) | |
| Axle Oscillation | 4” (10.16 cm) | |
| Drive Speed (High speed) | 3 mph (4.8 km/h) | |
| Capacity | 500 / 750 lbs (227 / 340 kg) | |
| Horizontal Reach | 56′ (17.07 m) | |
| Local Floor Load (With Rated Load) | 171 psi (12.01 kg/sq cm) | |
| Overall Floor Load (With Rated Load) | 355 psf (1,733 kg/sq m) | |
| Maximum # of Persons | 2 / 3 | |
| Tire Type | Grip lug foam-filled | |
| Tire Size | 18-625 | |
| Diesel Engine | 74 HP | |
| Dual Fuel Engine | 87 HP | |
| Fuel Tank | 30.4 gal. (115 L) | |
| Hydraulic Reservoir | 45 gal. (170 L) |
