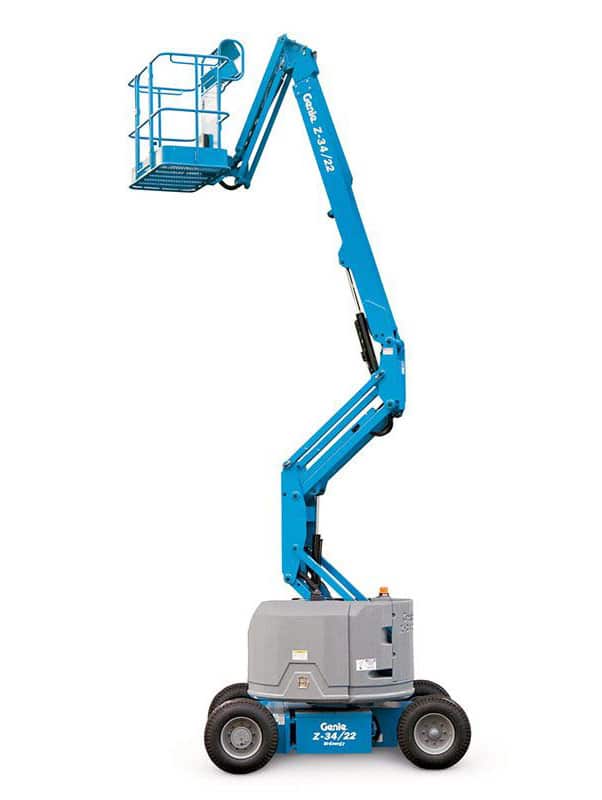

Z-34/22 DC
New Equipment / Aerial Lifts / Z-34/22 DC
Z-34/22 DC
Location:
Unit:
Price: Contact for price

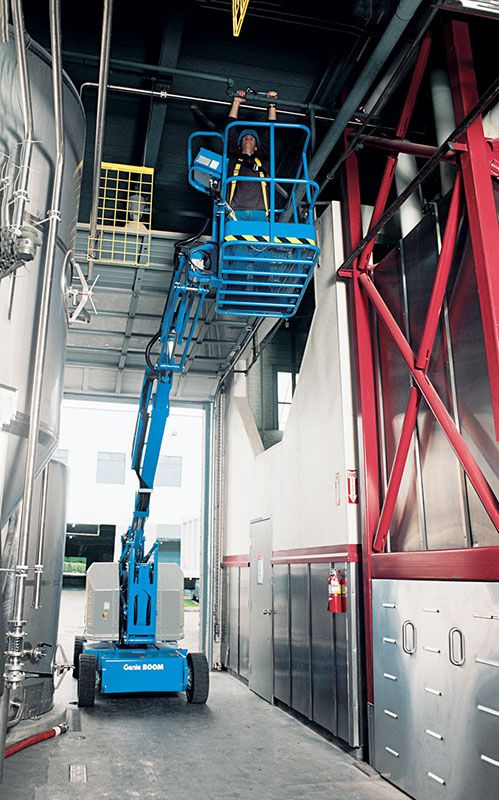

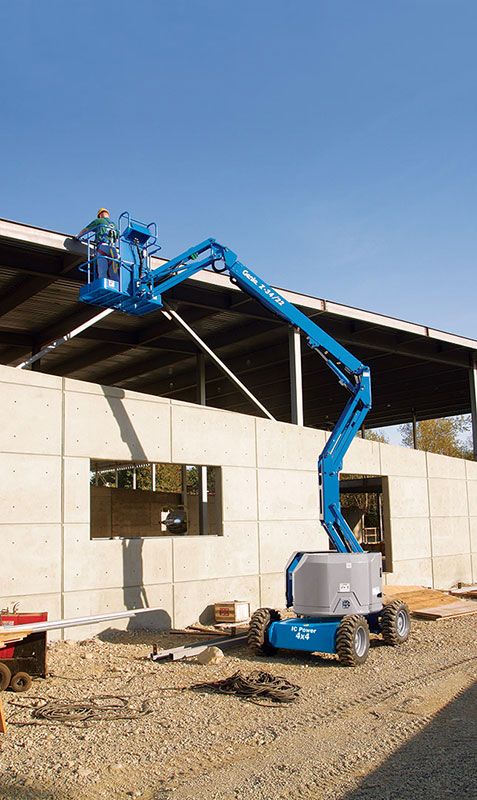

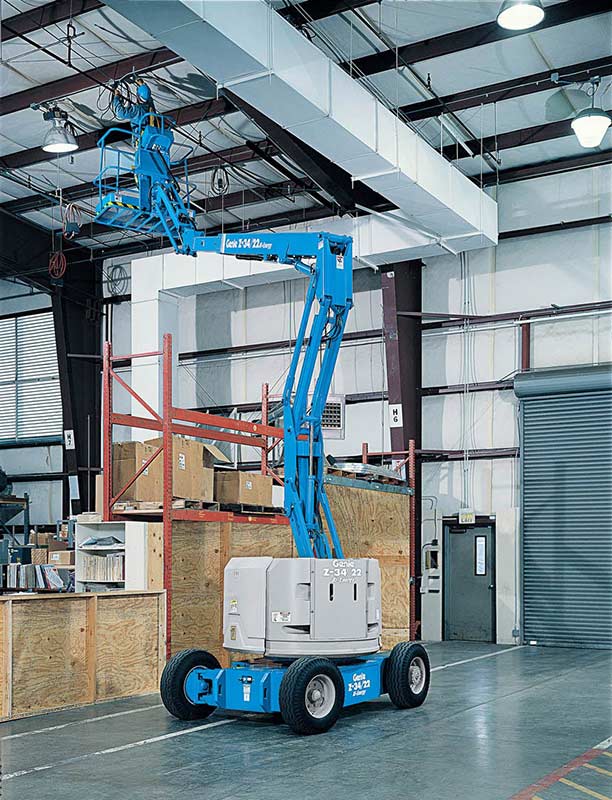

The Genie® Z®-34/22 DC electric articulating boom lift offers quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles and access overhead work from aisles and other congested areas.
Overview
- Zero tailswing and zero front arm swing in stowed and raised positions allow for work in tight spaces
- Compact chassis for narrow aisle access
- 30% gradeability and 4 mph (6.4 km/h) travel speed for excellent drive performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation to accurately position workers
- 180° hydraulic platform rotation and self-levelling platform for easy operation
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Max Working Height | 40 ft 6 in | 12.52 m |
|---|---|
| Max Up and Over Clearance (riser extended) | 15 ft | 4.57 m |
| Max Horizontal Reach | 22 ft 3 in | 6.78 m |
Options

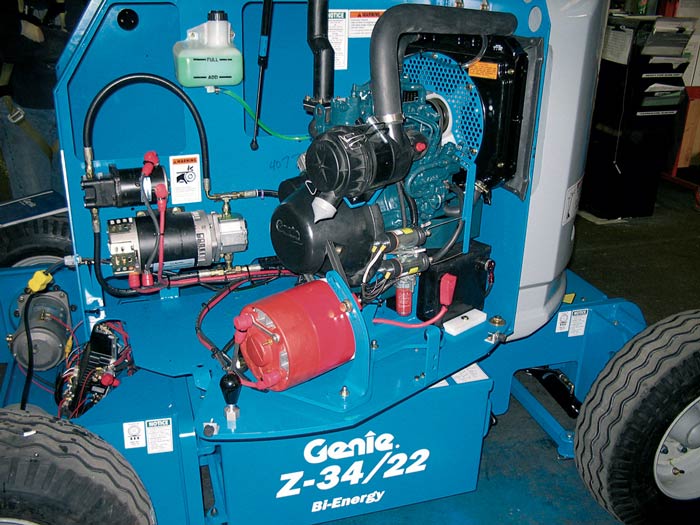

Chassis – Engine Options
- Cold weather kit for Z-34/22 Bi-Energy model only, includes: 5W-40 synthetic oil, oil pan heater, battery heater, hydraulic tank heater
Certification Options
- EE rating, DC only
Chassis – Tires Options (not available with Z-34/22N)
- Industrial foam-filled tires (water based)
- Non-marking industrial air-filled tires
- Non-marking industrial foam-filled tires (water based)
- Tire sealant: air-filled tires only
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI) (standard on Bi-Energy model)
- Specialty hydraulic oil (6 gal – cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with BCI (DC only)
- Low voltage interrupt with BCI (Bi-Energy only)
- Power inverter, 800W, 120V AC, 60 Hz (DC only)
- Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers
Platforms
- 4 ft. platform
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform with ½ height mesh inserts and swing gate
- Platform auxiliary top rail
- Platform swing gate
Models and Specifications
Overview
Options
Chassis – Engine Options
- Cold weather kit for Z-34/22 Bi-Energy model only, includes: 5W-40 synthetic oil, oil pan heater, battery heater, hydraulic tank heater
Certification Options
- EE rating, DC only
Chassis – Tires Options (not available with Z-34/22N)
- Industrial foam-filled tires (water based)
- Non-marking industrial air-filled tires
- Non-marking industrial foam-filled tires (water based)
- Tire sealant: air-filled tires only
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI) (standard on Bi-Energy model)
- Specialty hydraulic oil (6 gal – cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with BCI (DC only)
- Low voltage interrupt with BCI (Bi-Energy only)
- Power inverter, 800W, 120V AC, 60 Hz (DC only)
- Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers
Platforms
- 4 ft. platform
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform with ½ height mesh inserts and swing gate
- Platform auxiliary top rail
- Platform swing gate
Want to take the next step?
Drop us a line today for your free, no-obligation quote!
