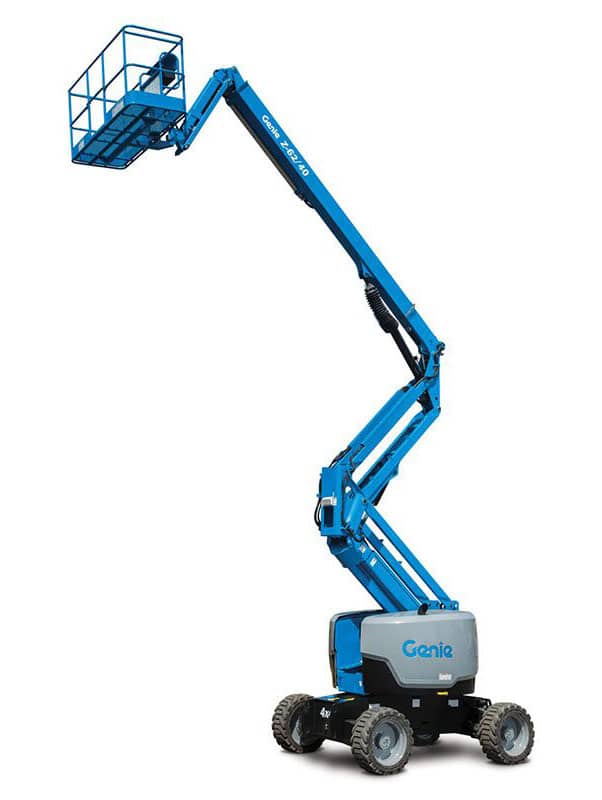

Z-62/40
New Equipment / Aerial Lifts / Z-62/40
Z-62/40
Location:
Unit:
Price: Contact for price

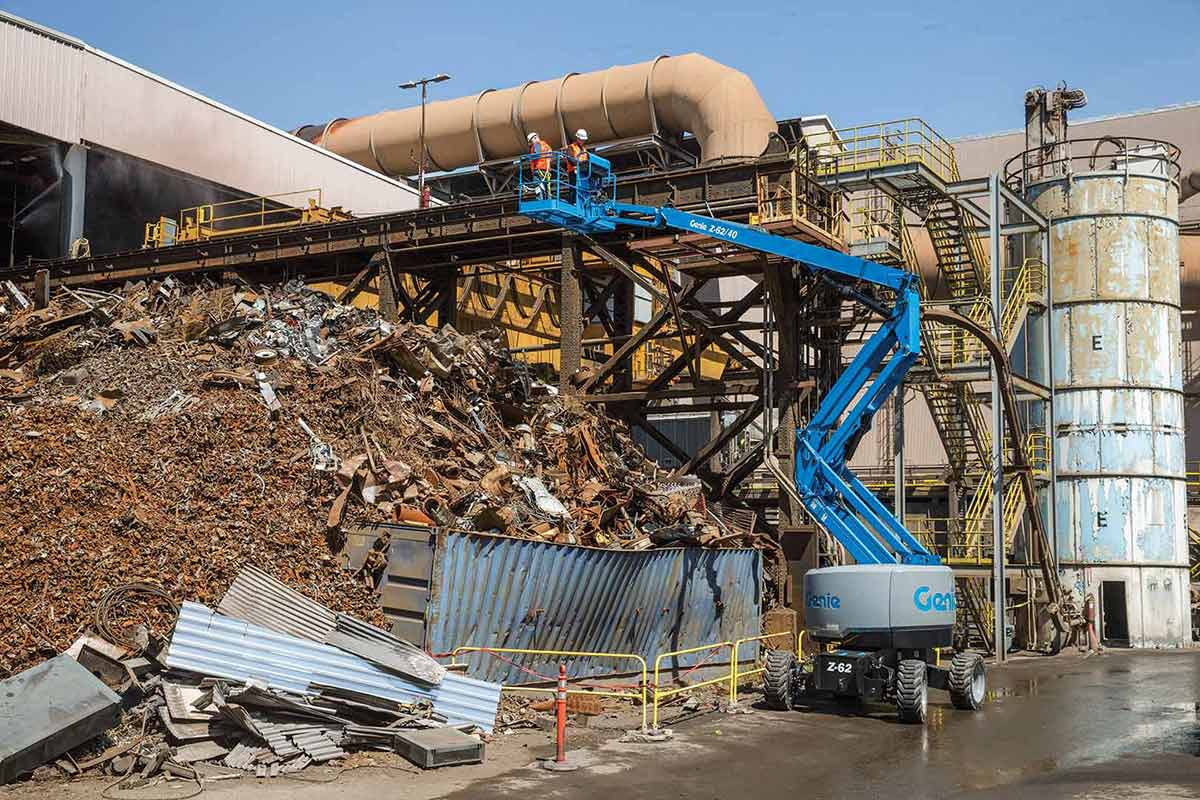

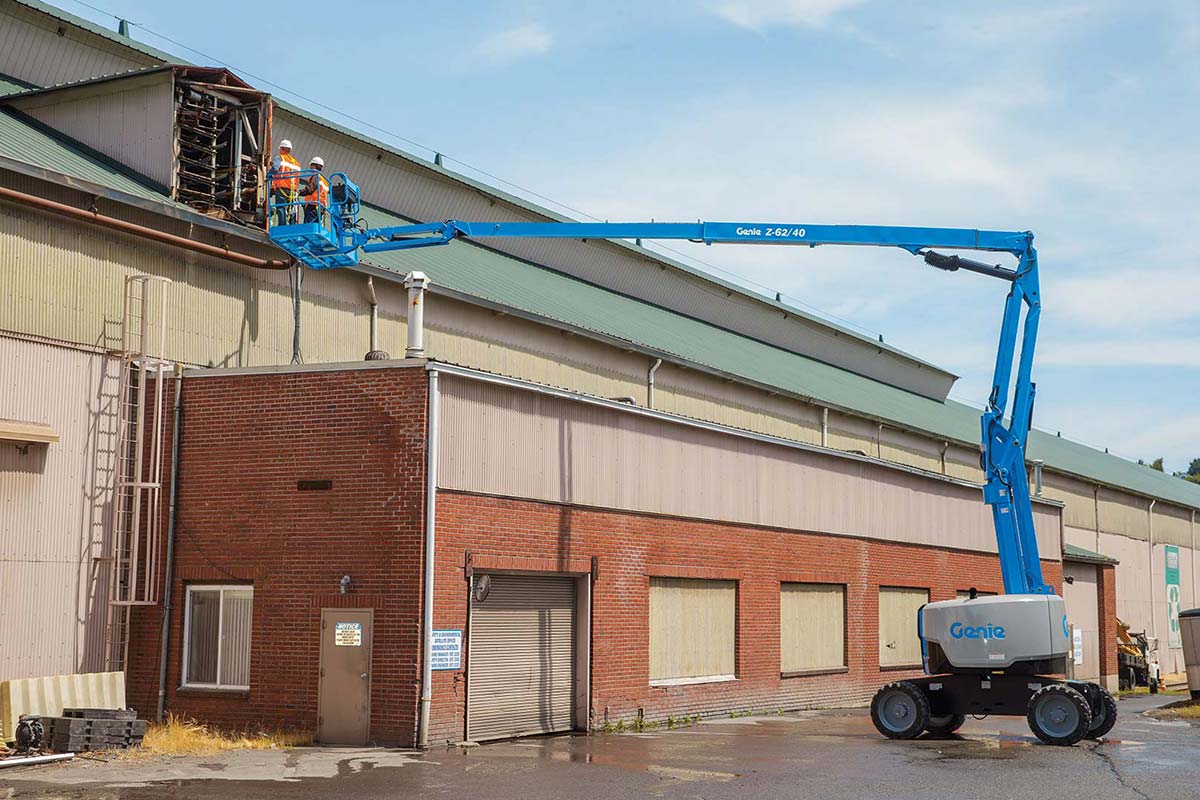

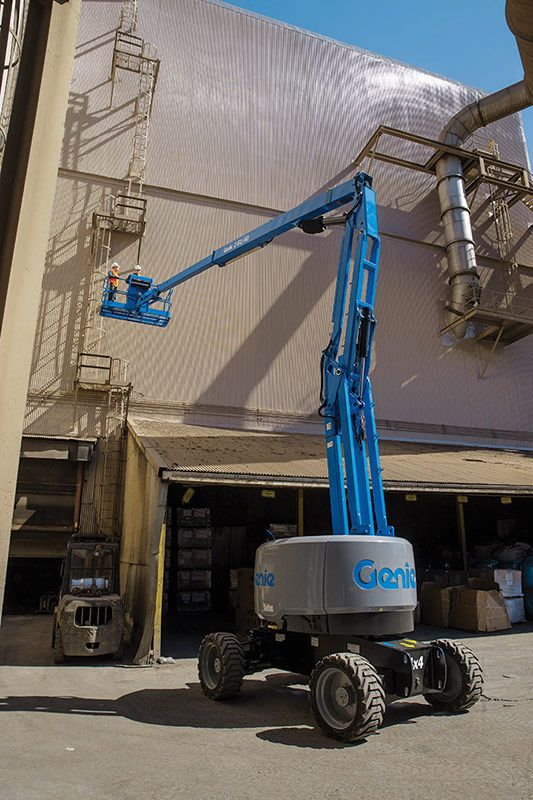

Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.
Overview
- The 5-ft (1.52 m) jib features a 135° range of motion to accurately position workers
- Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
- 4WD and full-time active oscillating axles provide traction for gradeability up to 45%
- Four-wheel steering and exclusive Genie TraX™ track drive systemoptions available
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Max Up and Over Clearance (riser extended) | 25 ft 7 in | 7.8 m |
|---|---|
| Max Horizontal Reach | 40 ft 9 in | 12.42 m |
| Max Working Height | 67 ft 11 in | 20.87 m |
Options
Chassis Options
- Tow package
- 4 wheel steering
Tire Options
- Z-62 Trax: Quadra Track System, requires 4WD
- High floatation tires: requires 4WD; includes additional counterweight
- Rough terrain foam-filled tires (water based)
- Rough terrain foam-filled tires (petroleum based)
- Rough terrain, non-marking air-filled tires
- Rough terrain, non-marking foam-filled tires (water based)
- Rough terrain, non-marking foam-filled tires (petroleum based)
- Tire sealant: air-filled tires only
Engine Options
- 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on Trax)
- 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
- Diesel air intake pre-cleaner
- LPG tank, 33.5 lb. capacity: Ford engine only
- LPS fire protection rating: Ford engine only and requires LP only operation
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage(excludes turbo)
Lift/Turntable Options
- Specialty hydraulic oil (50 gal – cold weather, fire resistant, or biodegradable)
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit : hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, and air pre-cleaner

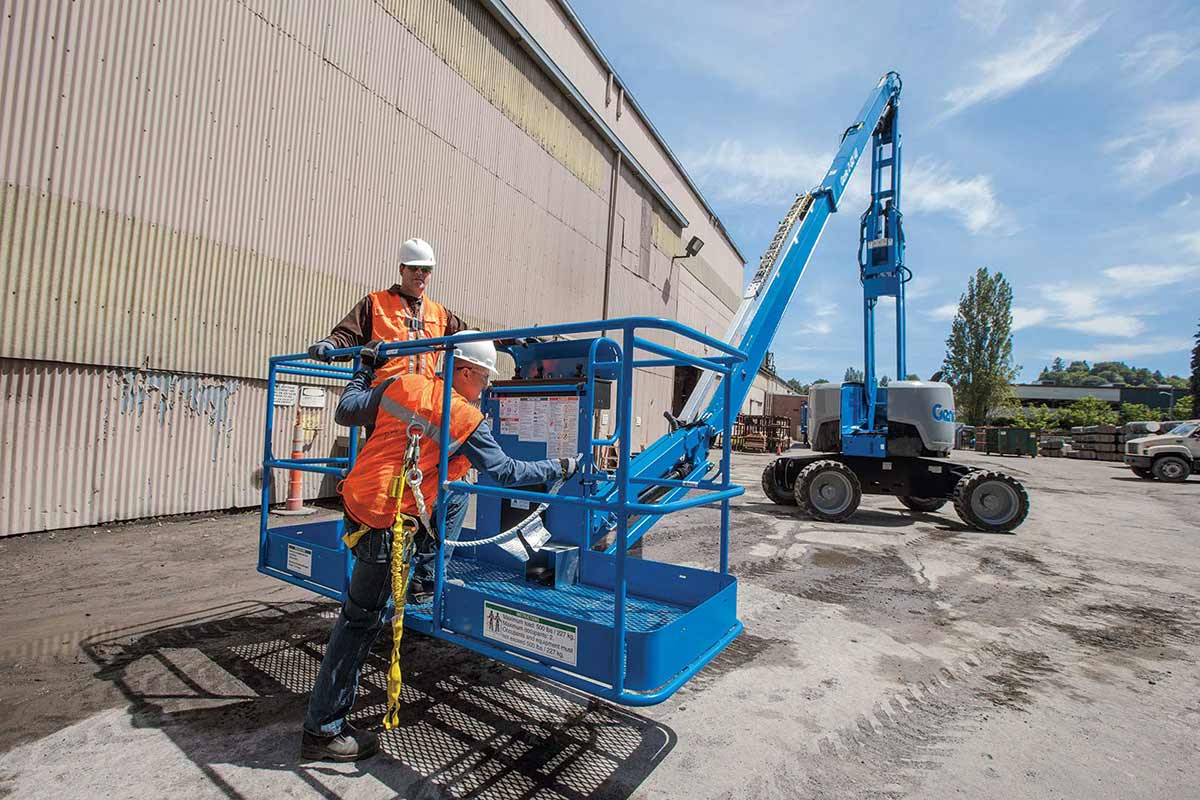

Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz, or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Welder – Select Lincoln or Miller
- Welder ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Models and Specifications
Overview
Options
Chassis Options
- Tow package
- 4 wheel steering
Tire Options
- Z-62 Trax: Quadra Track System, requires 4WD
- High floatation tires: requires 4WD; includes additional counterweight
- Rough terrain foam-filled tires (water based)
- Rough terrain foam-filled tires (petroleum based)
- Rough terrain, non-marking air-filled tires
- Rough terrain, non-marking foam-filled tires (water based)
- Rough terrain, non-marking foam-filled tires (petroleum based)
- Tire sealant: air-filled tires only
Engine Options
- 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on Trax)
- 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
- Diesel air intake pre-cleaner
- LPG tank, 33.5 lb. capacity: Ford engine only
- LPS fire protection rating: Ford engine only and requires LP only operation
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage(excludes turbo)
Lift/Turntable Options
- Specialty hydraulic oil (50 gal – cold weather, fire resistant, or biodegradable)
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit : hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, and air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz, or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Welder – Select Lincoln or Miller
- Welder ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
