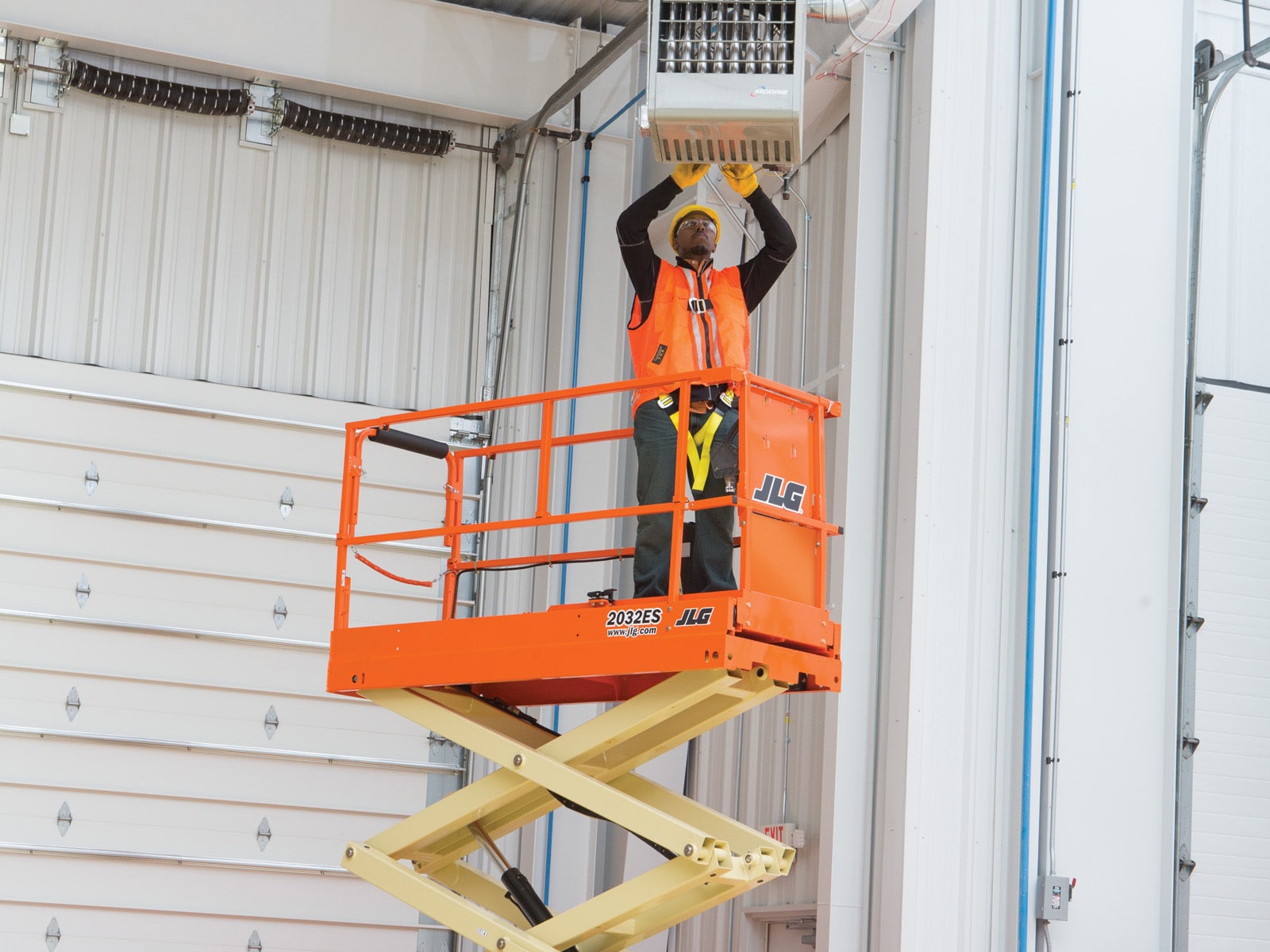

2032ES

JLG

Location:

Unit:

Price: Contact for price

Quieter, cleaner operation for a variety of environments.
Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls.
Narrow width fits through most standard doorways and tight aisles.
Delivers 200% more battery life.*
*Compared to a competitive model under similar test conditions. Actual results may vary.

Capacity

800lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Drive System	24V Electric
Gradeability	25 %
Tire Size	16 X 5 in
Maximum Drive Height	20 ft / 6.1 m
Working Height	26 ft / 7.92 m
Platform Dimension B	7 ft 7 in. / 2.3 m
Hydraulic Pump	Fixed Displacement Gear
Drive Speed – Platform Elevated	0.5 mph / 0.80 km/h
Brakes	Electric, Friction
Platform Capacity – Extension	250 lb / 113.40 kg
Machine Height – Rails Folded	6 ft / 1.82 m
Wheelbase	6 ft 2 in. / 1.88 m
Turning Radius – Outside	6 ft 9 in. / 2.06 m
Batteries	4 x 6V, 220 amp-hour
Platform Dimension A	2 ft 6 in. / 0.76 m
Ground Clearance	4 in. / 0.09 m
Machine Weight	3610 lb / 1637.47 kg
Lower Time	40 sec.
Capacity – Hydraulic Reservoir	1.3 gal. / 4.73 L
Machine Width	2 ft 8 in. / 0.81 m
Machine Height	7 ft 3 in. / 2.2 m
Maximum Ground Bearing Pressure	81 psi / 5.67 Kg/cm2
Platform Extension Length	3 ft / 0.9 m
Charger	20 amp automatic
Platform Height – Lowered	3 ft 8 in. / 1.1 m
Lift Time	28 sec.
Turning Radius – Inside	0 in. / 0 m
Platform Railing Height	3 ft 7 in. / 1.1 m
Drive Speed – Platform Lowered	2.8 mph / 4.43 km/h
