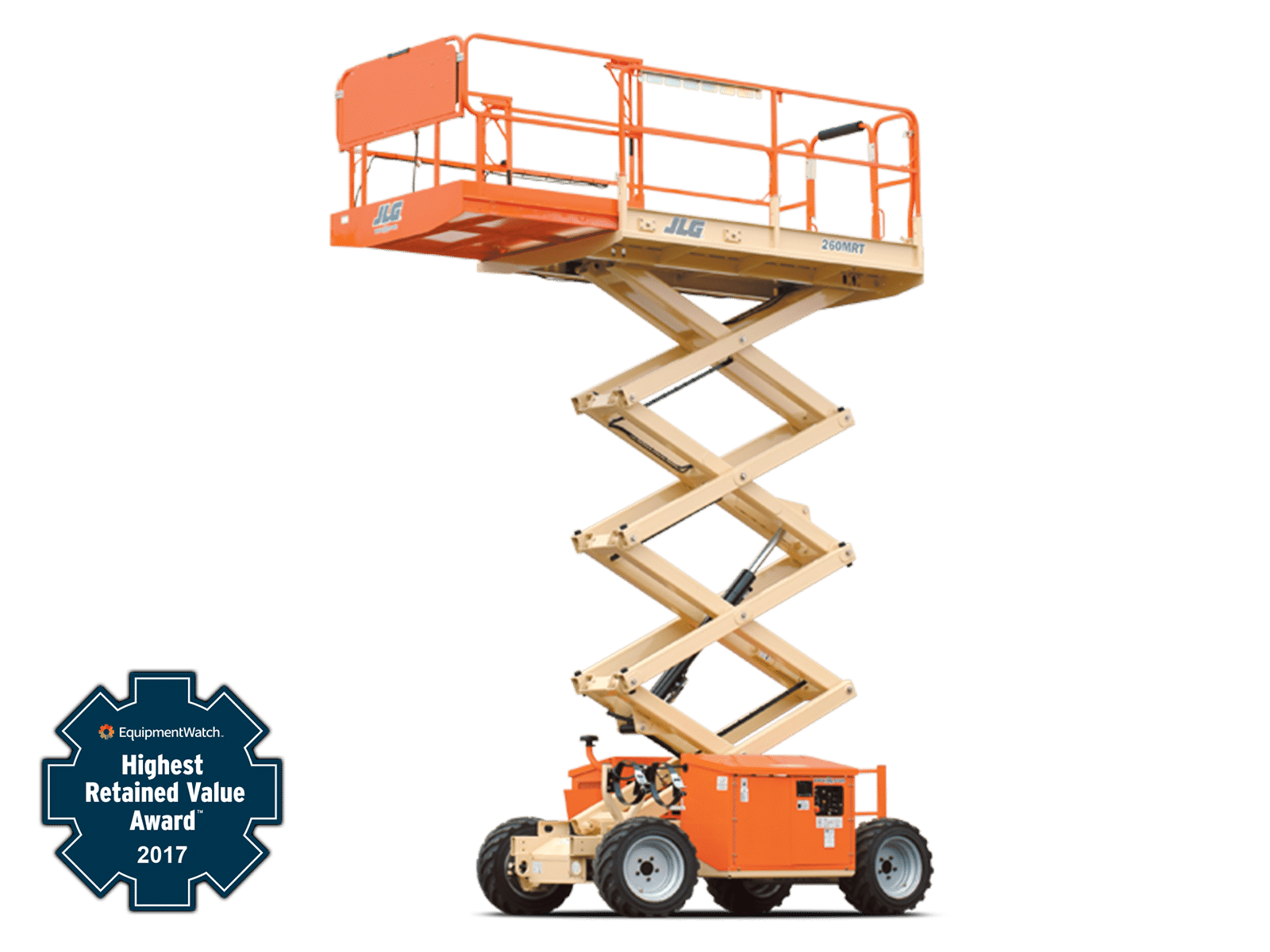

260MRT

JLG

Location:

Unit:

Price: Contact for price

Narrow 69 in chassis fits into spaces other scissor lifts can’t.
Large work platform and 1,250 lb platform capacity so you can be more productive.
Standard four wheel drive and 35 percent gradeability keep you going.

Capacity

1250lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Machine Weight	7360 lb / 3338.44 kg
Engine Type – Diesel (HRC)	Kubota 23.5 hp (Diesel)
Maximum Ground Bearing Pressure	33 psi / 2.31 Kg/cm2
Platform Railing Height	3 ft 8 in. / 1.1 m
Platform Height	26 ft / 7.92 m
Drive Speed – Platform Lowered	3.5 mph / 5.63 km/h
Platform Dimension A	5 ft 5 in. / 1.65 m
Machine Height – Rails Folded	6 ft 5 in. / 1.96 m
Turning Radius – Outside	14 ft 5 in. / 4.39 m
Machine Width	5 ft 9 in. / 1.75 m
Ground Clearance	8 in. / 0.2 m
Fuel Tank Capacity – Diesel	7.5 gal. / 28.39 L
Capacity – Hydraulic Reservoir	15 gal. / 56.78 L
Platform Dimension B	8 ft 6 in. / 2.59 m
Gradeability – 4WD	35 %
Platform Height – Lowered	4 ft 2 in. / 1.26 m
Platform Extension Length	4 ft / 1.22 m
Machine Length	8 ft 9 in. / 2.67 m
Lower Time	21 sec.
Engine Model	Kubota 24.5 hp (Dual Fuel)
Working Height	32 ft / 9.75 m
Tire Size	26 x 12 Lug Tread
Lift Time	27 sec.
Brakes	Spring Applied, Hydraulically Released
Wheelbase	6 ft 6 in. / 1.98 m
Platform Capacity – Extension	300 lb / 136.08 kg
Drive Speed – Platform Elevated	0.5 mph / 0.80 km/h
Machine Height	7 ft 10 in. / 2.37 m
