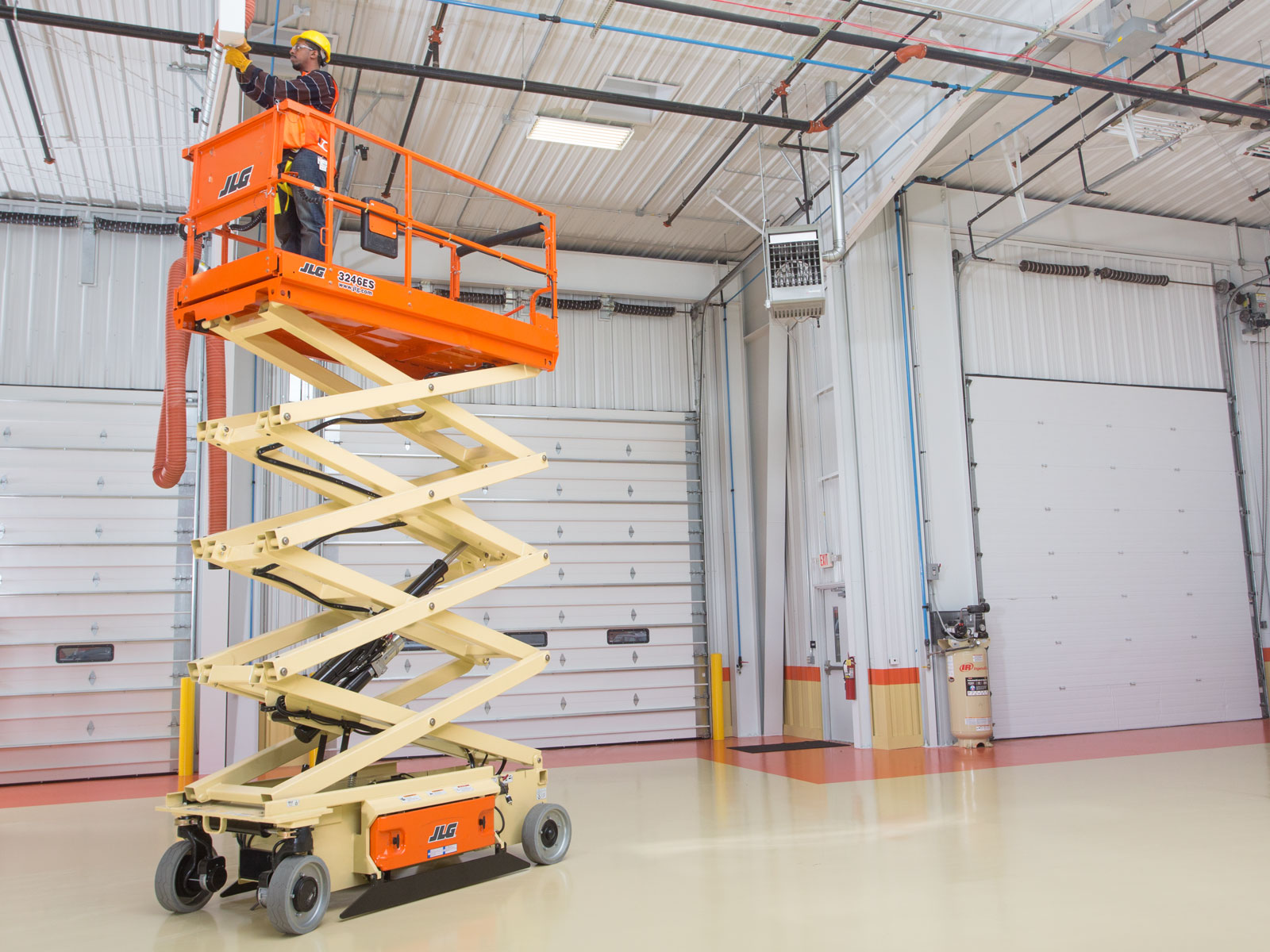

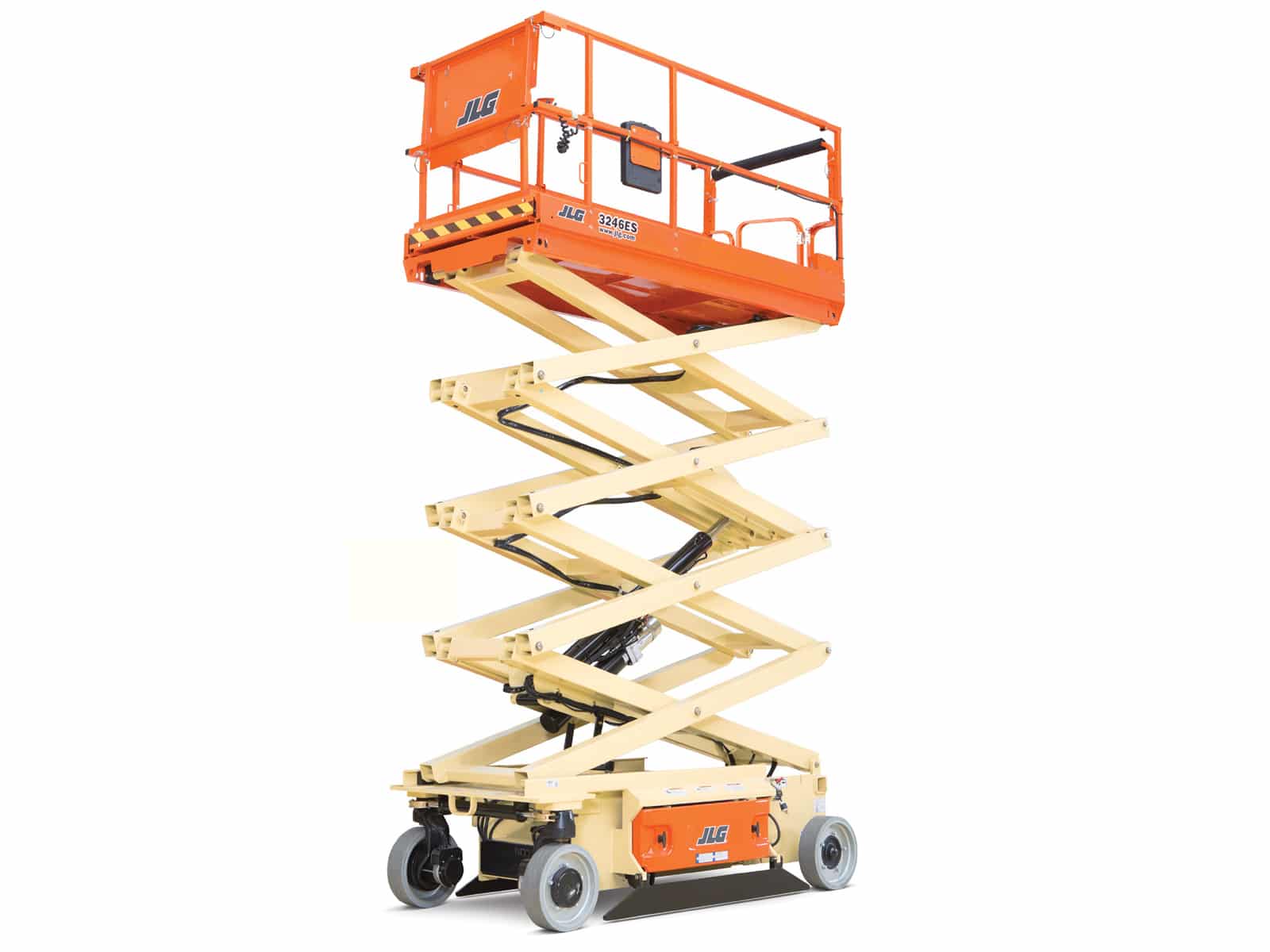

3246ES

JLG

Location:

Unit:

Price: Contact for price

Quieter, cleaner operation for a variety of environments
Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
Tight turning radius for great maneuverability
Delivers 200% more battery life*
*Compared to a competitive model under similar test conditions. Actual results may vary.

Capacity

700lbs

Load Weight

Max Lift Height

31.8 ft / 9.68 m

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Platform Height	31 ft 9 in. / 9.68 m
Lift Time	55 sec.
Working Height	37 ft 9 in. / 11.51 m
Platform Capacity – Restricted	1000 lb / 453.59 kg
Platform Extension Length	4 ft 2 in. / 1.27 m
Drive Speed – Platform Lowered	2.5 mph / 4.02 km/h
Gradeability	25 %
Machine Width	3 ft 10 in. / 1.17 m
Machine Height – Rails Folded	6 ft 6 in. / 1.97 m
Turning Radius – Inside	0 in. / 0 m
Charger	20 amp automatic
Ground Clearance	5 in. / 0.13 m
Hydraulic Pump	Fixed Displacement Gear
Platform Dimension B	3 ft 8 in. / 1.12 m
Batteries	4 x 6V, 220 amp-hr
Turning Radius – Outside	7 ft 11 in. / 2.42 m
Maximum Ground Bearing Pressure	87 psi / 6.09 Kg/cm2
Machine Height	7 ft 9 in. / 2.36 m
Wheelbase	6 ft 10 in. / 2.08 m
Platform Height – Lowered	4 ft 2 in. / 1.26 m
Tire Size	16 x 5 in
Brakes	Electric, Friction
Platform Railing Height	3 ft 7 in. / 1.1 m
Machine Weight	4975 lb / 2256.62 kg
Platform Capacity – Extension	250 lb / 113.40 kg
Lower Time	62 sec.
Drive Speed – Platform Elevated	0.5 mph / 0.80 km/h
Capacity – Hydraulic Reservoir	1.7 gal. / 6.44 L
Platform Dimension A	8 ft 3 in. / 2.5 m
