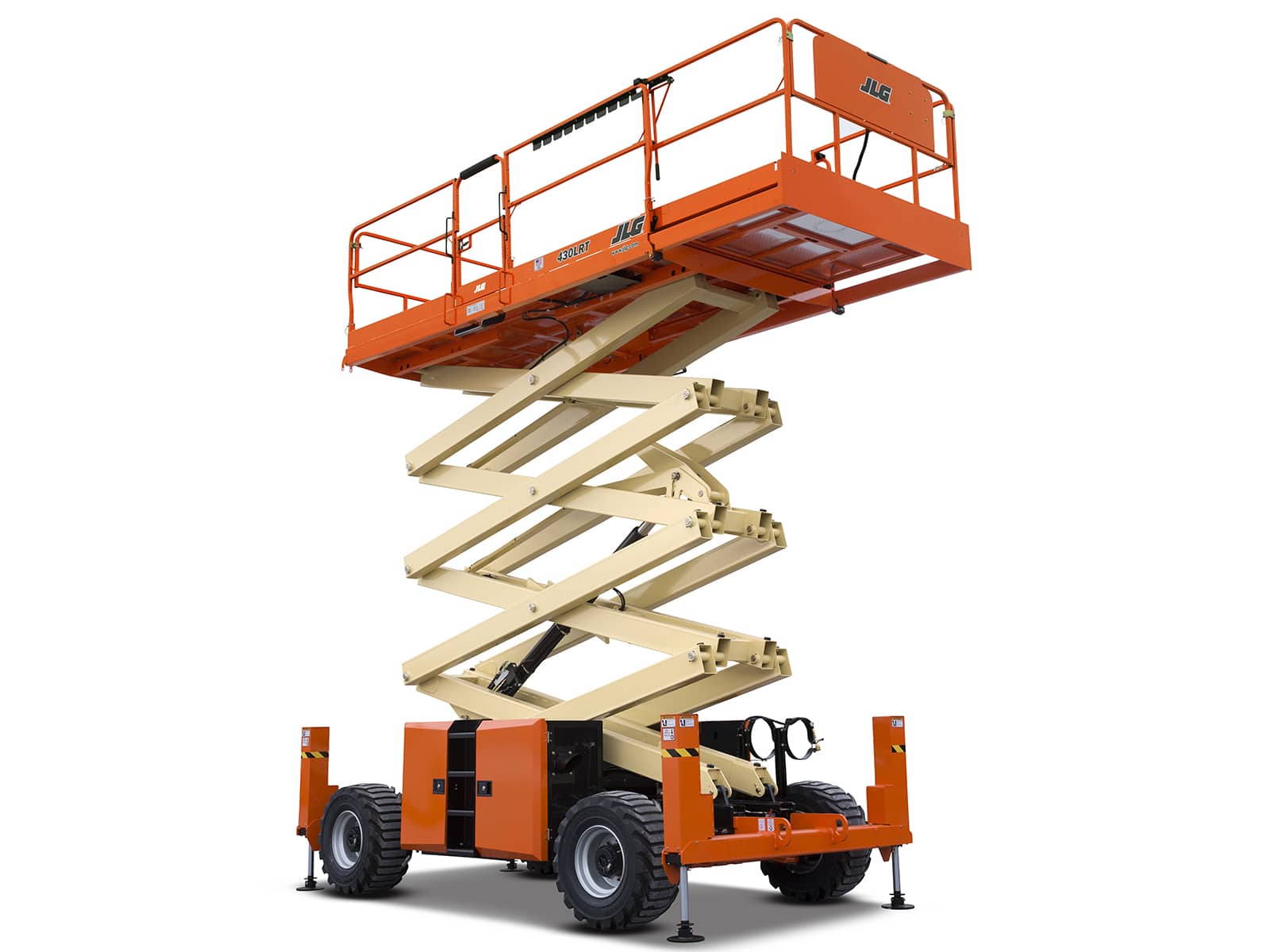

430LRT

JLG

Location:

Unit:

Price: Contact for price

Enhanced Stability on Uneven Surfaces – Standard oscillating axle gives you better traction and grade climbing ability
Smoother Extension Deployment – New platform is designed to shed debris and allows for smoother extension deployment
Better Serviceability – Fully accessible hydraulic and engine compartments are easier to service

Capacity

1500lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Drive Speed – Platform Elevated	0.5 mph / 0.80 km/h
Platform Dimension B	12 ft 10 in. / 3.92 m
Platform Height	43 ft / 13.11 m
Working Height	49 ft / 14.94 m
Tire Size	33 X 15.5 Superwide
Platform Dimension A	6 ft 7 in. / 2.01 m
Capacity – Fuel Tank	30 gal. / 113.56 L
Lift Time	45 sec.
Machine Width	7 ft 9 in. / 2.36 m
Lower Time	47 sec.
Platform Height – Lowered	6 ft 1 in. / 1.84 m
Platform Railing Height	3 ft 8 in. / 1.1 m
Machine Weight	15210 lb / 6899.14 kg
Machine Height – Rails Folded	6 ft 10 in. / 2.08 m
Ground Clearance	1 ft 2 in. / 0.35 m
Capacity – Hydraulic Reservoir	32 gal. / 121.13 L
Turning Radius – Inside	8 ft 11 in. / 2.71 m
Wheelbase	9 ft 9 in. / 2.97 m
Platform Capacity – Extension	1250 lb / 566.99 kg
Machine Height	9 ft 10 in. / 3 m
Turning Radius – Outside	19 ft 6 in. / 5.93 m
Gradeability	45 %
Drive Speed – Platform Lowered	3.5 mph / 5.63 km/h
Platform Extension Length	4 in. / 0.1 m
Machine Length	12 ft 10 in. / 3.91 m
Engine Type – Diesel	Kubota, 1.26L, 24.8HP
