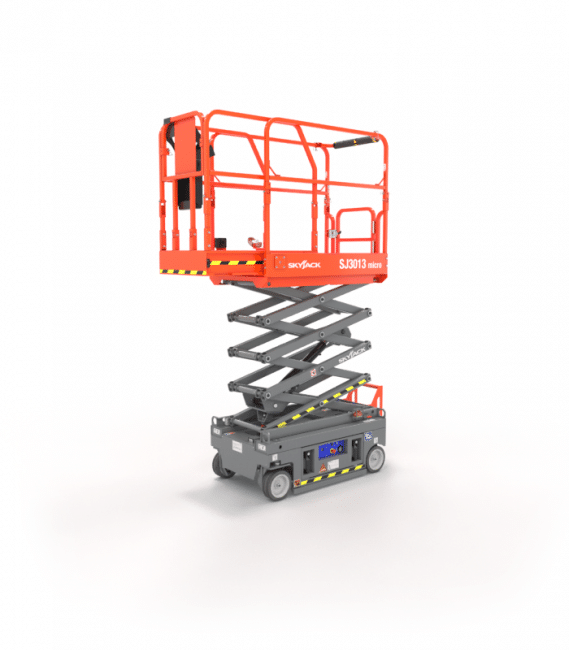

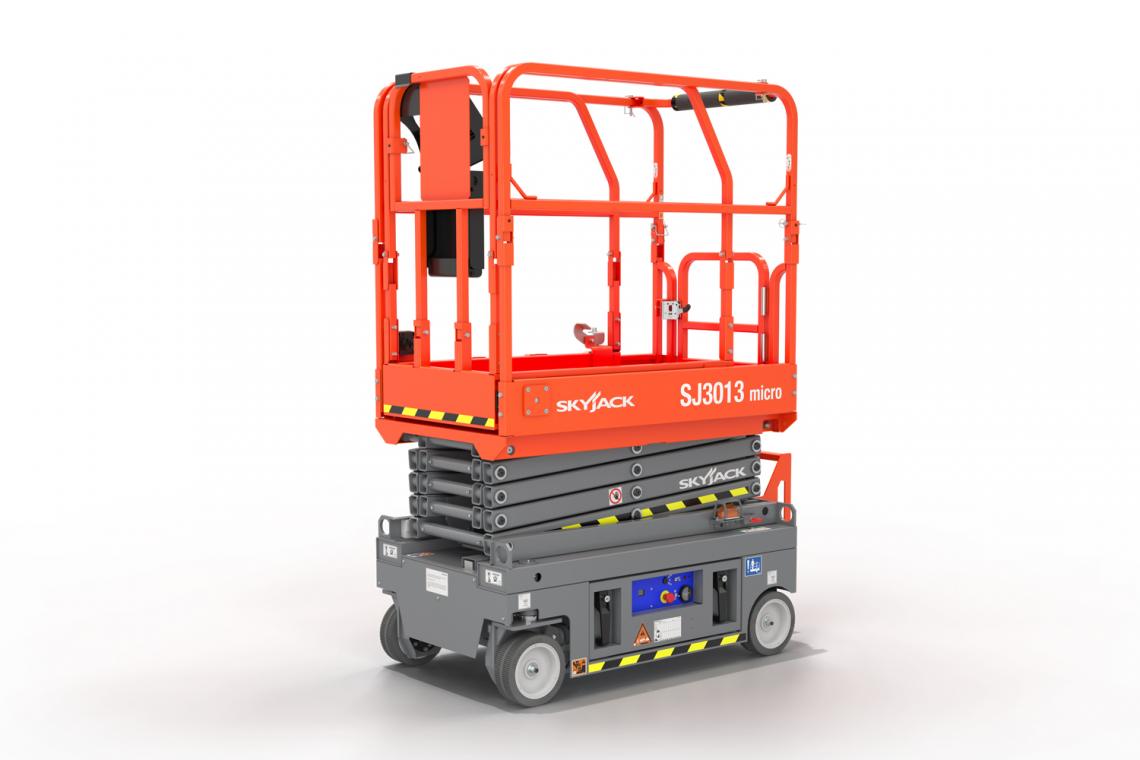

SJ3013 Micro
New Equipment / Aerial Lifts / SJ3013 Micro
SJ3013 Micro
Location:
Unit:
Price: Contact for price
Mighty Micro Means Business
Our new SJ3013 micro represents a significant new presence in the low level access arena. Ideal for easy accessibility into tight spaces, it has a quiet and swift electric drive, and AGM batteries.
The SJ3013 micro combines low cost of ownership with our renowned product support – all at a price that means business.
- Elevate
- EcoTray
| Capacity |
| Load Weight | 1950 lbs (886 kg) |
| Max Lift Height | 13’ (3.96 m) |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

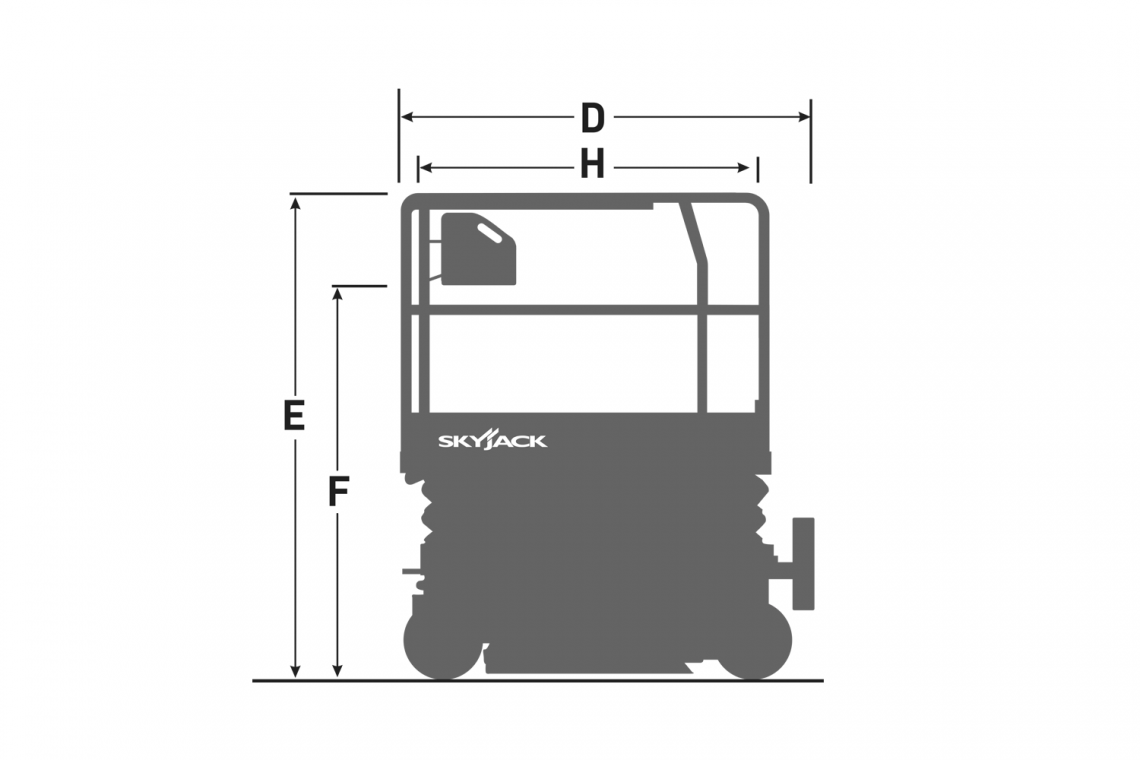

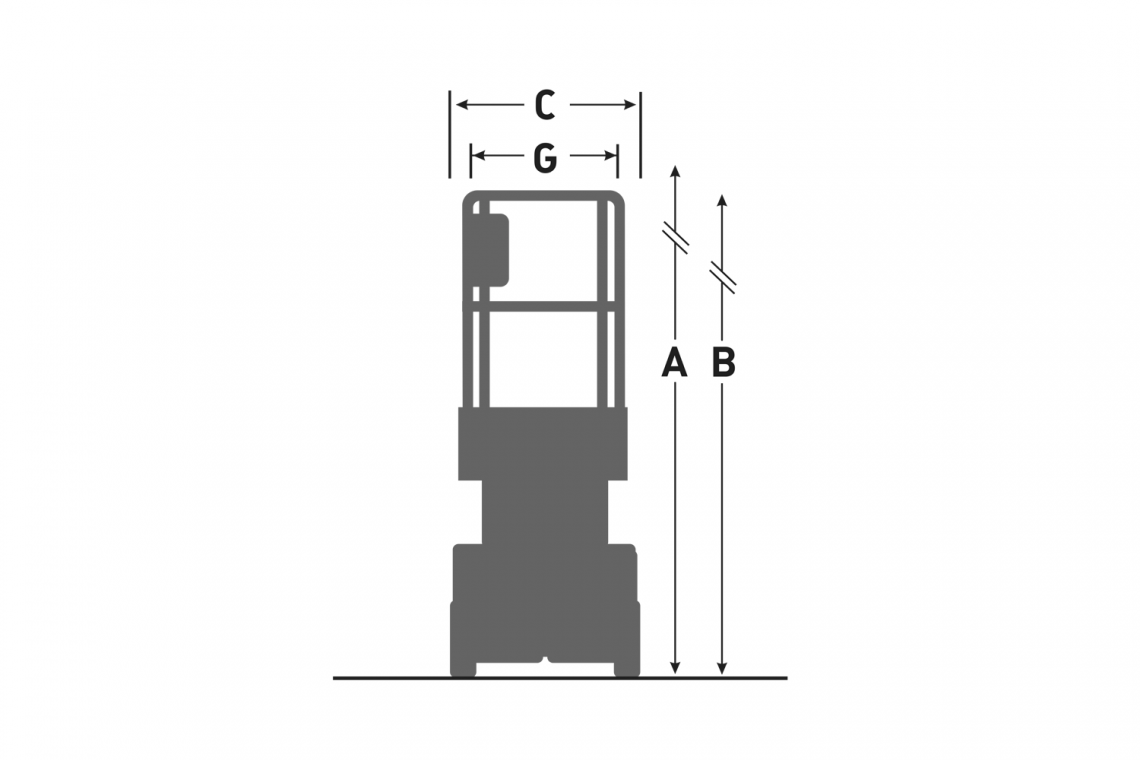

Models and Specifications
| SJ3013 micro | ||
|---|---|---|
| Work Height | 19’ (5.79 m) | |
| Raised Platform Height | 13’ (3.96 m) | |
| Overall Width | 30” (0.76 m) | |
| Overall Length | 59” (1.49 m) | |
| Stowed Height (Rails Up) | 79.5” (2.02 m) | |
| Stowed Height (Rails Down) | 63” (1.59 m) | |
| Platform Width (Inside Dimension) | 30” (0.76 m) | |
| Platform Length (Inside Dimension) | 50” (1.28 m) | |
| Extension Deck (Roll Out) | 20” (0.51 m) | |
| Ground Clearance (raised) | 2.4” (6 cm) | |
| Wheelbase | 41” (1.05 m) | |
| Weight | 1950 lbs (886 kg) | |
| Gradeability | 25% | |
| Turning Radius (Inside) | 14” (0.35 m) | |
| Lift Time (With Rated Load) | 25 sec | |
| Lower Time (With Rated Load) | 18 sec | |
| Drive Speed (Stowed) | 1.9 mph (3.0 km/h) | |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity | 500 lbs (227 kg) | |
| Distributed Capacity (Extension Deck) | 220 lbs (100 kg) | |
| Local Floor Load (With Rated Load) | 82 psi (565 kPa) | |
| Overall Floor Load (With Rated Load) | 271 psf (1322 kg/m2) | |
| Maximum # of Persons | 2 at 0 mph (0 m/s) | |
| Wind Rating | 1 at 28 mph (12.5 m/s) | |
| Tire Type | Solid rubber, N/M | |
| Tire Size | 9 x 3 |
