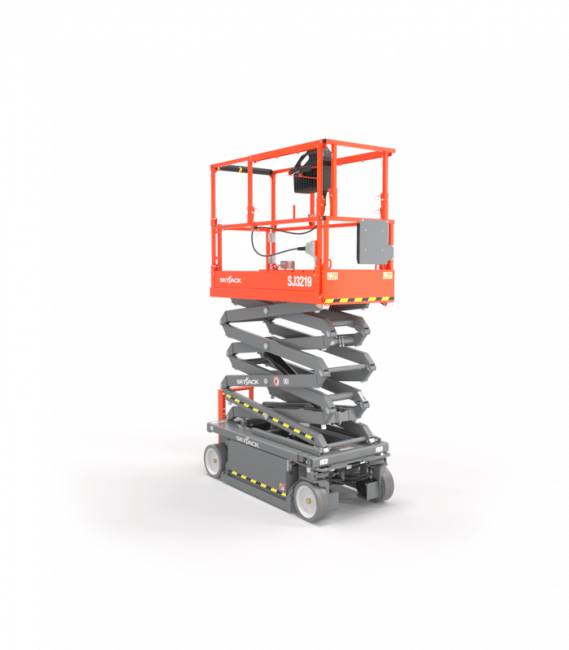

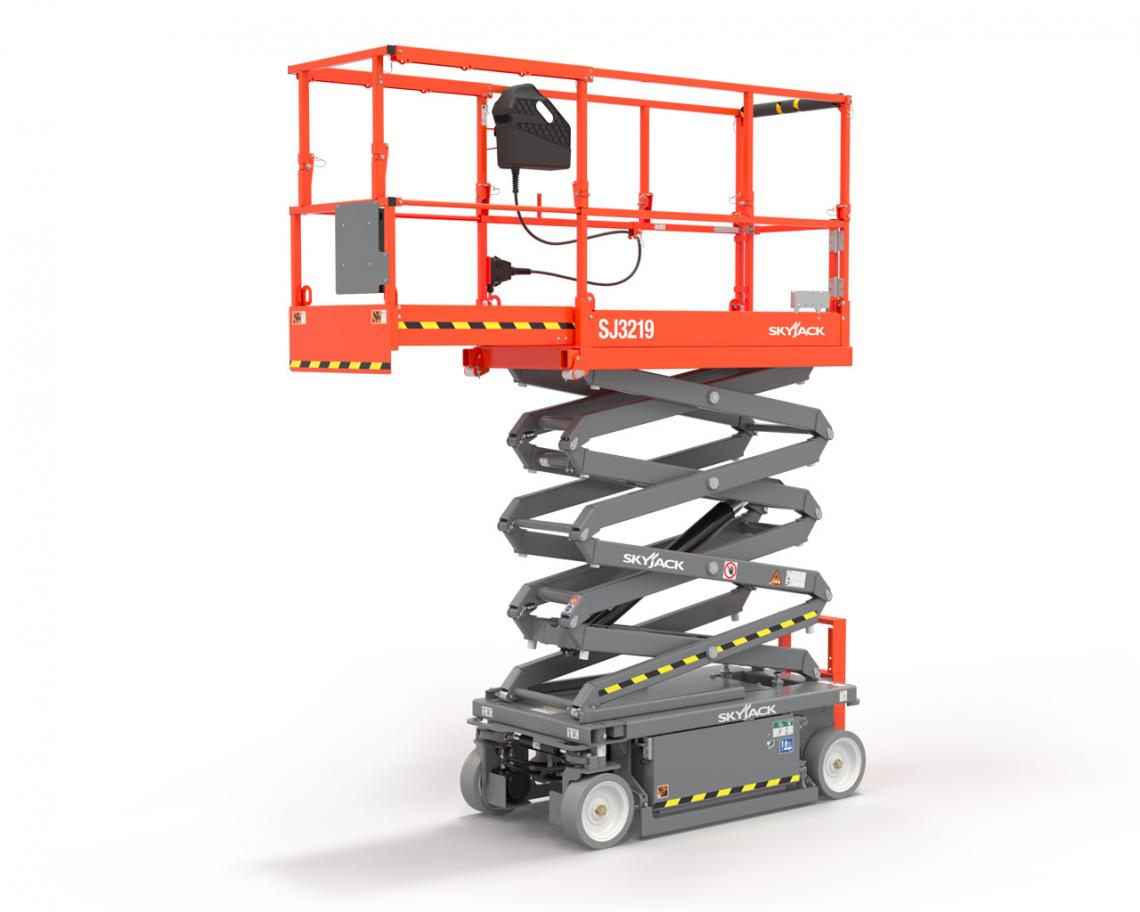

SJ3215/19
New Equipment / Aerial Lifts / SJ3215/19
SJ3215/19
Location:
Unit:
Price: Contact for price
Industry Leaders
Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.
- Tool caddy
- Non destructive testing
- Board carrier
- Battery options
- Extended warranties
- EE rating package
- Dual flashing lights
- Ac inverter
- Flashing light
- SGLE
- Elevate battery management system (BMS)
- DC light duty pipe rack
- Full height spring hinged gate
- DC heavy duty pipe rack
- Bio oil
- Elevate
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Models and Specifications
| SJ3215 | SJ3219 | |
|---|---|---|
| Work Height | 20’ 7” (6.27 m) | 24’ 6” (7.47 m) |
| Raised Platform Height | 14’ 7 (4.44 m) | 18’ 6” (5.64 m) |
| Lowered Platform Height | 36” (0.91 m) | 41” (1.04 m) |
| Overall Width | 32” (0.81 m) | 32” (0.81 m) |
| Overall Length | 71” (1.80 m) | 71” (1.80 m) |
| Stowed Height (Rails Up) | 79.5” (2.03 m) | 84” (2.13 m) |
| Stowed Height (Rails Down) | 66” (1.67 m) | 79.75” (2.02 m) |
| Platform Width (Inside Dimension) | 26” (0.66 m) | 26” (0.66 m) |
| Platform Length (Inside Dimension) | 61” (1.55 m) | 61” (1.55 m) |
| Extension Deck (Roll Out) | 3’ (0.91 m) | 3’ (0.91 m) |
| Ground Clearance (Stowed) | 3.5” (8.9 cm) | 3.5” (8.9 cm) |
| Ground Clearance (raised) | 0.50” (1.3 cm) | 0.50” (1.3 cm) |
| Wheelbase | 54” (1.37 m) | 54” (1.37 m) |
| Weight | 2,531 lbs (1,148 kg) | 3,255 lbs (1,476 kg) |
| Gradeability | 25% | 25% |
| Turning Radius (Inside) | 0 | 0 |
| Turning Radius (Outside) | 65” (1.65 m) | 65” (1.65 m) |
| Lift Time (With Rated Load) | 17 sec | 19 sec |
| Lower Time (With Rated Load) | 16 sec | 25 sec |
| Drive Speed (Stowed) | 2.1 mph (3.4 km/h) | 2.1 mph (3.4 km/h) |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) | 0.7 mph (1.1 km/h) |
| Maximum Drive Height | Full Height | Full Height |
| Capacity | 600 lbs (272 kg) | 500 lbs (227 kg) |
| Distributed Capacity (Main Platform) | 350 lbs (159 kg) | 250 lbs (113 kg) |
| Distributed Capacity (Extension Deck) | 250 lbs (113 kg) | 250 lbs (113 kg) |
| Local Floor Load (With Rated Load) | 159 psi (1,093 kPa) | 168 psi (1,159 kPa) |
| Overall Floor Load (With Rated Load) | 203 psf (991 kg/m2) | 243 psf (1,188 kg/m2) |
| Maximum # of Persons | 2 | 2 |
| Tire Type | Solid, N/M | Solid, N/M |
| Tire Size | 12 x 4 x 8 | 12 x 4 x 8 |
