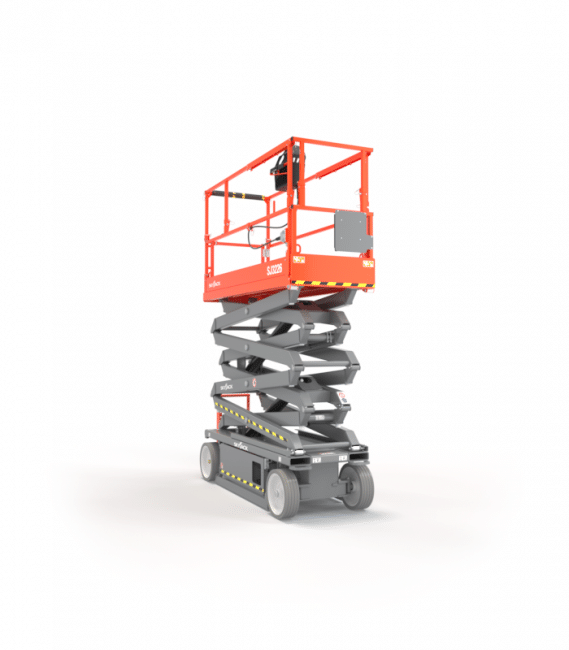

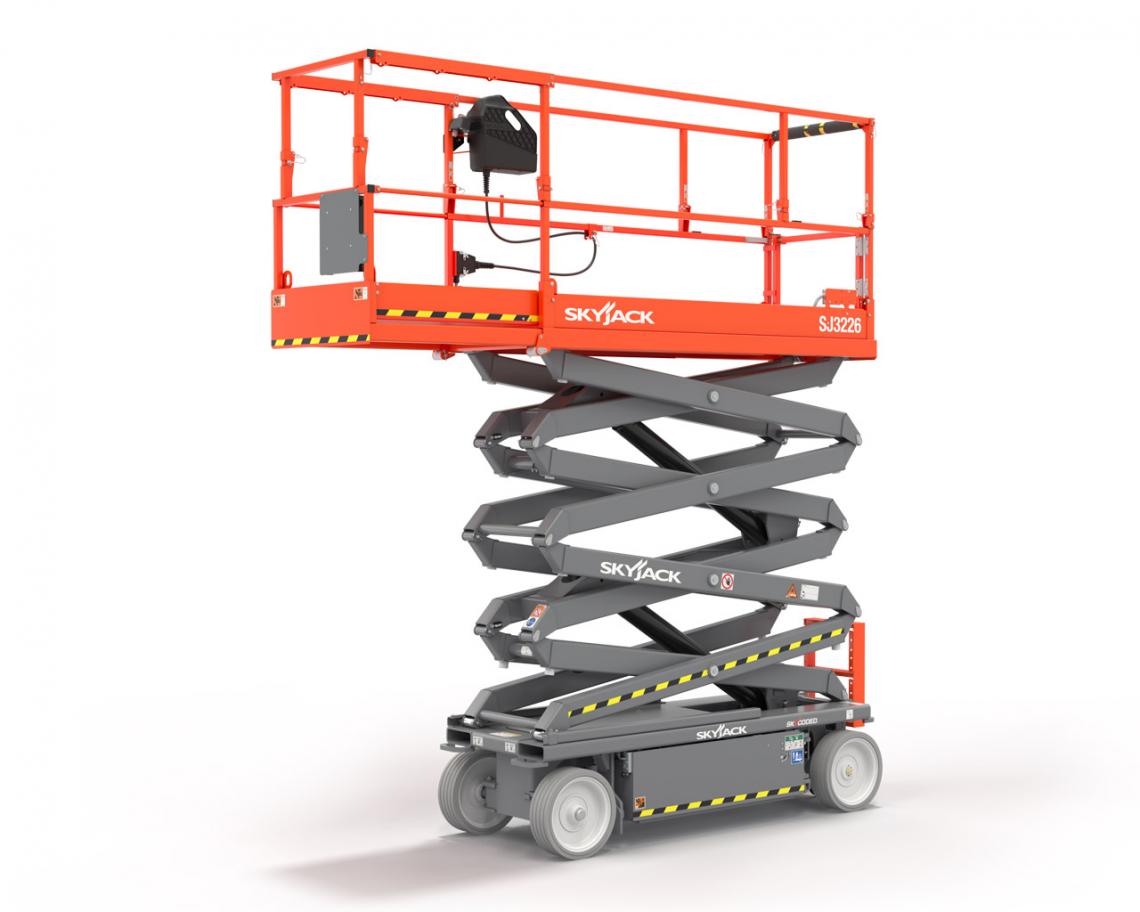

SJ3220/26
New Equipment / Aerial Lifts / SJ3220/26
SJ3220/26
Location:
Unit:
Price: Contact for price
Industry Leaders
Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.
- DC heavy duty pipe rack
- Battery options
- Tool caddy
- Board carrier
- Dual flashing lights
- SGLE
- Elevate
- EE rating package
- Extended warranties
- Bio oil
- Ac inverter
- DC light duty pipe rack
- Non destructive testing
- 6’ (1.8 m) powered extension deck
- Full height spring hinged gate
- Flashing light
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Models and Specifications
| SJ3220 | SJ3226 | |
|---|---|---|
| Work Height | 25’ 6” (7.77 m) | 31′ 7″ (9.63 m) |
| Raised Platform Height | 19’ 6” (5.95 m) | 25’ 7” (7.79 m) |
| Lowered Platform Height | 39” (0.99 m) | 46” (1.17 m) |
| Overall Width | 32” (0.81 m) | 32” (0.81 m) |
| Overall Length | 91.6” (2.32 m) | 91.6” (2.32 m) |
| Stowed Height (Rails Up) | 83” (2.10 m) | 90” (2.29 m) |
| Stowed Height (Rails Down) | 69” (1.75 m) | 76” (1.93 m) |
| Platform Width (Inside Dimension) | 28” (0.71 m) | 28” (0.71 m) |
| Platform Length (Inside Dimension) | 83” (2.11 m) | 83” (2.11 m) |
| Extension Deck (Roll Out) | 3’ (0.91 m) | 3’ (0.91 m) |
| Wheelbase | 69” (1.75 m) | 69” (1.75 m) |
| Weight | 3,917 lbs (1,776 kg) | 4,190 lbs (1,900 kg) |
| Gradeability | 25% | 25% |
| Turning Radius (Inside) | 43” (1.09 m) | 43” (1.09 m) |
| Turning Radius (Outside) | 104” (2.64 m) | 104” (2.64 m) |
| Lift Time (With Rated Load) | 28 sec | 47 sec |
| Lower Time (With Rated Load) | 24 sec | 41 sec |
| Drive Speed (Stowed) | 2.4 mph (3.9 km/h) | 2.4 mph (3.9 km/h) |
| Drive Speed (Raised) | 0.6 mph (1.0 km/h) | 0.6 mph (1.0 km/h) |
| Maximum Drive Height | Full Height | Full Height |
| Capacity | 900 lbs (408 kg) | 500 lbs (227 kg) |
| Capacity (Overall) | 600 lbs (272 kg) | |
| Distributed Capacity (Main Platform) | 250 lbs (113 kg) | |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) | 250 lbs (113 kg) |
| Local Floor Load (With Rated Load) | 109 psi (749 kPa) | 104 psi (718 kPa) |
| Overall Floor Load (With Rated Load) | 248 psf (1209 kg/ m2) | 241 psf (1177 kg/ m2) |
| Maximum # of Persons | 2 | 2 |
| Tire Type | Solid, N/M | Solid, N/M |
| Tire Size | 16 x 5 x 12 | 16 x 5 x 12 |
Overview
