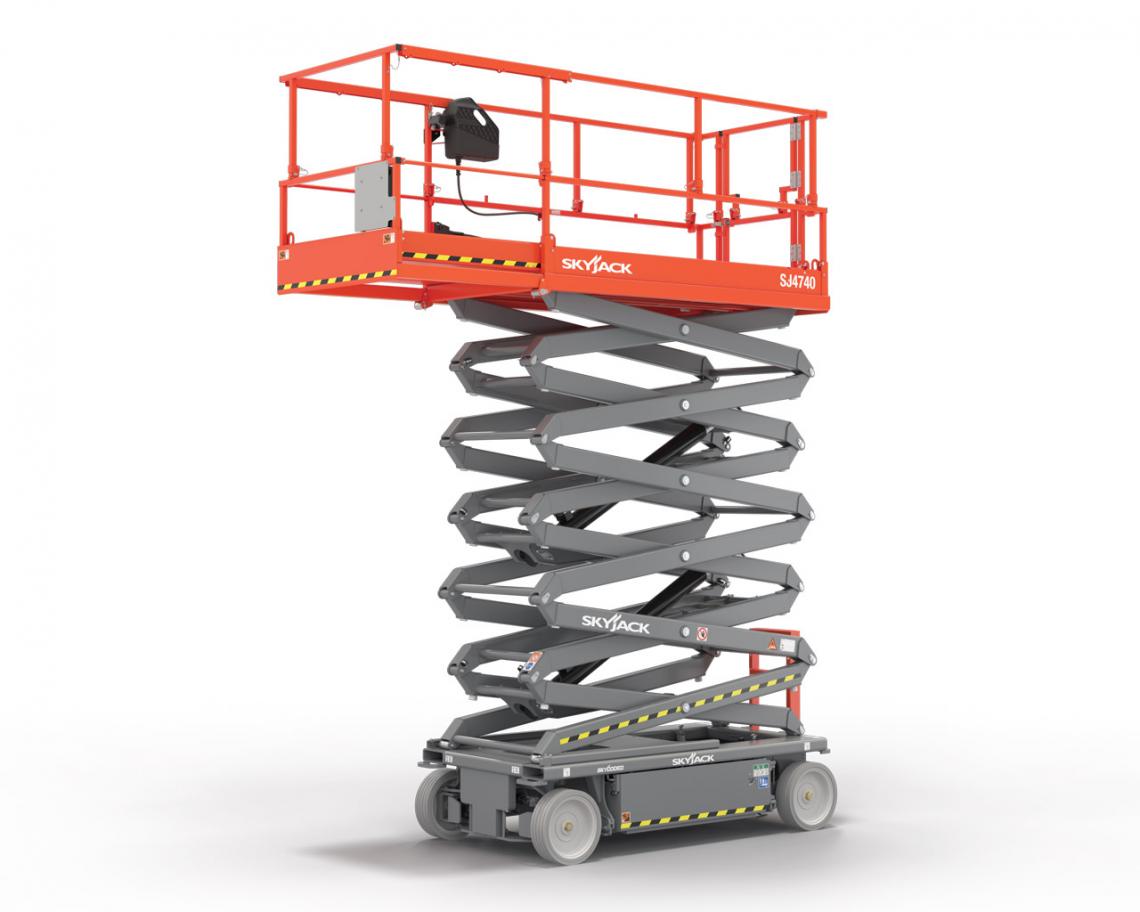

SJ4740
New Equipment / Aerial Lifts / SJ4740
SJ4740
Location:
Unit:
Price: Contact for price
Industry Leaders
Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.
- Full height spring hinged gate
- Elevate
- Battery options
- Tool caddy
- DC heavy duty pipe rack
- DC light duty pipe rack
- Bio oil
- Dual flashing lights
- Flashing light
- Extended warranties
- Ac inverter
- SGLE
- Board carrier
- Non destructive testing
| Capacity |
| Load Weight | 6,467 lbs (2,934 kg) |
| Max Lift Height | 38’ 11” (11.86 m) |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Models and Specifications
| SJ4740 | ||
|---|---|---|
| Work Height | 44’ 11” (13.69 m) | |
| Raised Platform Height | 38’ 11” (11.86 m) | |
| Lowered Platform Height | 56” (1.41 m) | |
| Overall Width | 47″ (1.19 m) | |
| Overall Length | 94.5″ (2.40 m) | |
| Stowed Height (Rails Up) | 99.5” (2.53 m) | |
| Stowed Height (Rails Down) | 79.5” (2.03 m) | |
| Platform Width (Inside Dimension) | 42″ (1.07 m) | |
| Platform Length (Inside Dimension) | 86″ (2.19 m) | |
| Extension Deck (Roll Out) | 3′ (0.91 m) | |
| Wheelbase | 73″ (1.85 m) | |
| Weight | 6,467 lbs (2,934 kg) | |
| Gradeability | 25% | |
| Turning Radius (Inside) | 17.5” (0.45 m) | |
| Turning Radius (Outside) | 99” (2.51 m) | |
| Lift Time (With Rated Load) | 68 sec | |
| Lower Time (With Rated Load) | 41 sec | |
| Drive Speed (Stowed) | 1.9 mph (3.0 km/h) | |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity | 770 lbs (349 kg) | |
| Distributed Capacity (Main Platform) | 505 lbs (229 kg) | |
| Distributed Capacity (Extension Deck) | 265 lbs (120 kg) | |
| Local Floor Load (With Rated Load) | 139 psi (956 kPa) | |
| Overall Floor Load (With Rated Load) | 233 psf (1137 kg/ m2) | |
| Maximum # of Persons | 3 | |
| Tire Type | Solid, N/M | |
| Tire Size | 16 x 5 x 12 |
