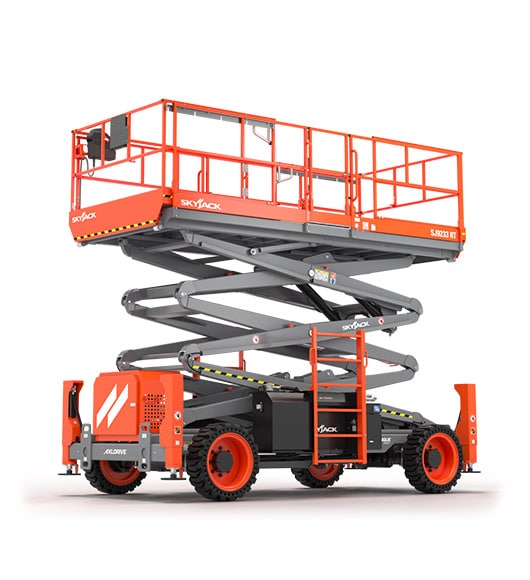

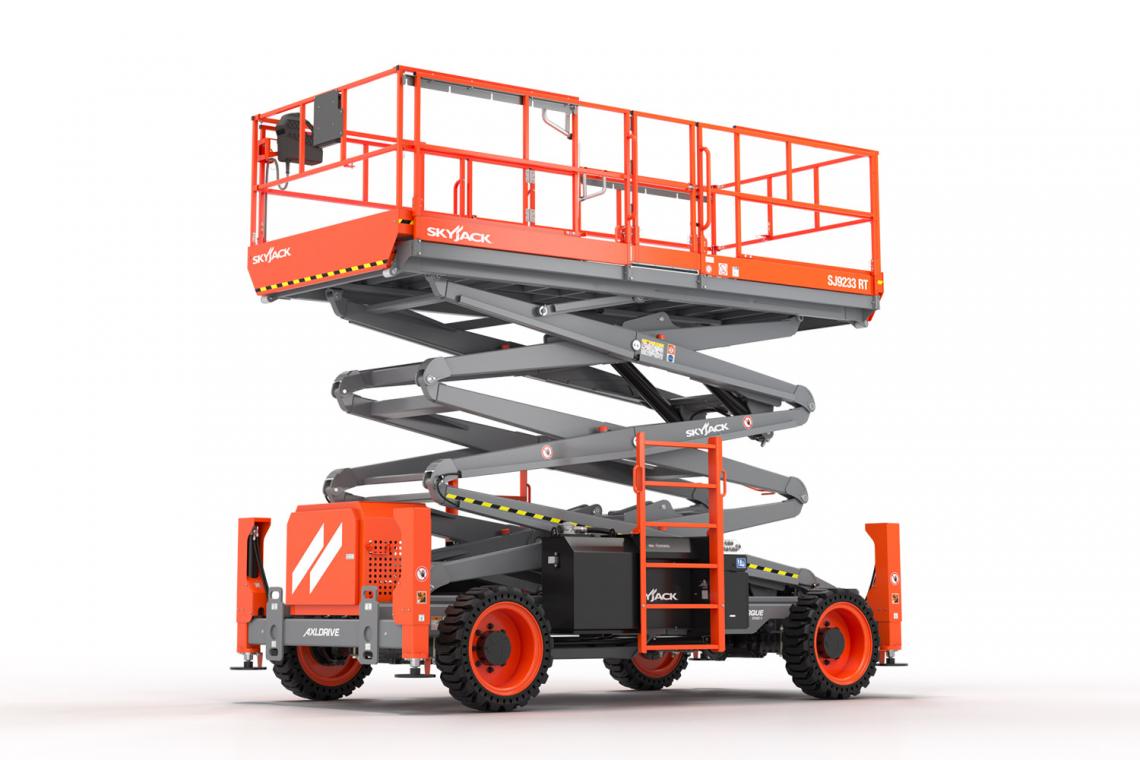

SJ9233 RT
New Equipment / Aerial Lifts / SJ9233 RT
SJ9233 RT
Location:
Unit:
Price: Contact for price
Expansive Platforms
The recently redesigned Skyjack full size rough terrain scissor lifts boast some of the largest platforms and capacities on the market. These machines also feature axle-based four-wheel drive, providing them with outstanding all terrain capabilities.
- Elevate
- Bio oil
- Dual roll out extension decks
- Material handling stand
- Extended warranties
- SGLE
- Tool caddy
- Arctic weather package
- Positive air shut-off valve
- RT heavy duty pipe rack
- Non destructive testing
- Diesel scrubber
- Cold weather package
| Capacity |
| Load Weight | 12,500 lbs (5,670 kg) |
| Max Lift Height | 33’ (10.06 m) |
| Power | Kubota 24.8 HP D1305 |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

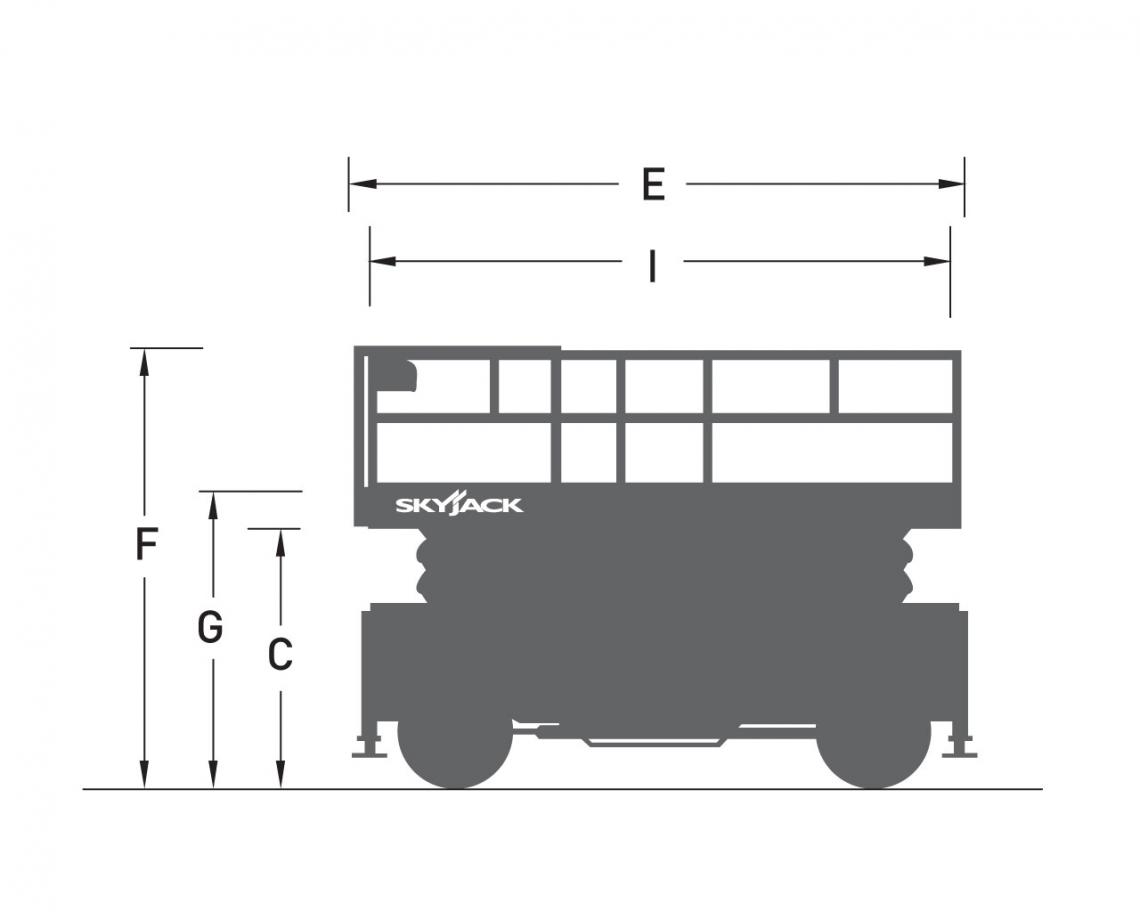

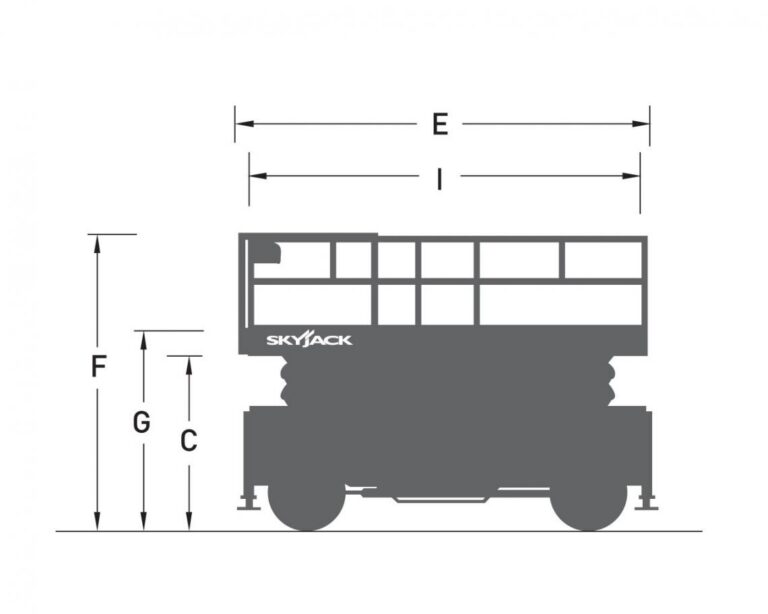

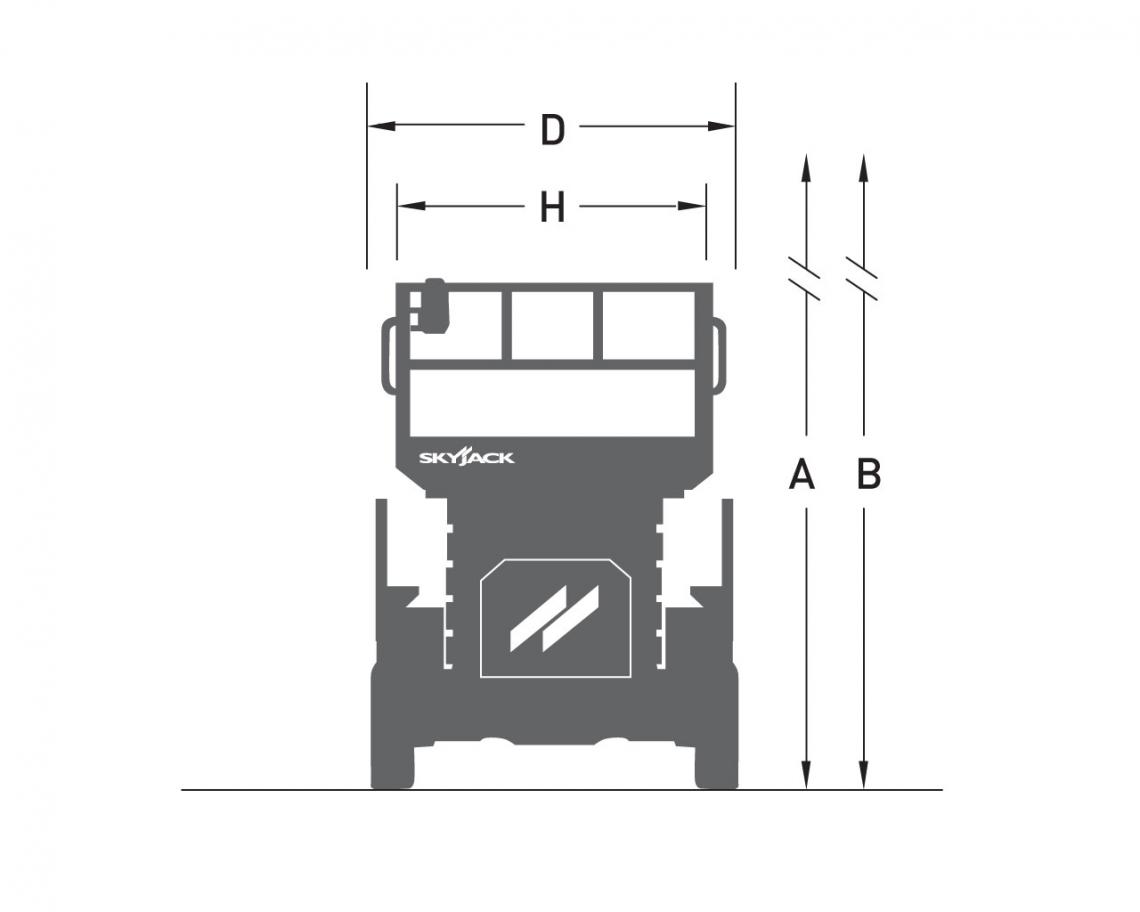

Models and Specifications
| SJ9233 RT | ||
|---|---|---|
| Work Height | 39’ (11.89 m) | |
| Raised Platform Height | 33’ (10.06 m) | |
| Lowered Platform Height | 67” (1.70 m) | |
| Overall Width | 90.6” (2.30 m) | |
| Overall Length | 177” (4.50 m) | |
| Stowed Height (Rails Up) | 110.5” (2.81 m) | |
| Stowed Height (Rails Down) | 75” (1.91 m) | |
| Platform Width (Inside Dimension) | 71.65” (1.82 m) | |
| Platform Length (Inside Dimension) | 171.7” (4.36 m) | |
| Extension Deck | 5’ (1.52 m) | |
| Ground Clearance | 10” (26 cm) | |
| Wheelbase | 119” (3.02 m) | |
| Weight | 12,500 lbs (5,670 kg) | |
| Gradeability | 40% | |
| Turning Radius (Inside) | 131” (3.33 m) | |
| Lift Time (With Rated Load) | 35 sec | |
| Lower Time (With Rated Load) | 30 sec | |
| Drive Speed (Stowed) | 3.5 mph (5.6 km/h) | |
| Drive Speed (Raised) | 0.6 mph (1 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity | 2,750 lbs (1,247 kg) | |
| Distributed Capacity (Main Platform) | 2,250 lbs (1,021 kg) | |
| Distributed Capacity (Extension Deck) | 500 lbs (227 kg) | |
| Local Floor Load (With Rated Load) | 135 psi (9.49 kg/sq cm) | |
| Overall Floor Load (With Rated Load) | 153 psf (747 kg/sq m) | |
| Maximum # of Persons | 7 | |
| Wind Rating | 28 mph (12.5 m/s) | |
| Tire Type | Solid | |
| Tire Size | 33 x 12-20 | |
| Diesel Engine | Kubota 24.8 HP D1305 | |
| Fuel Tank | 13 gal. (49 L) | |
| Hydraulic Reservoir | 23 gal. (87 L) |
