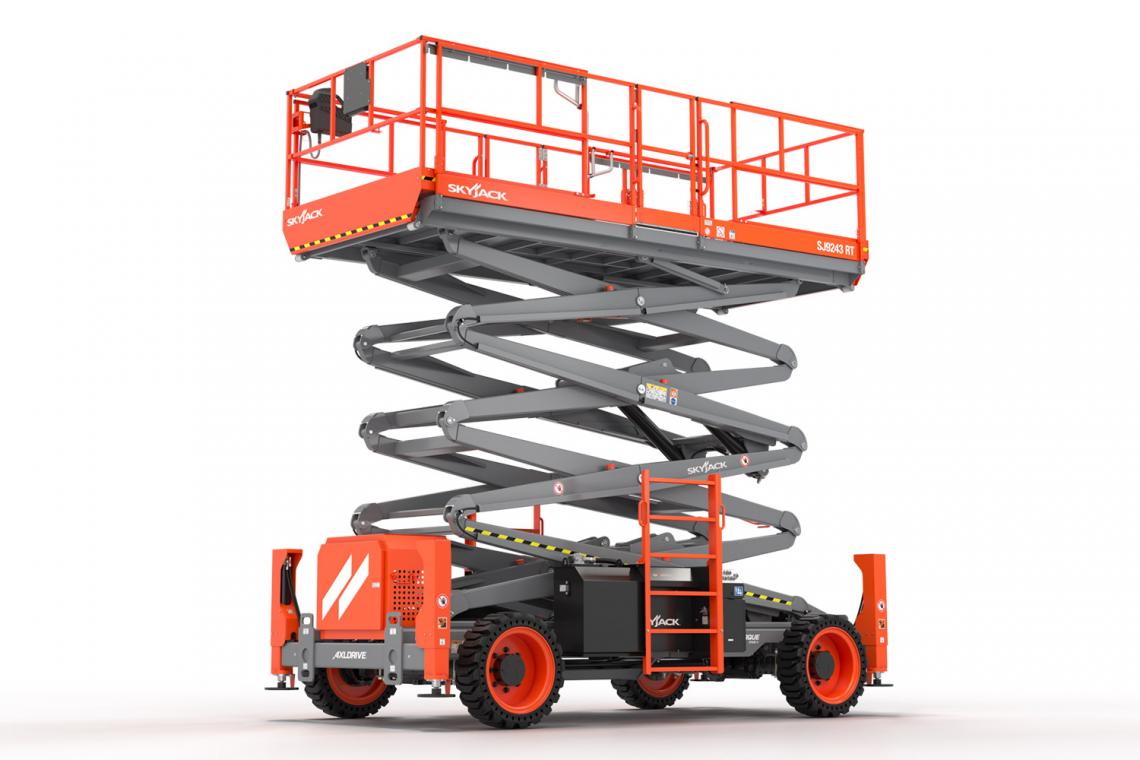

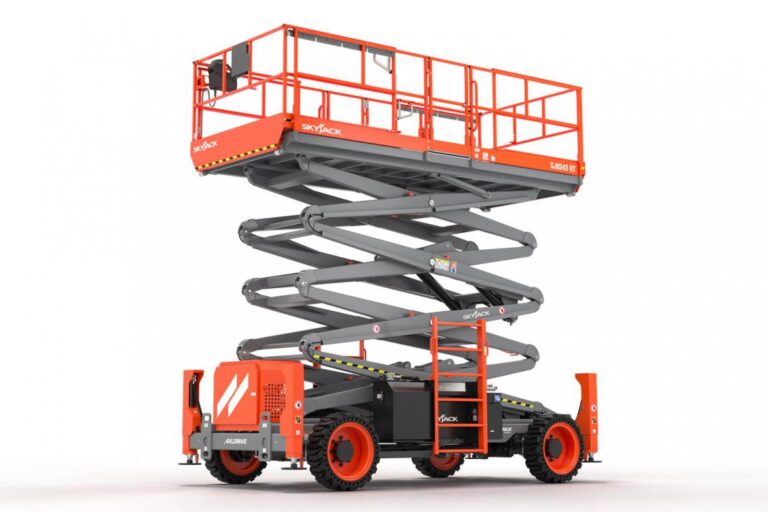

SJ9243 RT
New Equipment / Aerial Lifts / SJ9243 RT
SJ9243 RT
Location:
Unit:
Price: Contact for price
Expansive Platforms
The recently redesigned Skyjack full size rough terrain scissor lifts boast some of the largest platforms and capacities on the market. These machines also feature axle-based four-wheel drive, providing them with outstanding all terrain capabilities.
- Extended warranties
- Arctic weather package
- SGLE
- Dual roll out extension decks
- Positive air shut-off valve
- Tool caddy
- RT heavy duty pipe rack
- Cold weather package
- Non destructive testing
- Material handling stand
- Diesel scrubber
- Bio oil
- Elevate
| Capacity |
| Load Weight | 15,000 lbs (6,804 kg) |
| Max Lift Height | 43’ (13.11 m) |
| Power | Kubota 24.8 HP D1305 |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
- Extended warranties
- Arctic weather package
- SGLE
- Dual roll out extension decks
- Positive air shut-off valve
- Tool caddy
- RT heavy duty pipe rack
- Cold weather package
- Non destructive testing
- Material handling stand
- Diesel scrubber
- Bio oil
- Elevate

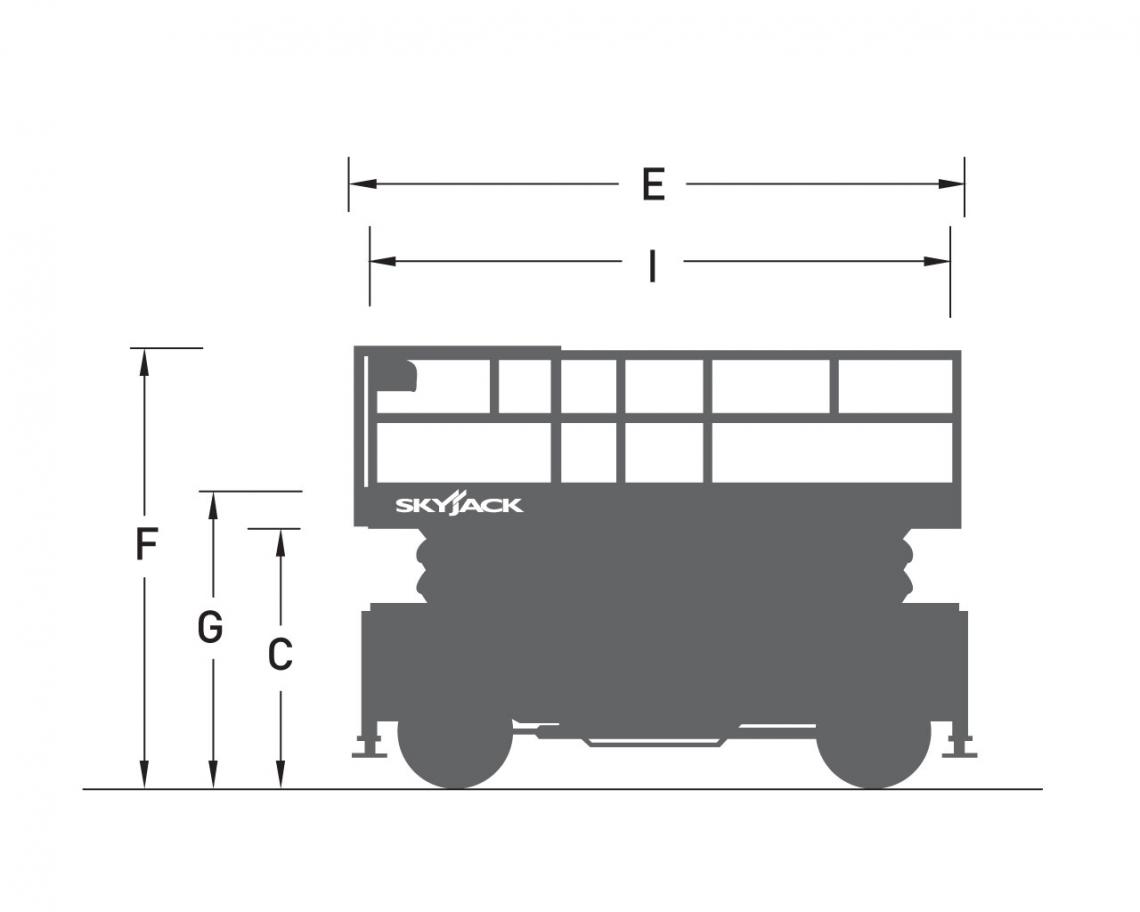

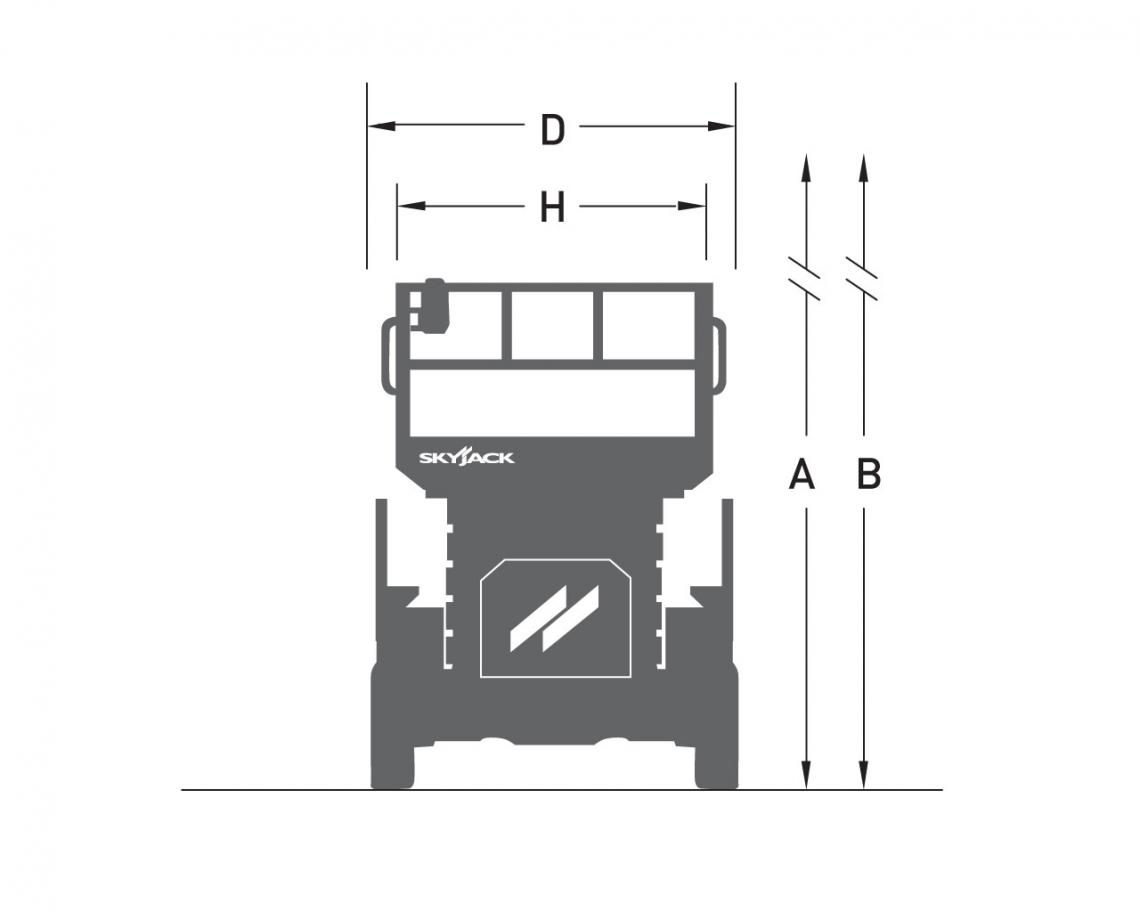

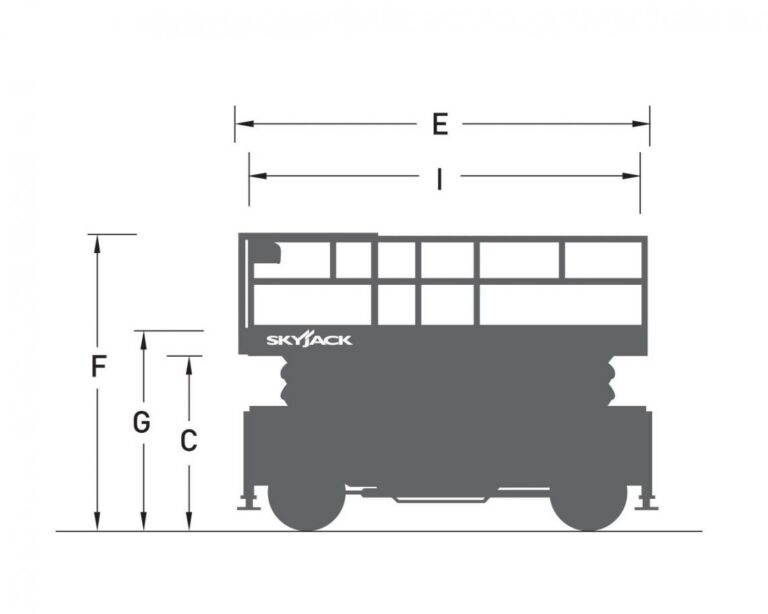

Models and Specifications
| SJ9243 RT | ||
|---|---|---|
| Work Height | 49’ (14.94 m) | |
| Raised Platform Height | 43’ (13.11 m) | |
| Lowered Platform Height | 75.5” (1.92 m) | |
| Overall Width | 90.6” (2.30 m) | |
| Overall Length | 177” (4.50 m) | |
| Stowed Height (Rails Up) | 119” (3.02 m) | |
| Stowed Height (Rails Down) | 84” (2.13 m) | |
| Platform Width (Inside Dimension) | 71.65” (1.82 m) | |
| Platform Length (Inside Dimension) | 171.7” (4.36 m) | |
| Extension Deck | 5’ (1.52 m) | |
| Ground Clearance | 10” (26 cm) | |
| Wheelbase | 119” (3.02 m) | |
| Weight | 15,000 lbs (6,804 kg) | |
| Gradeability | 40% | |
| Turning Radius (Inside) | 131” (3.33 m) | |
| Lift Time (With Rated Load) | 45 sec | |
| Lower Time (With Rated Load) | 40 sec | |
| Drive Speed (Stowed) | 3.5 mph (5.6 km/h) | |
| Drive Speed (Raised) | 0.6 mph (1 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity | 2,000 lbs (907 kg) | |
| Distributed Capacity (Main Platform) | 1,500 lbs (680 kg) | |
| Distributed Capacity (Extension Deck) | 500 lbs (227 kg) | |
| Maximum # of Persons | 6 | |
| Wind Rating | 28 mph (12.5 m/s) | |
| Tire Type | Solid | |
| Tire Size | 33 x 12-20 | |
| Diesel Engine | Kubota 24.8 HP D1305 | |
| Fuel Tank | 13 gal. (49 L) | |
| Hydraulic Reservoir | 23 gal. (87 L) |
