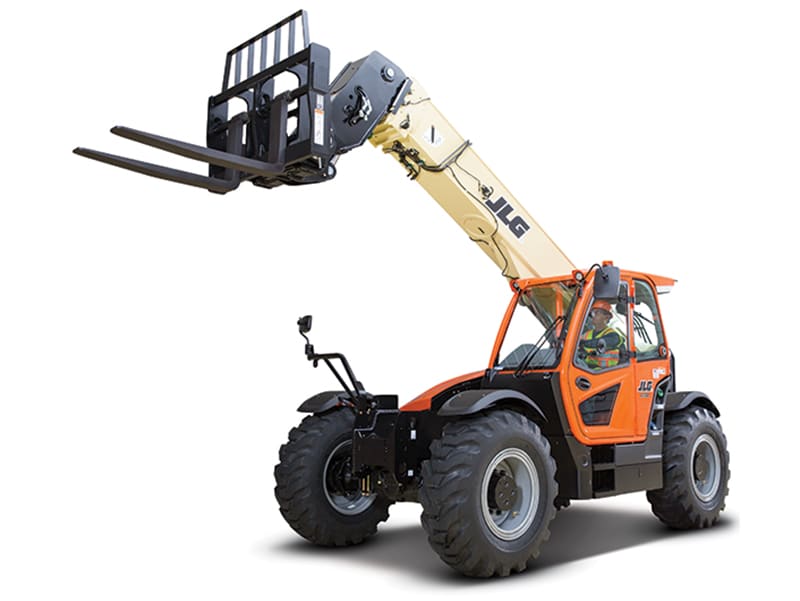

1732 High Capacity Model
New Equipment / Aerial Lifts / 1732 High Capacity Model
1732 High Capacity Model
Location:
Unit:
Price: Contact for price
Key Specs
- Maximum Lift Capacity: 16755 lb / 7599.94 kg
- Maximum Lift Height: 31 ft 8 in. / 9.65 m
- Maximum Reach: 18 ft 7 in. / 5.66 m
Key Features
- Operator Comfort – Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control.
- Operator Confidence – Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera.
- Versatility – Integrated tow hitch and a wide range of attachments for more options on the job site.
- SmartLoad Technology – Automatic attachment recognition and real-time load monitoring for enhanced productivity.
| Capacity | 16755lbs |
| Load Weight |
| Max Lift Height | 31 ft 8 in. / 9.65 m |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission | Hydrostatic |
| Phases |
| Engine Manufacturer | Deutz |
|---|---|
| Speed – Maximum Travel | 20 mph / 32.19 km/h |
| Speed – Maximum Lower | 10.9 sec. |
| Machine Height | 8 ft 9 in. / 2.67 m |
| Operating Vehicle Weight | 31145 lb / 14127.13 kg |
| Speed – Maximum Lift | 14.1 sec. |
| Speed – Maximum Telescope Out | 13.2 sec. |
| Ground Clearance | 1 ft 7 in. / 0.48 m |
| Engine Horsepower | 134 hp / 99.96 kW |
| Maximum Reach | 18 ft 7 in. / 5.66 m |
| Load Center | 2 ft / 0.61 m |
| Service Brake Type | Wet Multi-Disc |
| Lift Capacity at Full Height | 9900 lb / 4490.56 kg |
| Lift Capacity at Max Reach | 5500 lb / 2494.76 kg |
| Engine Model | TCD3.6L Tier 4 Final |
| Axle-Rear | Oscillating |
| Function Pump Type | Load Sensing Piston |
| Axle-Front | High Bias, Limited Slip |
| Capacity – Fuel Tank | 39 gal. / 147.63 L |
| Outside Turning Radius | 13 ft 2 in. / 4.01 m |
| Frame Leveling | 8 Degrees |
| Outriggers or Stabilizers | No |
| Maximum Engine RPM | 2200 rpm |
| Machine Width | 8 ft 1 in. / 2.46 m |
| Machine Length | 19 ft 5 in. / 5.92 m |
| Tire Size | 17.5-25 SGG |
| Wheelbase | 10 ft 7 in. / 3.23 m |
| Drawbar Pull | 23000 lb / 10432.62 kg |
