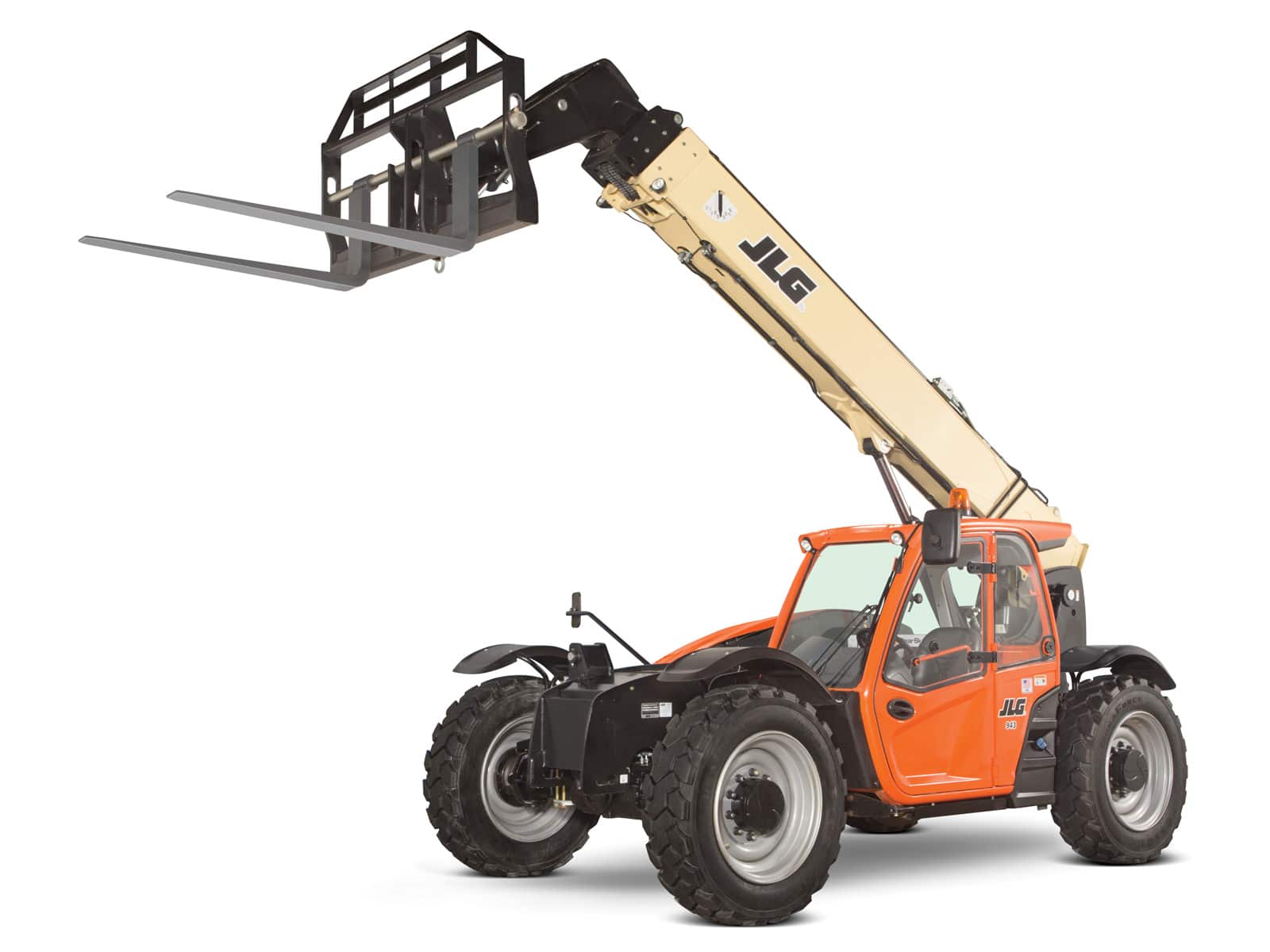

943
New Equipment / Aerial Lifts / 943
943
Location:
Unit:
Price: Contact for price
Key Specs
- Maximum Lift Capacity: 9000 lb / 4082.33 kg
- Maximum Lift Height: 43 ft / 13.11 m
- Maximum Reach: 30 ft 5 in. / 9.27 m
Key Features

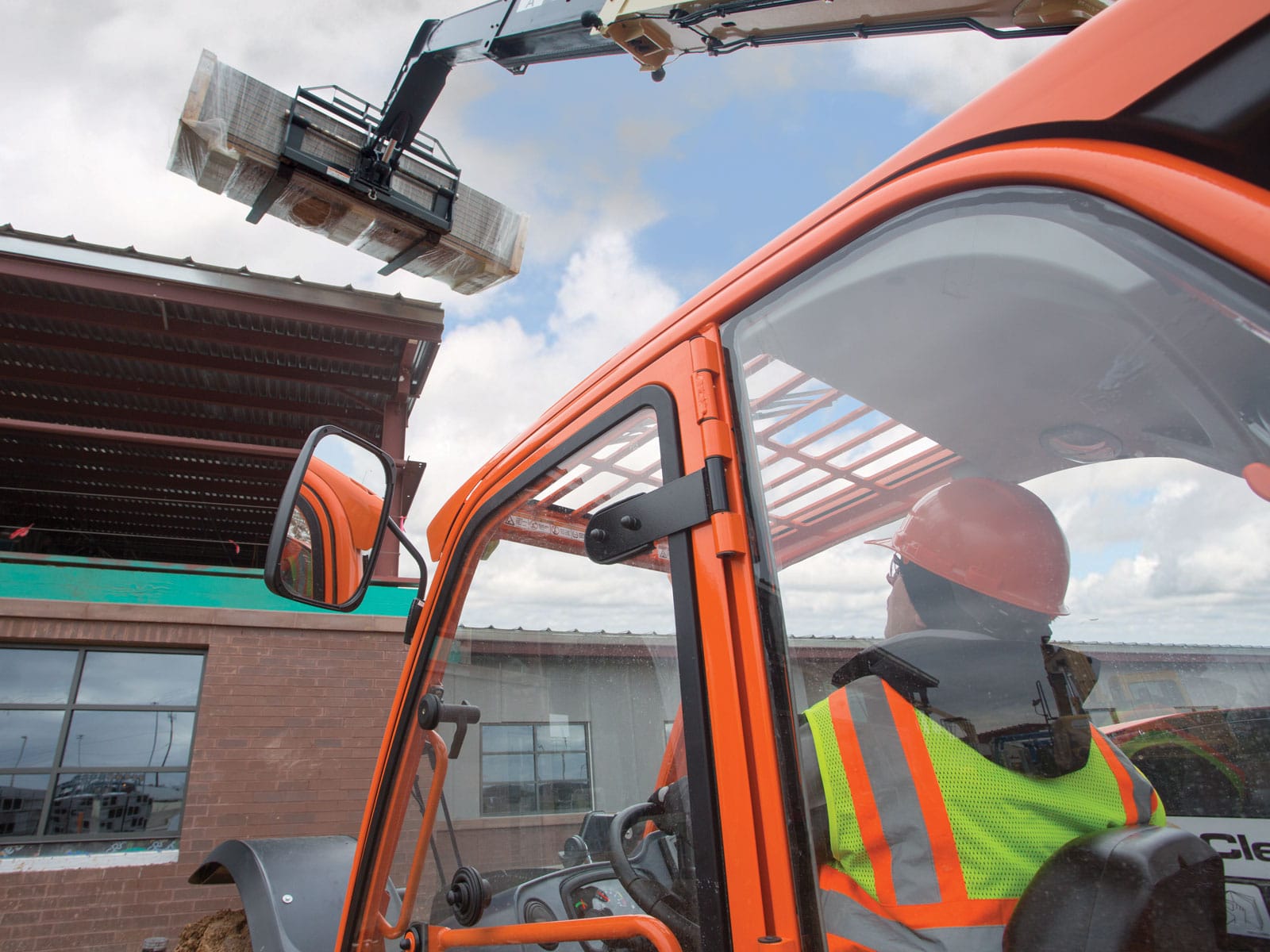

- Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
- Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
- Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
- Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Increased versatility—wide range of attachment options
| Capacity | 9000lbs |
| Load Weight |
| Max Lift Height | 43 ft / 13.11 m |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission | Powershift |
| Phases |
| Drawbar Pull | 22751 lb / 10319.68 kg |
|---|---|
| Machine Width | 8 ft 1 in. / 2.46 m |
| Lift Capacity at Full Height | 7000 lb / 3175.15 kg |
| Speed – Maximum Telescope Out | 15 sec. |
| Maximum Engine RPM | 1500 rpm |
| Engine Model | QSF3.8L Tier 4 Final |
| Transmission – Nr Forward Gears Standard | 4 |
| Frame Leveling | 10 Degrees |
| Speed – Maximum Travel | 19 mph / 30.58 km/h |
| Speed – Maximum Lower | 9 sec. |
| Axle-Rear | Planetary |
| Engine Horsepower | 110 hp / 82.06 kW |
| Outriggers or Stabilizers | No |
| Transmission – Nr Reverse Gears | 3 |
| Capacity – Fuel Tank | 38.3 gal. / 144.98 L |
| Machine Length | 19 ft 9 in. / 6.02 m |
| Tire Size | 370/75-28 |
| Load Center | 2 ft / 0.61 m |
| Speed – Maximum Telescope In | 13 sec. |
| Axle-Front | High Bias, Limited Slip |
| Lift Capacity at Max Reach | 1200 lb / 544.31 kg |
| Outside Turning Radius | 12 ft / 3.66 m |
| Engine Manufacturer | Cummins |
| Service Brake Type | Wet Multi-Disc |
| Operating Vehicle Weight | 24912 lb / 11299.89 kg |
| Wheelbase | 11 ft 3 in. / 3.43 m |
| Machine Height | 8 ft 2 in. / 2.49 m |
| Ground Clearance | 1 ft 5 in. / 0.43 m |
| Function Pump Type | Load Sensing Piston |
| Maximum Reach | 30 ft 5 in. / 9.27 m |
