G5-18A
New Equipment / Aerial Lifts / G5-18A
G5-18A
Location:
Unit:
Price: Contact for price
Key Specs
- Maximum Lift Capacity: 5511.6 lb / 2500 kg
- Maximum Lift Height: 18.4 ft / 5.60 m
- Maximum Reach: 10.8 ft / 3.30 m
Key Features

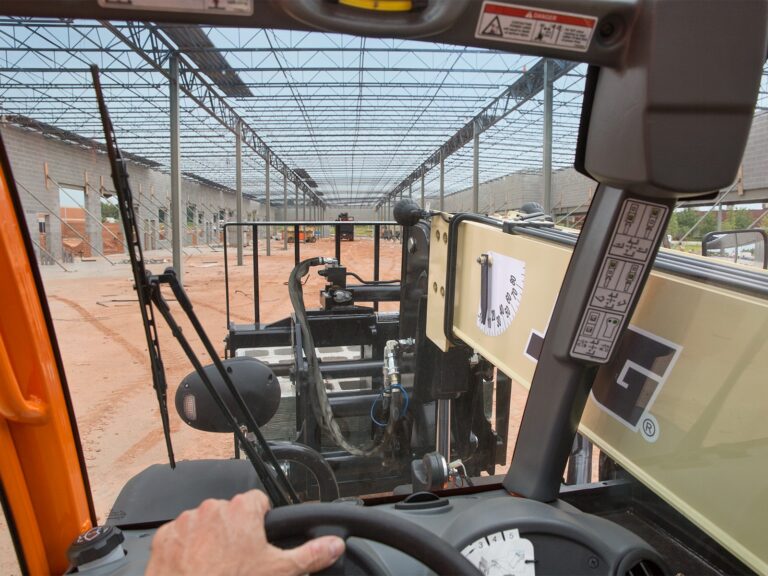

- Comfortable cab to reduce operator fatigue
- Tight turning radius to maneuver through crowded jobsites
- Fuel-efficient Tier 4 final Deutz engine
- Variety of attachments for versatility in handling jobsite challenges
- Universal skid steer adapter compatible with existing skid steer attachments
- Tight turning radius to maneuver through crowded jobsites
- Universal skid steer adapter compatible with existing skid steer attachments
- Variety of attachments for versatility in handling jobsite challenges
- Fuel-efficient Tier 4 final Deutz engine
- Comfortable cab to reduce operator fatigue
| Capacity | 5511.6lbs |
| Load Weight |
| Max Lift Height | 18.4 ft / 5.60 m |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission | Hydrostatic |
| Phases |
| Operating Vehicle Weight | 11001.1 lb / 4990 kg |
|---|---|
| Towing Capacity | 6613.9 lb / 3000 kg |
| Engine Horsepower | 74.3 hp / 55.40 kW |
| Drawbar Pull | 8902.4 lbf / 39.60 kN |
| Speed – Maximum Telescope In | 3.8 sec. |
| Speed – Maximum Lift | 6.8 sec. |
| Hydraulic System Pressure | 3495.4 psi / 241 bar |
| Capacity – Engine Oil | 2.4 gal. / 9.10 L |
| Wheelbase | 7 ft 6 in. / 2.29 m |
| Maximum Engine RPM | 2300 rpm |
| Tire Size | 12 X 16.5 12PR |
| Breakout Force | 8093.1 lbf / 36 kN |
| Lift Capacity at Max Reach | 1763.7 lb / 800 kg |
| Lift Capacity at Full Height | 4409.2 lb / 2000 kg |
| Speed – Maximum Lower | 4.6 sec. |
| Frame Leveling | 0 Degrees |
| Engine Model | TD 2.9 L4 |
| Machine Width | 6 ft / 1.83 m |
| Outside Turning Radius | 10 ft 6 in. / 3.2 m |
| Axle-Rear | Oscillating |
| Capacity – Coolant | 3.5 gal. / 13.20 L |
| Load Center | 1 ft 8 in. / 0.5 m |
| Speed – Maximum Travel | 14.9 mph / 24 km/h |
| Capacity – Fuel Tank | 24 gal. / 91 L |
| Machine Height | 6 ft 4 in. / 1.92 m |
| Cab Width | 2 ft 10 in. / 0.87 m |
| Ground Clearance | 1 ft / 0.31 m |
| Speed – Maximum Crowd | 2.5 sec. |
| Engine Manufacturer | Deutz |
| Hydraulic System Flow | 19.1 gal/min. / 72.30 L/Min |
| Service Brake Type | Wet Multi-Disc |
| Outriggers or Stabilizers | No |
| Capacity – Hydraulic Reservoir | 16.1 gal. / 61 L |
| Axle-Front | High Bias, Limited Slip |
| Track Width | 4 ft 11 in. / 1.51 m |
| Function Pump Type | Gear |
| Speed – Maximum Dump | 2 sec. |
| Maximum Reach | 10.8 ft / 3.30 m |
| Machine Length | 12 ft / 3.66 m |
| Speed – Maximum Telescope Out | 6.7 sec. |
| Machine Length (Forks) | 12 ft 6 in. / 3.82 m |
- Tight turning radius to maneuver through crowded jobsites
- Universal skid steer adapter compatible with existing skid steer attachments
- Variety of attachments for versatility in handling jobsite challenges
- Fuel-efficient Tier 4 final Deutz engine
- Comfortable cab to reduce operator fatigue
