GTH-1056
New Equipment / Aerial Lifts / GTH-1056
GTH-1056
Location:
Unit:
Price: Contact for price

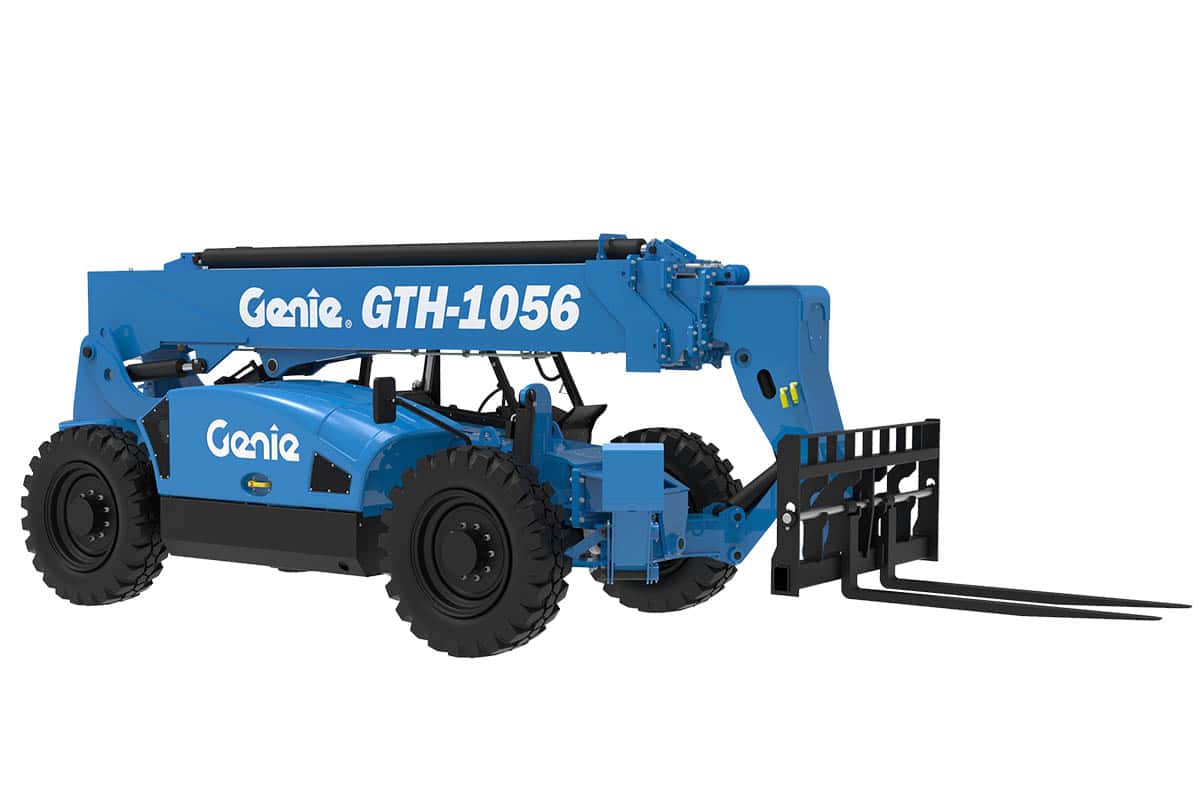

The new Genie® GTH™-1056 telehandler. Extensively field tested to validate performance, the GTH-1056 has been purposefully designed to lower total cost of ownership by 10% while delivering 20% more lift capacity at max height in a machine with a 30% stronger design. The GTH-1056 builds on popular features found on the proven GTH-636 and GTH-846 models, including a side-mounted engine and stronger boom design, to deliver a rugged, reliable telescopic handler with a 10,000 lb (4,536 kg) capacity.
Overview
- 74 HP, DEF-free engine option offering a low-maintenance solution

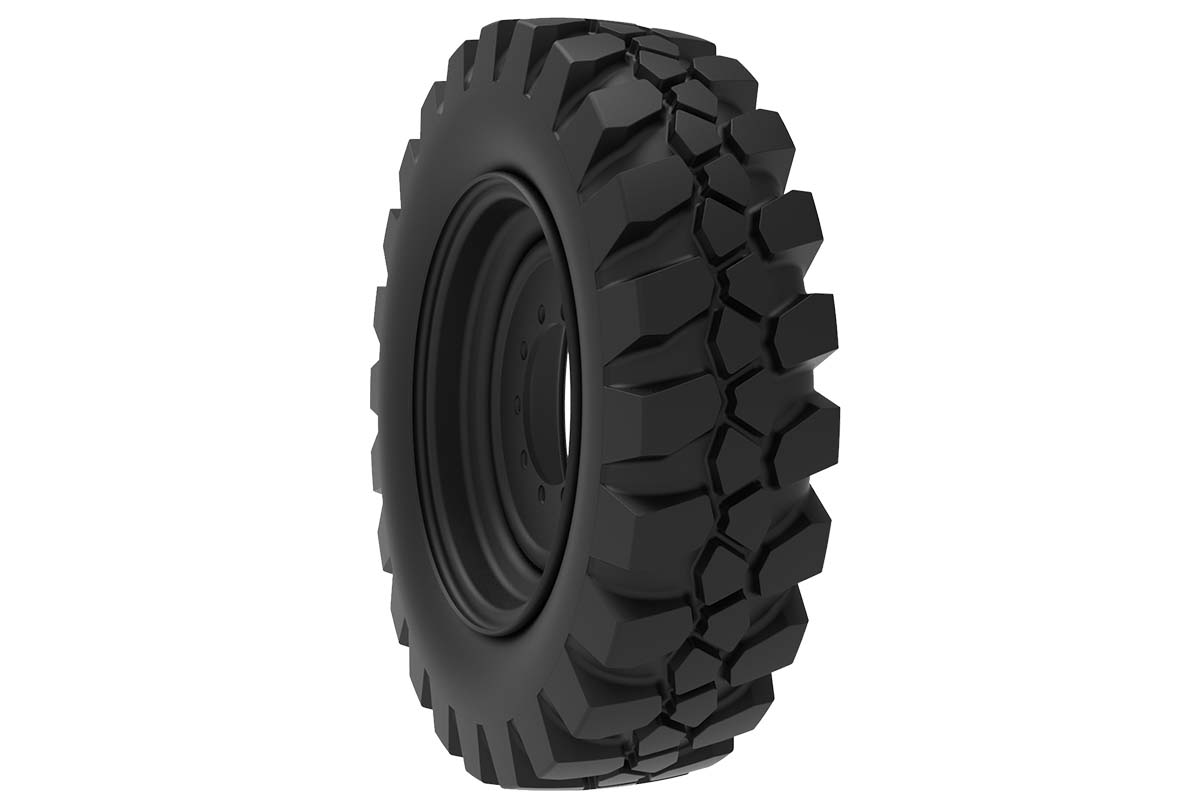

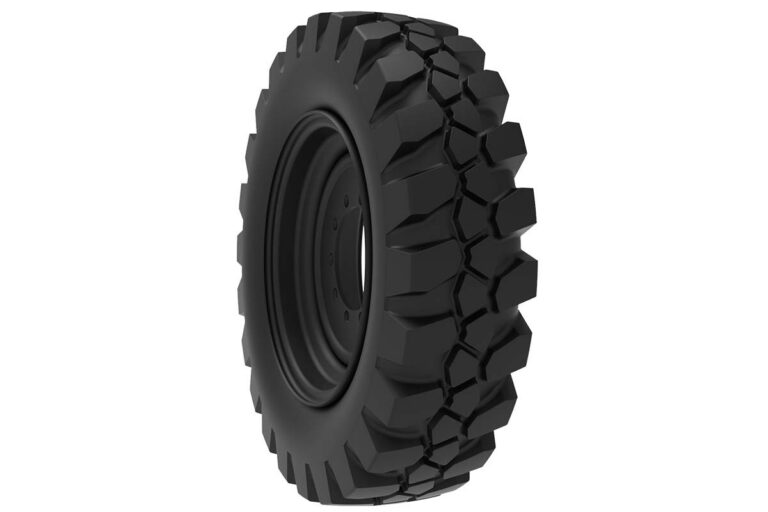

- New long-life Enduro A/T tires, a hybrid, all-terrain tread design exclusive to Genie

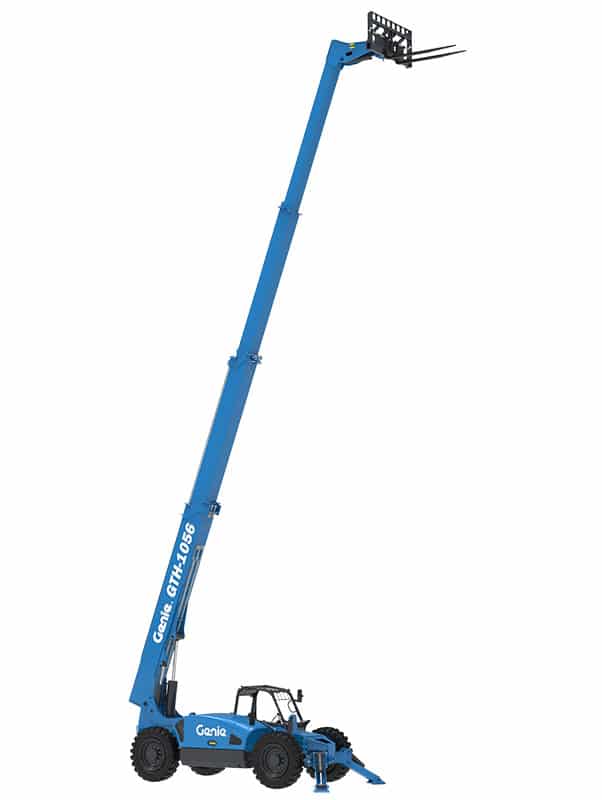

- Able to lift 5,000 lbs. (2,268 kg) at maximum height of 56 ft. 7 in. (17.25 m), and 3,000 lbs.
| Capacity | 10000lbs |
| Load Weight |
| Max Lift Height | 56 ft 10 in | 17.32 m |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Max Forward Reach | 42 ft | 12.80 m |
|---|---|
| Capacity at Max Reach | 3,000 lbs | 1,361 kg |
| Capacity at Max Height | 4,000 lb | 1,814 kg |
Options
Cab Configuration
- Front and top glass
- Fully enclosed cab: full glass, heater, defroster, wipers, washer and split door
- Fully enclosed cab with air conditioner: full glass, heater, defroster, wipers, washer and split door
Tire Options
- Foam-filled rough terrain tires
- Solid rough terrain tires
Carriage/Attachment Options
- 48 in. manual Quick-Attach™ carriage
- 60 in. QA carriage
- 72 in. QA carriage
- 48 in. QA side tilt (rotating) carriage
- 60 in. QA side tilt (rotating) carriage
- 72 in. QA swing carriage (45 deg L/R)
- 14 ft.QA Variable reach truss boom
Fork Options
- 48 in. pallet forks (2 x 4 x 48 in.)
- Set of two 60 in. pallet forks, 2 x 4 x 60 in.
- Set of two 72 in. pallet forks, 2 x 4 x 72 in.
- Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
- Set of six 48 in. cubing tines, 2 x 2 x 48 in.
Accessories
- Electric block heater
- Dual joystick control
- Fire extinguisher
- Flashing beacon
- Right side steel mesh screen for open canopy
- Work lights: High output LED cab, boom, rear
- Road and Work lights: Work lights and front turn/headlights, rear stop/turn/tail
- Rear proximity alarm
- Rear proximity alarm ready
Models and Specifications
Overview
Options
Cab Configuration
- Front and top glass
- Fully enclosed cab: full glass, heater, defroster, wipers, washer and split door
- Fully enclosed cab with air conditioner: full glass, heater, defroster, wipers, washer and split door
Tire Options
- Foam-filled rough terrain tires
- Solid rough terrain tires
Carriage/Attachment Options
- 48 in. manual Quick-Attach™ carriage
- 60 in. QA carriage
- 72 in. QA carriage
- 48 in. QA side tilt (rotating) carriage
- 60 in. QA side tilt (rotating) carriage
- 72 in. QA swing carriage (45 deg L/R)
- 14 ft.QA Variable reach truss boom
Fork Options
- 48 in. pallet forks (2 x 4 x 48 in.)
- Set of two 60 in. pallet forks, 2 x 4 x 60 in.
- Set of two 72 in. pallet forks, 2 x 4 x 72 in.
- Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
- Set of six 48 in. cubing tines, 2 x 2 x 48 in.
Accessories
- Electric block heater
- Dual joystick control
- Fire extinguisher
- Flashing beacon
- Right side steel mesh screen for open canopy
- Work lights: High output LED cab, boom, rear
- Road and Work lights: Work lights and front turn/headlights, rear stop/turn/tail
- Rear proximity alarm
- Rear proximity alarm ready
