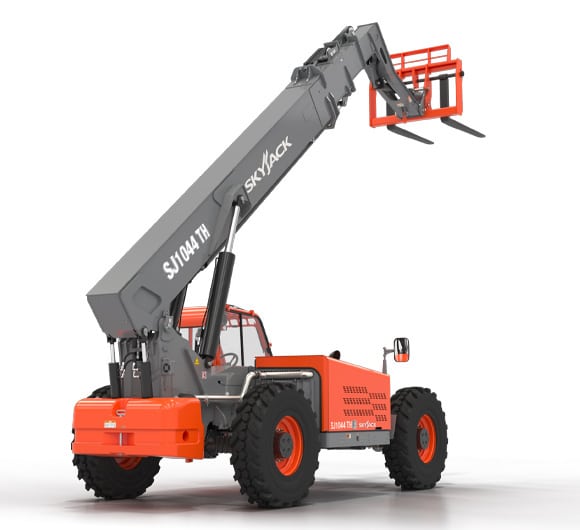

SJ1044 TH
New Equipment / Aerial Lifts / SJ1044 TH
SJ1044 TH
Location:
Unit:
Price: Contact for price
Easily Serviceable

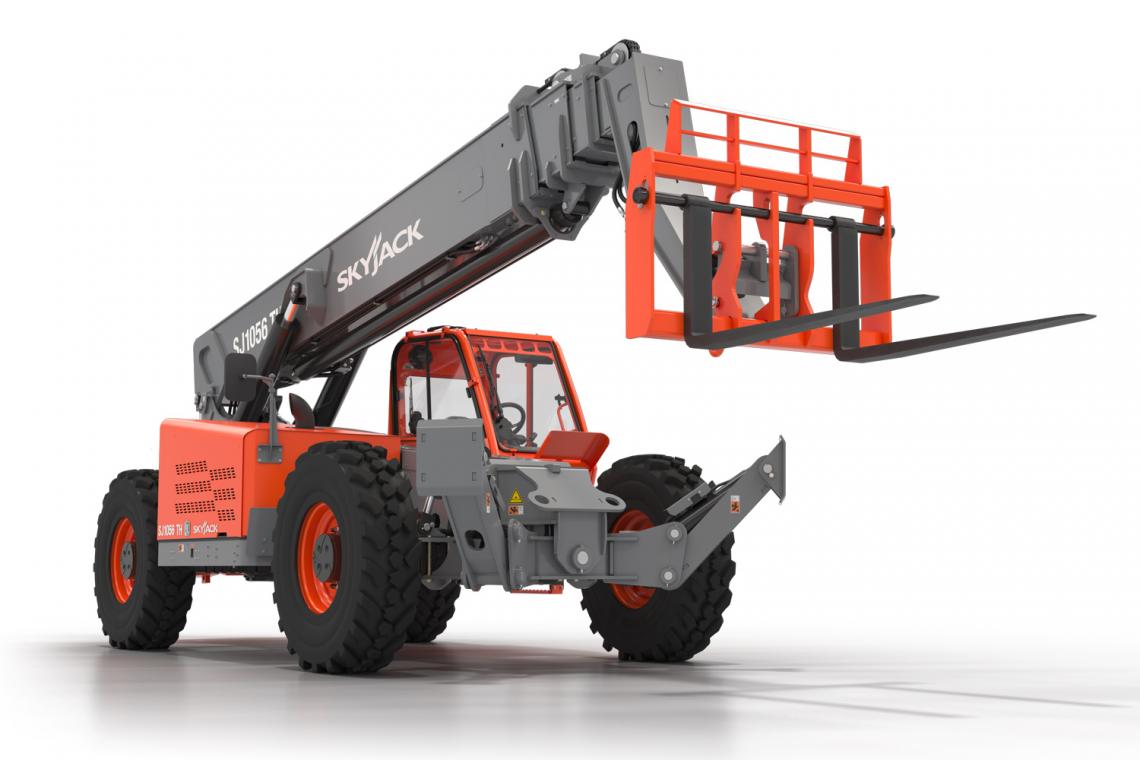

Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s TH series offer the rental industry’s best life cycle value.
- Cold weather package
- Road light package
- Extended warranties
- Rotating beacon
- Attachments
- Closed cab
- Non destructive testing
- Air conditioning (closed cab only)
- Boom light package
- Work light package
- Backup sensor
- Pintle hitch (in lieu of standard hitch pin)
- Reserve break system
- Four wheel fenders
- Positive air shut-off valve
- Premium joystick
- Service convenience package
- Backup sensor and camera
- Fork options
- Carriage options
- Elevate
- 107HP / 320 LB-FT Deutz TCD 3.6L T4F (includes DEF/SCR system)
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Overall Specifications
| SJ1044 TH | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.3 cm) | |
| Turning Radius (Outside) | 147” (3.73 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |

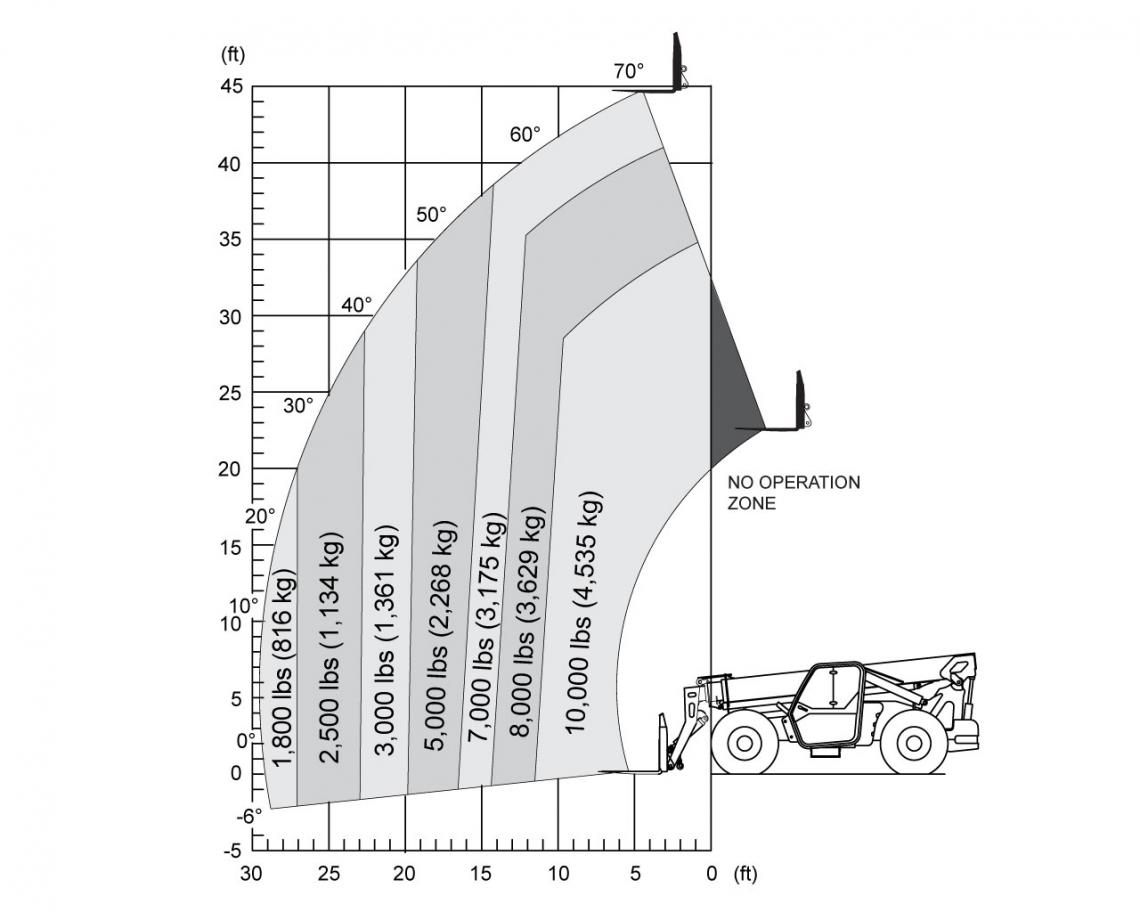

| Maximum Lift Capacity | 10,000 lbs (4,535 kg) | |
| Maximum Lift Height | 44’ 3” (13.49 m) | |
| Maximum Forward Reach | 29’ 4” (8.94 m) | |
| Rated Lift Capacity @ Maximum Height | 7,000 lbs (3,175 kg) | |
| Rated Lift Capacity @ Maximum Reach | 1,800 lbs (816 kg) | |
| O/A Length – Less Forks | 21’ 2” (6.45 m) | |
| Overall Height – Stowed | 8’ 1” (2.47 m) | |
| Operating Weight | 28,226 lbs (12,803 kg) | |
| Engine | 74hp / 287 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 20,000 lbs |
Models and Specifications
Overview
Overall Specifications
| SJ1044 TH | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.3 cm) | |
| Turning Radius (Outside) | 147” (3.73 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 10,000 lbs (4,535 kg) | |
| Maximum Lift Height | 44’ 3” (13.49 m) | |
| Maximum Forward Reach | 29’ 4” (8.94 m) | |
| Rated Lift Capacity @ Maximum Height | 7,000 lbs (3,175 kg) | |
| Rated Lift Capacity @ Maximum Reach | 1,800 lbs (816 kg) | |
| O/A Length – Less Forks | 21’ 2” (6.45 m) | |
| Overall Height – Stowed | 8’ 1” (2.47 m) | |
| Operating Weight | 28,226 lbs (12,803 kg) | |
| Engine | 74hp / 287 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 20,000 lbs |
