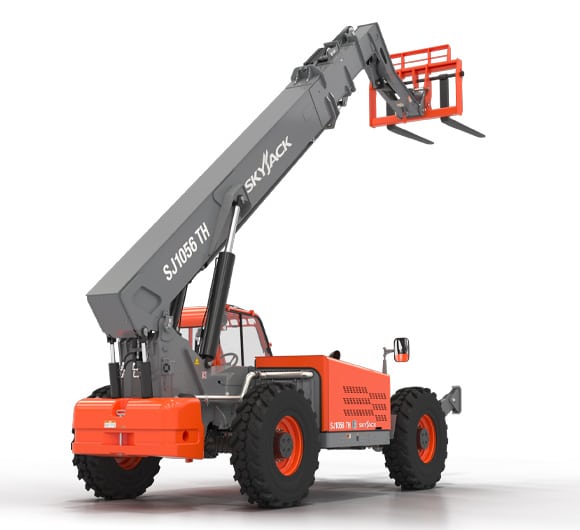

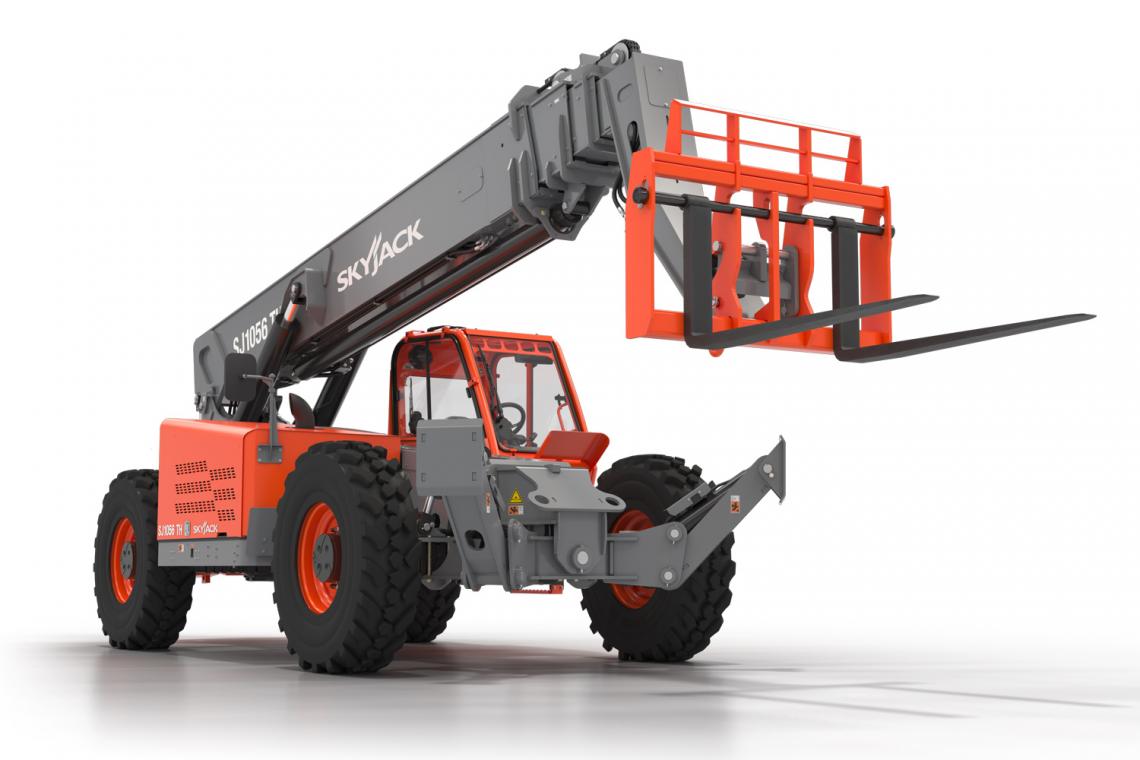

SJ1056 TH
New Equipment / Aerial Lifts / SJ1056 TH
SJ1056 TH
Location:
Unit:
Price: Contact for price
Easily Serviceable
Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s TH series offer the rental industry’s best life cycle value.
- Backup sensor and camera
- Closed cab
- 107HP / 320 LB-FT Deutz TCD 3.6L T4F (includes DEF/SCR system)
- Fork options
- Reserve break system
- Air conditioning (closed cab only)
- Positive air shut-off valve
- Four wheel fenders
- Extended warranties
- Non destructive testing
- Elevate
- Premium joystick
- Service convenience package
- Rotating beacon
- Attachments
- Boom light package
- Cold weather package
- Road light package
- Pintle hitch (in lieu of standard hitch pin)
- Carriage options
- Work light package
- Backup sensor
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Overall Specifications
| SJ1056 TH | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.3 cm) | |
| Turning Radius (Outside) | 153” (3.89 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 10,000 lbs (4,535 kg) | |
| Maximum Lift Height | 56’ 3” (17.14 m) | |
| Maximum Forward Reach | 42’ 6” (12.85 m) | |

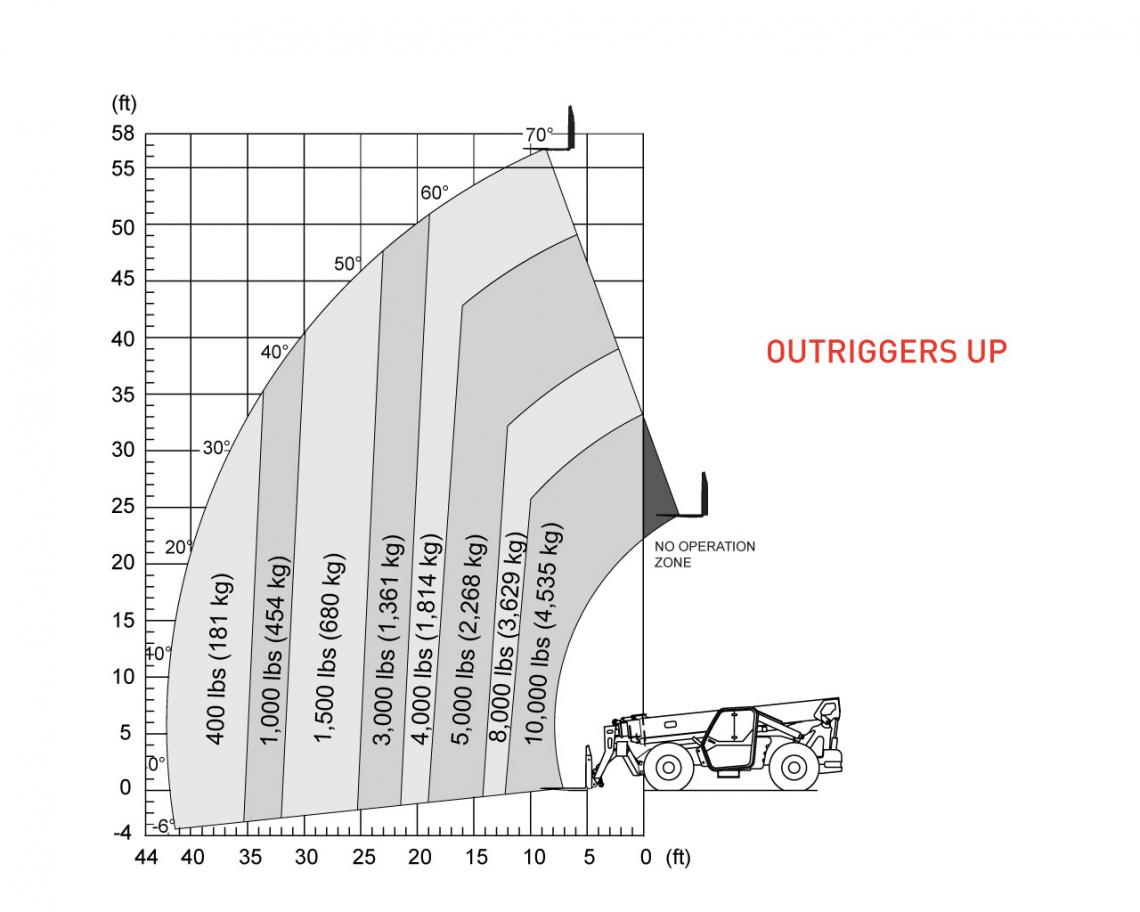

| Rated Lift Capacity @ Maximum Height | 4,000 lbs (1,814 kg) | |
| Rated Lift Capacity @ Maximum Reach | 400 lbs (181 kg) | |

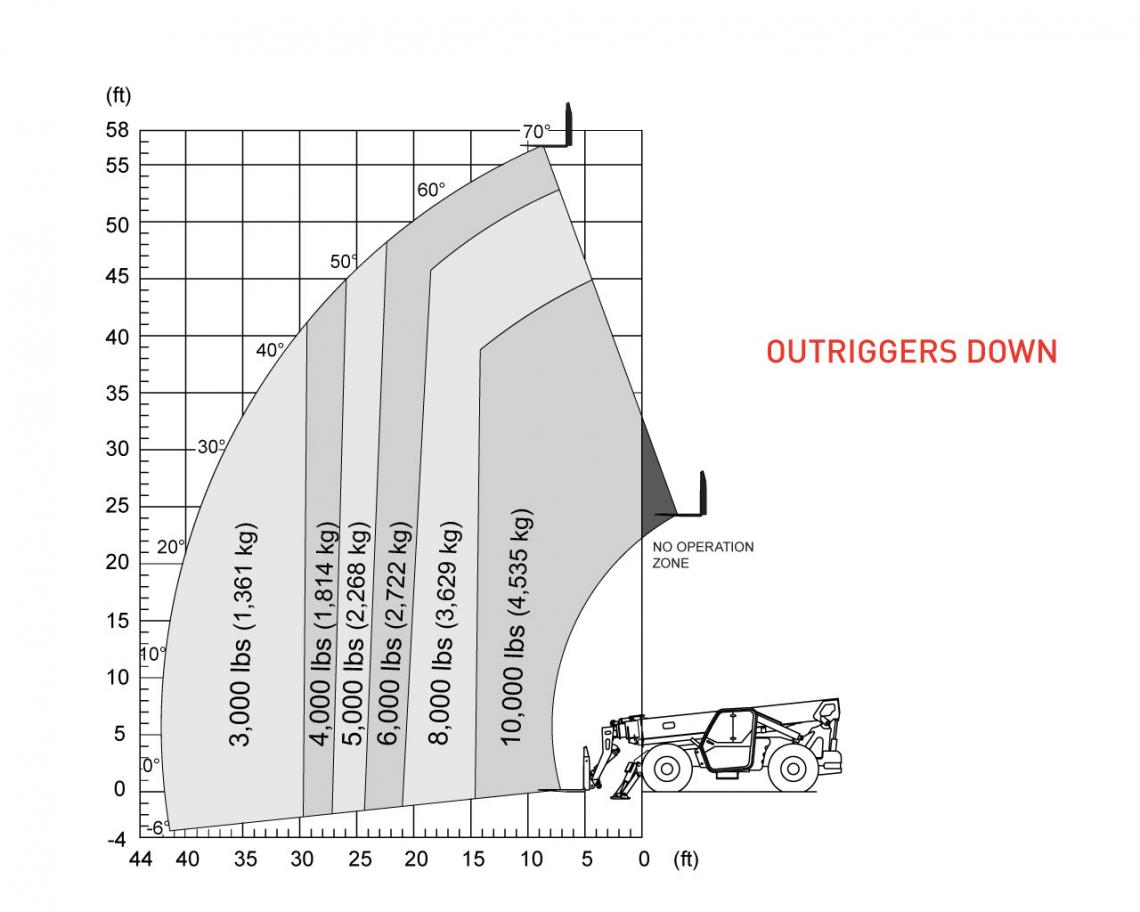

| Rated Lift Capacity @ Maximum Height (on outriggers) | 6,000 lbs (2,722 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 3,000 lbs (1,361 kg) | |
| O/A Length – Less Forks | 22’ 2” (6.75 m) | |
| Overall Height – Stowed | 8’ 1” (2.47 m) | |
| Operating Weight | 33,336 lbs (15,121 kg) | |
| Engine | 74hp / 287 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 20,000 lbs |
Models and Specifications
Overview
Overall Specifications
| SJ1056 TH | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.3 cm) | |
| Turning Radius (Outside) | 153” (3.89 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 10,000 lbs (4,535 kg) | |
| Maximum Lift Height | 56’ 3” (17.14 m) | |
| Maximum Forward Reach | 42’ 6” (12.85 m) | |
| Rated Lift Capacity @ Maximum Height | 4,000 lbs (1,814 kg) | |
| Rated Lift Capacity @ Maximum Reach | 400 lbs (181 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 6,000 lbs (2,722 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 3,000 lbs (1,361 kg) | |
| O/A Length – Less Forks | 22’ 2” (6.75 m) | |
| Overall Height – Stowed | 8’ 1” (2.47 m) | |
| Operating Weight | 33,336 lbs (15,121 kg) | |
| Engine | 74hp / 287 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 20,000 lbs |
