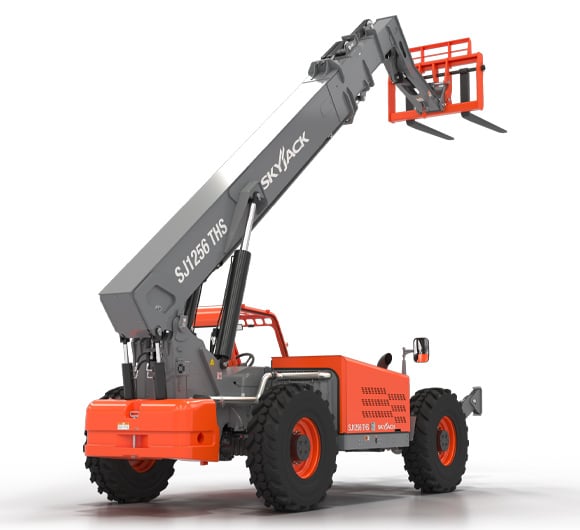

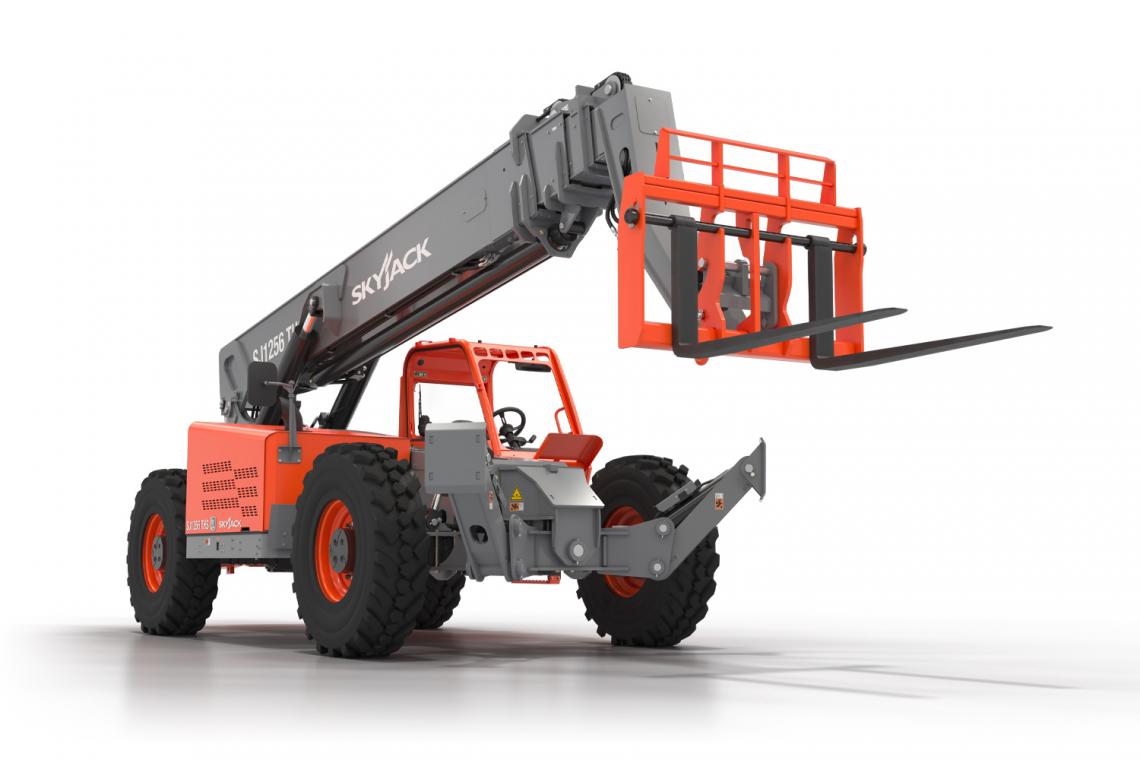

SJ1256 THS
New Equipment / Aerial Lifts / SJ1256 THS
SJ1256 THS
Location:
Unit:
Price: Contact for price
Easily Serviceable
Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s TH series offer the rental industry’s best life cycle value.
- Service Convenience Package
- Positive air shut-off valve
- Extended warranties
- Air conditioning (closed cab only)
- Road light package
- Four wheel fenders
- Reserve break system
- Non destructive testing
- Backup sensor
- Rotating beacon
- Cold weather package
- Fork options
- Carriage options
- Premium joystick
- Closed cab
- Boom light package
- Pintle hitch (in lieu of standard hitch pin)
- Attachments
- Work light package
- Elevate
- Backup sensor and camera
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
Overall Specifications
| SJ1256 THS | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.26 cm) | |
| Turning Radius (Outside) | 173” (4.39 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 12,000 lbs (5,443 kg) | |
| Maximum Lift Height | 56’ 3” (17.14 m) | |
| Maximum Forward Reach | 42’ 4” (12.90 m) | |
| Rated Lift Capacity @ Maximum Height | 6,000 lbs (2,722 kg) | |
| Rated Lift Capacity @ Maximum Reach | 1,000 lbs (454 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 7,000 lbs (3,175 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 3,500 lbs (1,588 kg) | |
| O/A Length – Less Forks | 23’ 1” (7.03 m) | |
| Overall Height – Stowed | 8’ 6” (2.59 m) | |
| Operating Weight | 36,625 lbs (16,613 kg) | |
| Engine | 107hp / 320 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 22,500 lbs |
Models and Specifications
Overview
Overall Specifications
| SJ1256 THS | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.26 cm) | |
| Turning Radius (Outside) | 173” (4.39 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 12,000 lbs (5,443 kg) | |
| Maximum Lift Height | 56’ 3” (17.14 m) | |
| Maximum Forward Reach | 42’ 4” (12.90 m) | |
| Rated Lift Capacity @ Maximum Height | 6,000 lbs (2,722 kg) | |
| Rated Lift Capacity @ Maximum Reach | 1,000 lbs (454 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 7,000 lbs (3,175 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 3,500 lbs (1,588 kg) | |
| O/A Length – Less Forks | 23’ 1” (7.03 m) | |
| Overall Height – Stowed | 8’ 6” (2.59 m) | |
| Operating Weight | 36,625 lbs (16,613 kg) | |
| Engine | 107hp / 320 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 22,500 lbs |
