ZB2044
New Equipment / Aerial Lifts / ZB2044
ZB2044
Location:
Unit:
Price: Contact for price
Easily Serviceable

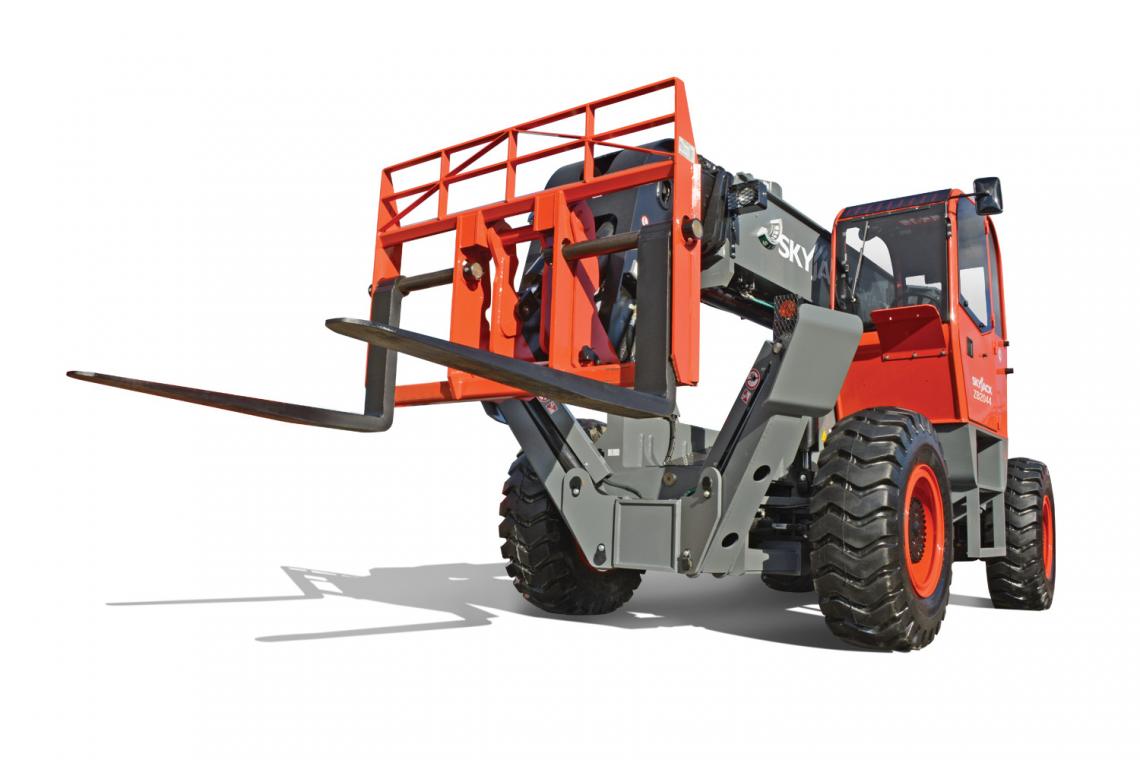

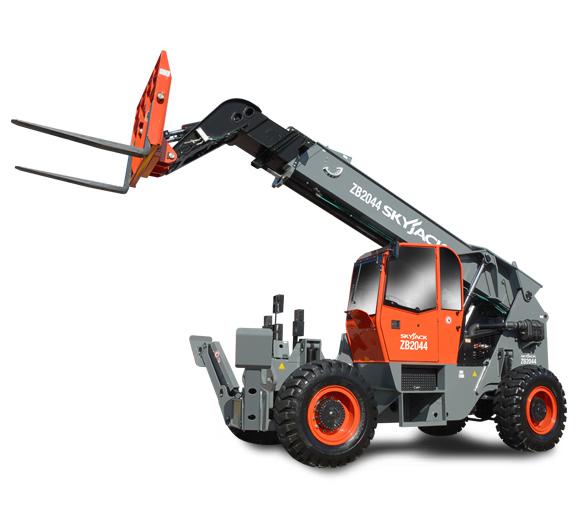

In a class of its own, Skyjack’s ZB2044 is best described as robust, rugged, and reliable. The ZB2044 offers exceptional maneuverability making it the perfect jobsite substitute for heavy cranes and handlers. Similar to Skyjack’s TH Series, the ZB2044 offers proprietary features as well as the industry’s best life cycle value.
- Non destructive testing
- Air conditioning (closed cab only)
- Extended warranties
- Front and rear turn signals w/ flashers
- Closed cab
- Elevate
- Four wheel fenders
- Rotating beacon
- Carriage options
- Positive air shut-off valve
- Mine package
- Boom mounted operating lights
- Backup sensor and camera
- Lighting kit w/ guards – 2 front (white) / 2 rear (red)
- Extra operating light with guard
- Backup sensor
- Partially enclosed cab (adds front & top windows, wipers)
- Fork options
- Attachments
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
- Non destructive testing
- Air conditioning (closed cab only)
- Extended warranties
- Front and rear turn signals w/ flashers
- Closed cab
- Elevate
- Four wheel fenders
- Rotating beacon
- Carriage options
- Positive air shut-off valve
- Mine package
- Boom mounted operating lights
- Backup sensor and camera
- Lighting kit w/ guards – 2 front (white) / 2 rear (red)
- Extra operating light with guard
- Backup sensor
- Partially enclosed cab (adds front & top windows, wipers)
- Fork options
- Attachments
Overall Specifications
| ZB2044 | ||
|---|---|---|
| Overall Width | 8’ 6” (2.59 m) | |
| Ground Clearance | 18” (46 cm) | |
| Turning Radius (Outside) | 18’ 4” (5.59 m) | |
| Capacity | 20,000 lbs (9,072 kg) | |
| Fuel Tank | 48 gallon (185 L) | |
| Hydraulic Reservoir | 55 gallon (208 L) | |
| Maximum Lift Capacity | 20,000 lbs (9,072 kg) | |
| Maximum Lift Height | 44’ 10” (13.67 m) | |
| Maximum Forward Reach | 27’ 5” (8.36 m) | |
| Rated Lift Capacity @ Maximum Height | 10,000 lbs (4,536 kg) | |
| Rated Lift Capacity @ Maximum Reach | 4,000 lbs (1,814 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 12,000 lbs (5,443 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 7,000 lbs (3,175 kg) | |
| O/A Length – Less Forks | 20′ 3″ (6.17m) | |
| Overall Height – Stowed | 9’ (2.74 m) | |
| Operating Weight | 45,000 lbs (20,412 kg) | |
| Engine | 168hp Cummins QSB 4.5C T4F | |
| Max Travel Speed – Forward | 20.5 mph (33 kmh) | |
| Transmission | Dana powershift, 3 speed F/R | |
| Axles | Axletech steerable outboard planetary | |
| Service Brakes | 4 wheel disc | |
| Parking Brakes | Pinion mounted dry disc on front axle | |
| Steering | 3 mode (2 wheel, 4 wheel, crab) | |
| Tires | 17.5 x 25 16PR grip lug |
Models and Specifications
Overview
Overall Specifications
| ZB2044 | ||
|---|---|---|
| Overall Width | 8’ 6” (2.59 m) | |
| Ground Clearance | 18” (46 cm) | |
| Turning Radius (Outside) | 18’ 4” (5.59 m) | |
| Capacity | 20,000 lbs (9,072 kg) | |
| Fuel Tank | 48 gallon (185 L) | |
| Hydraulic Reservoir | 55 gallon (208 L) | |
| Maximum Lift Capacity | 20,000 lbs (9,072 kg) | |
| Maximum Lift Height | 44’ 10” (13.67 m) | |
| Maximum Forward Reach | 27’ 5” (8.36 m) | |
| Rated Lift Capacity @ Maximum Height | 10,000 lbs (4,536 kg) | |
| Rated Lift Capacity @ Maximum Reach | 4,000 lbs (1,814 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 12,000 lbs (5,443 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 7,000 lbs (3,175 kg) | |
| O/A Length – Less Forks | 20′ 3″ (6.17m) | |
| Overall Height – Stowed | 9’ (2.74 m) | |
| Operating Weight | 45,000 lbs (20,412 kg) | |
| Engine | 168hp Cummins QSB 4.5C T4F | |
| Max Travel Speed – Forward | 20.5 mph (33 kmh) | |
| Transmission | Dana powershift, 3 speed F/R | |
| Axles | Axletech steerable outboard planetary | |
| Service Brakes | 4 wheel disc | |
| Parking Brakes | Pinion mounted dry disc on front axle | |
| Steering | 3 mode (2 wheel, 4 wheel, crab) | |
| Tires | 17.5 x 25 16PR grip lug |
